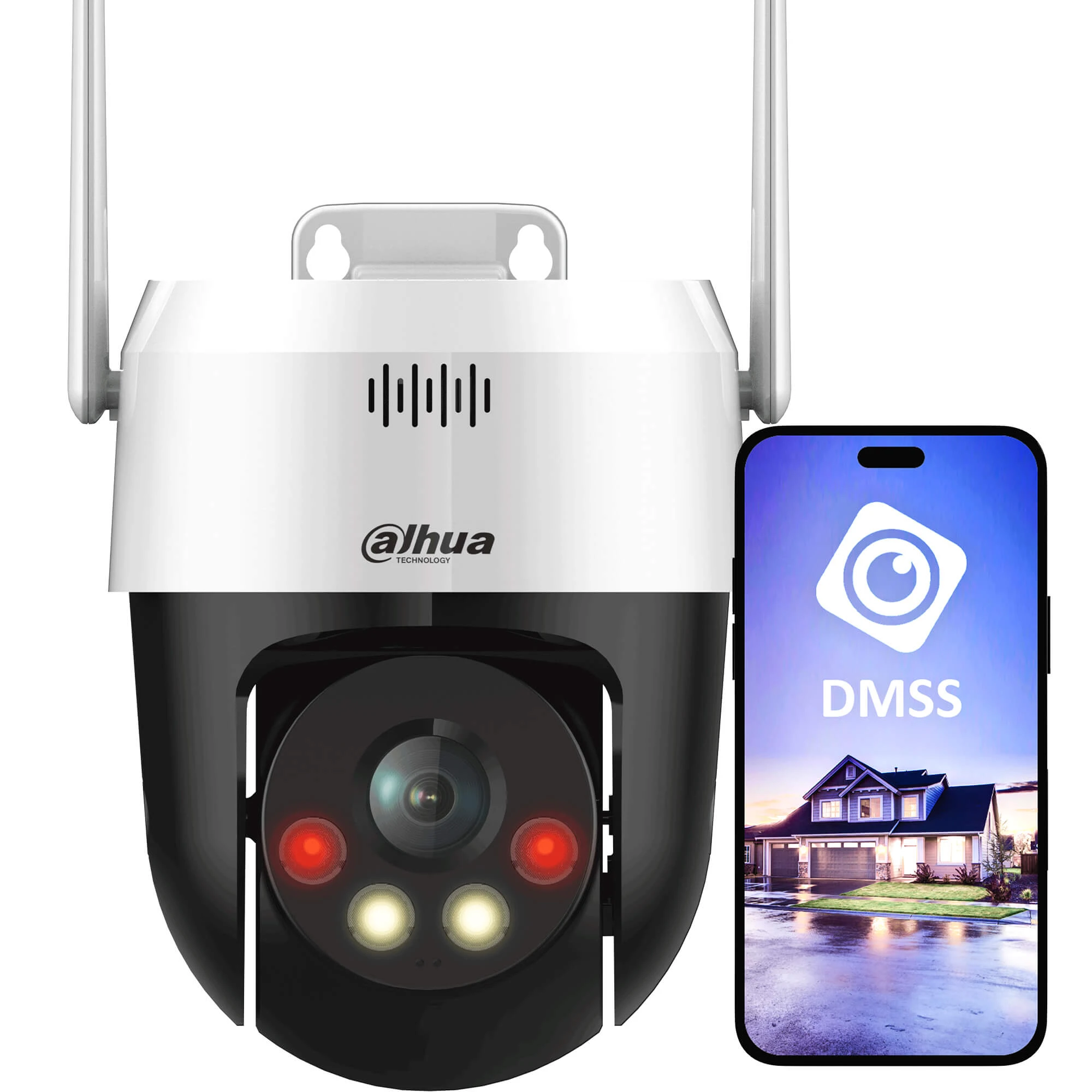

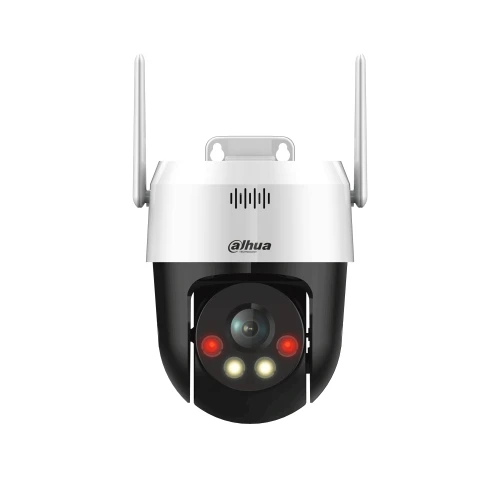

Dahua PICOO P5AE-PV 5Mpx Smart Dual Light WiFi Rotating Camera, Active Deterrence

Also included with the P5AE-PV camera are useful instructions and mounting accessories to speed up the entire camera mounting process. Kit contents:

• Tube camera - P5AE-PV
• Documentation - User manual, warranty card, adjustments
• Template - A small-sized template with mounting holes for the camera
• Screws and mounting studs - Everything you need to mount the camera

Dahua products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Main features:

• Sensor: 1/2.8" CMOS
• Resolution: 5 MP
• Lens: 4.0 mm
• Viewing angle: H: 86.8°; V: 47.1°; D: 102.2°
• IR illuminator: Yes, range up to 30m
• White light illuminator: Yes, range up to 30m
• Built-in microphone: Yes
• Built-in speaker: Yes
• Built-in SD slot: Yes, card up to 256GB
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO),
  WEB browser, mobile applications
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Sample smart functions: human/vehicle object classification
• Active deterrence: yes
• Smart Dual Light: Yes, dual illuminator
• Protection class: IP67
• Power supply: 12V DC

Round-the-clockvigilance

The Dahua P5AE-PV's proactive deterrence features, such as lights that turn on or beeps, is designed to instantly deter potential intruders from committing a burglary or act of vandalism. This proactive security method not only enhances the effectiveness of monitoring through real-time deterrence, but can also help quickly notify owners or security services of a potential threat before an incident occurs.


Omnidirectional monitoring without blind spots

A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of the image. With these functions, the PICOO P5AE-PV camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.


Smart DualLight

DualLight white-light illumination on the Dahua Picoo P5AE-PV camera produces clear images both day and night, making surveillance possible even in low-light conditions. In addition, DualLight technology minimizes the effect of illuminating only the central part of the frame by providing even illumination. This translates into high image quality and easier identification of objects.

High-quality image

A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The Dahua PICOO P5AE-PV records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in the P5AE-PV is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Two-waycommunication The two-way communication feature of the Dahua Picoo P5AE-PV allows you to not only observe, but also actively interact with people within the camera's range, which can be useful for monitoring and managing real-time situations. This two-way communication capability allows you to quickly respond to incidents, ensure security and communicate effectively in a variety of scenarios, such as managing facilities, monitoring children or conducting interactions with employees.

IP67 weatherproof design This housing protects the P5AE-PV from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

P2P function

In the P5AE-PV is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Versatile to the Limit

The Dahua Picoo P5AE-PV camera's ONVIF protocol support enables easy integration with other devices and surveillance systems for flexibility and compatibility in a variety of surveillance environments. With ONVIF, users can easily manage the camera's settings, including remote viewing and control, enhancing user convenience.

Remote access from phone and desktop computer Dahua systems allow you to configure, control and view using the DMSS application, which will provide you with constant access to monitoring from anywhere on earth with internet access. DMSS allows you to: Access video preview and play back recorded footage Save portions of the video to your smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

Efficient storage

H.265 encoding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems. The main features of H.265 coding in surveillance DVRs are:

• H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This makes it possible to save disk space and increase the storage time of recordings.
• More efficient compression allows to reduce the load on the processor, which translates into lower power consumption in monitoring devices.

Automatic day/night mode Adapted to work in all lighting conditions, the P5AE-PV with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Audiovisual recording on a memory card

The

P5AE-PV 's microSD card support allows recorded data to be stored locally without the need for a continuous connection to an external storage system, ensuring independence and reliability in the event of loss of internet connection. In addition, it allows easy access to stored recordings, making it easy to analyze events and archive key footage.

Wide Dynamic Range - That is, high quality in difficult conditions

The P5AE-PV 's Wide Dynamic Range (WDR) function is a technology that improves image quality in difficult lighting conditions, especially when there are simultaneously very bright and very dark areas in the camera's field of view. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

Technical specifications:

Camera	Dahua P4AE-PV
Image sensor	1/2.8" CMOS
Resolution of the sensor	5MP
Image resolution	2560 (H) × 1920(V)
Shutter speed	1 s-1/100,000 s
Number of illuminators	2 (infrared light); 2 (warm light)
Lens
Focal length	4.0mm
Aperture	F1.6
Viewing angle	Horizontal: 80.4°; Vertical: 58.1°; Diagonal: 104.8°
Minimum focusing distance	0.3m
PTZ
Range of motion	Rotation: 0° - 345° Tilt: 0° - 80°
Preset	300
Events
IVS	Line crossing, Intrusion, Related tracking
Human detection	Yes
SMD	SMD3.0
Active protection
Light signals	White light warning: Flash duration: 5s - 30s Flash frequency: high, medium, low
Acoustic signals	1 Audible signal (10 custom sounds to import) Signal intensity: 0% - 100% Signal duration: 1 - 10
Video
Video compression	Smart H.265+;H.265;Smart H.264+;H.264B; H.264M; H.264H;MJPEG(Sub Stream 1)
Resolution	5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Recording speed	Main stream: 5M/4M/3M/1080p/1.3M/720p@ (1-25/30 fps) Substream 1: D1/VGA/CIF@(1-25/30 fps)
Video bitrate	H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps
Day/Night	Auto (ICR); Color/B/W
WDR	Digital WDR
Image orientation	0°, 180°
Audio
Audio compression	PCM; G.711a; G.711Mu; G.726;
Network
Network port	RJ-45 (10/100 Base-T)
Wi-Fi standard	IEEE802.11b;IEEE802.11g;IEEE802.11n
Wi-Fi bandwidth	2.4 GHz
Storage of recordings	MicroSD card support (maximum capacity 256GB)
WEB Server (browser-based support)	Yes
Management software	Smart PSS; DMSS; Player; ConfigTool; NVR; Smart Player
Mobile client	iOS, Android
Certifications	CE
Power supply
Power supply	12 VDC, 1 A ± 10% (included)
Environmental conditions
Ambient temperature	-30 °C to +55 °C (-22 °F to +131 °F)
Air humidity	≤95%
Enclosure
Dimensions	140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
Net weight	0.5 kg (1.10 lb)
Gross weight	1 kg (2.20 lb)
