Aqara Dual Relay Module T2 | Dual Relay | Zigbee, Apple HomeKit, Matter, Google Home, Alexa, DCM-K01

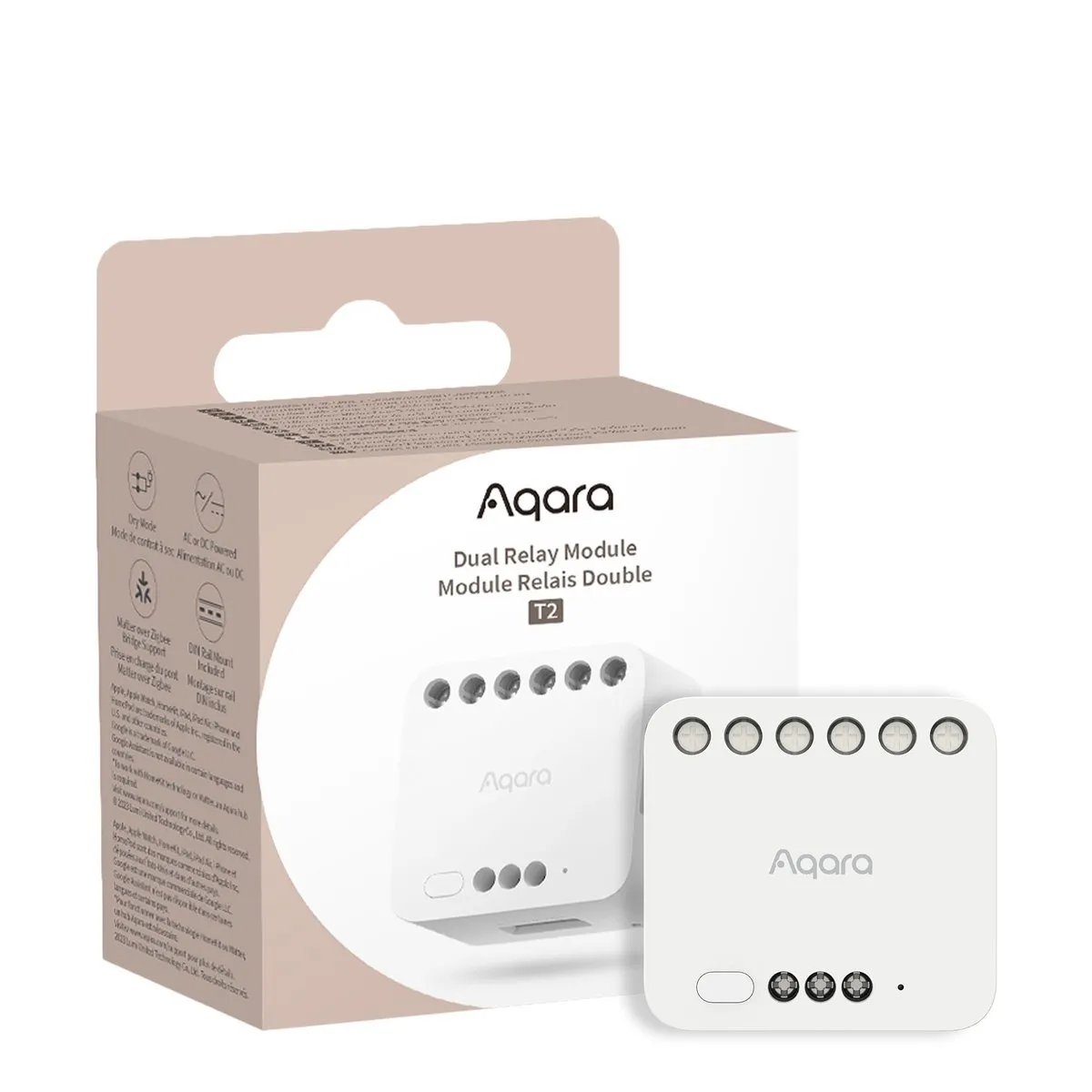

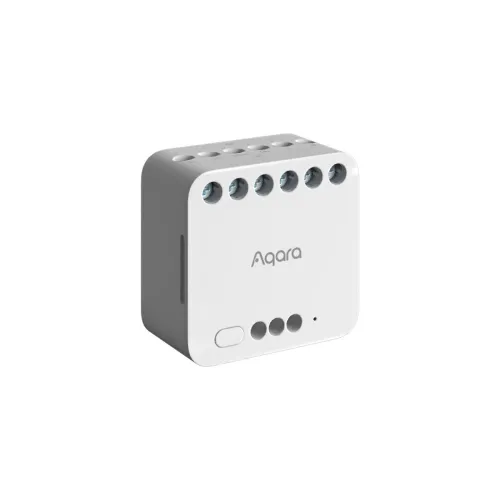

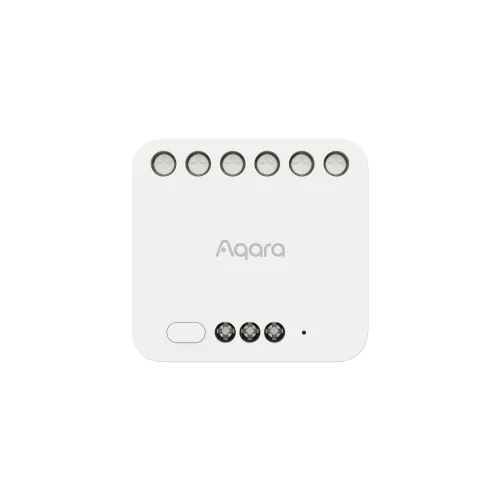

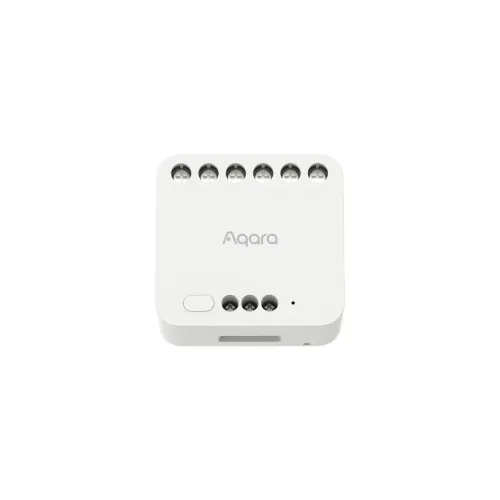

Aqara Dual Relay Module T2 - intelligent dual relay

Aqara Dual Relay Module T2 is a smart dual relay that allows you to remotely control devices such as motors for curtains and blinds, garage doors, awnings, gates, electric sliding doors, pool covers and more. It is ideal for those who want to upgrade their traditional equipment and make it smart. The module is based on the Zigbee protocol, which provides stable and secure wireless communication. It can work with other Aqara devices and support the HomeKit and Matter ecosystems via the Aqara Bridge.

Key features of the Aqara Dual Relay Module T2

Expanded compatibility

When connected to the Aqara hub, the Dual Relay Module T2 offers compatibility with various platforms, including HomeKit, Alexa, Google Home, IFTTT and Matter. It allows traditional devices to become smart and seamlessly integrates them with many third-party systems. Forget the limitations of different protocols and platforms and enjoy a seamless and harmonious smart home experience.

Unleash the potential of your existing devices

The T2 controller supports two modes of operation: potential-free contact and powered contact. In potential-free contact mode, you can select an open and close pulse signal or an on and off signal to control motors, garage doors, roller doors and other devices. In power-option contact mode, intelligent lighting control can be easily implemented without replacing the original equipment. When the red jumper is disconnected, T 2 can be switched between modes, allowing integration with different types of equipment.

Interlock and motor control

Using Interlock mode, the Aqara T2 allows users to easily and safely connect it to bidirectional motors. Now it can effectively control motors, work as a roller shutter switch and be a central part of a water leakage protection system.

Conversion to wireless switch mode

Conversion to wireless switch mode is also supported. With this function, an existing wall switch can be converted into a scene controller: arm or disarm the security system, control curtains or lights with an old wired switch.

Enhanced safety and security

T2 supports overheating and overload protection, which can eliminate high current shock when electrical equipment is immediately turned on, thus ensuring the reliability and longevity of the equipment. When the equipment temperature is abnormal or the power exceeds 2,500 watts, the device automatically shuts down to ensure electrical safety.

Easy to use and install

The DIN-rail mounting design makes it easy to place the relay in electrical cabinets and other tight spaces. Its compact size makes it even more suitable for a variety of wall boxes, including 86mm and standard American boxes.

Technical specifications:
