WiFi Monitor for Cameras, Video Door Phones, and EZVIZ SD7 Systems

Control Panel for EZVIZ Systems - SD7 Monitor

SD7 offers simple, intuitive operation for those with an EZVIZ home security system. This sleek, responsive touchscreen monitor organizes various security devices into a single, cohesive dashboard. The SD7 allows access to view device status and video images and change device settings on one large screen. Its compact design fits into any modern home and its wireless, versatile configuration makes installation a breeze.

Features of the SD7 monitor:

• 7-inch IPS touchscreen
• Smart integration with EZVIZ devices
• 4600 mAh lithium battery (USB-C charging connector)
• Live viewing and playback of recordings
• Remote control via the EZVIZ app
• Two-way conversation
• 2.4GHz wifi
• Easy installation

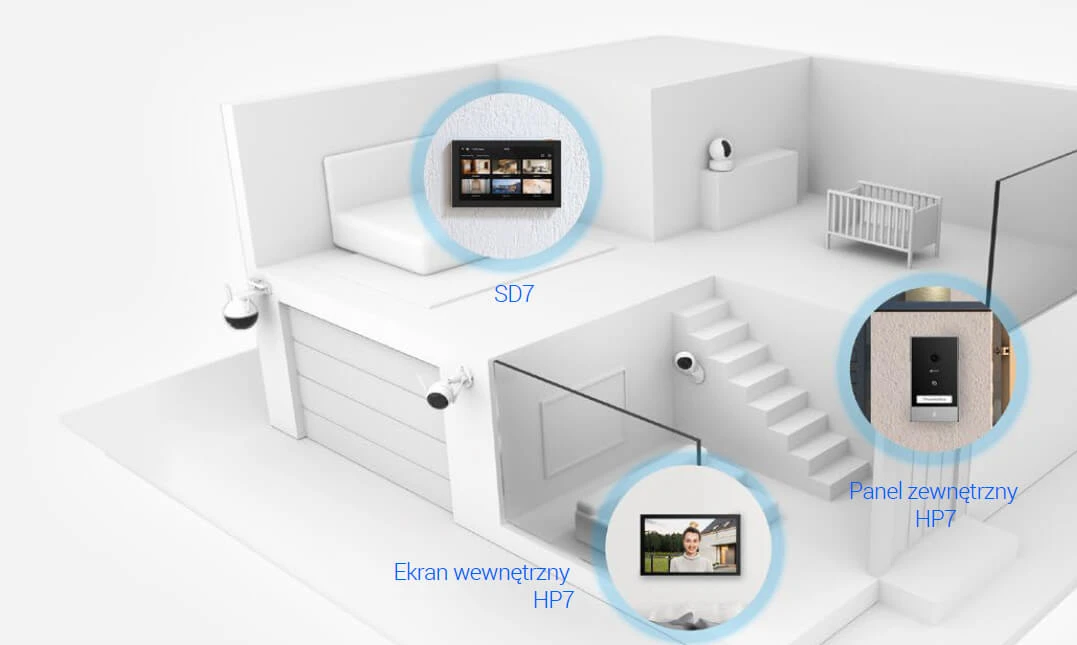

A helpful addition to EZVIZ video doorbells If you live in a large house, SD7 can help extend the communication of existing systems with EZVIZ video doorbells. With SD7 in various rooms such as the bedroom or kitchen, you don't have to rush to the door to welcome a visitor - just tap SD7 to see who's at the door and let them in.

Simple installation, easy charging

The battery-powered SD7 frees you from cumbersome wiring and complicated installation.

• Simple installation, easy charging
• Rechargeable battery with 4600 mAh capacity

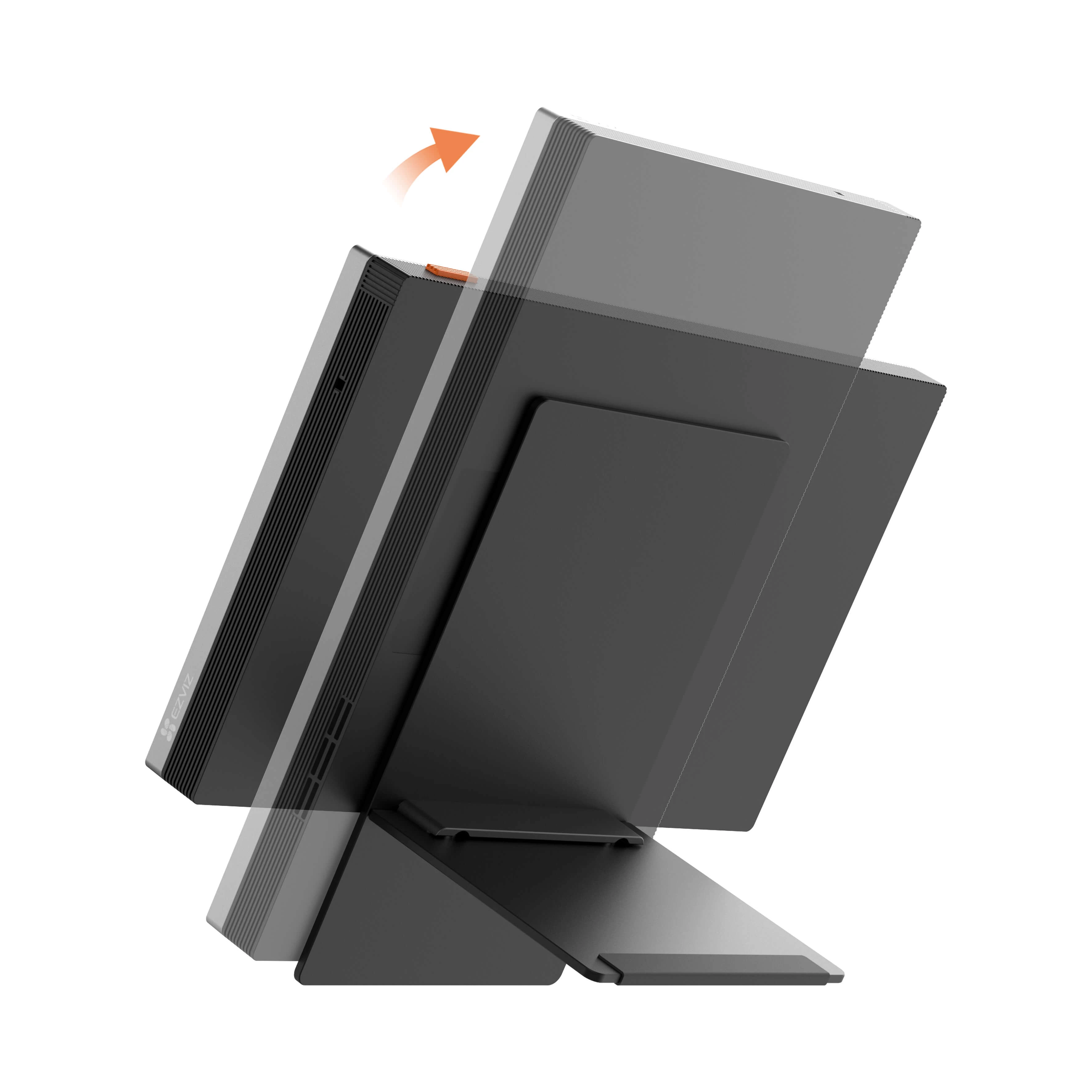

Flexible placement at a convenient location

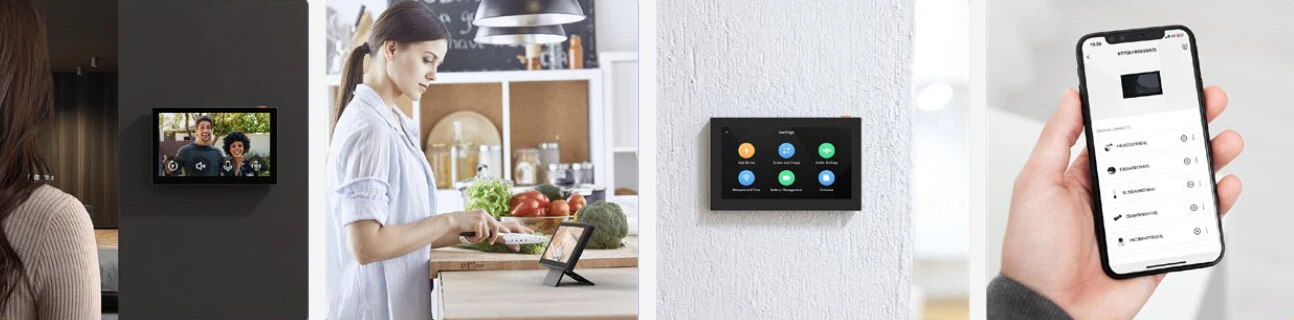

Place the SD7 in a central location in your home so anyone can approach it for a security check.

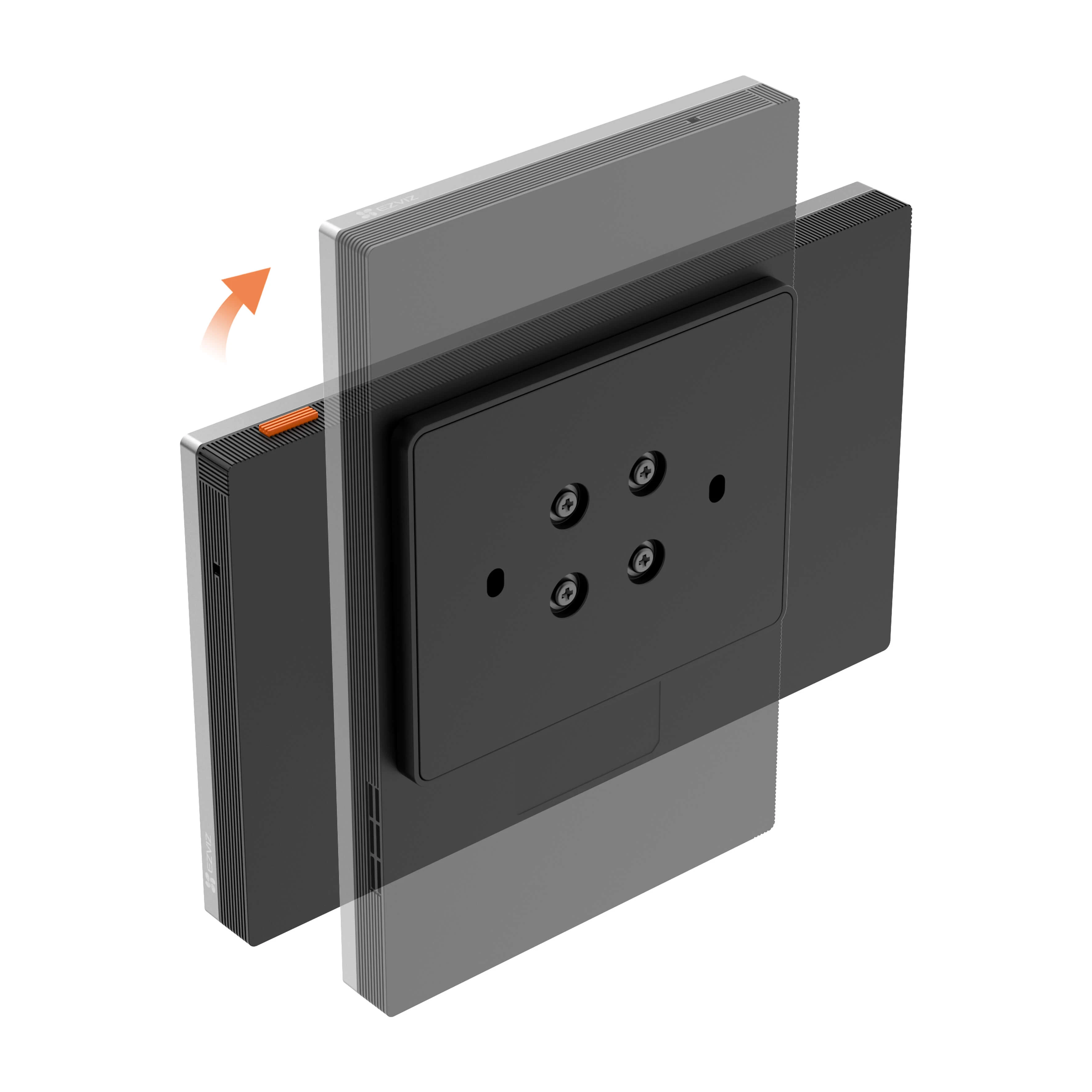

• Mounted on the wall

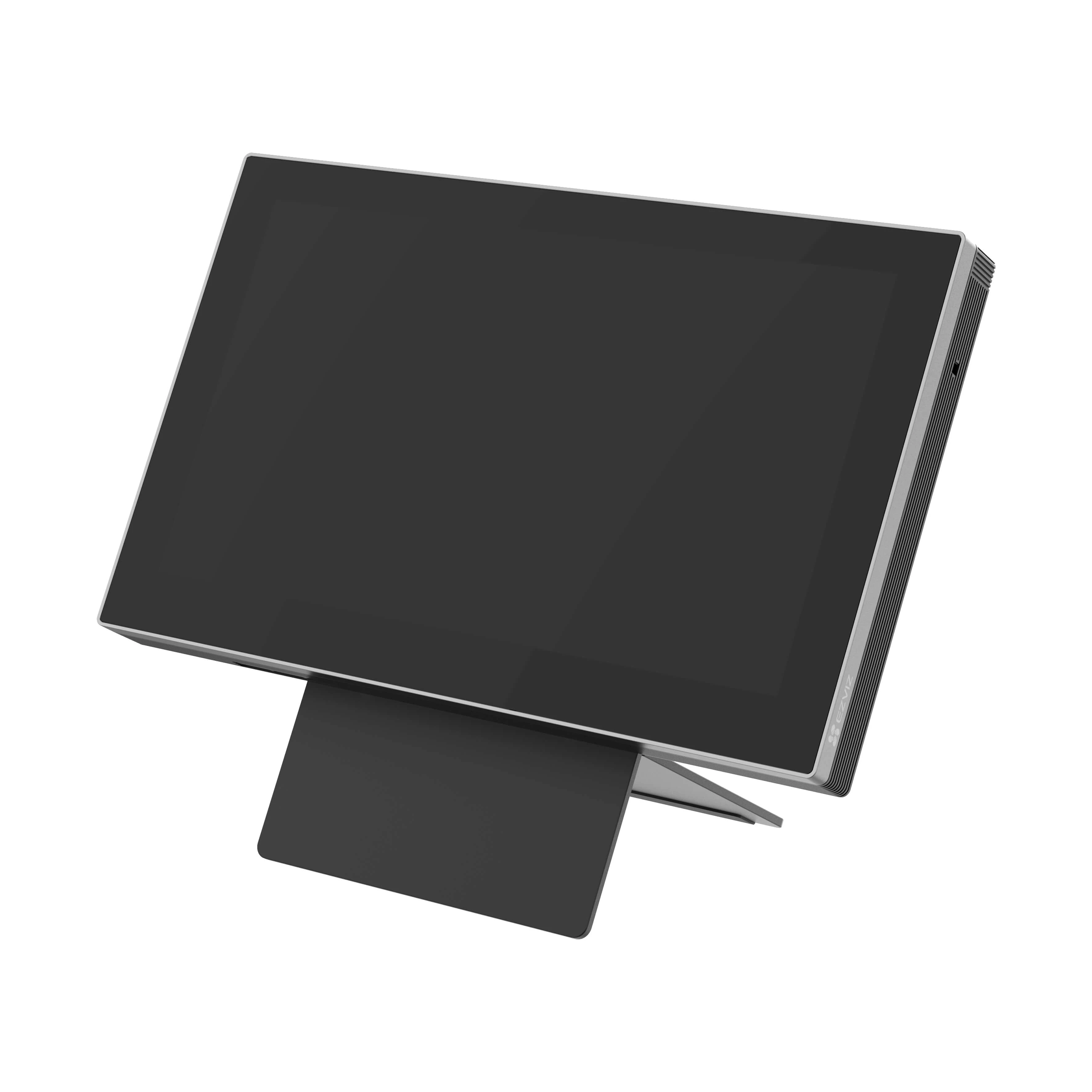

• With desk stand
• Portable

Security System Control Center

For those who need a control center to fully visualize the operation of EZVIZ home security devices - this is what SD7 was created for. It keeps all devices well organized in one place with flexible settings and allows you to see what's going on in different corners of your property with one quick glance.

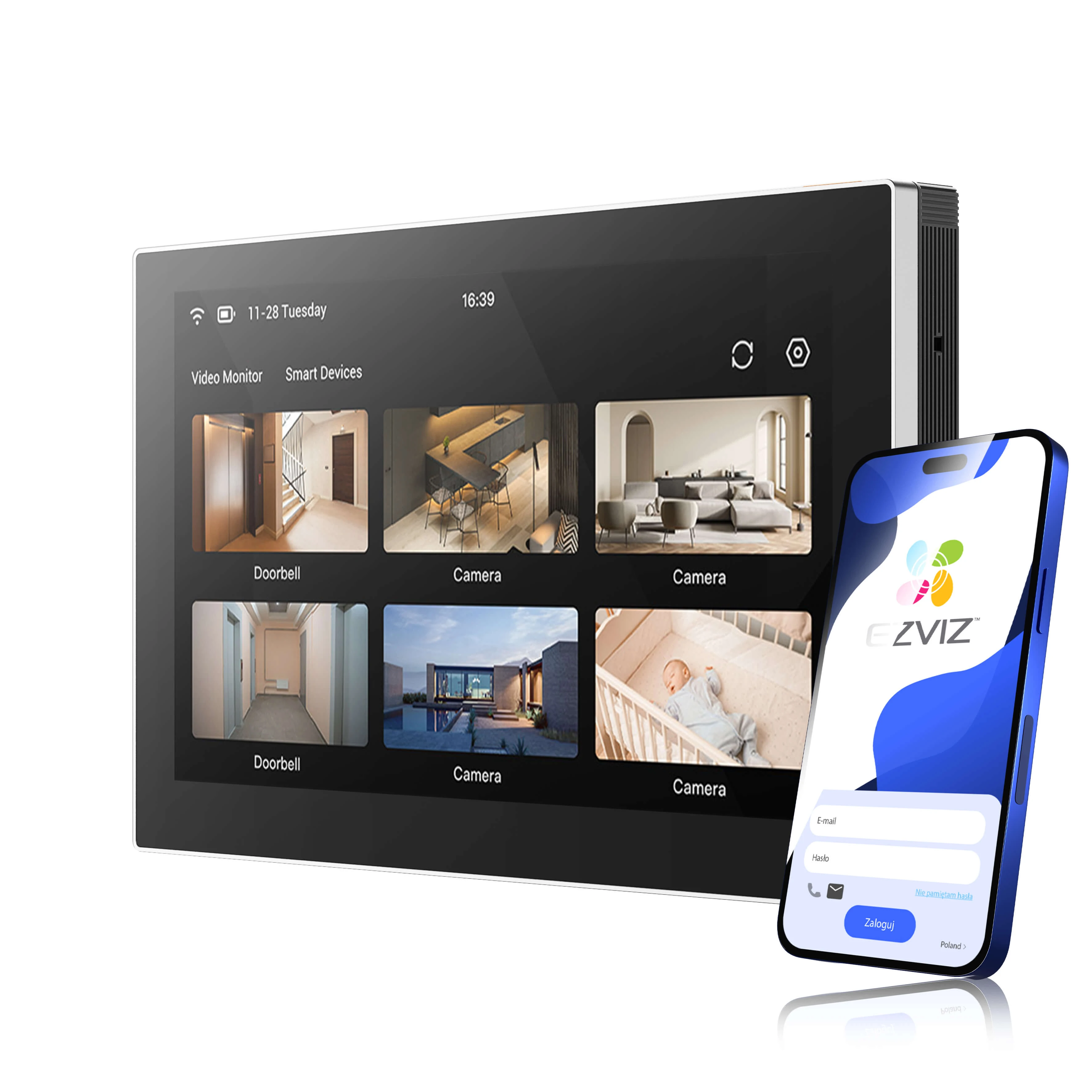

All-in-one monitor for seamless interaction

Accessing, controlling and managing EZVIZ security devices is now easier than ever. The SD7 is designed to provide seamless operation and ease of use for all family members, so everyone can enjoy the convenience of operating a smart home system.

• Live viewing and video playback
• Two-way conversation
• Configurable settings
• Additional remote control via the EZVIZ app

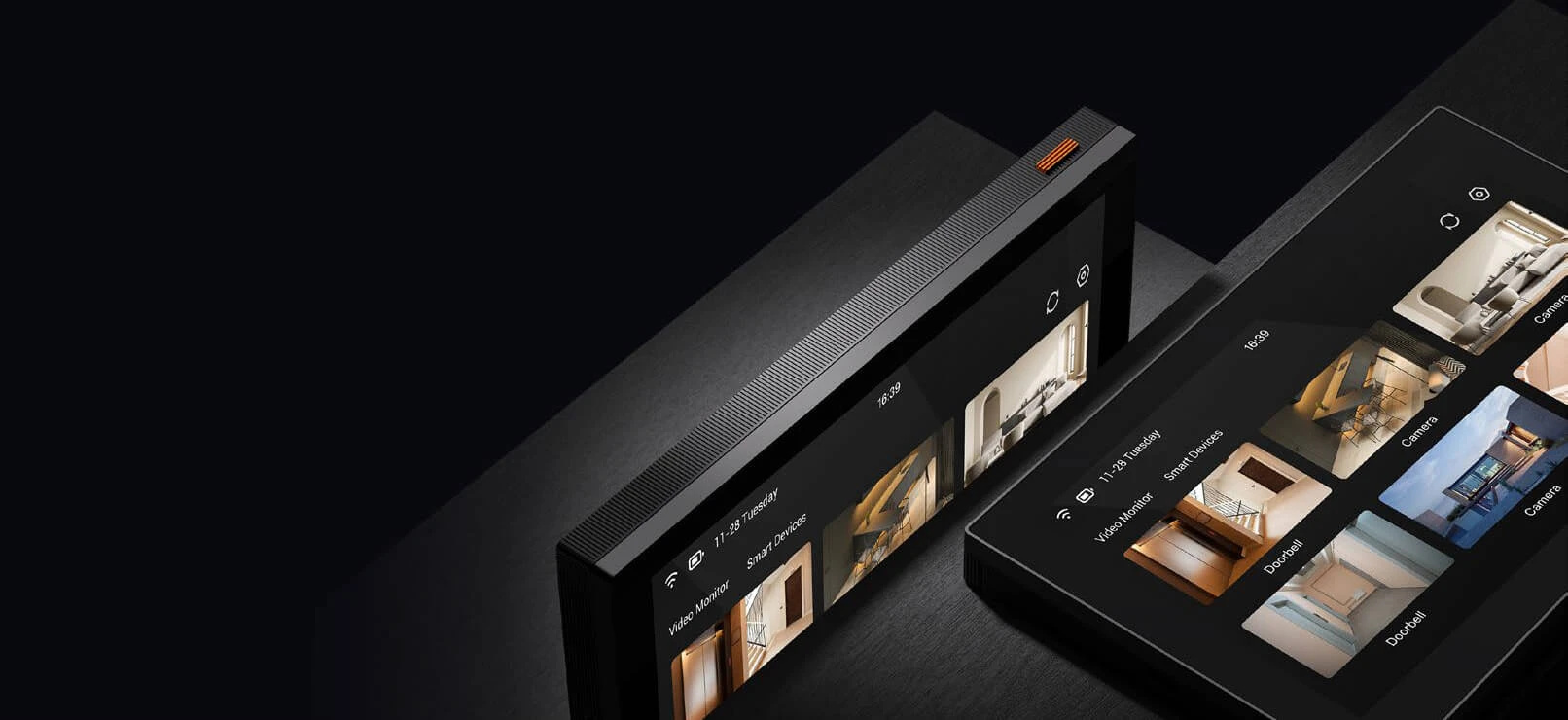

Refresh your home with smart style

SD7 has a sophisticated, minimalist design while using a simple, uniform glossy black on the device's casing. Unlike traditional bulky home monitors, it blends seamlessly into home decor, meeting the needs of modern aesthetics.


Technical specifications:

Monitor	CS-SD7-R100-1WTC
Screen
Screen size	6.97 inches
Resolution	1024 x 600
Touch screen	Yes
Screen type	IPS
Battery
Battery capacity	4600 mAh
Interface
Audio input	Built-in high-sensitivity microphone
Audio output	Built-in high-powered speaker
Button	Yes
Connectivity
Maximum number of supported devices	Up to 30 EZVIZ devices (number will increase with future OTA updates)
Connected device	4K (playback supports a maximum of 5MP)
Protocol	Proprietary protocol of EZVIZ Cloud service
General function	Live view, video playback, cloud video encryption
Wireless parameters
Wireless standard	IEEE802.11b, 802.11g, 802.11n
Frequency range	2.4GHz ~ 2.4835 GHz
Security	64/128- bit WEP, WPA/WPA2, WPA- PSK/WPA2- PSK, WPS
Transmission speed	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General specifications
Operating temperature	0°C~40°C
Air humidity	Less than 95% (non-condensing)
Product size	180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)
