Wi-Fi Monitoring Kit 4x P5B-PV 5Mpx IR 30m Dahua

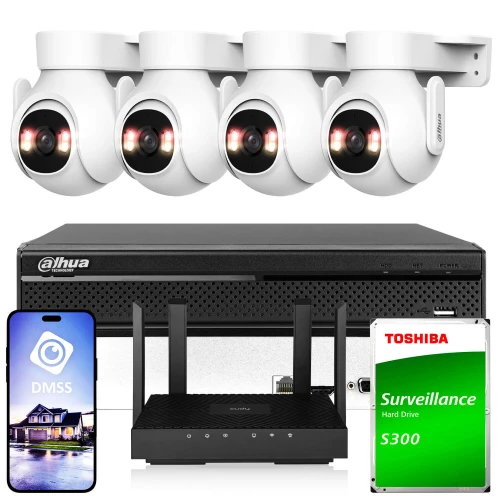

The image shows a comprehensive Wi-Fi surveillance system featuring four white dome cameras, a central recording unit, and a Toshiba surveillance hard drive. A smartphone displaying a security app interface is also included, highlighting remote monitoring capabilities.

A white, dome-shaped Dahua WiFi security camera with a rotating feature is mounted on a wall bracket. The image also shows a smartphone displaying the camera's live feed, highlighting its remote monitoring capability.

The image shows a Toshiba S300 Surveillance Hard Drive with a 6TB capacity, designed for monitoring applications. The drive features a green and white label with an eye icon, emphasizing its suitability for surveillance use.

Manufacturer
Dahua
Product Code

ZM32948
Warranty

24 miesiące

Technology: IP
Resolution: 5Mpx
Enclosure: Rotating
Number of cameras: 4
Connectivity: Wireless
Color: White

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

508,33 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Related products

Product Description

Kit contents:

4x 5Mpx WiFi camera - Dahua P5B-PV
1x Network video recorder NVR2104HS-4KS3
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
1x WR3000 router
"ATTENTION MONITORED OBJECT" sticker.

Main features of the set:

✅ Resolution: 5 megapixels (2880x1620).
✅ Lens: 3.6 mm
✅ Built-in WiFi: Yes, 2.4 GHz (IEEE 802.11b/g/n/ax compatibility)
✅ Infrared illuminator: Yes, 2 illuminators with up to 30m range
✅ White light illuminator: Yes, 2 illuminators with a range of up to 30 m
✅ Active deterrence: 2 flashing LEDs (white) and audible signal (alarm)
✅ Autotracking: yes
✅ Two-way audio communication: Yes
✅ Protection class: IP66
✅ Micro SD card slot: Yes, supports cards up to 256 GB

Remote access from phone and desktop computer

Dahua systems allow you to configure, control and view using DMSS and SmartPSS applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:

Access video previews and play back recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

High quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics in the Dahua P5B-PV deliver high-quality images with excellent sharpness. The device records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Focuses on what is important, reduces false alarms

The newly upgraded artificial intelligence in the Dahua P5B-PV can now recognize human and vehicle targets while filtering out irrelevant objects, eliminating the need to constantly check the camera throughout the day. It immediately notifies your phone if any activity occurs.

Regularly protects the places that are important to you

With the Dahua P5B-PV's custom preset points, the smart patrol can start at a predetermined point or follow a predetermined path at a predetermined time once the function is activated, fully ensuring the security of multiple locations.

360° monitoring with no blind spots

The electronic head of the Dahua P5B-PV camera can be controlled via the DMSS app, allowing it to pan and tilt and providing full monitoring of all corners.

Video and audio recording

The audio recording function of surveillance cameras allows you to record sounds along with video, which significantly increases the capabilities and efficiency of surveillance systems. The main advantages of such a solution are:

Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people.
Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event.
Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Active protection

The active deterrence feature of Dahua P5B-PV cameras, such as lights that turn on or beeps, is designed to immediately deter potential intruders from committing a burglary or act of vandalism. This proactive security method not only enhances the effectiveness of monitoring through real-time deterrence, but can also help quickly notify owners or security services of a potential threat before an incident occurs.

Main features P5B-PV :

✅ Resolution: 5 megapixels (2880x1620)
✅ Lens: 3.6mm
✅ Built-in WiFi: Yes, 2.4 GHz (IEEE 802.11b/g/n/ax compatibility)
✅ Infrared illuminator: Yes, 2 illuminators with up to 30m range
✅ White light illuminator: Yes, 2 illuminators with a range of up to 30 m
✅ Active deterrence: 2 flashing LEDs (white) and audible signal (alarm)
✅ Autotracking: yes
✅ Two-way audio communication: Yes
✅ Protection class: IP66
✅ Micro SD card slot: Yes, supports cards up to 256 GB

Main features NVR2104HS-4KS3:

✅ Standard: TCP/IP
✅ Maximum resolution: 12 Mpx (4000 x 3000 px)
✅ Video outputs: 1x HDMI 4K, 1x VGA
✅ Audio support: 4 channels of camera audio, support for two-way audio (1x CINCH input, 1x CINCH output)
✅ Supported compression methods: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
✅ Bitrate: 80 Mbps max.
✅ 1 x 20 TB SATA
✅ Recording modes: manual, motion detection, schedule
✅ Archiving on external media (USB)
✅ Search for recordings by time and event type, forward/reverse playback, speed up/down
✅ Smart Playback function and advanced search every second
✅ Simultaneous playback of recordings from up to 4 cameras

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Who will this surveillance kit be suitable for?

This is a modern solution with a wide range of applications. Reach for this versatile kit if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

monitoring of a store,
monitoring of a wholesale and warehouse, as well as a production hall,
monitoring of a school, monitoring of a kindergarten or other educational institutions,
monitoring of a backyard, sports field or playground,
monitoring of a private home,
monitoring of a bar and restaurant,
monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.

Technical specifications Dahua P5B-PV:

Camera	P5B-PV
Sensor	1/3" CMOS
Maximum resolution	2880x 1620
Shutter	1 s-1/100,000 s
Lens	3.6 mm
Viewing angle	H: 78°; V: 40°; D: 93°
Infrared illuminator	2x IR 30m
White light illuminator	2x 30m
Resolution	5M (2560 × 1920); 4M (2560 × 1440); 1080p (1920 × 1080); 960p(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Compression	H.265+ / H.265 / H.264 / H.264+ / MJPEG
Main stream speed	2880 x 1620(1-25/30fps)
Bitrate	H265: 80 kbps-4096 kbps
Wide dynamic range	Yes, DWDR
Autotracking	Yes, automatic object tracking
Smart Dual Light	Yes
Bluetooth	Yes
Active deterrence	2 flashing LEDs (white)
Audible warning	Audible signal (alarm)
IVS intelligent functions	Intrusion detection, human detection
SMD 3.0	Yes
Audio compression	G.711a
Built-in speaker	Yes
Built-in microphone	Yes
Built-in microSD slot	Yes, 256GB card
Mobile systems	iOS, android
Remote support	DMSS
Built-in WiFi module	Yes
Pan/tilt range	0° to 355°, 0° to +90°
Power supply	12V DC, 1A
Operating temperature	-20 °C to +50 °C
Permissible humidity	≤ 95%
Protection class	IP66
Dimensions	116 mm × 138 mm × 139 mm
Weight	0.42kg

Dahua technical specifications NVR2104HS-4KS3:

DVR	NVR2104HS-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	4 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pcs. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG.
Bitrate (bitrate):	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login/password:	Administrator password should be set at the first startup admin / -.
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs/outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: human, motor vehicle False alarm filtering based on recognition of people and vehicles video tampering Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians
PoE switch:	No
Power supply:	12 V DC / 1.5 A (power supply included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.83 kg
Dimensions:	260 x 233 x 48 mm

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

What is the Dahua company?

Dahua is a global company whose products power the field of electronics industry. Dahua is a well-known manufacturer of such devices and accessories as network cameras, NVR cameras, HDCVI and HDCVI HCVRs, intercoms, alarms, motion detectors and access system components.

Why buy Dahua Tehonology products?

Dahua products are first and foremost excellent value for money - the brand offers its customers high-quality products at a satisfactory price in both IP and HDCVI video technology. Dahua devices are primarily characterized by price-quality ratio.

Dahua Technology devices are also simple and uncomplicated to use, while at the same time advanced in terms of the functionality of the device software. They include many options for configuring free remote access to a given system, making Dahua products both multifunctional and functional.

Structure of Dahua Technology

Dahua Technology is a company that was established in 2001. Its headquarters are located in China, in Hangzhou. Today, it has a number of subsidiaries around the world, and Dahua has more than 16,000 employees in 200 offices and 54 overseas subsidiaries covering Asia, America, Europe, the Middle East, Oceania, Africa, Africa and more. Dahua provides unparalleled quality, reliability and stability in the services and products it delivers. About 50% of them are constantly working on development and research. The company's products are available in more than 180 countries around the world. Solutions with the brand's logo are widely used in key areas such as public safety, traffic, energy, banking and finance, retail and many others.

Dahua Technology has a track record of large-scale international projects, including the Rio Olympics, the Hangzhou G20 summit, Recife Subway in Brazil and the China International Import Expo. The company's position can be evidenced by being ranked second in the global CCTV and video surveillance equipment market in 2014 (according to an IHS report).

Dahua Technology products

Dahua Technology manufactures and distributes state-of-the-art video surveillance systems along with the necessary accessories.

One of Dahua's core products are surveillance cameras. The modern monitoring systems manufactured by Dahua are perfect for installation both in apartments and private homes, as well as in larger facilities - such as stores, hotels and halls. Mounted in the right places, Dahua cameras effectively protect property from burglary and theft. All Dahua devices in this area are equipped, among other things, with an infrared illuminator, which allows day and night image recording.

Dahua DVRs work fully compatible with the brand's cameras and are primarily used to play back high-resolution images from the connected camera. These more technologically advanced devices can be connected simultaneously to several or even a dozen cameras.

The Dahua video intercom, on the other hand, is a very functional device, allowing easy verification of the identity of any visitor even before letting them into the house.
