Wi-Fi Monitoring Kit 8x F4C-PV 4Mpx IR 30m Dahua

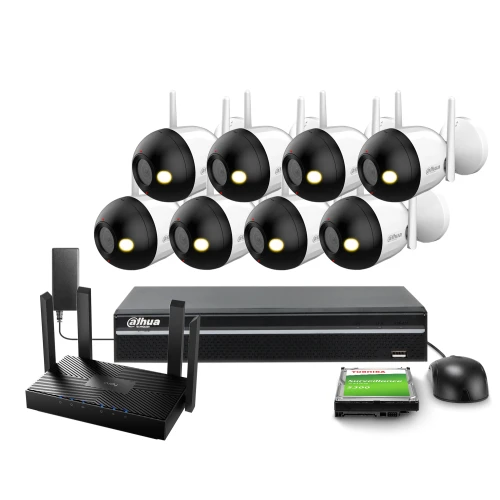

The image shows a complete wireless surveillance system featuring eight white and black security cameras with antennas, a central recording unit, a wireless router, and a hard drive. This setup is designed for comprehensive monitoring and easy installation in various environments.

A sleek, white WiFi bullet camera with dual antennas and a black lens housing, designed for outdoor surveillance. The camera features a prominent lens and LED light, offering high-resolution video capture.

A cozy outdoor seating area features a comfortable beige sofa and a small round table with wooden chairs, set against a backdrop of lush greenery and autumn trees. The space is enclosed by glass walls, providing a seamless view of the vibrant garden outside.

Manufacturer
Dahua
Product Code

ZM32962
Warranty

24 miesiące

Technology: IP
Resolution: 4Mpx
Enclosure: Tube
Number of cameras: 8
Connectivity: Wireless
Color: White

see description

Ask about this product show form

Save -12%

Availability: in stock Shipping 24h

Price (Incl. VAT):

575,59 € 655,83 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

High-quality image

The light-sensitive sensor and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The Dahua F4C-PV camera records at 4Mpx resolution. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in the F4C-PV is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

P2P function

In F4C-PV is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Video and audio recording

The F4C-PV 's audio recording function allows audio to be recorded along with video, greatly enhancing the capabilities and efficiency of surveillance systems. The main advantages of such a solution are:

Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people.
Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event.
Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Active protection

The F4C-PV's active deterrence feature, such as lights that turn on or beeps, is designed to immediately deter potential intruders from committing a break-in or act of vandalism. This proactive security method not only enhances the effectiveness of monitoring through real-time deterrence, but can also help quickly notify owners or security services of a potential threat before an incident occurs.

Main features F4C-PV :

Sensor: 1/3" 4MP image sensor, low illumination, HD CMOS
Resolution: 2560x1440 (4Mpx) @ 25/30fps
Interface: 1x RJ45 Ethernet 10/100Mbps
Built-in 2.4GHz Wi-Fi (802.11n/b/g) - 50m
Compression: H.265/ H.264
Lens: 2.8mm
Dual Light illuminator: IR LED 850nm / LED white light (range 30m)
3 illuminator modes (IR only, LED only, Dual Light - IR + LED)
Full-Color - color image technology around the clock
Smart person detection - object detection (human)
Active deterrence - 2 LEDs flashing (white), sound signal (alarm)
Built-in microphone and speaker (two-way conversation)

Main features of NVR2108HS-4KS3:

Standard: TCP/IP
Supported resolutions: max. 12 Mpx - 4000 x 3000 px
Video outputs: 1 pcs. HDMI 4K
1 pcs. VGA
Audio support:
8 Channels - Audio from cameras
Two-way audio support
Audio inputs: 1 pcs. CINCH
Audio outputs: 1 pc. CINCH
Video compression method: Smart H.265+ / H.265 / Smart H.264+ / H.264
Bitrate: max. 80 Mbps
Supported hard drives: 1 x 20 TB SATA
Recording modes: Manual, motion detection, schedule
Archiving to external media: Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:
Search for recordings by time and type of events. Playback: forward, reverse, speed up, slow down the recording
Advanced search (every second)
Smart Playback function
Simultaneous playback of recordings from up to 8 cameras
Network interface: 1 x RJ-45 10/100 Base-TX

Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write loads.

Efficient storage

H.265 encoding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems. The main features of H.265 encoding in surveillance DVRs are:

H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This makes it possible to save disk space and increase the storage time of recordings.
More efficient compression reduces the load on the processor, resulting in lower power consumption of the surveillance equipment.

Dahua F4C-PV Technical Specifications:

Camera	F4C-PV
Sensor	1/3" CMOS
Scanning system	Progressive
Maximum resolution	2560 x 1440
Sensitivity	0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6(B/W, 30 IRE) 0 lux (Illuminator on)
S/N ratio	>56dB
Shutter	1/3 s-1/100000 s
Lens	2.8 mm
Viewing angle	IR 30m
Infrared illuminator	H.265+ / H.265 / H.264 / H.264+ / MJPEG
White light illuminator	LED 30m
Display modes	IR only, LED only, Smart - IR + LED
Infrared filter	Mechanical ICR
Resolution	1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720)
Compression	H.264B/ H.264/ H.264H/ H.265
Main stream speed	1920 (H) × 1080 (V)-(1-25/30 fps)
Bitrate	H.264: 32kbps ~ 4096kbps H.265: 9kbps ~ 4096kbps
Image functions
AGC	Yes
AWB (white balance)	Auto/natural/street lamp/outdoor/manual/regional custom
BLC	Yes
HLC	Yes
ROI	Yes
Wide Dynamic Range	Yes, DWDR
Image adjustment functions	3D NR; Mirror/flip (0°, 90°, 180°, 270°)
Motion detection	4 areas (adjustment: size, position, sensitivity, threshold)
Restricted zones	4 areas (adjustment: size, position)
Audio
Built-in microphone	Yes
Built-in speaker	Yes
Built-in MicroSD slot	Yes, card up to 256GB
Networking
Network connection	RJ-45 (10/100Base-T)
Built-in WiFi module	Yes, IEEE802.11b/g/n 2.4-2.4835 GHz; 2.4 G
Protocols	IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
Compatibility	ONVIF (Profile S; Profile G); CGI
Mobile systems	iOS, android
Remote support	Smart PSS; DSS; DMSS
Smart features
Perimeter protection	Intrusion detection (support for classification and accurate detection of vehicles and people)
Active deterrence	Yes
General
Protection class	IP67
Power supply	12V DC
Power consumption	<6.6W
Working temperature	-40 °C to 60 °C
Permissible humidity	≤95%
Housing material	Metal + plastic
Dimensions	131.0 × 78.4 × 97.2 mm
Weight	266.5 g

Technical specifications Dahua NVR2104HS-4KS3:

DVR	NVR2108HS-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 4 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Video tampering Functions implemented when the DVR cooperates with cameras supporting these functions : Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.83 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
