Dahua Monitoring Kit 6x IPC-HDW2449TM-S-IL-0280B, 4MP, IR 30m
Photo gallery
-
Manufacturer
-
Product Code
ZM32973
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Number of cameras: 6
- Color: White
Ask about this product show form
Related products
Product Description

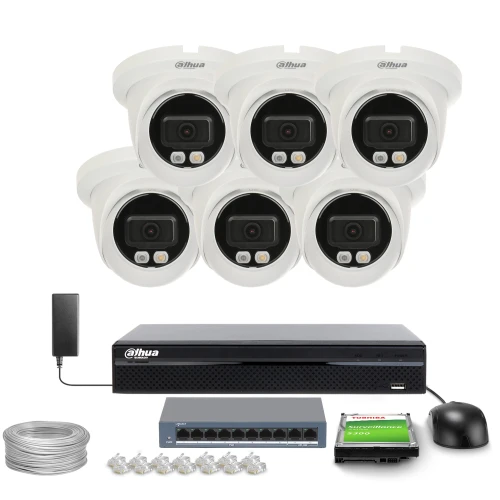

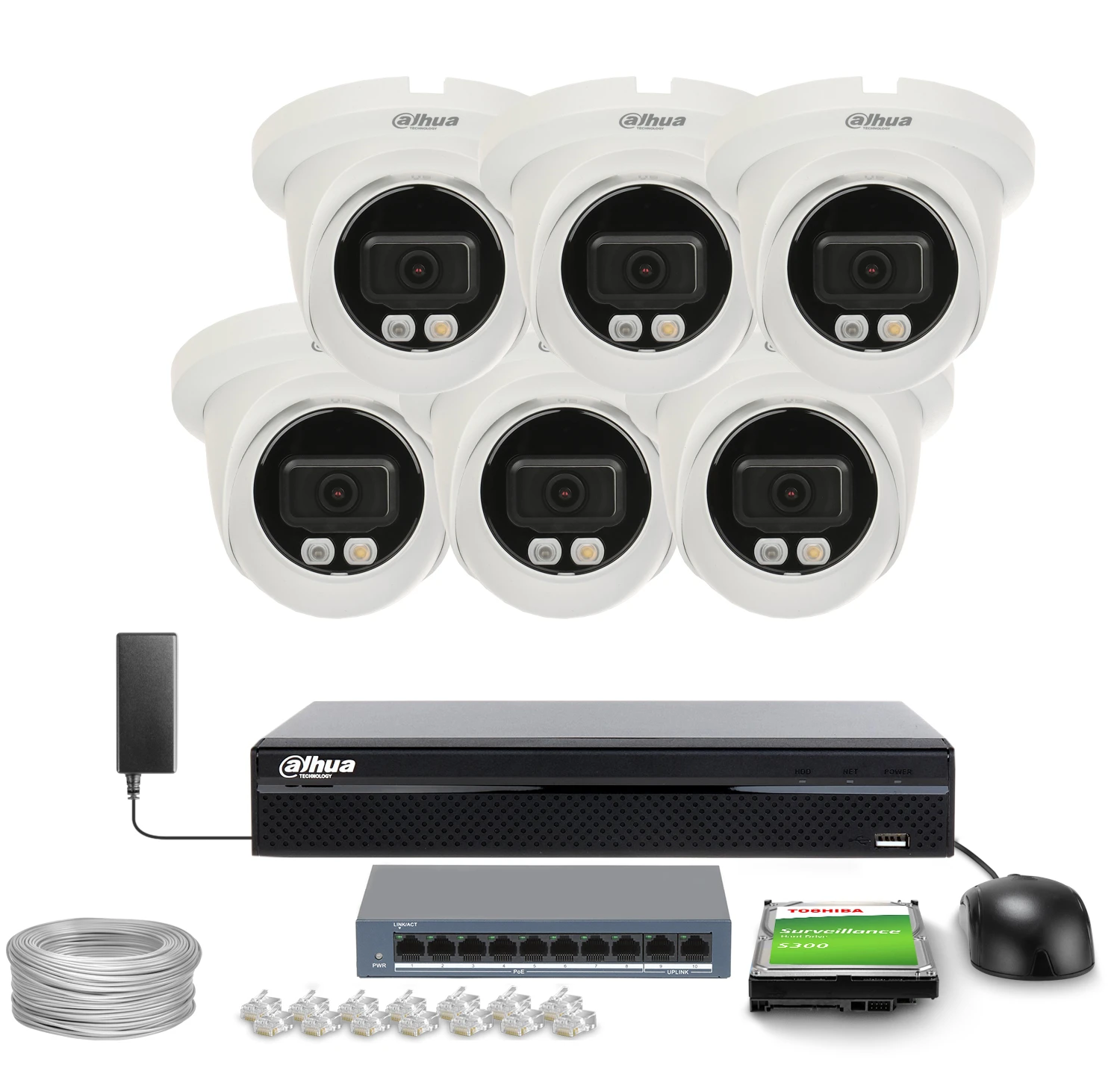

Set includes:
- NVR4108HS-4KS3 ( 1pcs ) DVR.
- Camera IPC-HDW2449TM-S-IL-0280B( 6pcs ).
- 1x Switch 8x POE
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- UTP cable ( 30m )
- Power supply for cameras ( 1pc ).
- Sticker "Attention Object Monitored" ( 1pc ).
- Set of Connectors
Main features:
- Resolution: 4 MP (2688 x 1520)
- Sensor: 1/2.7" Progressive Scan CMOS
- Focal length: 2.8 mm
- Viewing angle: 106° (horizontal)
- Built-in IR illuminator up to 40m
- Full-color technology with LED illumination, enabling color images around the clock
- Mechanical infrared filter ICR (IR Cut Filter)
- Supported compression methods: H.265+, H.265, H.264+, H.264
- Bitrate: from 32 Kbps to 6144 Kbps
- Motion detection
- Perimeter protection: intrusion detection, line crossing detection
- Face detection
- Intelligent false alarm filtering
- Interface: 1x RJ-45 (10/100 Base-T)
- Protocol support: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, QoS, ONVIF
Remote access on mobile devices - gDMSS and iDMSS
The gDMSS and iDMSS applications give you the ability to operate and view live video via Internet-enabled devices such as PCs, laptops, smartphones, tablets.
|
 |
MicroSD card slotThe IPC-HDW2449TM-S-IL-0280B camera has a built-in microSD card slot, which allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required. |
 |
Automatic day/night modeThe camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down. The infrared range is 30 meters. |
 |
Built-in microphone - a more complete picture of the situation
The IPC-HDW2449TM-S-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.
Hide what shouldn't be seen
Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.
P2P function
On the IPC-HDW2449TM-S-IL-0280B is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
People detection
The IPC-HDW2449TM-S-IL-0280B's motion detection with human silhouette recognition is an advanced feature that helps make surveillance systems more precise and effective. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Main features:
- Resolution: 4 MP (2688 x 1520)
- Sensor: 1/2.7" Progressive Scan CMOS
- Focal length: 2.8mm
- Viewing angle: 106° (horizontal)
- Built-in IR illuminator up to 40m
- Full-color technology with LED illumination, enabling color images around the clock
- Mechanical infrared filter ICR (IR Cut Filter)
- Supported compression methods: H.265+, H.265, H.264+, H.264
- Bitrate: from 32 Kbps to 6144 Kbps
- Motion detection
- Perimeter protection: intrusion detection, line crossing detection
- Face detection
- Intelligent false alarm filtering
- Interface: 1x RJ-45 (10/100 Base-T)
- Protocol support: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, QoS, ONVIF
Main features of the DVR:
- Standard: TCP/IP
- Maximum resolution: 12 Mpx (4000 x 3000 px)
- Video outputs: 1x HDMI 4K, 1x VGA
- Audio support: 8 channels from cameras, two-way audio (1x CINCH input, 1x CINCH output)
- Supported compression methods: Smart H.265+, H.265, Smart H.264+, H.264
- Maximum bit rate: 80 Mbps
- 1 x 20 TB SATA
- Recording modes: manual, motion detection, schedule
- Archiving on external media (USB)
- Search for recordings by time and event type, forward/reverse playback, speed up/down
- Smart Playback function, advanced search every second
- Simultaneous playback of recordings from up to 8 cameras
Accessories:
The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.
Main features:
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
IPC-HDW2449TM-S-IL-0280B Technical Specifications:
| Camera | IPC-HDW2449TM-S-IL-0280B | |
|---|---|---|
| Standard: | TCP/IP | |
| Sensor: | 1/2.9 " Progressive Scan CMOS | |
| Sensor size: | 4 Mpx | |
| Resolution: | 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
|
| Lens: | 2.8 mm | |
| Viewing angle: |
|
|
| Range of white light illuminator (LED): | 30 m | |
| IR illuminator range: | 30 m | |
| Video compression method: | H.265+ / H .265 / H.264+ / H.264 / MJPEG | |
| Main stream bit rate: | 25 fps @ 4 Mpx | |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) | |
| RS-485 interface: | No | |
| Alarm inputs / outputs: | No | |
| Audio: |
|
|
| Network interface: | 10/100 Base-T (RJ-45) | |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP | |
| WEB Server: | Built-in | |
| Max. number of online users: | 6 | |
| ONVIF: | 21.12 | |
| Cell phone access: | Port: 37777 or access via cloud (P2P)
|
|
| Default IP address: | 192.168.1.108 | |
| Default admin login/password.: | admin / - Administrator password should be set on first startup |
|
| Web access ports: | 80, 37777 | |
| Access ports via PC application: | 37777 | |
| Access ports via mobile app: | 37777 | |
| ONVIF port: | 80 | |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
|
| Selected features: |
|
|
| Housing: | Dome - Metal + Plastic | |
| Color: | White | |
| Watertightness class: | IP67 | |
| Vandal resistant: | No | |
| Power supply: |
|
|
| Power consumption: |
Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian
|
|
| Operating temperature : | -40 °C ... 60 °C | |
| Weight: | 0.46 kg | |
| Ø 122 x 100 mm | Ø 122 x 100 mm | |
| Supported languages: | Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian | |
| Manufacturer/Brand: | Dahua |
Technical specifications IP DVR NVR4108HS-4KS3
| DVR | NVR4108HS-4KS3 |
|---|---|
| Standard: | TCP/IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs. HDMI 4K 1 pcs. VGA |
| Audio support: |
|
| Audio inputs: | 1 pc. CINCH |
| Audio outputs: | 1 pcs. CINCH |
| Video compression method: | Smart H.265+ / H.265 / Smart H.264+ / H .264 |
| Bitrate (bitrate): | max. 80 Mbps |
| Supported hard drives: | 1 x 20 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving to external media: | Archiving to USB drive (flash drive, external drive) |
| Search and playback of recordings: |
|
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network functions: | Full network support, Remote copy of recordings, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search |
| ONVIF: | 22.12 |
| Default IP address: | 192.168.1.108 |
| Default admin login / password: | admin / admin Administrator password should be set at the first startup |
| Access from cell phone: | Port: 37777 or access via cloud (P2P) |
| Web access ports: | 80, 37777 |
| Access ports via PC app: | 37777 |
| Access ports via mobile app: | 37777 |
| RTSP URL: |
|
| USB: | 2 pcs. USB 2.0 |
| Serial ports: | No |
| Alarm inputs/outputs: | No |
| PTZ head control: | IP Speed Dome cameras. |
| Motion detection: | Yes |
| Intelligent Image Analysis: | Yes |
| Selected features: |
|
| Mouse operation: | Yes |
| IR remote control included: | No |
| PoE switch: | No |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | max. 10 W (without HDD) |
| Operating temperature: | -10 °C ... 55 °C |
| Weight: | 0.81 kg |
| Dimensions: | 260 x 233 x 48 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | Dahua |
