8x IPC-HDW2449TM-S-IL-0280B Monitoring Kit, 4MP, IR 30m Dahua

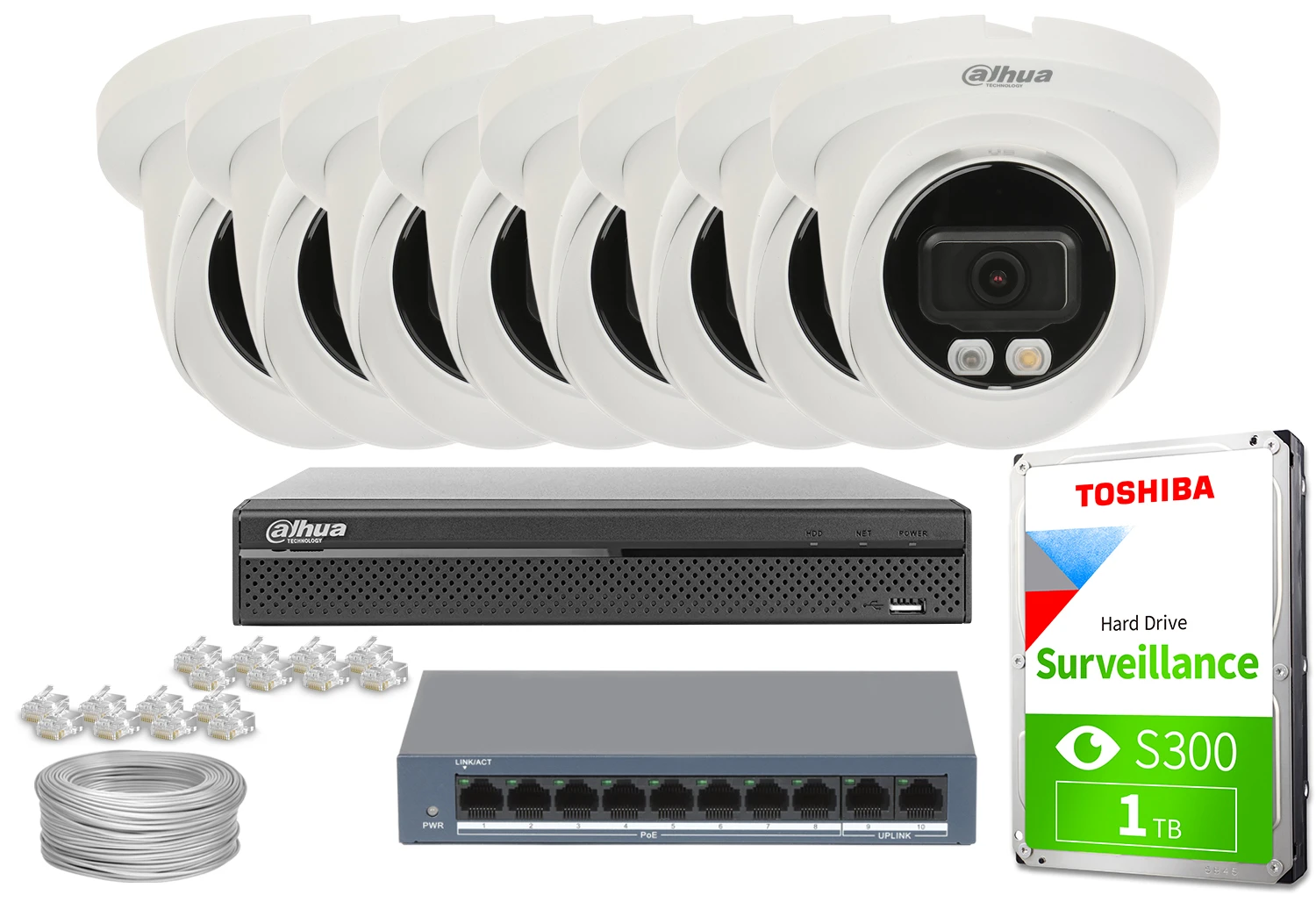

The image shows a comprehensive surveillance system package, including eight dome security cameras, a network video recorder, a hard drive, and necessary cables. The setup is designed for efficient monitoring and data storage, ideal for both residential and commercial use.

A white dome security camera with a sleek design features a prominent lens and two LED lights for enhanced night vision. The camera includes a network cable connection for easy installation and integration into surveillance systems.

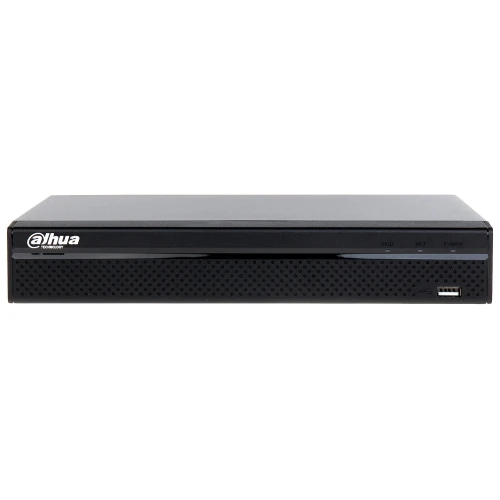

A sleek black Dahua Technology surveillance recorder with a perforated front panel and indicator lights for HDD, NET, and POWER. The device features a USB port on the lower right corner for easy connectivity.

A Toshiba Surveillance S300 hard drive is displayed alongside a bundle of Ethernet cables, a network switch, and a set of RJ45 connectors. These components are ideal for setting up a comprehensive surveillance system.

Manufacturer
Dahua
Product Code

ZM32974
Warranty

36 miesięcy

Technology: IP
Resolution: 4Mpx
Enclosure: Dome
Night visibility: up to 30m
Number of cameras: 8
Color: White

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

1 628,36 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Set includes:

NVR4108HS-4KS3 ( 1pcs ) DVR.
Camera IPC-HDW2449TM-S-IL-0280B( 8pcs ).
1x Switch 8x POE
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
UTP cable ( 40m )
Power supply for cameras ( 1pc ).
Sticker "Attention Object Monitored" ( 1pc ).
Set of Connectors

Main features:

Resolution: 4 MP (2688 x 1520)
Sensor: 1/2.7" Progressive Scan CMOS
Focal length: 2.8 mm
Viewing angle: 106° (horizontal)
Built-in IR illuminator up to 40m
Full-color technology with LED illumination, enabling color images around the clock
Mechanical infrared filter ICR (IR Cut Filter)
Supported compression methods: H.265+, H.265, H.264+, H.264
Bitrate: from 32 Kbps to 6144 Kbps
Motion detection
Perimeter protection: intrusion detection, line crossing detection
Face detection
Intelligent false alarm filtering
Interface: 1x RJ-45 (10/100 Base-T)
Protocol support: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, QoS, ONVIF

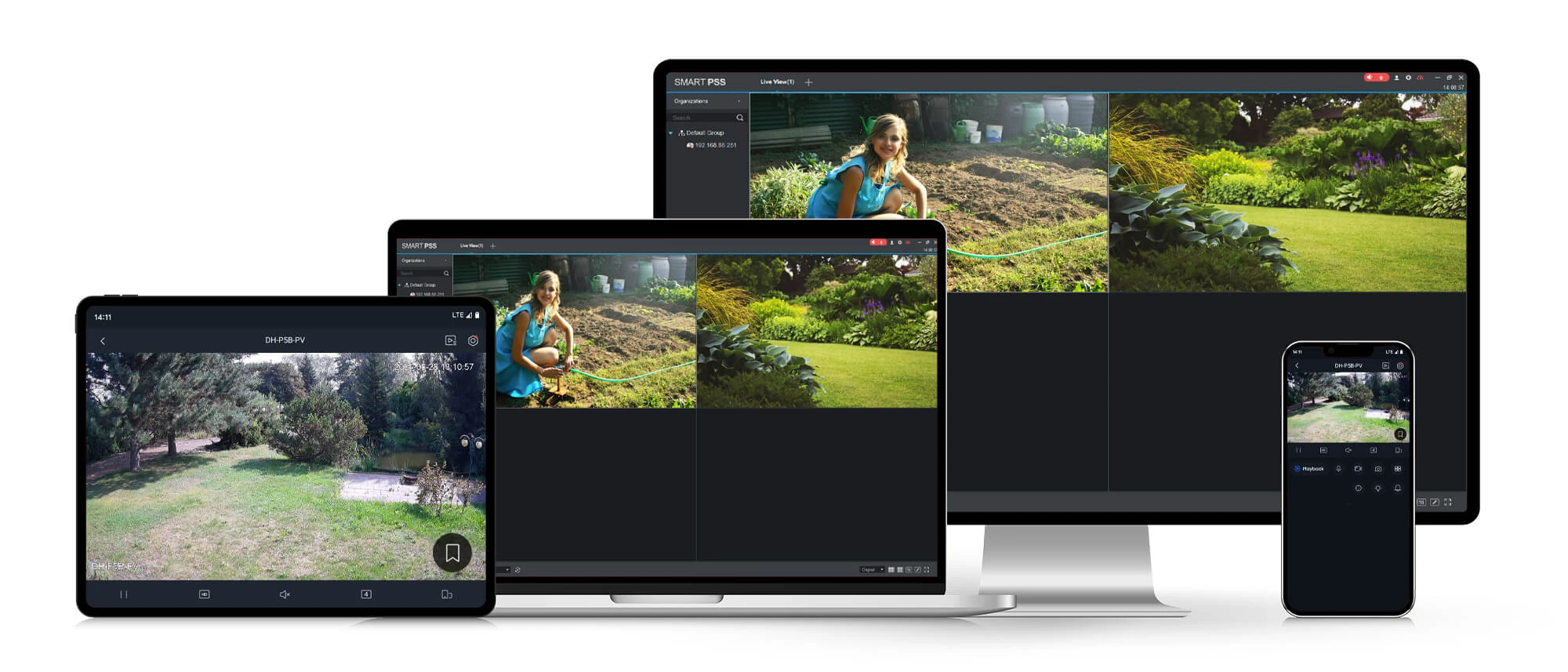

Remote access on mobile devices - gDMSS and iDMSS

The gDMSS and iDMSS applications give you the ability to operate and view live video via Internet-enabled devices such as PCs, laptops, smartphones, tablets.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HDW2449TM-S-IL-0280B records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

MicroSD card slot

The IPC-HDW2449TM-S-IL-0280B camera has a built-in microSD card slot, which allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

Automatic day/night mode

The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down.
The infrared range is 30 meters.

Built-in microphone - a more complete picture of the situation

The IPC-HDW2449TM-S-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Hide what shouldn't be seen

Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

P2P function

On the IPC-HDW2449TM-S-IL-0280B is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

People detection

The IPC-HDW2449TM-S-IL-0280B's motion detection with human silhouette recognition is an advanced feature that helps make surveillance systems more precise and effective. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Main features:

Resolution: 4 MP (2688 x 1520)
Sensor: 1/2.7" Progressive Scan CMOS
Focal length: 2.8mm
Viewing angle: 106° (horizontal)
Built-in IR illuminator up to 40m
Full-color technology with LED illumination, enabling color images around the clock
Mechanical infrared filter ICR (IR Cut Filter)
Supported compression methods: H.265+, H.265, H.264+, H.264
Bitrate: from 32 Kbps to 6144 Kbps
Motion detection
Perimeter protection: intrusion detection, line crossing detection
Face detection
Intelligent false alarm filtering
Interface: 1x RJ-45 (10/100 Base-T)
Protocol support: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, QoS, ONVIF

Main features of the DVR:

Standard: TCP/IP
Maximum resolution: 12 Mpx (4000 x 3000 px)
Video outputs: 1x HDMI 4K, 1x VGA
Audio support: 8 channels from cameras, two-way audio (1x CINCH input, 1x CINCH output)
Supported compression methods: Smart H.265+, H.265, Smart H.264+, H.264
Maximum bit rate: 80 Mbps
1 x 20 TB SATA
Recording modes: manual, motion detection, schedule
Archiving on external media (USB)
Search for recordings by time and event type, forward/reverse playback, speed up/down
Smart Playback function, advanced search every second
Simultaneous playback of recordings from up to 8 cameras

Accessories:

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

IPC-HDW2449TM-S-IL-0280B Technical Specifications:

Camera

IPC-HDW2449TM-S-IL-0280B

Standard:

TCP/IP

Sensor:

1/2.9 " Progressive Scan CMOS

Sensor size:

4 Mpx

Resolution:

2688 x 1520 - 4 Mpx,
2560 x 1440 - 3.7 Mpx,
2304 x 1296 - 3 Mpx,
1920 x 1080 - 1080p,
1280 x 960 - 1.3 Mpx,
1280 x 720 - 720p

Lens:

2.8 mm

Viewing angle:

95 °

Range of white light illuminator (LED):

30 m

IR illuminator range:

30 m

Video compression method:

H.265+ / H .265 / H.264+ / H.264 / MJPEG

Main stream bit rate:

25 fps @ 4 Mpx

Memory card slot:

Micro SD card support up to 256GB (local recording possible)

RS-485 interface:

Alarm inputs / outputs:

Audio:

Built-in microphone
Audio transmission over the network
AAC compliant

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP

WEB Server:

Built-in

Max. number of online users:

ONVIF:

21.12

Cell phone access:

Port: 37777 or access via cloud (P2P)

Android: Free DMSS app
iOS (iPhone): Free DMSS app

Default IP address:

192.168.1.108

Default admin login/password.:

admin / -
Administrator password should be set on first startup

Web access ports:

80, 37777

Access ports via PC application:

37777

Access ports via mobile app:

37777

ONVIF port:

RTSP URL:

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream

Selected features:

WDR - 120 dB - Wide Dynamic Range of illumination
3D-DNR - Digital noise reduction in the image
ROI - enhancement of selected parts of the image
BLC/HLC - background light / strong light compensation
Day/night mode (color/b&w/auto)
ICR - Mechanical infrared filter
Automatic white balance
AGC - Automatic adjustment of image gain
Changeable resolution, quality and bandwidth
Configurable privacy zones
Video tampering
Mirror - Mirroring of the image
Full Color - Color night mode
Intelligent motion detection (distinguishing between people and vehicles)
SMD PLUS - search for object classified as: human, motor vehicle
IVS analysis: intrusion, line crossing - classification of people and vehicles

Housing:

Dome - Metal + Plastic

Color:

White

Watertightness class:

IP67

Vandal resistant:

Power supply:

PoE (802.3af),
12 V DC / 370 mA

Power consumption:

Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian

≤ 5.2 watts @ PoE
≤ 4.4 W @ 12 V DC

Operating temperature :

-40 °C ... 60 °C

Weight:

0.46 kg

Ø 122 x 100 mm

Supported languages:

Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian

Manufacturer/Brand:

Dahua

Technical specifications IP DVR NVR4108HS-4KS3

DVR	NVR4108HS-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H .264
Bitrate (bitrate):	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / admin Admin password should be set at the first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs/outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Privacy Zones Functions implemented when the DVR cooperates with cameras supporting these functions : Intelligent Image Analysis : perimeter protection, scene change Face detection - supports 6 types of face attribute extraction Face recognition people counting heat map
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 2 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.81 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
