Set for monitoring company home 4x BCS-B-SIP154SR5L1(2.0) 5 Mpx IR 50 m Motozoom Active protection

The image shows a comprehensive surveillance system package, including four dome cameras, a digital video recorder, a power adapter, and a hard drive. Additional components include a network switch, Ethernet cables, and connectors, providing a complete setup for monitoring security.

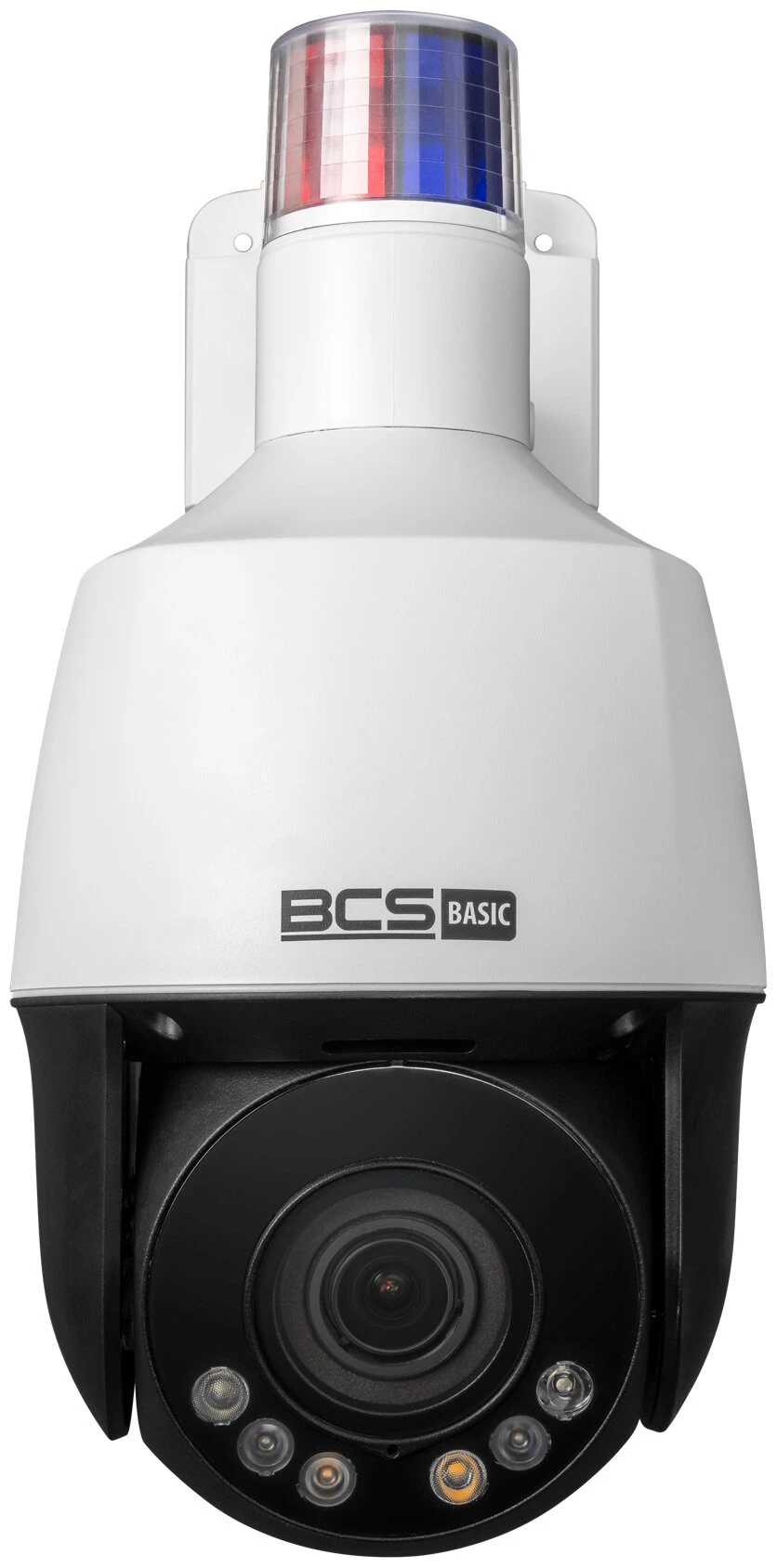

The image shows a BCS Basic security camera with a sleek white and black design, featuring multiple lenses and LED lights for enhanced surveillance. It is equipped with a red and blue light on top, indicating its advanced monitoring capabilities.

Manufacturer
BCS
Product Code

ZM33044
Warranty

24 miesiące

Technology: IP
Resolution: 5Mpx
Enclosure: Rotating
Number of cameras: 4
Connectivity: Wired
Color: White

see description

Ask about this product show form

Availability: Product temporarily unavaliable

Price (Incl. VAT):

794,62 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

The kit includes:

4x BCS-B-SIP154SR5L1(2.0) Camera.
1x BCS-B-NVR1001(2.0) DVR
1x Switch BCS-B-SP0402
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
UTP cable ( 20m )
Sticker "Attention Object Monitored" ( 1pc ).
Set of signal and power connectors

Main features:

1/2.7" 5Mpx sensor
H.265 / H.265+ / H.264 / H.264+ / MJPEG
Support for three encoding streams
Features AWB, AGC, BLC, HLC, 2D/3D DNR, WDR(120dB)
Motion detection, privacy masks
Smart functions: perimeter protection
Active deterrence through light and sound alarms
IR illuminator with 50m range
2.8-12mm motozoom lens
256GB microSD card slot
PAN speed: 0.1°/s~50°/s(50°/s preset)
TILT speed: 0.1°/s~40°/s(40°/s preset)
Built-in microphone and speaker
Power supply DC 12V / PoE(802.3af)

Key features:

AWB Automatic White Balance, a white balance mode that adjusts the colors in the camera's image to match light of different color temperatures.
WDR 120db Wide Dynamic Range - wide dynamic range, a camera function that makes it possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
AGC Automatic Gain Control - automatic gain control, the camera amplifies the output signal when lighting conditions deteriorate and keeps it constant.
DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
ICR Infrared Cutfilter Removal - mechanical infrared filter, an optical element equipped with a coating that blocks infrared rays from penetrating the sensor
Privacy Mask - a technology that allows masking of designated zones to preserve the privacy of bystanders, e.g.: windows, backyard, neighbor's door. Such a system guarantees 100% privacy and allows the camera to be used virtually anywhere.

Remote access from your phone and desktop computer

BCS systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

Access video preview and play back recorded footage
Save parts of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

High-quality image

The light-sensitive sensor and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The BCS-B-SIP154SR5L1(2.0) records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Automatic day/night mode

The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down.
The infrared range is 50 meters.

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in BCS-B-SIP154SR5L1(2.0) cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

MicroSD card slot

The BCS-B-SIP154SR5L1(2.0) camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

Built-in microphone - a fuller picture of the situation

The BCS-B-SIP154SR5L1(2.0) camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the video. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Capture the largest possible area

The 2.8~12mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-B-SIP154SR5L1(2.0) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-B-SIP154SR5L1(2.0), which improves image quality in challenging lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

Wide dynamic range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-B-SIP154SR5L1(2.0) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all the details are visible.

Better image quality: With crisp detail in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-B-SIP154SR5L1(2.0) cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

Detection (63m): The system is able to detect the presence of an object or person at a distance of up to 63 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

PTZ camera BCS-B-SIP154SR5L1(2.0)

1/2.7" 5Mpx sensor
H.265 / H.265+ / H.264 / H.264+ / MJPEG
Support for three encoding streams
AWB, AGC, BLC, HLC, 2D/3D DNR, WDR(120dB) functions
Motion detection, privacy masks
Smart functions: perimeter protection
Active deterrence through light and sound alarms
IR illuminator with 50m range
2.8-12mm motozoom lens
256GB microSD card slot
PAN speed: 0.1°/s~50°/s(50°/s preset)
TILT speed: 0.1°/s~40°/s(40°/s preset)
Built-in microphone and speaker
Power supply DC 12V / PoE(802.3af)
Adapters suitable for camera: BCS-ATU-B, BCS-P-A61, BCS-AS-ATU-B, BCS-BATU-B, BCS-AS-BATU-B

Network 10 channel DVR BCS-B-NVR1001(2.0) up to 8Mpx

Display and record up to 10 IP cameras at a maximum resolution of 4K
H.265+/H265/H.264+/H.264 compression
Max recording resolution 8 Mpx
Simultaneous operation of HDMI(3840×2160) and VGA(1920×1080) outputs
Supports 1 SATA drive up to 6TB
1 audio output
1×RJ45, 2×USB
Built-in web server, supported by CMS (BCS Manager),
BCS mobile application (iOS, android), P2P, Onvif
12V DC power supply

Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its parameters and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
