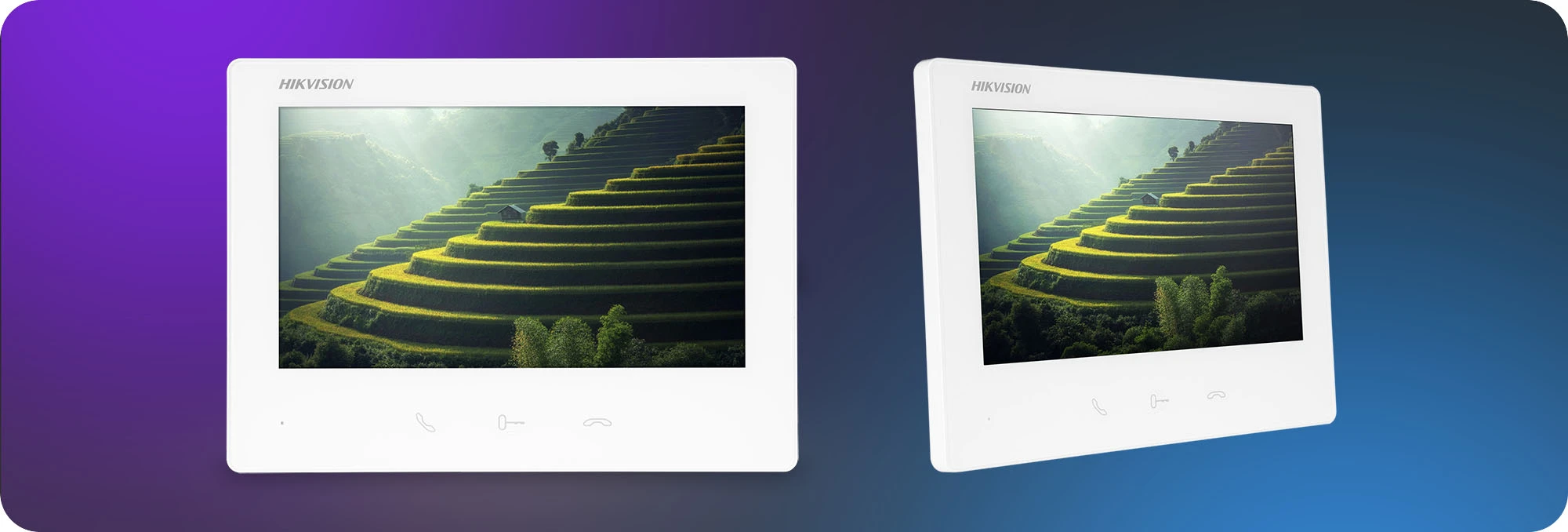

Hikvision DS-KH7300EY-WTE2 Video Intercom Monitor
Photo gallery
-
Manufacturer
-
Product Code
DS-KH7300EY-WTE2/WHITE
-
Warranty
24 miesiące
Ask about this product show form
Product Description
- Compatibility: cooperation only with 2-wire HD video intercoms (series "EY")
- Communication mode: hands-free or handset talk capability

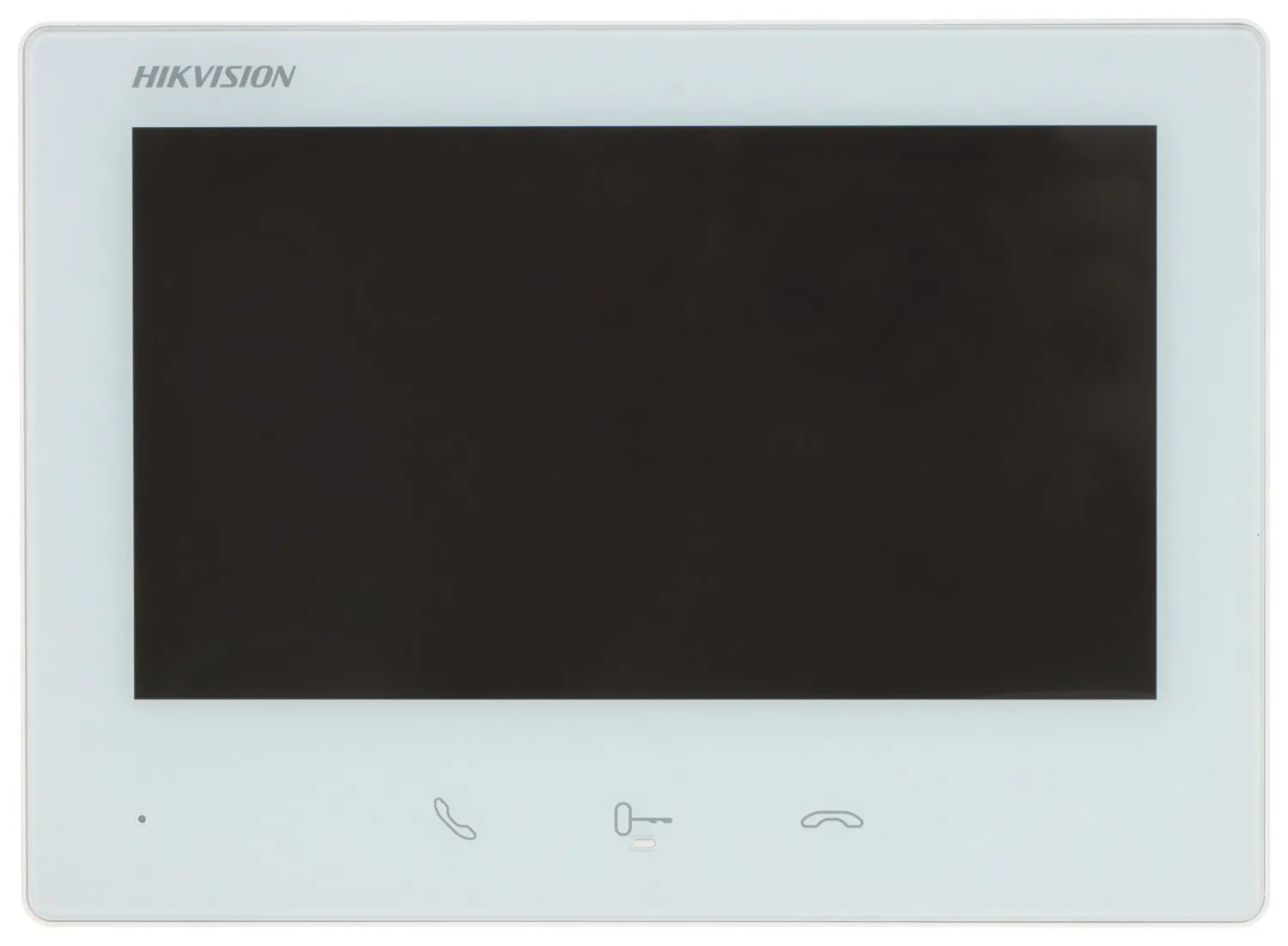

- Screen: 7-inch TFT LCD touchscreen display (1024×600 px)
- Controls: 3 touch-sensitive buttons and 4 programmable virtual buttons
- Integration: 1 alarm input for connecting sensors
- Wireless connectivity: built-in 802.11b/g/n Wi-Fi module

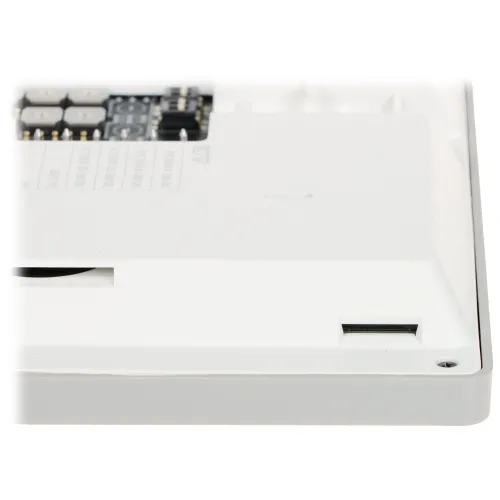

- Storage: microSD card support up to 128 GB for archiving recordings
- Available colors: white
- Power supply: 2-wire (requires DS-KAD7060EY or DS-KAD7061EY)
- Power consumption: ≤5W
- Dimensions: 190.2 × 138.2 × 20 mm (W/H/D)
- Warranty: 36 months
Hikvision's 2-wire video door entry system is a comprehensive solution that includes both indoor panels and door stations, which are directly powered from the distributor. Its key advantage is the use of only two wires - one for power and the other for audio-video transmission. This makes retrofitting older intercom systems extremely easy, as existing wiring can be used. This approach significantly speeds up installation and reduces installation costs.
The 2-wire HD technology, designated HD, represents the next stage in the development of 2-wire systems. It was designed to meet users' growing expectations in terms of video and audio quality. The new generation offers better resolution and a clearer signal, which significantly improves user comfort and safety. With data and power transmission over the same two wires, installation is even easier and upgrades are possible without the need for new cabling. In addition, 2-wire HD systems can be integrated with modern solutions such as mobile apps for remote viewing and access management.
Technical specifications:
| DS-KH7300EY-WTE2/White | |
|---|---|
| Processor | Embedded Processor |
| Operating system | Embedded Linux |
| ROM | 32MB |
| RAM | 128MB |
| Display type | 7" color TFT LCD |
| Resolution | 1024×600 |
| Operation, handling | Capacitive touch screen |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in speaker |
| Quality enhancement | Noise suppression and echo cancellation |
| Capacity | Up to 200 photos (with microSD card) |
| Network connection | 2-wire |
| MicroSD card slot | 1x 128GB max, microSD card version 2.0 or lower (32GB card included) |
| LED signaling | 4x LEDs: Wi-Fi, power, muted, busy |
| Power supply | 48V DC, 2-wire connection (from DS-KAD7060EY or DS-KAD7061EY distributors) |
| Mounting | Wall-mounted |
| Dimensions (W/HD) | 190.2 × 138.2 × 20 mm |
| Languages | Polish, English, French, Spanish, German, Italian, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Estonian, Portuguese, Slovakian |
