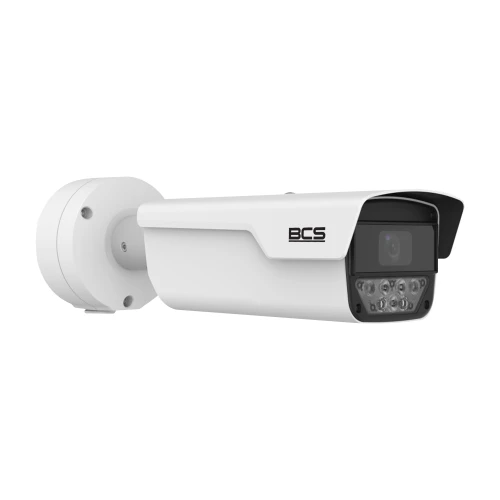

BCS-P-TIP74VSR5-ITC-2812 Tube Camera, License Plate Recognition, 4Mpx, IR 50m, SkyLight - BCS

The BCS-P-TIP74VSR5-ITC-2812 camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

• 1x 4 Mpx horn camera - BCS-P-TIP74VSR5-ITC-2812
• Template - Small size template with mounting holes of the camera
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera connectors from moisture

Main product features:

• 4Mpx IP dome camera
• ITC for license plate recognition
• 1/1.8" PS CMOS sensor
• SkyLight technology
• NDAA compliance
• Motozoom lens 2.8~12mm
• WDR120dB
• IR 50m
• Alarm 2/1, audio 1/1
• IP67, IK10 housing
• Integrated mounting box



Capture the largest possible area

The 2.8~12mm motozoom lens on the BCS-P-TIP74VSR5-ITC-2812 is a feature that allows you to remotely control the focal length of the lens, allowing you to smoothly and precisely zoom in or out without losing quality. This allows you to adjust the camera's field of view to suit your surveillance needs, such as zooming in on the details of an important object or widening the frame to cover a wider area. Motozoom is particularly useful in situations where dynamic image adjustment is required, such as in video surveillance systems.

High-quality image The light-sensitive sensor and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The BCS-P-TIP74VSR5-ITC-2812 records in 4Mpx resolution, which gives it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The BCS-P-TIP74VSR5-ITC-2812 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 128GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the BCS-P-TIP74VSR5-ITC-2812 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from your phone and desktop computer BCS systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to: Access video preview and play back recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in BCS-P-TIP74VSR5-ITC-2812 cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

SkyLight technology in BCS cameras

SkyLight technology in BCS cameras is an advanced solution that provides excellent image quality in low-light conditions. Thanks to a specially designed lens and high sensor sensitivity, cameras with SkyLight technology are able to capture detailed and clear images even in minimal light, without the need for an additional light source. This makes them ideal for night surveillance and in areas with changing light conditions. SkyLight significantly improves the effectiveness of surveillance by reducing noise and providing natural color reproduction, which is crucial for accurate recognition of objects and people.

Vehicle license plate recognition - ARTR function from BCS

License plate recognition on the BCS-P-TIP74VSR5-ITC-0832 is fully automated and includes both number identification and vehicle image capture. The recorded numbers and photos are stored in the trip database, and the system can track vehicles traveling at speeds of up to 80 km/h. The characters contained on the license plates can be used for various activities, such as automatically opening gates for specific vehicles. The system supports blacklisting and whitelisting, allowing management of up to 20,000 items. Camera images go directly to the ARTR server, where license plate numbers are read after analysis. The camera should be mounted between 8 and 30 meters from the vehicle.

NDAA compliance

NDAA stands for "National Defense Authorization Act," or the National Defense Authorization Act in the United States. It is an annual law passed by the U.S. Congress that sets the country's budget and defense policy. The NDAA is important because it contains provisions that affect various aspects of national defense, including military contracts, defense strategy, modernization of the armed forces, as well as policies on technology, intelligence and cyber security.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-P-TIP74VSR5-ITC-2812 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of an area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage H.265 encoding

Efficient storage H.265 coding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems.
The main features of H.265 encoding in surveillance DVRs are as follows:

H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.

More efficient compression reduces the load on the processor, resulting in lower power consumption of surveillance equipment.

Technical specifications:

Camera	BCS-P-TIP74VSR5-ITC-2812
Device Name	BCS-P-TIP74VSR5-ITC-2812
Product line	BCS Point
NDAA	National Defense Authorization Act
Camera type	Tube
Resolution	4 Mpx
Sensor	1/1.8'' CMOS
Scanning system	Progressive Scan
Pixels	2688(H)×1520(V)
Lens	motozoom
Focal length	2.8~12 mm
Aperture	F1.6
Focus	Auto / manual
Iris	Auto
Optical zoom	4×
Sensitivity of the camera	0.002Lux(F1.6)
White balance	(AWB) Auto / manual
WDR	120dB
Background compensation	BLC / WDR(120dB)
Shutter	Auto / manual 1/30~1/100000s
Gain control	(AGC) Auto / manual
Noise reduction	2D/3D DNR
Number of streams	3
Resolutions	4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / CIF(352×288)
Main stream	2688×1520@30fps 1920×1080@30fps 1280×720@30fps 720×576@30fps
Second stream	1280×720@30fps 720×576@30fps 704×288@30fps 352×288@30fps
Third stream	720×576@30fps 704×288@30fps 352×288@30fps
Video compression	H.265 / H.264
Day/night	ICR
Illuminator type	IR LED
Illuminator	50m
Audio input	1
Audio output	1
Audio compression	G.711A / G.711U
Alarm input	2
Alarm output	1
Memory card slot	microSD 128GB
Additional interfaces	RS485
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detection	4
Privacy masks	4
Networking	RJ-45 10/100Mbps
Compatibility	ONVIF
Protocols	IPv4, IPv6, DHCP, SNMP, RTSP, HTTP, HTTPS, FTP, TCP, ARP, DDNS, UNP, DNS, 802.1x, WebSocket
Power supply type	12VDC / PoE(802.3at)
Power consumption	max 20W
Housing color	White
IP protection class	IP67
IK10	Yes
Operating conditions	-40°C~+60°C max 90% RH
Dimensions	406×126×130mm
Weight	2.1kg
Ai - Built-in intelligent functions	Built-in intelligent image recognition and analysis algorithms
Ai - ARTR	License plate recognition, photo, tracking, max speed 80km/h, black and white list of 20 thousand items
