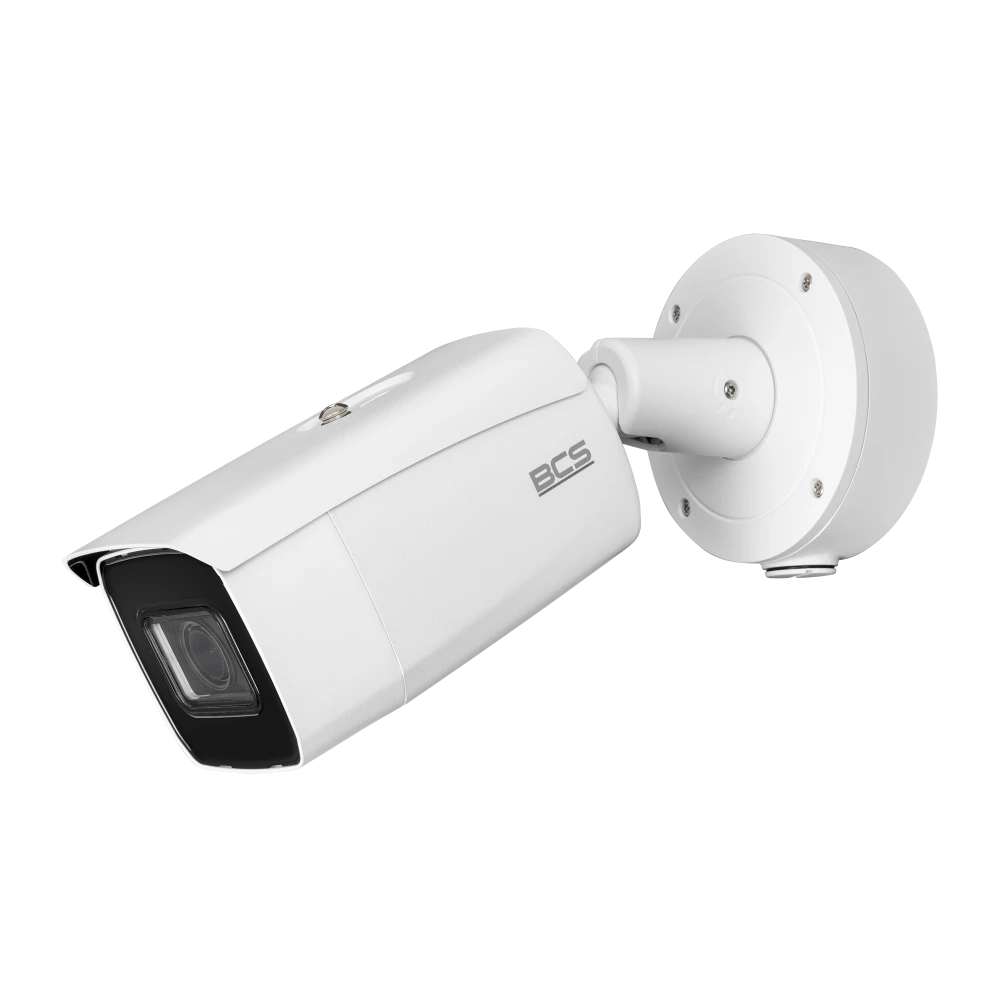

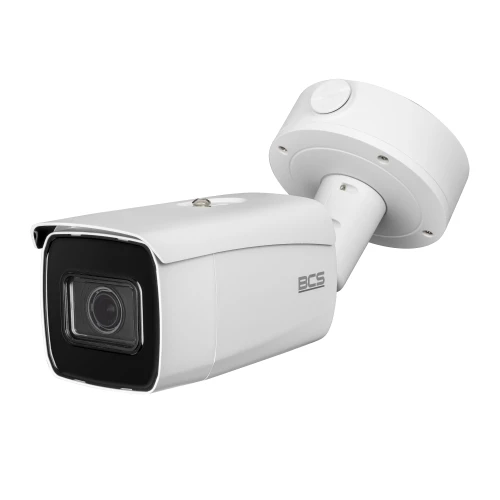

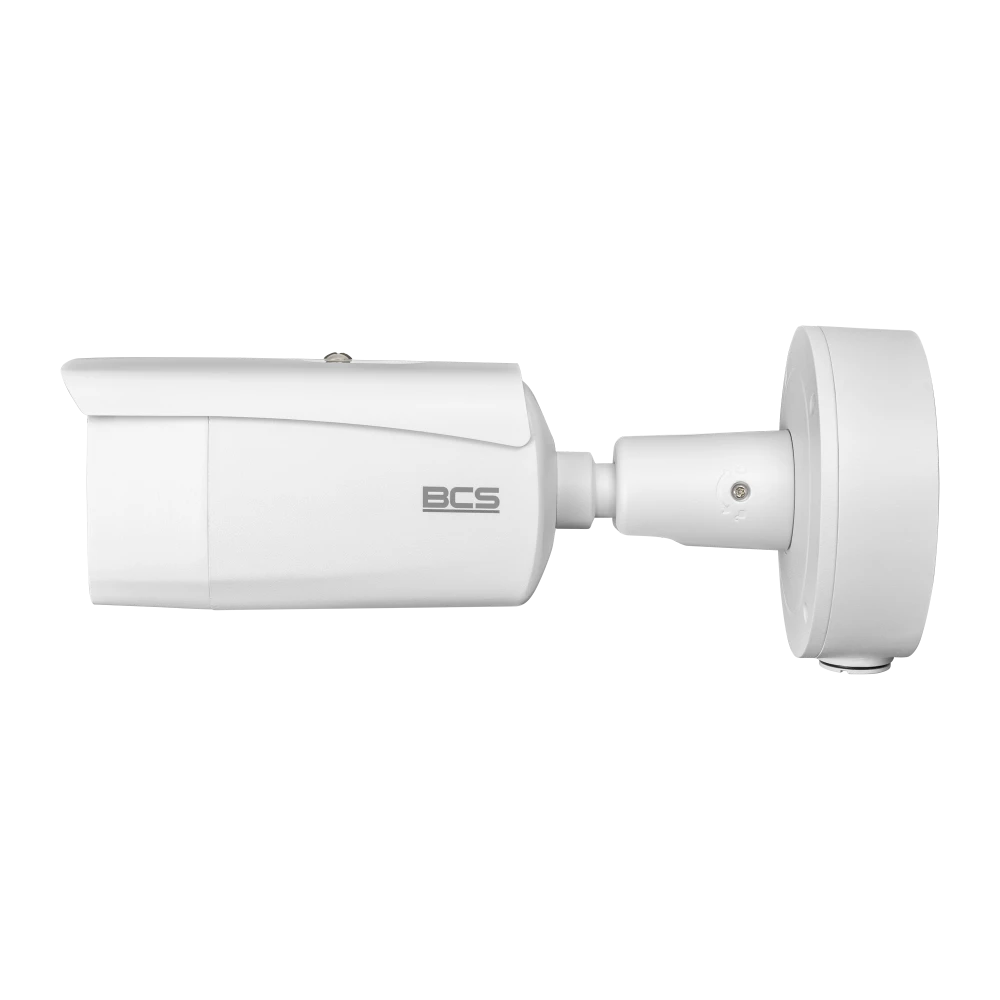

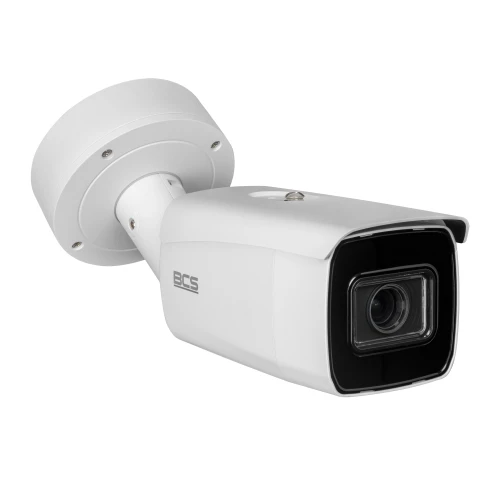

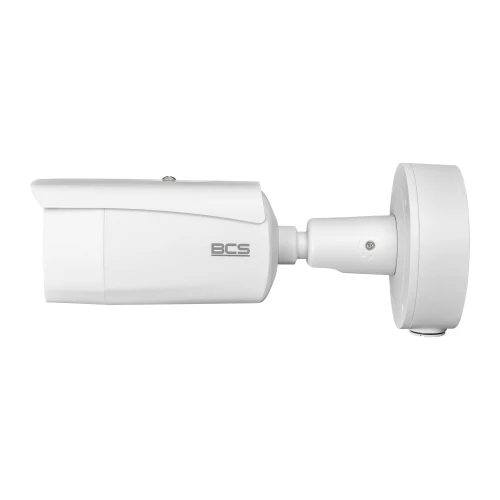

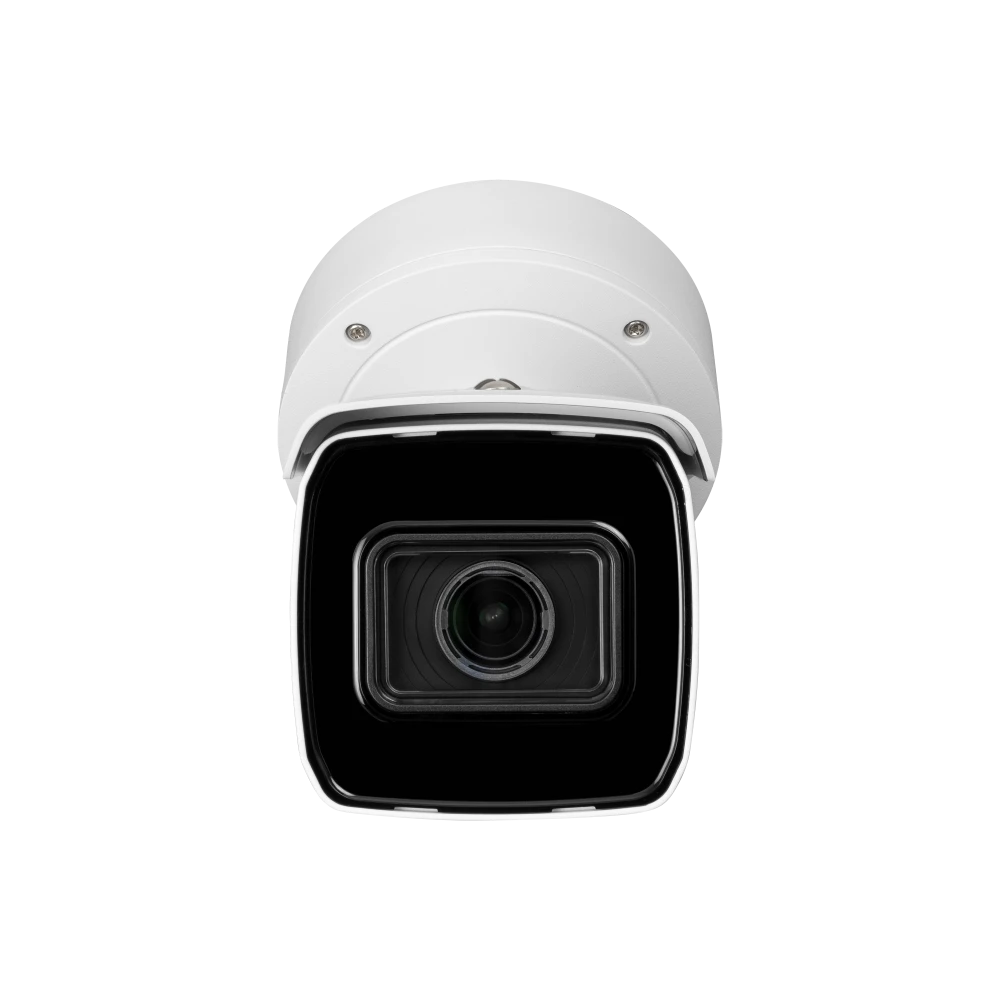

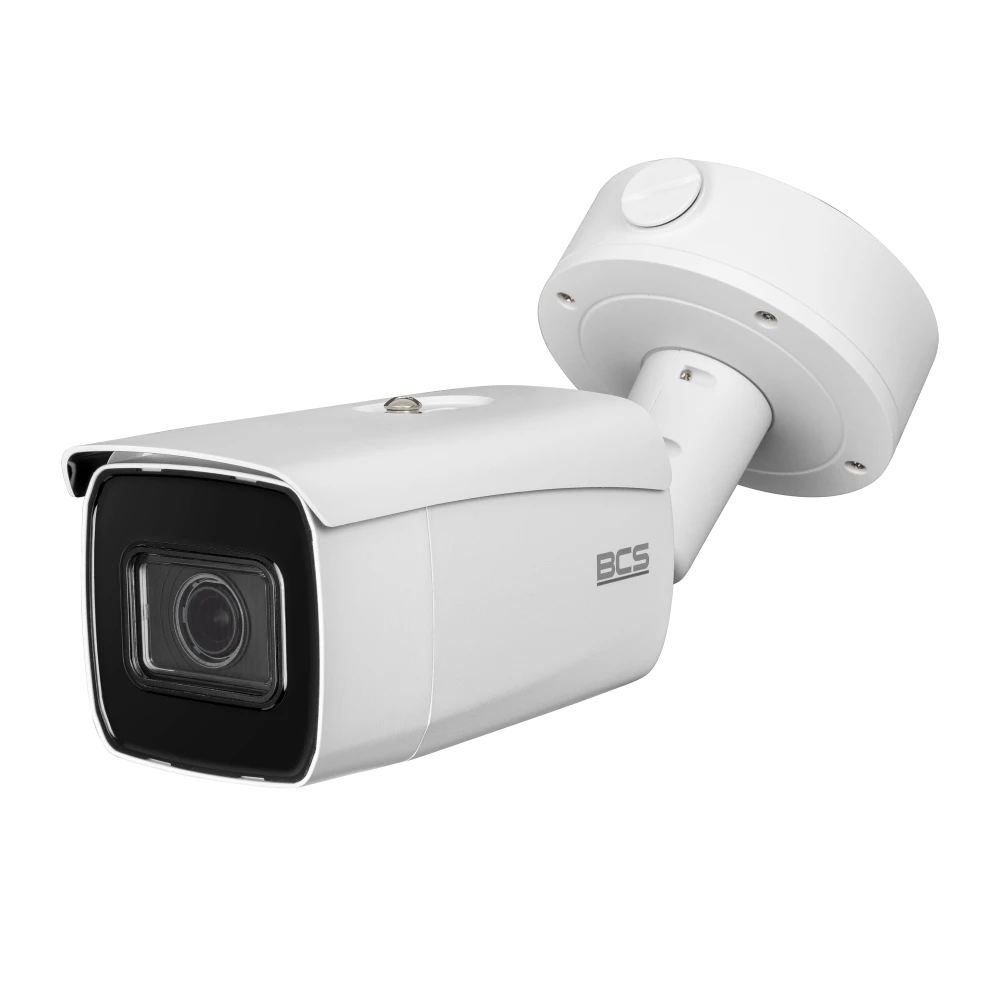

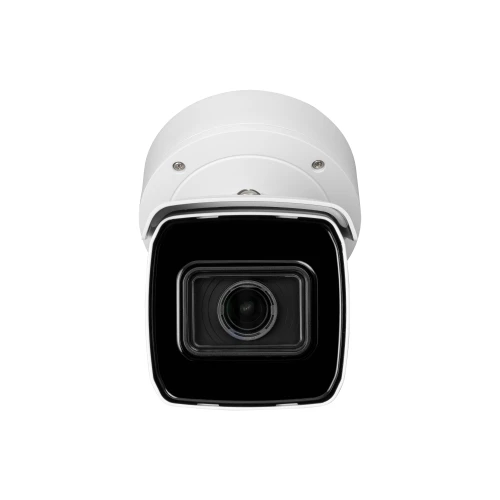

BCS-V-TIP72VSR4-ITC Tube Camera, License Plate Recognition, 2Mpx, IR 40m, SkyLight - BCS

The BCS-V-TIP72VSR4-ITC camera also comes with useful instructions and mounting accessories to speed up the whole process of mounting the camera.

• 1x 4 Mpx horn camera - BCS-V-TIP72VSR4-ITC
• Template - Small size template with mounting holes of the camera
• Mounting screws and dowels - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera connectors from moisture

Main product features:

• 2Mpx IP horn camera
• ARTR for reading license plates
• 1/1.8" PS CMOS sensor
• SkyLight technology
• Motozoom lens 2.8~12mm
• WDR140dB
• IR 40m
• 1/1 alarm
• IP67, IK10 housing



Capture the largest possible area

The 2.8~12mm motozoom lens on the BCS-V-TIP72VSR4-ITC is a feature that allows you to remotely control the focal length of the lens, allowing you to smoothly and precisely zoom in or out without losing quality. This allows you to adjust the camera's field of view to suit your surveillance needs, such as zooming in on the details of an important object or widening the frame to cover a wider area. Motozoom is particularly useful in situations where dynamic image adjustment is required, such as in video surveillance systems.

High-quality image The light-sensitive sensor and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The BCS-V-TIP72VSR4-ITC records at 2Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The BCS-V-TIP72VSR4-ITC camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the BCS-V-TIP72VSR4-ITC camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in BCS-V-TIP72VSR4-ITC cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

SkyLight technology in BCS cameras

SkyLight technology in BCS cameras is an advanced solution that provides excellent image quality in low-light conditions. Thanks to a specially designed lens and high sensor sensitivity, cameras with SkyLight technology are able to capture detailed and clear images even in minimal light, without the need for an additional light source. This makes them ideal for night surveillance and in areas with changing light conditions. SkyLight significantly improves the effectiveness of surveillance by reducing noise and providing natural color reproduction, which is crucial for accurate recognition of objects and people.

Vehicle license plate recognition - ARTR function from BCS

License plate recognition on the BCS-V-TIP72VSR4-ITC is fully automated and includes both number identification and vehicle image capture. The registered numbers and photos are stored in the trip database. The characters contained on the license plates can be used for various activities, such as automatically opening gates for specific vehicles. The system supports blacklisting and whitelisting, allowing management of up to 10,000 items. Camera images go directly to the ARTR server, where license plate numbers are read after analysis. The camera should be mounted between 8 and 30 meters from the vehicle.

Wide dynamic range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 140 dB is an advanced technology used in video surveillance cameras such as the BCS-V-TIP72VSR4-ITC to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 140 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 140dB

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of an area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
