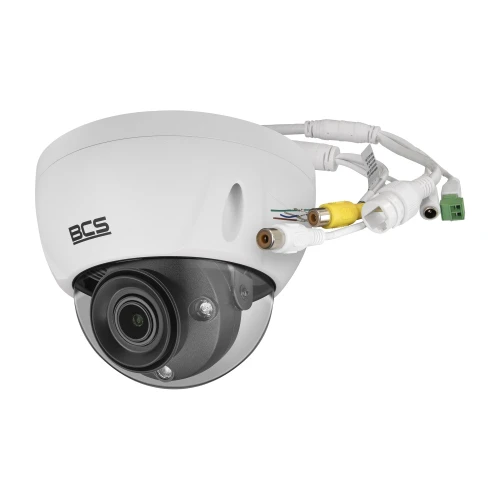

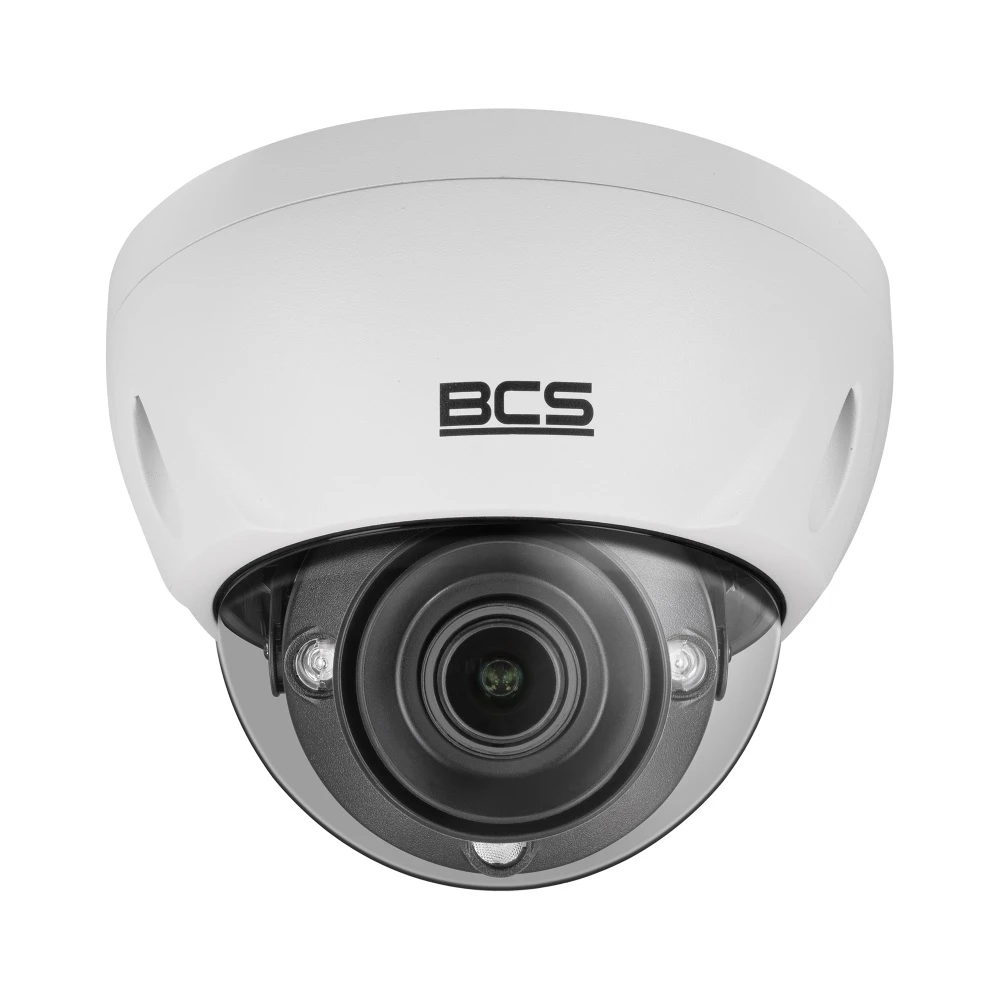

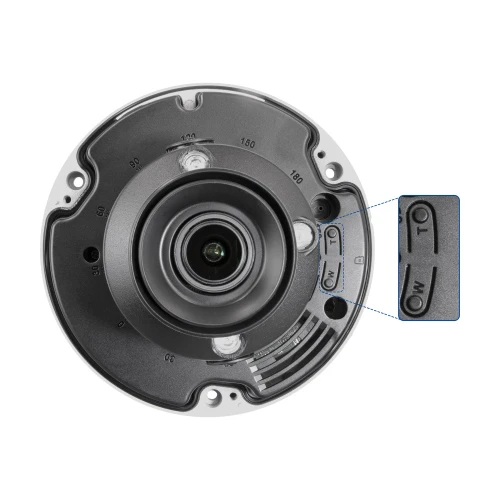

5Mpx Dome IP Camera BCS-L-DIP25FSR4-Ai2, SkyLight, exPoE, AcuPick
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-DIP25FSR4-Ai2
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 50m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Main features of BCS-L-DIP25FSR4-Ai2 camera:
- Product line: BCS Line
- Camera type: Dome
- Resolution: 5 Mpx
- Sensor: 1/2.7'' CMOS
- Scanning system: Progressive Scan
- Pixels: 2960(H)×1688(V)
- RAM: 1GB
- ROM: 4GB
- Lens: Fixed
- Focal length: 2.8mm
- Aperture: F1.6
- Focus: Fixed
- Iris: Fixed
- Digital zoom: 16×
- Viewing angle:
- H: 111°
- V: 58°
- D: 132°
- DORI:
- Detection: 64m
- Observation: 25m
- Recognition: 13m
- Identification: 6m
- Camera sensitivity:
- 0.0009Lux (Color, F1.6, 30IRE)
- 0.0005Lux (B/W, F1.6, 30IRE)
- 0Lux (IR)
- S/N ratio: 56dB
- White balance: Auto / manual
- WDR: 120dB
- Background Compensation: BLC / HLC / WDR(120dB) / SSA
- Shutter: Auto / manual 1/3~1/100000s
- Gain Control (AGC): Auto / manual
- Noise Reduction: 3D DNR
- Defog: Electronic
- Image rotation: Mirror, Flip 0°/90°/180°/270°
- Number of streams: 4
- Video resolutions:
- Main stream: 2960×1668(1~25/30fps)
- Second stream: 704×576(
125fps) 704×480(130fps) - Third stream: 1920×1080(1~25/30fps)
- Stream four: 1280×720(1~25/30fps)
- Bitrate:
- H.264: 32Kbps~16384Kbps
- H.265: 12Kbps~11776Kbps
- Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding
- Day/night: ICR mechanical infrared filter
- Illuminator type: IR LED, range up to 50m
- Microphone: yes
- Audio input/output: 1 / 1, audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM
- Alarm input/output: 1 / 1
- Memory card slot: microSD 512GB
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Motion Detection: 4 areas
- Privacy Masks: 8
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF(S/G/T)
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
- Power supply type: 12VDC / PoE(802.3af) / ePoE
- Power consumption: max 8.8W
- Housing color: White
- Protection class: IP67
- Mechanical resistance class: IK10
- Operating conditions: -40°C~+60°C, max 95% RH
- Dimensions: Ø111.7×89mm
- Weight: 0.51kg
AI functions:
- Perimeter protection: Area intrusion, line crossing, rapid movement, loitering, crowd detection, parking detection
- Object recognition: Person/mechanical vehicle recognition for area intrusion, line crossing and rapid movement reduces false alarm triggering
- Intelligent object detection: Detection of lost/left objects
- Face detection: Face detection and tracking, face photo, facial attribute and expression recognition
- People counting: People counting for line trespassing/intrusion into an area, entry, exit and stay counting, people queue monitoring and management, report generation and export in time periods
- Heat map: Recording of object movement over a period of time, time density statistics of movement presented graphically in red/blue color shades
- SMD: SMD 3.0
This camera offers advanced image analysis functions and high image quality, making it a suitable solution for advanced surveillance systems.
