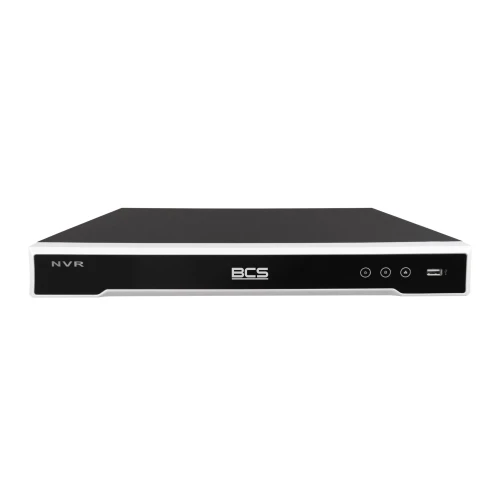

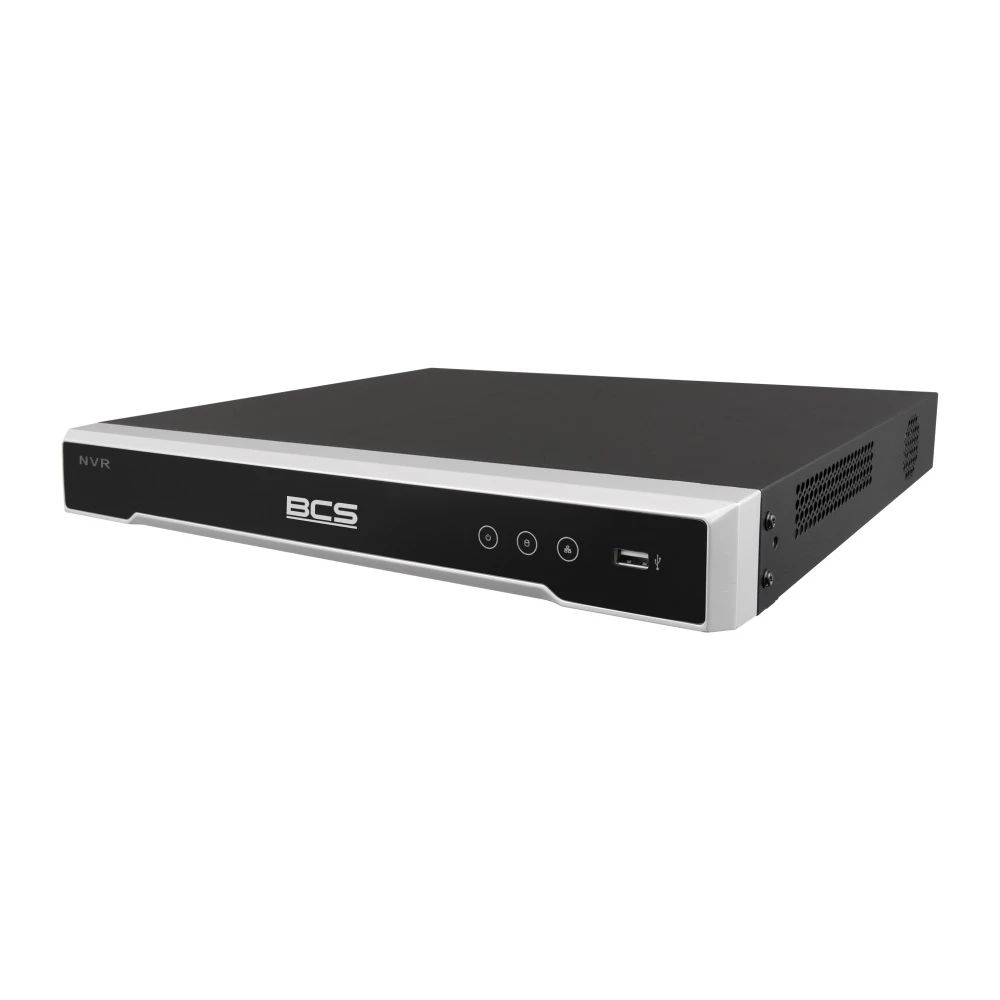

32-channel IP Recorder BCS-V-NVR3202-A-8K, 4 disk, 32MP, HDMI 8K
Photo gallery
-
Manufacturer
-
Product Code
BCS-V-NVR3202-A-8K
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 32
- Built-in POE switch: No
Ask about this product show form
Product Description
Main Features of BCS-V-NVR3202-A-8K DVR:
- Product Line: BCS View
- System: IP
- Pentaplex function: live viewing, recording, playback, archiving, remote access
- Number of Channels: 32
- Number of Disks: 2 (with the possibility of connecting drives up to 16 TB each)
- Maximum Recording Resolution: 32 Mpx
- Input Bandwidth: 320 Mbps
- Output Bandwidth: 400 Mbps
- Display Performance:
- 2×32M(30fps) + 2×8M(30fps)
- 10×8M(25fps)
- 20×4M(30fps)
- 32×2M(30fps)
- Recording Resolution: Supports a variety of resolutions, including 32M, 24M, 12M, 8M, 6M, 5M, 4M, 3M, 2M, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Video Compression: H.265+, H.265, H.264+, H.264
- Video Outputs:
- HDMI: Supports resolution up to 8K (7680×4320)
- VGA: Supports resolution up to 1920×1080
- BNC
- Split Display: 1/4/6/8/9/16/25/32/36 on outputs
- Playback: 1/4/9/16
- Archiving: Ability to write to external media (USB FLASH, USB HDD)
- Number of Users: Supports up to 128 users
- Interfaces:
- 1× USB 2.0
- 1× USB 3.0
- Audio:
- Input: 1
- Output: 1
- Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Alarms:
- Input: 4
- Output: 1
- Support: Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android).
- Network:
- 2× RJ-45 10/100/1000 Mbps
- Compatibility: ONVIF, support for third-party cameras
- Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
- Power supply: 12V DC
- Power consumption (without drives): Maximum 15W
- Operating Conditions: -10°C~+55°C, max 90% RH
- Enclosure: 1U
- Dimensions (W×D×H): 385×315×52 mm
- Weight (without drives): 3 kg
- POT: Yes
- AI - Intelligent Functions from Cameras: SMD, area intrusion, line crossing, heat map, ARTR, people counting
The BCS-V-NVR3202-A-8K DVR is an advanced device with support for up to 32 channels, offering high performance and support for resolutions up to 32 Mpx. Its integrated AI intelligence features and advanced video compression make it ideal for extended surveillance systems.
