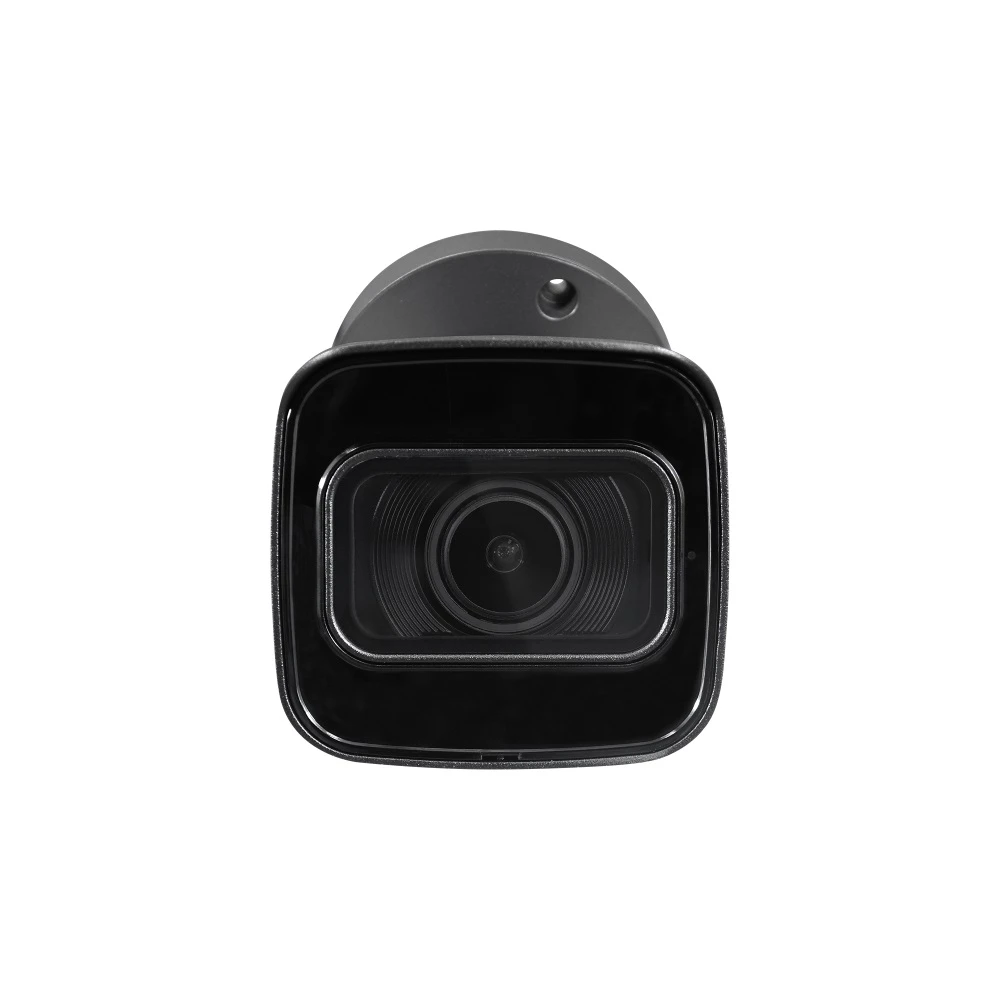

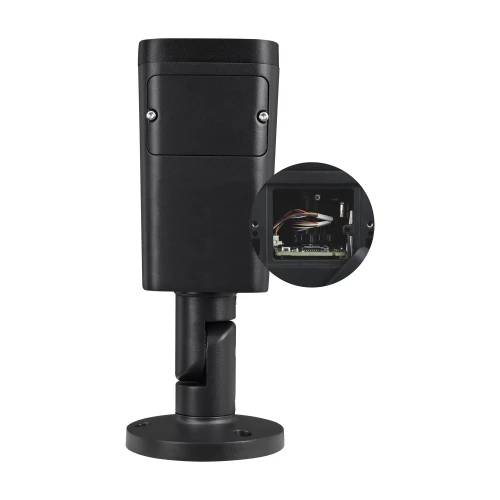

BCS-L-TIP45VSR6-Ai1-G(2) IP Bullet Camera, SkyLight

Here are the main features of the BCS-L-TIP45VSR6-Ai1-G(2) camera:

• Product line: BCS Line
• Camera type: Tube
• Resolution: 5 Mpx (2960×1688 pixels)
• Sensor: 1/2.7'' CMOS, Progressive Scan
• RAM: 256 MB
• ROM: 128 MB
• Lens: Motozoom, focal length 2.7~13.5 mm, aperture F1.5
• Focus: Auto / manual
• Iris: Auto
• Optical zoom: 4×, Digital zoom: 16×
• Viewing angle:
  • H: 113°~31°
  • V: 58°~18°
  • D: 138°~36°
• DORI:
  • Detect: 64~210m
  • Observe: 26~84m
  • Recognize: 13~42m
  • Identify: 6~21m
• Camera Sensitivity:
  • 0.007 Lux (Color, F1.5, 30IRE)
  • 0.0007 Lux (B/W, F1.5, 30IRE)
  • 0 Lux (IR)
• S/N ratio: 56 dB
• White balance (AWB): Auto / manual
• WDR: 120 dB
• Background compensation: BLC / HLC / WDR (120 dB)
• Shutter: Auto / manual 1/3~1/100000s
• Gain Control (AGC): Auto / manual
• Noise Reduction: 3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 2
• Stream resolutions:
  • Main stream: 2960×1668(120fps), 2880×1620(120fps), 2688×1520(1~30fps)
  • Second stream: 704×576 / 704×480(1~25/30fps)
• Bitrate:
  • H.264: 32 Kbps~8192 Kbps
  • H.265: 12 Kbps~8192 Kbps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night mode: ICR mechanical infrared filter
• Illuminator type: IR LED, range up to 60m
• Microphone: yes
• Audio inputs/outputs:
  • 1 audio input
  • 1 audio output
• Audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM
• Alarm input: 1
• Alarm output: 1
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD up to 256GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion Detection: 4 zones
• Privacy masks: 4 zones
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF(S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
• Power supply: 12VDC / PoE(802.3af)
• Power consumption: max 8.5W
• Housing color: Graphite
• IP protection class: IP67
• Operating conditions: -30°C~+60°C, max 95% RH
• Dimensions: 90.4×244.1mm
• Weight: 0.77kg

Intelligent (Ai) functions:

• Built-in intelligent image recognition and analysis algorithms
• Perimeter protection: Area intrusion detection, line crossing detection
• Object recognition: Person/mechanical vehicle recognition for area intrusion, line crossing, false alarm reduction
• SMD: SMD Plus (Smart Motion Detection)

The BCS-L-TIP45VSR6-Ai1-G(2) camera is an advanced surveillance device that offers high resolution, advanced video analysis features such as perimeter protection and object recognition, and the ability to operate in harsh environments thanks to its IP67 rating. It is a robust solution for demanding security systems.
