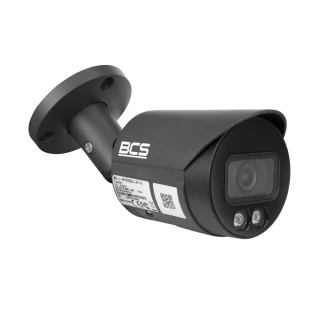

IP Camera 6Mpx BCS-V-EIP16FSR3L3(2), SkyLight, NightColor, IR 30m, PoE

The BCS-V-EIP16FSR3L3(2) model is a modern IP camera that combines high image quality with advanced analytical features. Thanks to its robust design and reliable parameters, it will prove useful in both home monitoring and professional surveillance systems. A high-end sensor and extensive capabilities for operation in various lighting conditions guarantee detailed and clear images around the clock. Additional features, such as intelligent image analysis, make the device not only record, but also effectively support the protection of objects.

Features of the BCS-V-EIP16FSR3L3(2) camera:

• Product line: BCS View
• Camera type: Dome
• Resolution: 6 Mpx (3200×1800)
• Sensor: 1/2.4'' CMOS
• Lens: Fixed, 2.8 mm focal length, F1.6 aperture
• Viewing angle: H: 105°, V: 55°, D: 127°
• Detection range (DORI):
  • Detection: 76 m
  • Observation: 30 m
  • Recognition: 15 m
  • Identification: 7 m
• Camera sensitivity: 0.005Lux (F1.6, AGC), 0Lux (B/W, IR)
• WDR: 120 dB
• Background compensation: BLC, HLC, WDR (120 dB)
• Shutter: Auto/manual 1/3 ~ 1/100000 s
• Noise reduction: 3D DNR
• Video streams: 2
  • Main: 3200×1800@20fps, 2688×1520@20fps, 1920×1080@20fps
  • Secondary: 1280×720@20fps, 640×480@20fps, 640×360@20fps
• Video compression: H.265, H.265+, H.264, H.264+, MJPEG
• Illuminator: IR LED + White Light, range up to 30m
• Microphone: built-in
• Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Power supply: 12V DC / PoE (802.3af), max 6.5W
• Protection class: IP67
• Operating conditions: -30°C ~ +60°C, max 95% RH
• Dimensions: Ø110×89.2 mm
• Weight: 0.34 kg

Remote access from desktops and smartphones

BCS is a simple and fast way to operate your property monitoring system, with it you will be able to:

✅Access video previews and playback stored footage

✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Top-notch image quality and high detail saturation

The BCS-V-EIP16FSR3L3(2)' s high 6Mpx resolution provides exceptional image clarity to identify fine details and features, which is crucial for evidence analysis. It allows greater area coverage without sacrificing quality, reducing the number of cameras needed to monitor large areas. In addition, the improved image quality facilitates facial recognition and vehicle identification, which increases the effectiveness of prevention and investigation efforts.

Color images in total darkness Hybrid illumination on the BCS-V-EIP16FSR3L3(2) combines the advantages of LED and IR illumination for effective monitoring both day and night. With this technology, cameras can capture clear images at low light levels without visible light sources, minimizing the risk of detection by intruders. In addition, hybrid illumination enables color recognition, which is crucial for identifying details such as the color of a car or an intruder's clothes, increasing the effectiveness and reliability of the surveillance system.

Built-in microphone - a more complete picture of the situation

The BCS-V-EIP16FSR3L3(2) camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Hide what shouldn't be seen

Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of the area. With privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 108° horizontal, 59° vertical and 127° diagonal viewing angle, the BCS-V-EIP16FSR3L3(2) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

Reduce unnecessary noise

DNR (Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-V-EIP16FSR3L3(2), which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-V-EIP16FSR3L3(2) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all details are visible.

• Better image quality: With crisp details in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-V-EIP16FSR3L3(2) cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection: the system is able to detect the presence of an object or person. This means,n that something is within the camera's range of view, but it is not necessarily possible to determine what it is.
• Observation: The system can not only detect the object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some characteristics of the object, but without exact recognition.
• Recognition: Recognition enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification: the system is able to provide a highly detailed image that identifies specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
