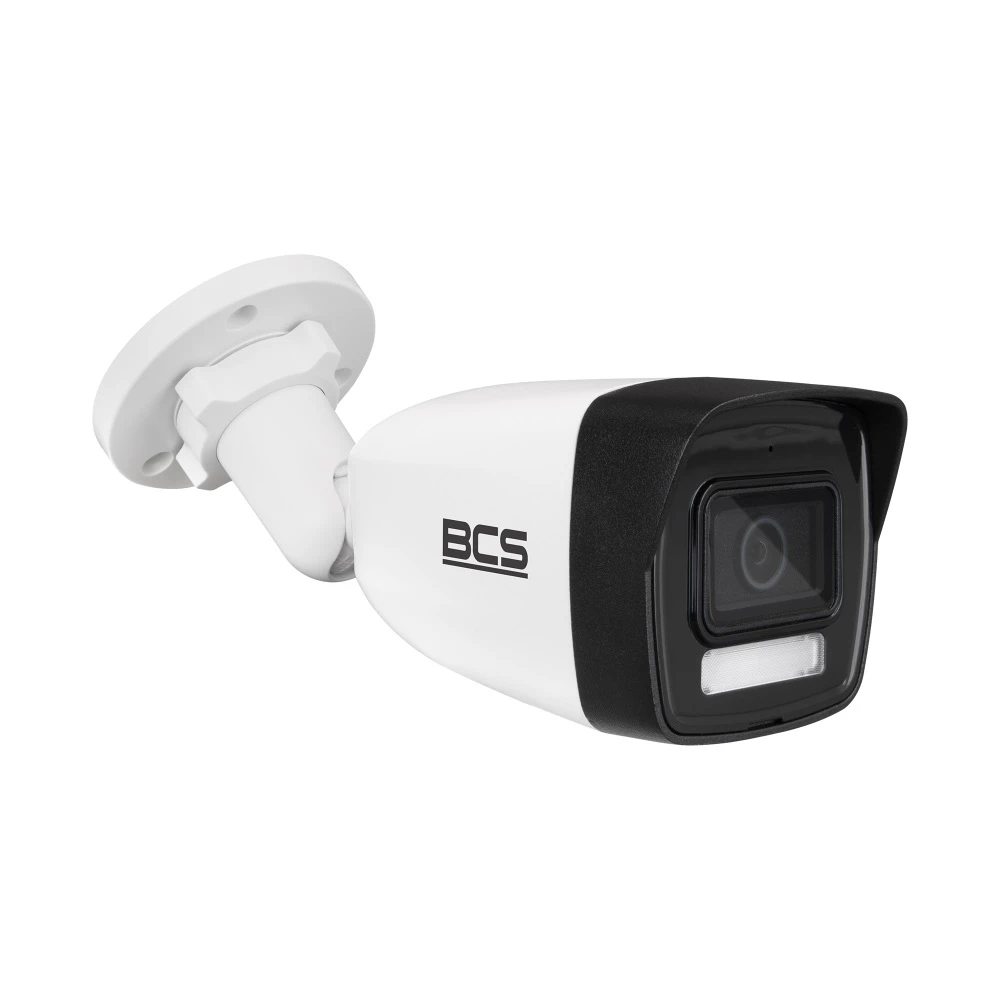

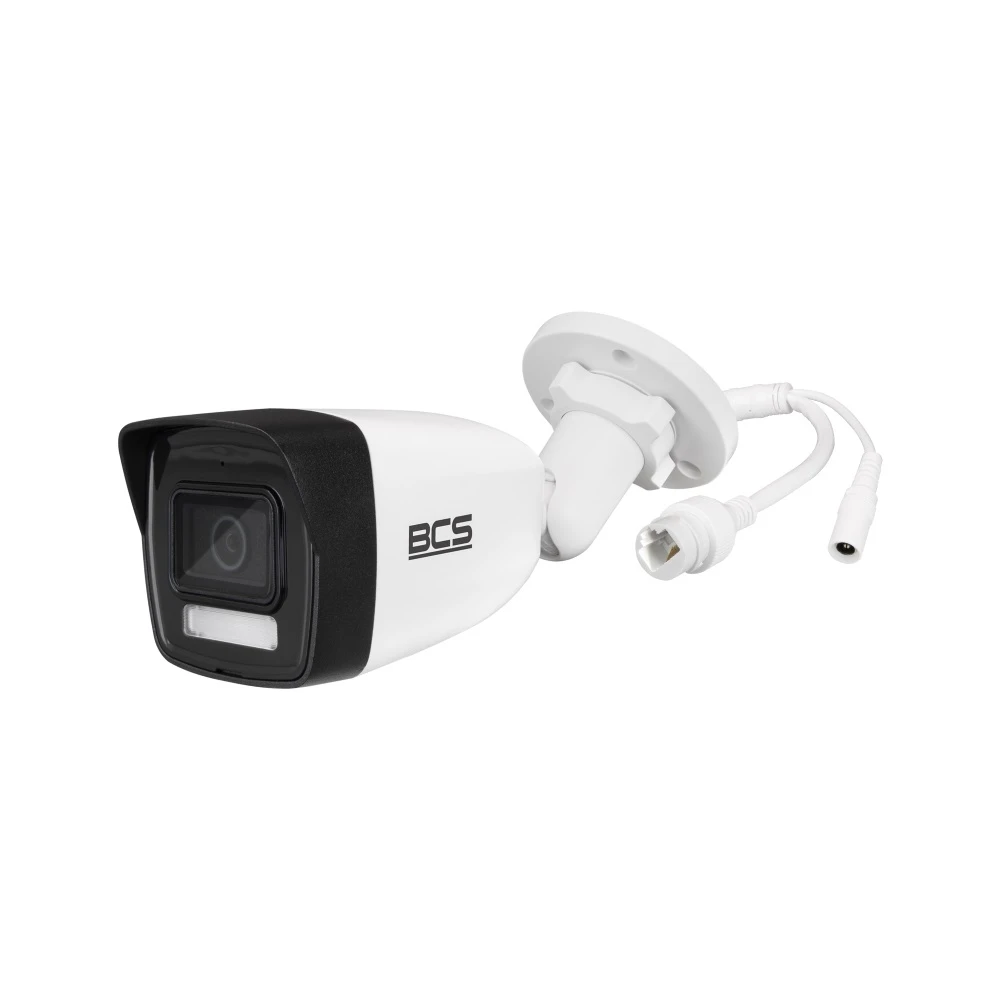

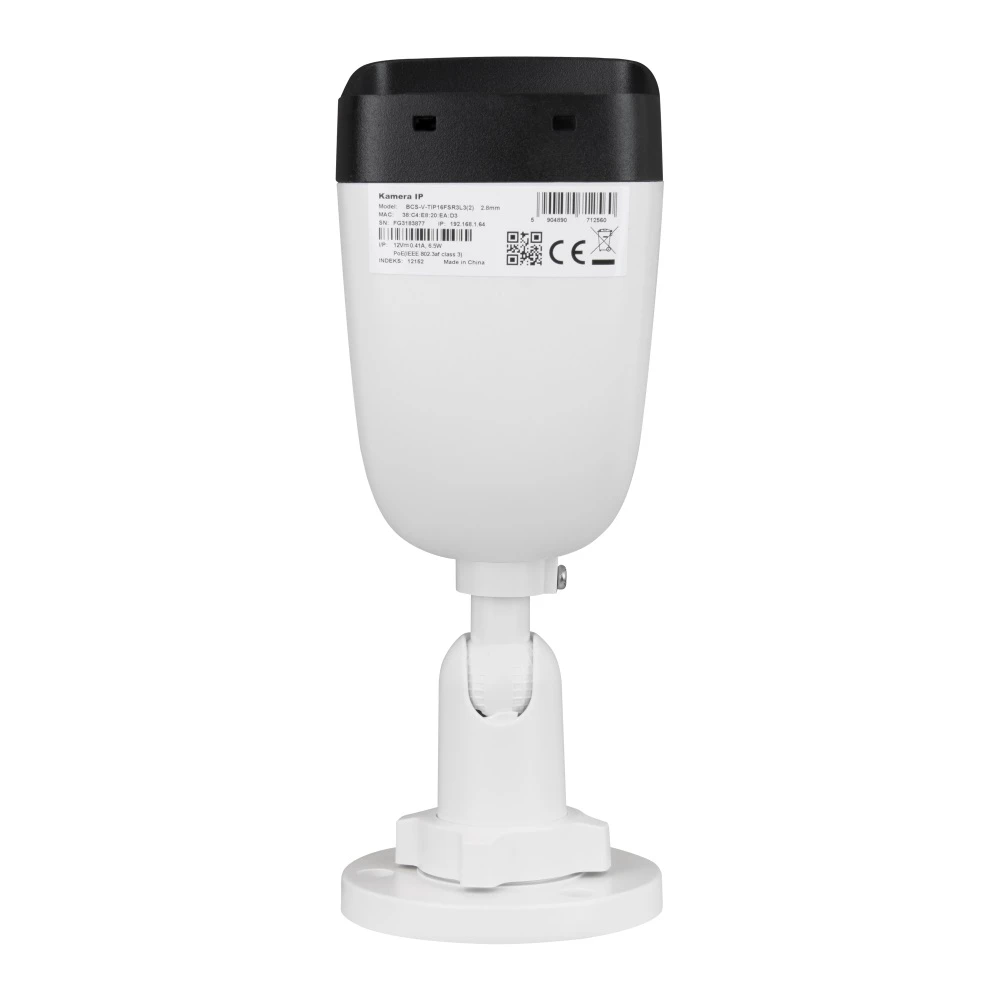

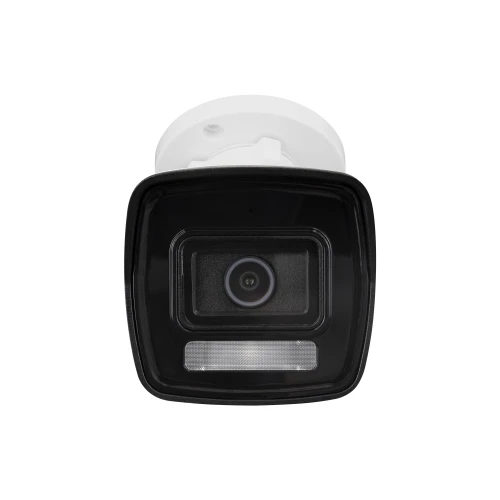

IP Tube Camera 6Mpx BCS-V-TIP16FSR3L3(2), SkyLight, NightColor
Photo gallery
-
Manufacturer
-
Product Code
BCS-V-TIP16FSR3L3(2)
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 6Mpx
- Enclosure: Tube
- Night visibility: up to 30m
- Connectivity: Wired
- Memory card slot: No
- Audio: No
- Color: White
Ask about this product show form
Product Description
Here are the main features of the BCS-V-TIP16FSR3L3(2) camera:
- Product line: BCS View
- Camera type: Tube
- Resolution: 6 Mpx (3200×1800)
- Sensor: 1/2.4'' CMOS
- Scanning system: Progressive Scan
- Lens: Fixed, focal length 2.8 mm, aperture F1.6
- Viewing angle:
- H: 105°
- V: 55°
- D: 127°
- DORI range:
- Detection: 76 m
- Observation: 30 m
- Reconnaissance: 15 m
- Identification: 7 m
- Camera sensitivity: 0.005Lux (F1.6, AGC), 0Lux (B/W, IR)
- S/N ratio: 52 dB
- White balance: Auto / manual
- WDR: 120 dB
- Background compensation: BLC / HLC / WDR (120 dB)
- Shutter: Auto/manual 1/3~1/100000 s
- Noise Reduction: 3D DNR
- Image rotation: Mirror
- Number of streams: 2
- Resolutions:
- Main: 3200×1800@20fps, 2688×1520@20fps, 1920×1080@20fps, 1280×720@20fps
- Secondary stream: 1280×720@20fps, 640×480@20fps, 640×360@20fps
- Bitrate: 32 Kbps ~ 16 Mbps
- Video compression: H.265, H.265+, H.264, H.264+, MJPEG
- Day/night mode: ICR (mechanical infrared filter)
- Illuminator: IR LED + White Light, range up to 30m
- Microphone: Built-in
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Motion detection: Yes
- Privacy Masks: 4
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF (S/G/T)
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Power supply: 12V DC / PoE (802.3af)
- Power consumption: Max 6.5 W
- Housing color: White
- Protection class: IP67
- Operating conditions: -30°C ~ +60°C, max 95% RH
- Dimensions: 170.8×66×69.1 mm
- Weight: 0.28 kg
