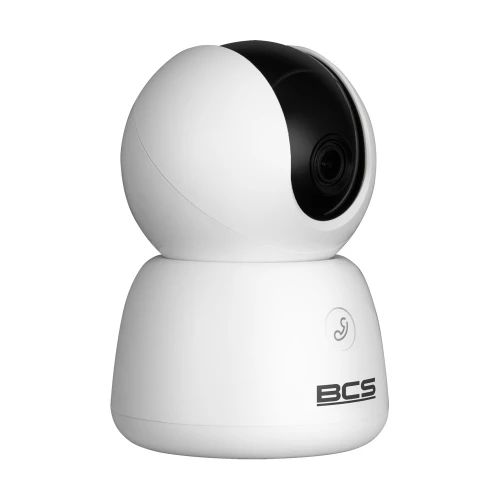

Internal Wi-Fi Rotating Camera 5Mpx BCS-L-PTHOME01, tracking and AI features (human/animal recognition)

Here are the main features of the BCS-L-PTHOME01 camera:

General features:

• Product line: BCS Line
• Camera type: HOME
• Resolution: 5 Mpx (2880 × 1620)
• Sensor: 1/3'' CMOS
• Pixels: 2880 (H) × 1620 (V)
• Lens: Fixed
• Focal length: 3.6 mm
• Aperture: F2.0
• Focus: Fixed
• Iris: Fixed

Viewing angle:

• H: 74°
• V: 41°
• D: 88°

Image Technology:

• White balance: Auto
• WDR: DWDR
• Shutter: Auto / manual 1/3 ~ 1/100000s
• Image rotation: Flip 180°

Streams and resolutions:

• Number of streams: 2
• Main stream: 2880 × 1620 @ 1~25/30fps
• Second stream: 640 × 360 @ 1~25/30fps
• Bitrate: H.265: 40 ~ 4096 kbps
• Video compression: H.265

Day/Night:

• ICR: Mechanical infrared filter
• Illuminator type: IR LED
• Illuminator range: 10 m

Audio:

• Microphone: Yes
• Speaker: Yes
• Audio compression: G.711A

Additional interfaces:

• Memory card slot: microSD 256 GB
• USB-C: Yes

Support:

• Mobile app: Mobile App (iOS, Android)
• Motion detection: Yes

Networking:

• Network port: RJ-45 10/100 Mbps
• Wi-Fi: IEEE802.11b/g/n/ax 2.4GHz

Power supply:

• Power supply type: 5VDC 1A
• Power consumption: max 3.8W

Housing:

• Color: White
• Dimensions: Ø84mm × 123.8mm
• Weight: 0.2kg
• Operating conditions: -10°C ~ +45°C, max 95% RH

Range of motion:

• PAN: 0° ~ 350°
• TILT: -5° ~ 80°
• Auto tracking: Yes

Automation functions:

• Preset Patrol

AI functions:

• Built-in intelligent functions: Human and animal detection, reduces false alarms

Accessories included:

• Power supply: Yes
