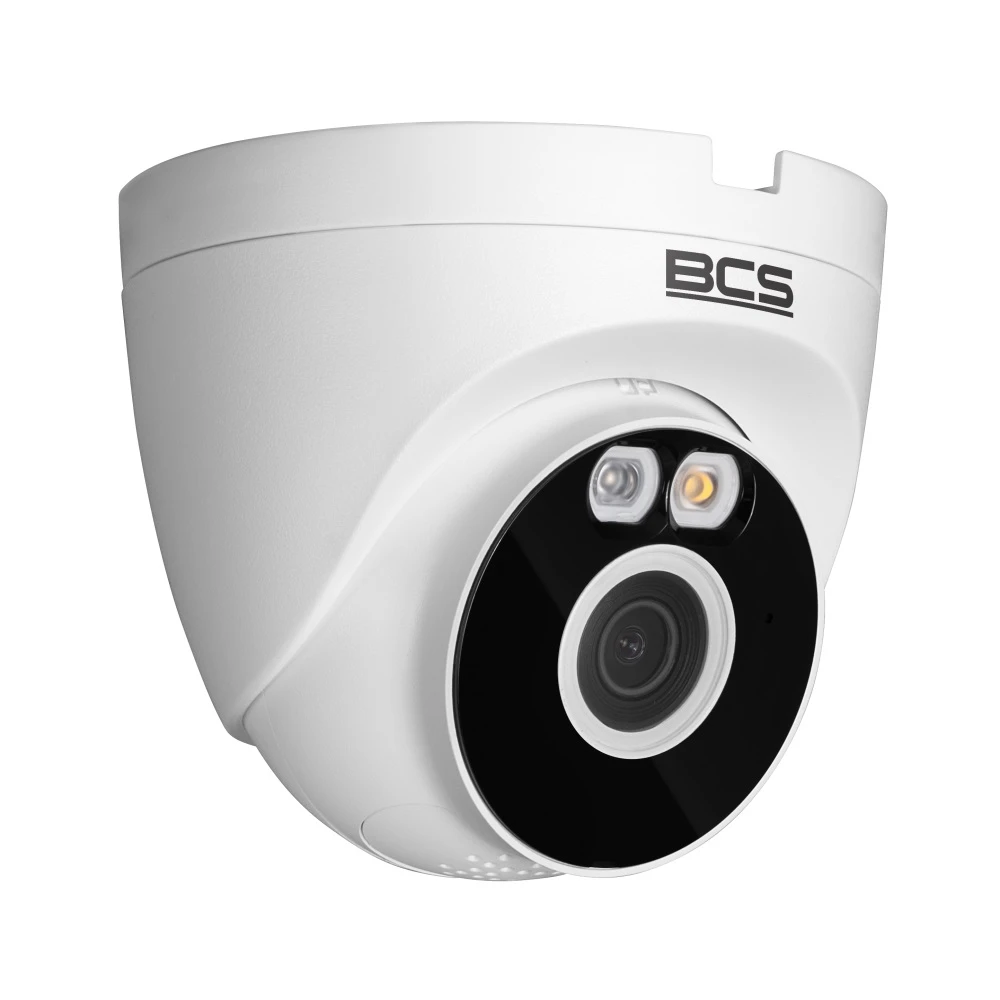

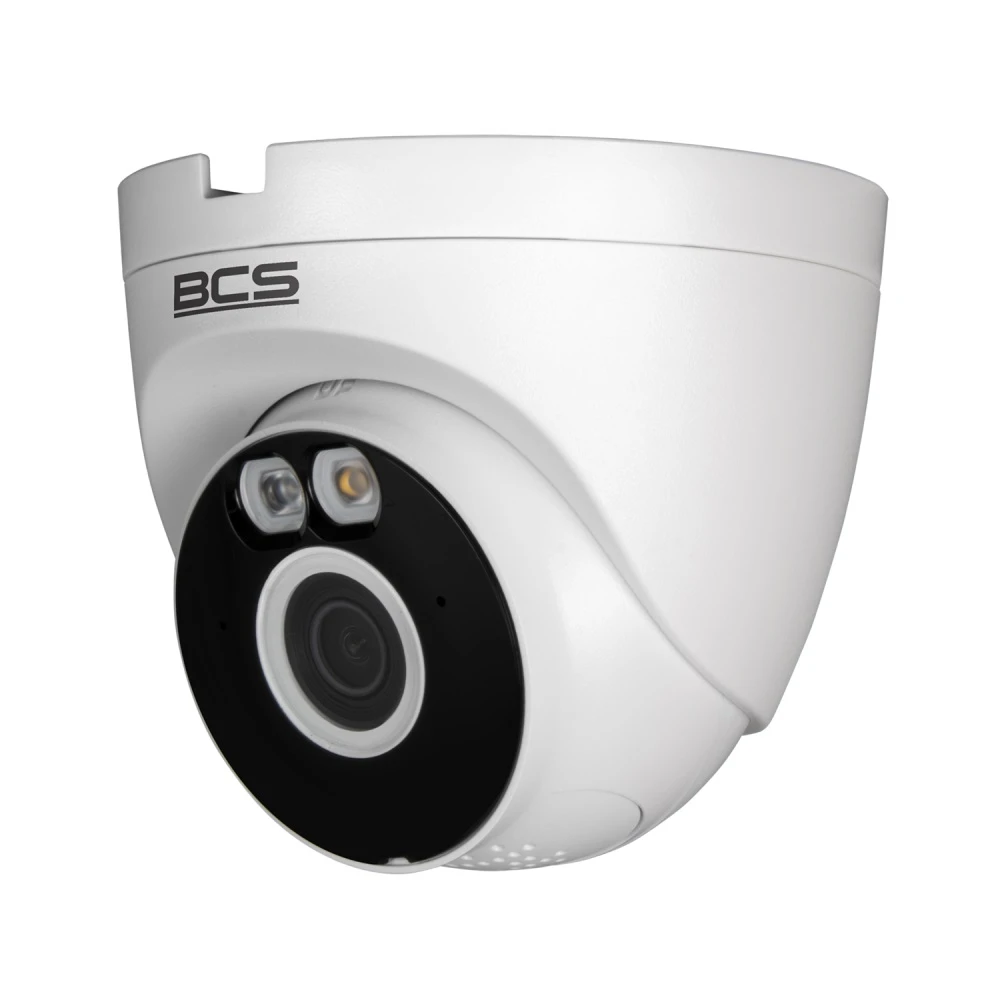

Wi-Fi Outdoor Camera 4Mpx BCS-L-EHOME01, microphone/speaker, AI features (human recognition)

Main product features:

• Product line: BCS Line
• Camera type: HOME
• Resolution: 4 Mpx (2560×1440)
• Sensor: 1/3'' CMOS
• Lens: Fixed, focal length 2.8 mm, aperture F 1.6
• Viewing angle: 98° (horizontal), 55° (vertical), 115° (diagonal)
• Shutter: Auto / manual 1/3~1/100000s
• Video streams: 2
  • Main: up to 2560×1440 at 25/30 fps
  • Secondary: up to 640×480 at 25/30 fps
• Video compression: H.264, H.265
• Day/night: Mechanical infrared filter (ICR)
• Illuminator: IR LED + White Light, range up to 30m
• Microphone: Yes
• Speaker: Yes
• Alarm functions: Active optical/sound alarm, active deterrence function (ADC)
• Audio compression: PCM / G.711a / G.711Mu / G.726
• Memory card: microSD up to 256GB
• Connectivity: RJ-45 10/100 Mbps, Wi-Fi (2.4 GHz, IEEE802.11b/g/n)
• Power supply: 12V DC, maximum power consumption 7.1W
• Protection class: IP67
• Operating conditions: -40°C to +60°C, max 95% RH
• Dimensions: Ø109.9×102.2 mm
• Weight: 0.35 kg
• Built-in AI functions: Human detection
• Accessories included: Power supply

BCS Line HOME camera is a modern surveillance solution that provides clear 4 Mpx image quality. Thanks to its wide viewing angle, it will work well in monitoring larger spaces. It is equipped with human detection, active deterrence with light and sound alarm, as well as a microphone and speaker for two-way communication. The camera works both day and night thanks to its built-in infrared and white light illuminator. It is resistant to harsh weather conditions, with the added benefit of Wi-Fi connectivity and recording on a microSD card.

Active deterrence

With built-in audible alarms, light signals and smart features, the camera reacts immediately when suspicious activity is detected. When an intruder enters the device's field of view, he or she is alerted by a loud alarm signal or flashing light, effectively deterring him or her from further action.

Automatic day/night mode with hybrid illumination Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the vision mode automatically based on the amount of light reaching the lens. The user can also select other lighting modes: LED (white light only for color images at night), IR (infrared only), or turn off the illuminator completely. The illuminator mode can be easily configured in the camera's menu, which can be accessed via a web browser.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EHOME01 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EHOME01 records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The BCS-L-EHOME01 camera has a built-in microSD card slot that allows you to locally store video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the BCS-L-EHOME01 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The BCS-L-EHOME01 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras BCS is a quick and easy way to operate your property's surveillance system, thanks to it you will be able to: ✅Access video previews and play back recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

People detection Motion detection with human silhouette recognition on BCS-L-EHOME01 cameras is an advanced feature that allows you to increase the precision and efficiency of your surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected.

Technical specifications:
