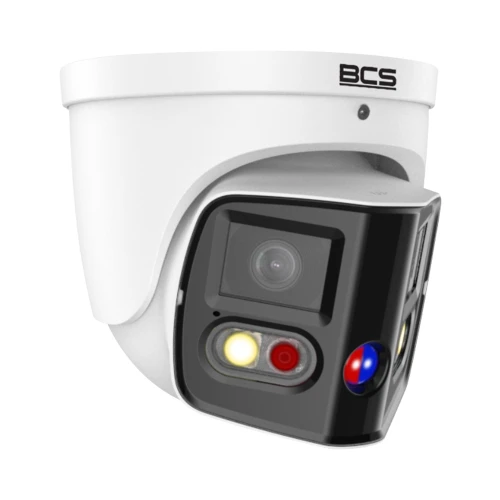

8Mpx Dome IP Camera BCS-L-PEIP2X4FCR2L2-Ai1, NightColor, ADC, IR 25m, intelligent functions

The main features of the BCS-L-PEIP2X4FCR2L2-Ai1 camera are:

• Product line: BCS Line
• Camera type: Dome
• Resolution: 8 Mpx (4096×1860)
• Sensor: 2×1/2.7'' CMOS, Progressive Scan
• RAM: 1 GB
• ROM: 128 MB
• Lens: Fixed, 2×2.8 mm, F1.4 aperture
• Digital zoom: 16×
• Viewing angle: 180° (horizontal), 86° (vertical)
• DORI: Detect 51 m, Observe 20 m, Recognize 10 m, Identify 5 m
• Camera sensitivity: 0.005 Lux (Color, F1.4), 0.0005 Lux (B/W, F1.4), 0 Lux (IR)
• S/N ratio: 56 dB
• White balance: Auto / manual
• WDR: 120 dB
• Background compensation: BLC / HLC / WDR (120 dB) / SSA
• Shutter: Auto / manual 1/3~1/100000s
• Gain Control (AGC): Auto / manual
• Noise Reduction: 3D DNR
• Region of Interest (RoI): Yes
• Defog: Electronic
• Video Streams: 3
  • Main: 4096×1860 (1~20 fps)
  • Second: 1200×530 (1~20 fps)
  • Third: 1920×860 (1~20 fps)
• Video compression: H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding
• Illuminator: IR LED + White Light, range 25 m (IR) / 20 m (White Light)
• Night Mode: NightColor (color image at night)
• Microphone: Yes
• Speaker: Yes
• Active deterrence function: Optical and sound alarm (ADC)
• Audio input/output: 1 input, 1 output
• Audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM
• Alarm input/output: 1 input, 1 output
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD up to 256 GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion Detection: 4 zones
• Privacy masks: 4
• Connectivity: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: Max 11W
• Housing color: White
• Protection class: IP67
• Operating conditions: -40°C to +60°C, max 95% RH
• Dimensions: Ø122×135.2 mm
• Weight: 0.99 kg

Built-in AI functions:

• Intelligent image recognition and analysis algorithms
• Perimeter protection (area intrusion, line crossing)
• People/vehicle recognition, false alarm reduction
• SMD 4.0: Advanced event analysis
