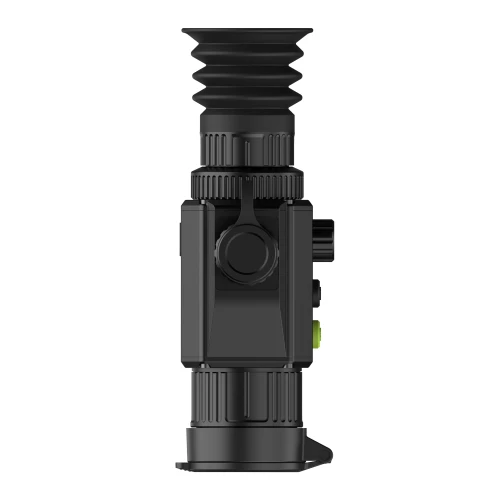

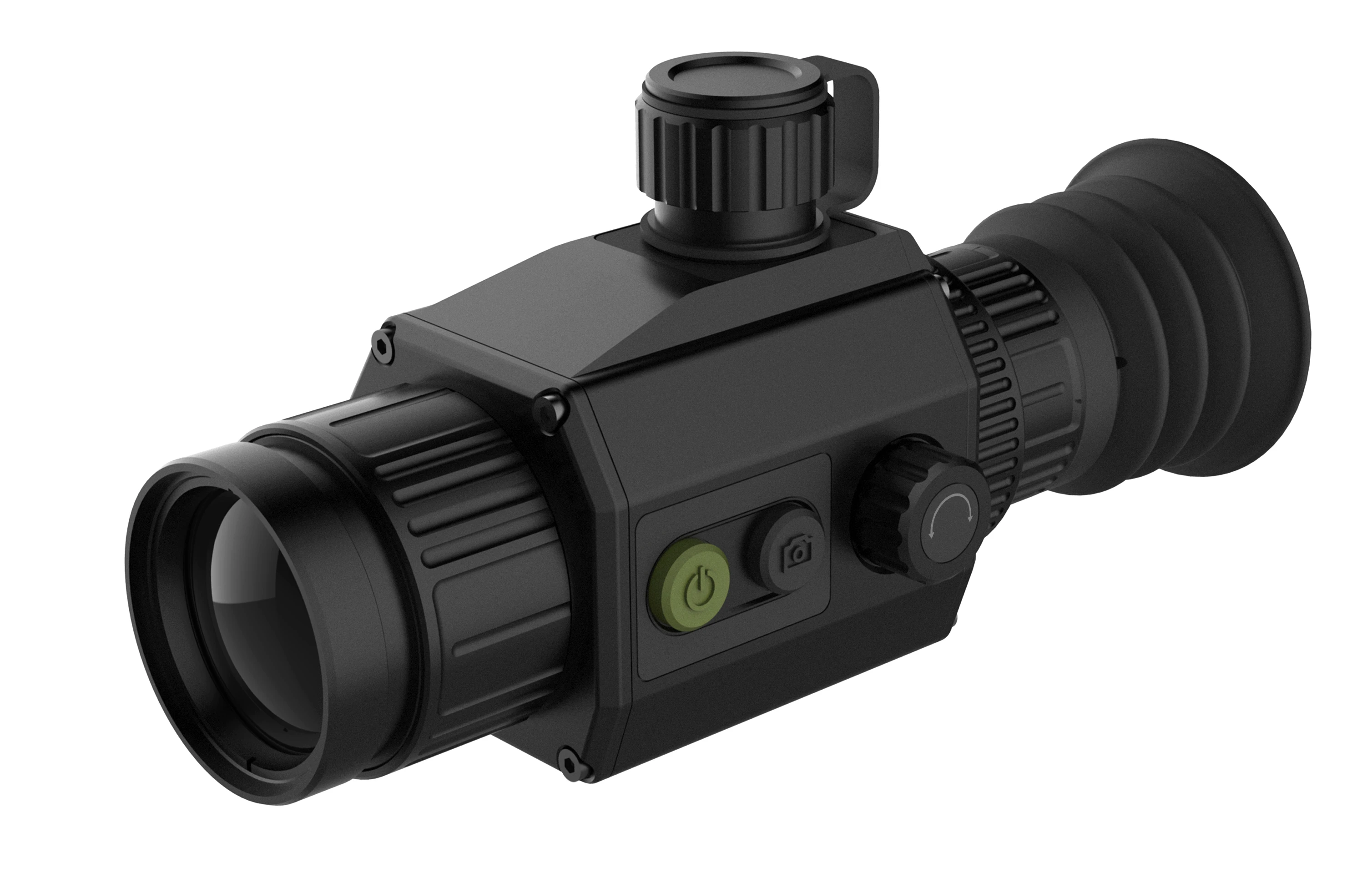

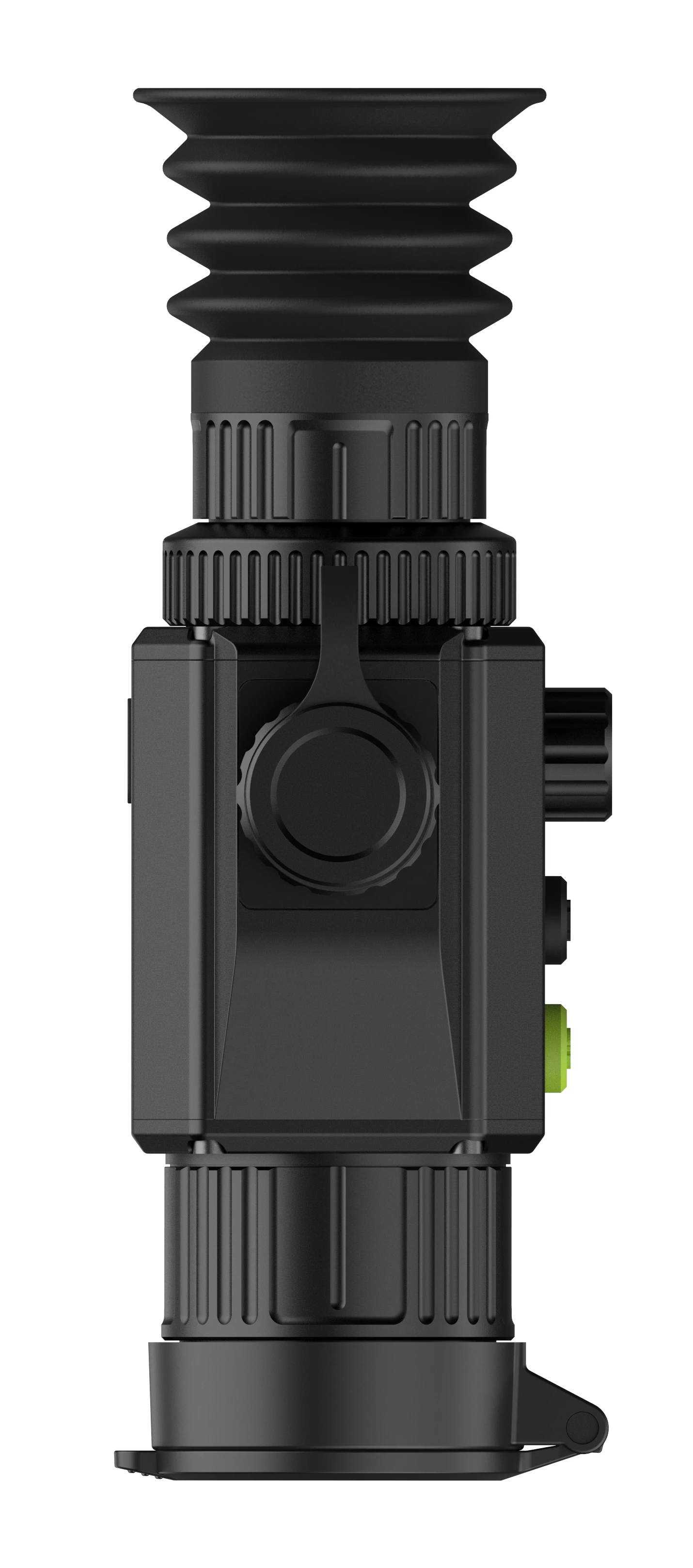

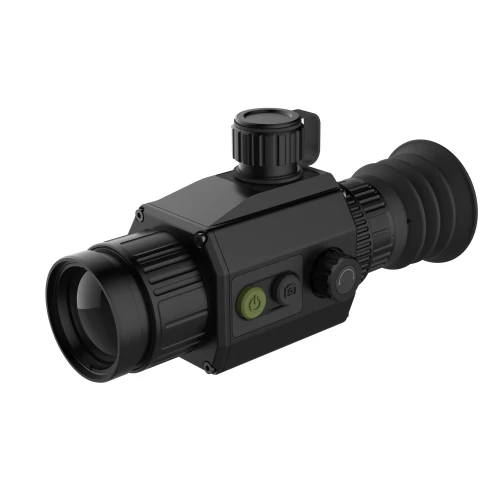

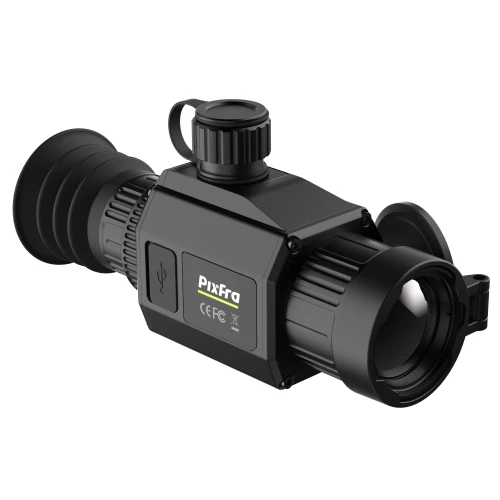

Thermal Imaging Attachment Chiron PFI-C425F Pixfra
Do you represent a budgetary unit?
Check out the deferred payment option.
Product Description

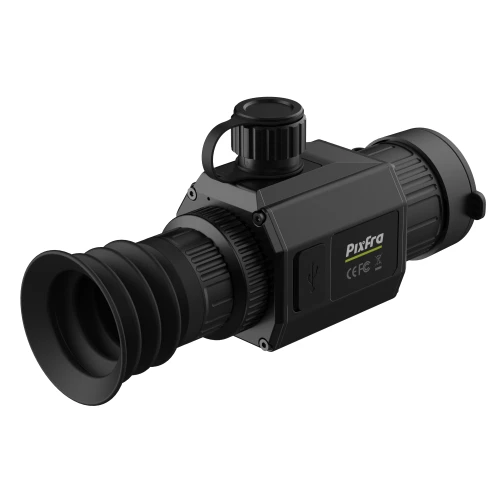

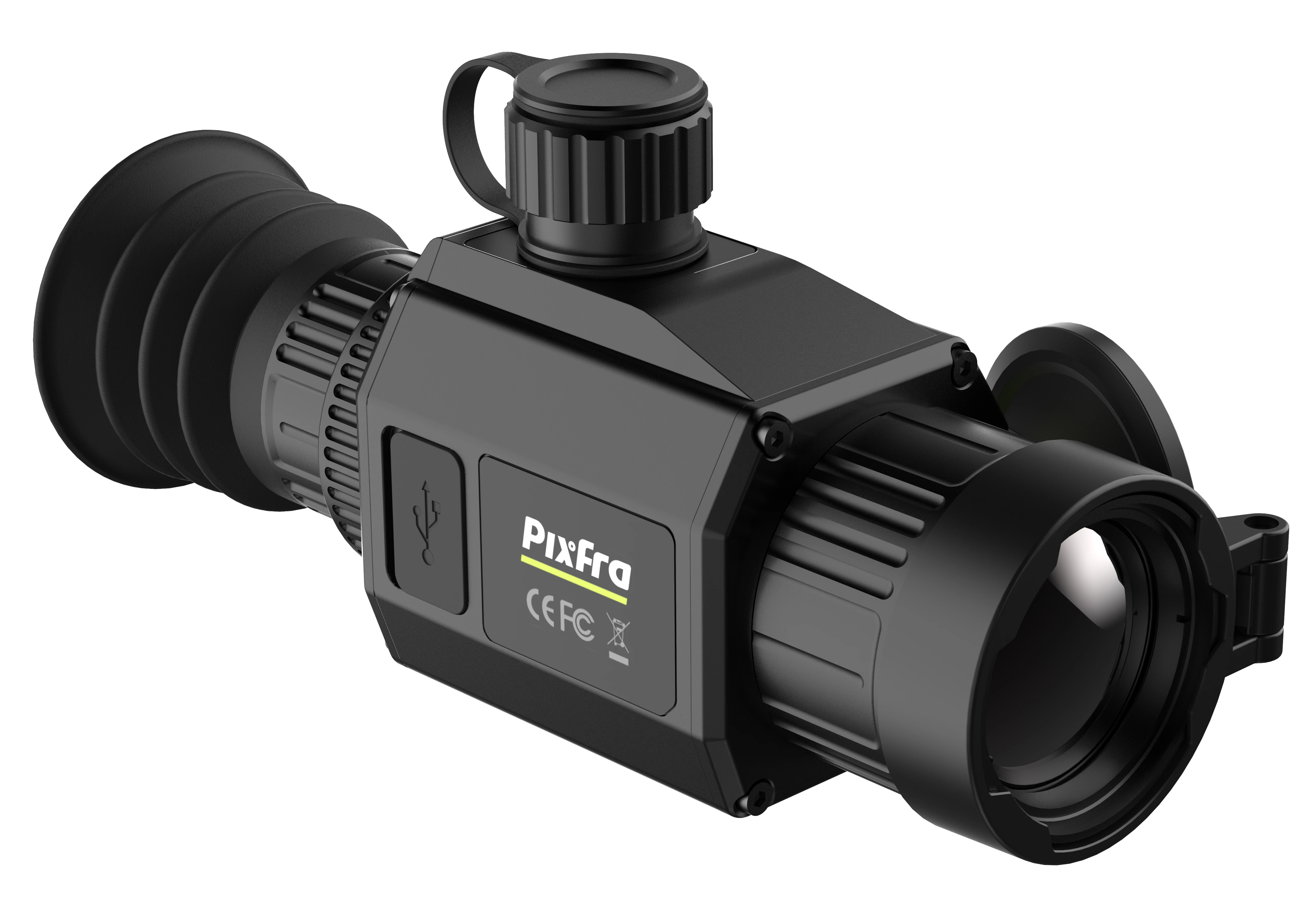

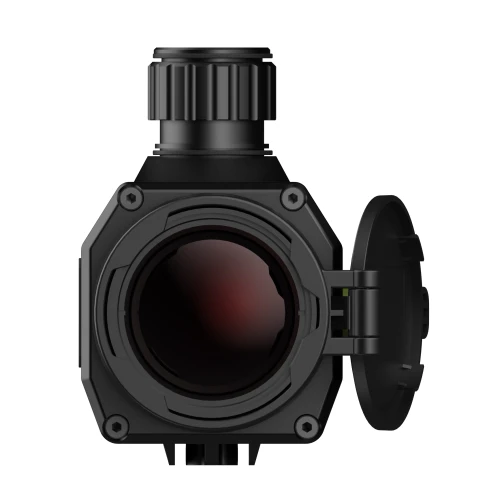

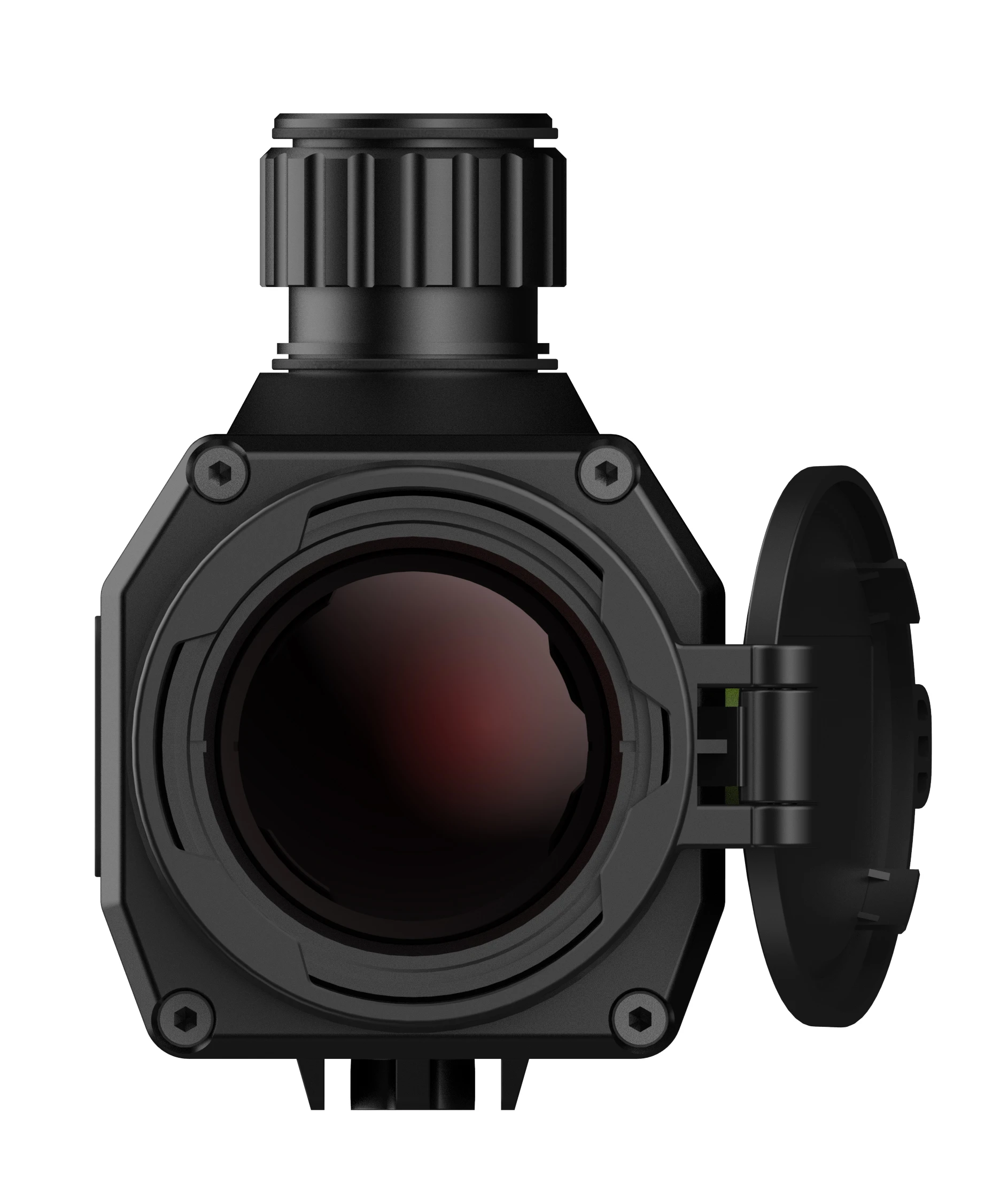

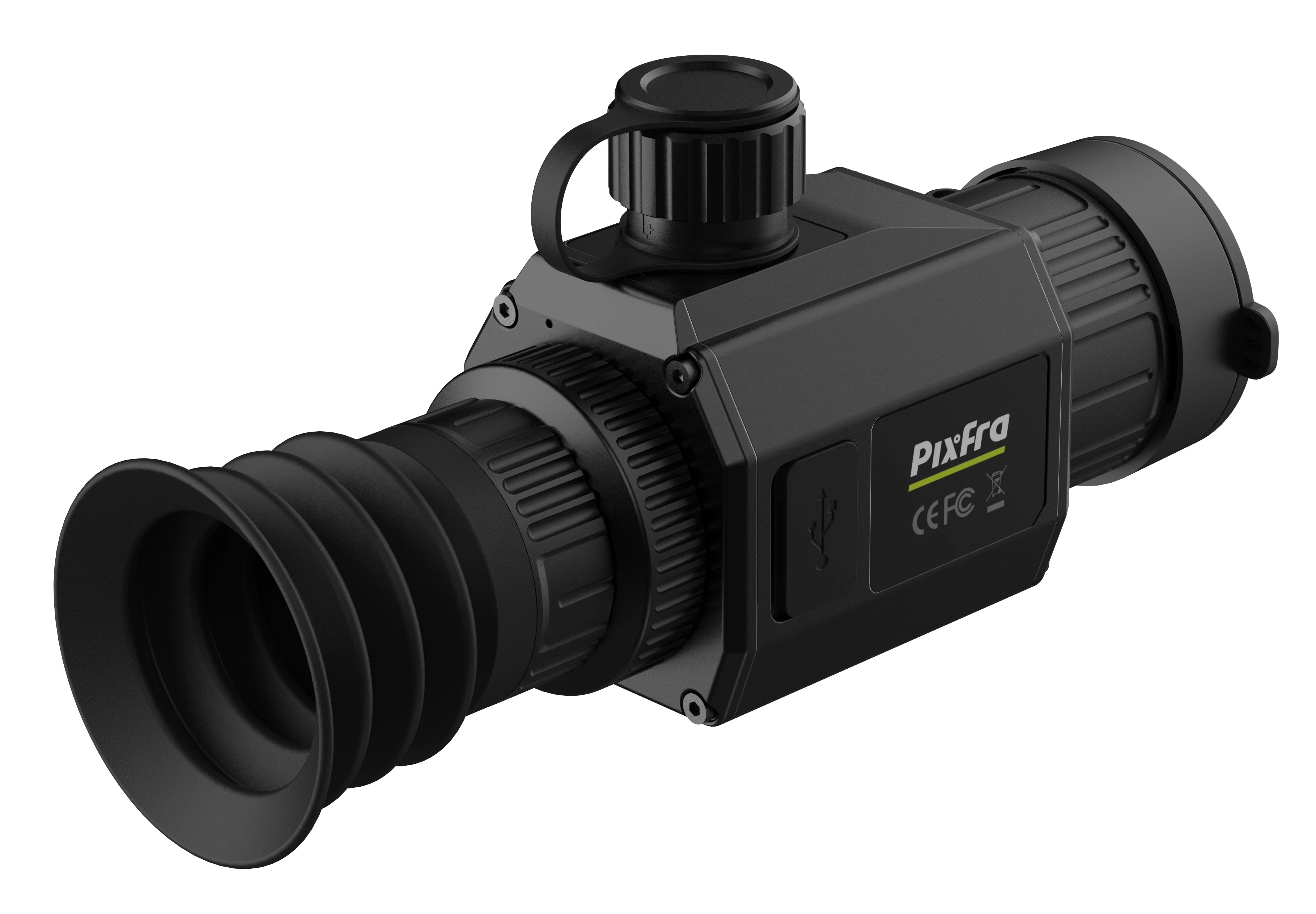

The Pixfra Chiron PFI-C425 thermal imaging sight is a professional device designed for precise targeting in difficult terrain and weather conditions. Here are its key features:
Advanced thermal imaging detector: Equipped with a 400x300 pixel detector, the PFI-C425 provides precise thermal imaging, allowing targeting even in total darkness, through smoke, fog or other obstacles.
Long range detection: Thanks to advanced optics, the sight can detect objects at distances of up to 1,300 meters, which is crucial in challenging field situations.
OLED display: The high-quality OLED display provides excellent contrast and image brightness, making it easy to observe and aim in any lighting conditions.
Targeting and ballistic functions: The viewfinder has built-in ballistic functions and various image display modes (white-hot, black-hot, red-hot) that can be adjusted according to field conditions and user preferences.
Video and photo recording: The device offers the ability to record video and take photos, which is especially useful for documenting field actions.
Robust, compact design: The PFI-C425 is made of materials that are resistant to shock and weather conditions such as rain, dust and low temperatures. It is also lightweight and ergonomic, making it easy to use in the field.
Long battery life: The device allows for hours of operation without the need for frequent recharging, which is crucial for prolonged field operations.
Versatile use: The Pixfra Chiron PFI-C425 thermal imaging sight will work well in hunting operations, as well as in uniformed services, facility security and other professional applications where precise targeting in difficult conditions is crucial.
This model combines reliability, precision and advanced features, making it one of the leading solutions in the field of thermal sighting devices.
High shock resistance
Rugged construction is designed to withstand a maximum recoil of more than 6,000 joules, which is ideal for a variety of rifles with 12 gauge, 9.3 × 64, .375H&H calibers, etc.
Easy to use, simplified operation
The Chiron series has a dial design that helps quick menu operation for more convenient and faster operation.

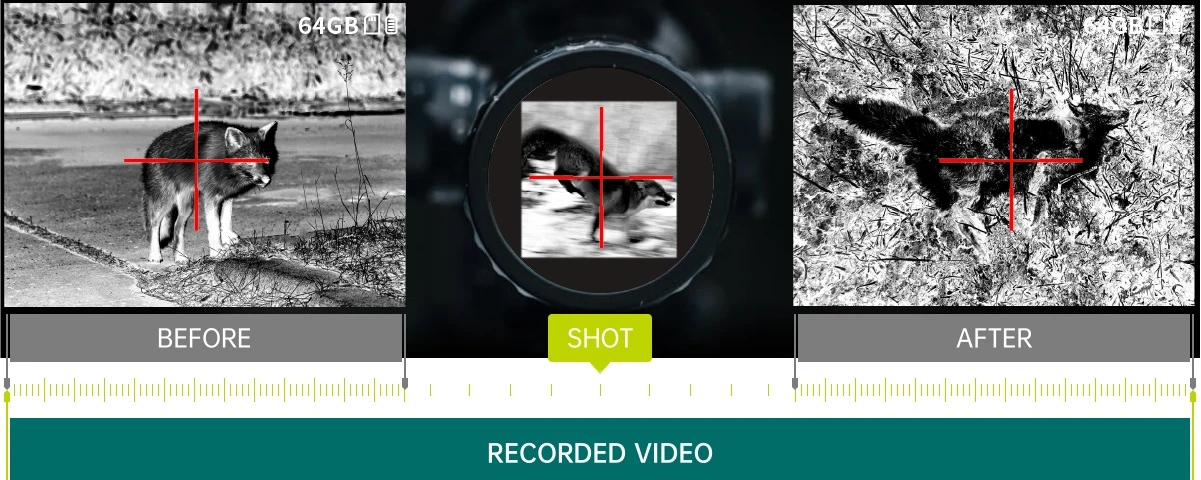

Ahead of the magic moment
Chiron supports Recoil-Activated Recording (RAR), automatically captures key moments during shooting, so you won't miss any of the most important moments. With the Pixfra app, you can also quickly share videos with friends.
Professional image sensor
All models use 12 μm sensor, resolution up to 640 × 512, sensor sensitivity < 30 mk, even in heavy rain, fog or harsh cold conditions, can perfectly present details, clearly observe the details of the target features.

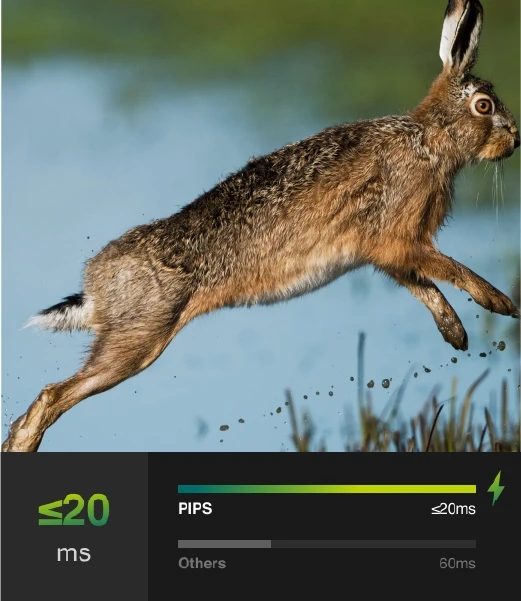

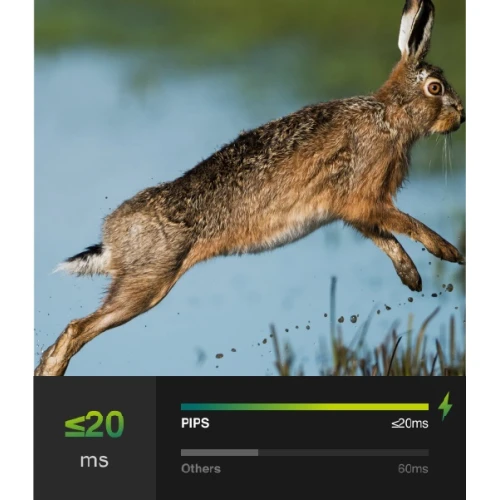

Ultra-low latency
In hunting, it's the "moment" that counts, so there can be no errors between what you see on the device's display and where the target actually is. PIPS (Pixfra Imaging Processing Solution) enables an image delay of less than 20 ms compared to 60 ms for conventional imaging solutions, helping you to accurately aim at your target.
PFI-C425F | |
---|---|
Detector type | Uncooled vanadium oxide focal plane detector |
Pixel Pitch | 12 μm |
Spectral range | 8 μm ~ 14 μm |
Sensitivity (NETD) | ≤30 mK@f/1.0 |
Frame rate | 50 Hz |
Focal length | 25 mm |
Field of view | H: 11.0°; Vertical: 8.2° |
Thermal focus control | Operating instructions |
aperture | F1.0 |
Digital zoom | 1×; 2×; 4×; 8× |
Detection range | 1,300 m (4,265.09 ft) |
Magnification | 1.0 X |
Color palettes | 6 (white hot/black hot/iron red/alarm/amber/emerald) |
Display screen dimensions | 0.41 inch, OLED |
Storage | Built-in EMMC module (32 GB); |
Uniformity correction | Automatic, manual |
PIP | Yes |
Audio recording | Yes |
Recording of recoil activation | Yes |
Hot spot tracking | Yes |
Wi-Fi | Yes |
Laboratory power supply | 5 VDC/1 A, type C |
Battery type | 1 rechargeable lithium battery |
Battery life | ≥7.5 hours |
Operating temperature | -30 ° C to +55 ° C (-22 ° F to +131 ° F) |
Protection | IP67 |
product dimensions | 153.4 mm × 64.1 mm × 87.7 mm (6.04" × 2.52" × 3.45") (L × W × H). |
Package dimensions | 267 mm × 227 mm × 116 mm (10.51" × 8.94" × 4.57") (L × W × H). |
Net weight | ≤560 g (1.23 lbs.) (without battery) |
