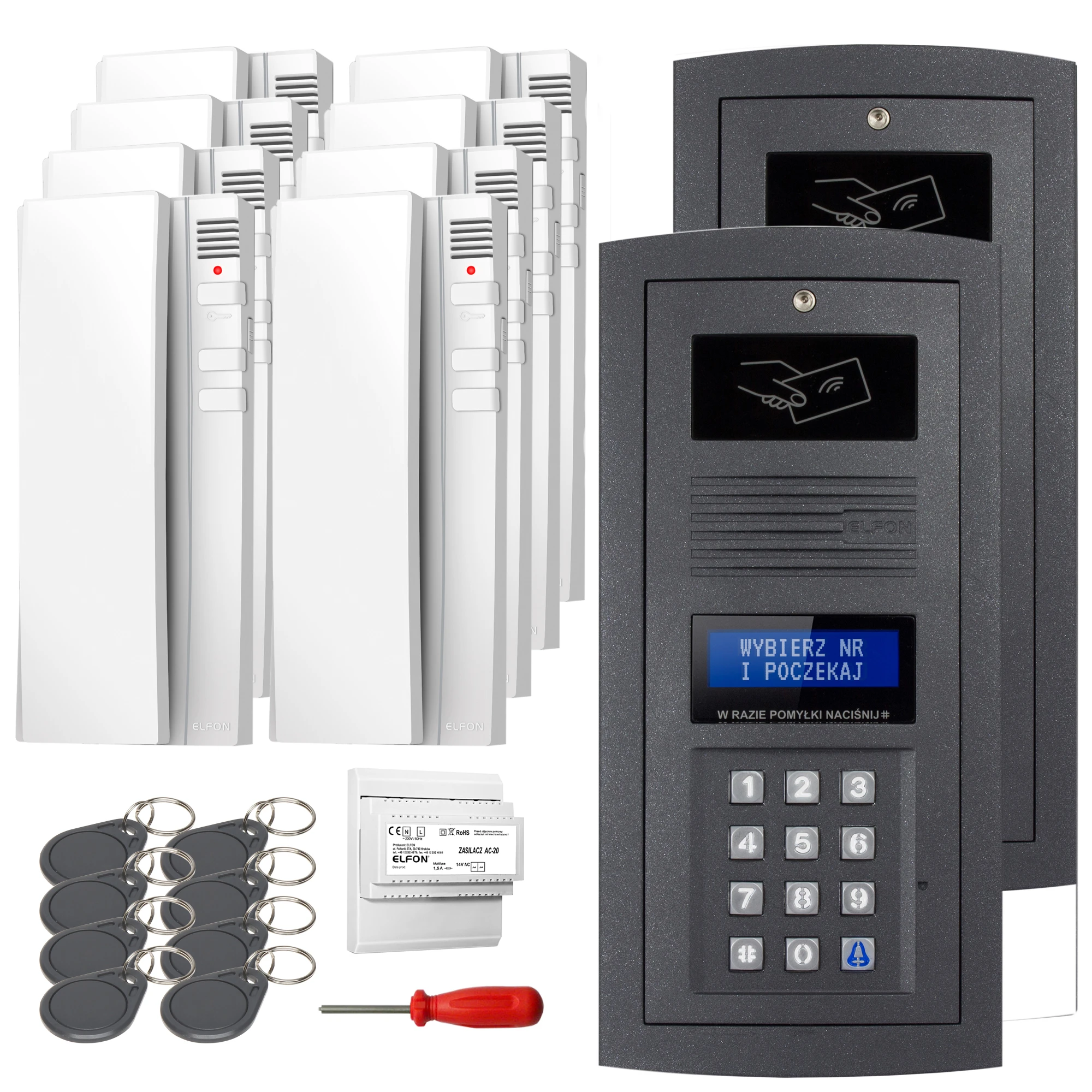

Digital Intercom Set ELFON 2x OP-SL255R-G Graphite Surface-Mounted, 8x OP-U7 White

Kit contents:

• 2x Panel with RFID reader ELFON OP-255R-G
• 2x Surface mount frame ELFON OP-ON1-G
• 1x ELFON AC-20 power adapter
• 8x ELFON OP-U7 digital uniphone
• 8x 125kHz Unique proximity key ring
• 1x ELFON service key
• 1x User and installation manual

Main product features:

• RFID reader - a model equipped with an RFID reader allows you to quickly and securely open doors using proximity key fobs.
• Support for up to 255 users - ideal for smaller estates and buildings, supports up to 255 premises.
• Advanced configuration capabilities - a simple and intuitive system of assigning numbers and ranges of premises, the ability to set general parameters such as the time of opening the lock, the type and volume of the bell, the mode of operation of an additional relay, as well as personalization of settings for each premise (ringing time, call time, 4-digit individual codes, 8 general codes for services such as the letter carrier, security, technical services).
• Access code system - ability to open the lock with a 4-digit individual code for each premise and 8 general codes (e.g. for technical services).
• Service code - access to the system configuration secured by an 8-digit service code.
• Easy installation - installation mode allows the connection of the panel to the uniphone to be established from the uniphone, allowing the installer to test the system one-on-one. In addition, the uniphone test mode automatically detects uniphones whose handset is not hung up or improperly connected, and checks master-slave communication.
• Installation range - supports installations up to 600m with YTKSY 1x2x0.8mm cable and up to 350m with YTKSY 1x2x0.5mm cable.
• Weatherproof - rugged keypad and display heating function ensure reliability in harsh weather conditions.
• Compatibility with electric door openers - the panel works with DC and AC electric door openers, as well as reversible ones. The uniphone in the set allows you to open only the electric door strike (door), which provides simple and reliable access control. The electric door strike is not part of the set.
• Complete set - the set includes uniphones, power supply, and surface-mount housing, which ensures full readiness for installation.

Additional functionality in Optima SMART system (requires purchase of ELFON GSM1 module):

• Control by phone - opening the door, controlling the gate or lighting is possible with a cell phone.
• Call forwarding - calls from the panel can be forwarded to a cell phone or landline.
• Operation of multiple devices - one apartment can be assigned up to three phone numbers.

ELFON OP-255R Graphite Panel Module - Description and Features:

ELFON OP-255R Graphite module is an advanced intercom panel equipped with an RFID reader, designed for intercom systems. Designed for installations that require up to 255 units, it is an ideal solution for smaller estates and buildings with a single entrance. The OP-255R panel offers numerous features that allow for easy installation and personalization.

Key features of the OP-255R module:

RFID reader - The built-in RFID reader enables fast and secure door opening with UNIQUE RFID key fobs and cards. The system allows registration of up to 5100 keys:

• 8 service keys, which allow you to open the lock and access configuration settings,
• 8 general keys, not associated with specific premises,
• 20 keys for each operated premises.

Display heating - An integrated display heating system reduces the problem of the display slowing down in low temperatures, ensuring full functionality even in harsh weather conditions.

Additional relay - The module is equipped with an additional relay to drive external devices such as gates or lighting.

KE input - The panel is equipped with a KE input, which allows the connection of a normally open (NO) button. It is possible to configure its function to open the electric door strike, relay or both simultaneously.

Automatic detection of uniphone line status - This function allows automatic detection of a short circuit on the uniphone line, which facilitates diagnostics and elimination of installation errors.

Compatibility with electric strikes - The panel works with both DC, AC and reversible type electric strikes. Note, however, that the electric door strike is not part of the set.

Wide configuration possibilities:

Premises numbering - The panel offers an intuitive and flexible premises numbering system, allowing you to assign any number from 1 to 9999.

Access code system - Each premise can be assigned an individual 4-digit code to open the lock. In addition, the panel supports 8 general codes (for technical services, security, etc.) and configuration security through an 8-digit service code.

Personalized settings - For each premise, you can customize settings for call time, ringing time, and ringer type and volume.

Ease of installation:

Installation mode - Allows the connection between the panel and the uniphone to be established directly from the uniphone, allowing the installer to test the system without the assistance of a second person.

Uniphone test - The panel automatically detects uniphones whose handset is not properly hung up or improperly connected, making it easy to detect problems quickly.

Dimensions:

Flush-mounted part: 100x231x30 mm

Surface part: 124x258x11 mm

Installation range:

YTKSY 1x2x0.8 mm cable - up to 600 m.

YTKSY 1x2x0.5 mm cable - up to 350 m.

ELFON OP-U7 digital uniphone - Description and features:

Key features of the OP-U7 uniphone:

• Ultra-thin design - The uniphone features a modern, slim design that blends seamlessly into minimalist interiors.
• Optical Call Indicator (LED) - The uniphone is equipped with an LED that indicates incoming calls, making it easy to recognize the call in quiet or noisy environments.
• Adjustable ringer volume - The ringer volume can be adjusted to three levels, allowing you to adjust the volume to suit your individual needs.
• Push button to open the electric door opener - The uniphone is equipped with a single button that is used only to open the electric door opener (door). It is not possible to control a second output, such as the gate.

  Note: If you need to control an additional output, such as opening the gate, you should choose a set with OP-U7/3 uniphones, which have additional buttons.

ELFON AC-20 power supply - Description and features:

ELFON AC-20 is a high-quality power supply designed to power intercom systems and other devices that require stable voltage. Thanks to its robust design and ease of installation, it is an ideal choice for installation in electrical cabinets.

Key features of the AC-20 power supply:

• Input power supply: 230V AC 50Hz - standard mains power supply, so the power supply can be connected to any home installation.
• Output: 14V AC 1.5A - a stable output that provides reliable power to devices such as intercom systems.
• Power rating: 20VA - provides enough power to supply various devices in low-voltage systems.
• PTC thermal protection 105°C ± 5% - built-in protection protects the power supply from overheating, which increases operational safety and extends its life.
• Operating temperature: from -25°C to +55°C - the power supply operates reliably over a wide temperature range, making it ideal for both indoor and outdoor applications.
• Dimensions: 90 x 117 x 71 mm - compact dimensions make the power supply easy to install in various installations.
• EURO-type housing - The power supply is housed in an enclosure suitable for DIN-rail mounting in electrical cabinets, making it easy to integrate into existing installations. In addition, it is equipped with a frame that covers the cable terminals, which allows it to be securely mounted even on a wall, without the need for an additional enclosure.




RFID 125kHz Unique Key Fob - Description and Features:

The RFID proximity key fob is a compact device that conforms to the Unique EM 125kHz standard, ideally suited for access control systems such as intercoms, RFID systems and other RFID-based systems.

Key fob specifications:

• Standard: Unique EM 125kHz - a popular standard that guarantees compatibility with a wide range of RFID devices, such as proximity card readers and access control systems.
• Compatibility: EM4100/4102 - the key fob works with EM4100/4102 chip-based systems, making it a universal identification solution.
• Color: Black - a sleek, neutral color that fits into any environment and makes identification easy.
• Chip: TK-4100 - high quality chip ensures reliable operation and long life of the key fob.
• Dimensions: 40 x 32 x 4 mm - compact size for convenient carrying and use.
• Weight: 0.005 kg - lightweight and handy, the key ring can be easily attached to keys or lanyard.




OP-ON1 Case - Description and Features:

OP-ON1 is a rugged, surface-mounted enclosure designed for Optima series intercom panels. Thanks to its precise dimensions and durable construction, it is ideal for intercom installations, providing protection for the panel and an aesthetically pleasing appearance.

Key features of OP-ON1 housing:

• Intended use: Surface-mounted housing dedicated to Optima panels.
• Dimensions: 100x234x60/40 mm - appropriate dimensions guarantee a perfect fit for the panel.
• Color: Graphite - an elegant, neutral color that fits modern and classic installations.
