Dahua IP Monitoring Kit 8x IPC-HDW2849TM-S-IL-0280B WizSense 8.3Mpx 4K UHD Dahua

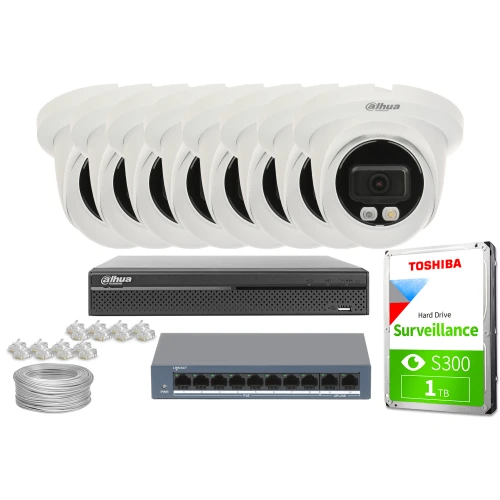

The image shows a comprehensive IP surveillance system featuring eight white Dahua security cameras, a network video recorder, and a Toshiba 1TB surveillance hard drive. Also included are a network switch, cables, and connectors for complete installation.

A white Dahua dome security camera with a sleek design features a black lens area and two LED lights. It includes a network cable and power connector for easy installation.

Manufacturer
Dahua
Product Code

ZM34167
Warranty

24 miesiące

Technology: IP
Resolution: 8Mpx
Enclosure: Dome
Night visibility: up to 30m
Number of cameras: 6
Connectivity: Wired
Color: White

see description

Ask about this product show form

Save -39%

Availability: in stock Shipping 24h

Price (Incl. VAT):

1 127,11 € 1 839,57 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Main features of the camera:

sensor: 1/2.7" 8MP image sensor, low luminance, HD CMOS
resolution: 3840x2160 (8Mpx) @ 20fps
interface: 1x RJ45 Ethernet 10/100Mbps PoE 802.3af
compression: H.265+/ H.265/ H.264+/ MJPEG
sensitivity: 0.008lux/F1.6, 0lux (IR LED / LED on)
lens:2.8mm
Smart Dual illuminator:
1 IR LED (range 30m)
1 white light LED (range 30m)
AWB, AGC, BLC, HLC, 3D NR, WDR 120dB, RoI
Smart Dual Illuminators- use of dual illuminators
3 illuminator modes (IR only, LED only, Smart - IR + LED)
built-in microphone
support of microSD / microSDHC / microSDXC cards up to 256GB
support: ONVIF, CGI, Milestone, RTSP, RTMP, P2P
AI functions: perimeter protection, object classification (human/vehicle)
SMD+- object classification with false alarm filtering
processing speed and resolution:
- 20 fps for 3840x2160 (8Mpx)
- 25/30 fps for 2688x1520 (4Mpx)
housing: waterproof class (IP67)
power supply: 12V DC or PoE 48V (802.3af)

IP camera with efficient H.264 / H.265 image compression algorithm for cleaner and smoother video transmission at a maximum resolution of 8.3 Mpx, 4K UHD. The device is equipped with Smart Dual Illumination technology, so that the user can choose between white light mode and IR (infrared) mode When Smart Dual Illumination is active, the white light will automatically turn on only when an object is detected in the monitored area, effectively improving image quality. The ability to be powered by PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 111° viewing angle, the IPC-HDW2849TM-S-IL-0280B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HDW2849TM-S-IL-0280B records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Main features of the DVR:

Standard and resolution:
TCP/IP
Supports resolutions up to 12 Mpx (4000 x 3000 px).
Video outputs:
HDMI 4K
VGA.
Audio support:
8 channels of camera audio
Two-way audio (1 CINCH input and 1 CINCH output).
Video compression:
Smart H.265+, H.265, Smart H.264+, H.264.
Supported drives:
1 SATA drive up to 20 TB.
Recording and archiving:
Recording modes: manual, motion detection, schedule
Archiving on USB media.
Playback of recordings:
Advanced search and Smart Playback function
Simultaneous playback from up to 8 cameras.
Network functions:
Built-in web server
Full network support, remote copy of recordings
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, NTP, DHCP, P2P, ONVIF 22.12.
Intelligent image analysis:
SMD PLUS (human and vehicle recognition)
False alarm filtering
Functions such as perimeter protection, face detection, people counting, heat map.
Control:
Support for high-speed IP cameras (Speed Dome).
Compatibility:
Free DMSS mobile app (Android/iOS).
Access via P2P, port 37777.

MicroSD card slot

The IPC-HDW2849TM-S-IL-0280B camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required. o an additional form of data storage, with the main method of recording in this set-up being on the disk using the recorder.

Features of the Toshiba S300 Surveillance 1TB drive

The Toshiba S300 Surveillance 1TB drive is designed for surveillance, providing reliable storage space.
It is available in a 3.5-inch format, making it easy to install in standard enclosures.
It features a SATA 6 Gbps interface for fast data transfer.
It operates at 5,700 RPM, which optimizes its performance in monitoring systems.
The drive has a 64MB cache (buffer), which speeds up read and write operations.
It was designed specifically for use in monitoring systems and supports simultaneous recording from up to 64 high-definition cameras.
The drive is designed for continuous operation, which means reliable 24/7 operation.
Dynamic Cache technology allows for optimal cache management in the data read and write cycle.

IP67 weatherproof design

This housing protects the IPC-HDW2849TM-S-IL-0280B camera from external factors such as dust, dirt and moisture, which is especially important in industrial or dusty environments. IP67-enclosed cameras can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The IPC-HDW2849TM-S-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places requiring detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras

Dahua systems allow you to configure, control and view using DMSS and SmartPSS applications that will provide you with continuous access to your surveillance from anywhere on earth with internet access. The above programs allow you to:

Access video previews and play back recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

Motion detection

Motion detection in IPC-HDW2849TM-S-IL-0280B cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HDW2849TM-S-IL-0280B to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HDW2849TM-S-IL-0280B that improves image quality in challenging lighting conditions, especially at night or in low-light conditions. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the IPC-HDW2849TM-S-IL-0280B camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Technical specifications:

Standard:	TCP/IP
Sensor:	1/2.7 " Progressive Scan CMOS
Sensor size:	8.3 Mpx
Resolutions:	3840 x 2160 - 8.3 Mpx4K UHD , 3072 x 2048 - 6 Mpx , 3072 x 1728 - 5 Mpx , 2880 x 1620 - 4.6 Mpx , 2688 x 1520 - 4 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p
Lens:	2.8 mm
Viewing angle:	111 ° (manufacturer's data) 105 ° (our tests)
Range of the white light illuminator (LED):	30 m
IR illuminator range:	30 m
Video compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Main stream bit rate:	25 fps @ 4 Mpx
Memory card slot:	Supports Micro SD cards up to 256GB (local recording possible)
RS-485 interface:	No
Alarm inputs/outputs:	No
Audio:	Built-in microphone Audio transmission over network Audio detection Compatibility with AAC standard
Network interface:	10/100 Base-T(RJ-45)
Network protocols:	IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
WEB Server:	Built-in
Max. number of online users:	20
ONVIF:	21.12
Cell phone access:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 37777
Access ports via PC application:	37777
Access ports via mobile app:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream
Selected features:	WDR - 120 dB - Wide Dynamic Range of illumination 3D-DNR - Digital noise reduction in the image ROI - enhancement of selected parts of the image BLC/HLC - background light / strong light compensation NAS support - Network Attached Storage - allows you to connect your storage resources directly to your computer network Day/night mode (color/b&w/auto) ICR - Mechanical infrared filter Automatic white balance AGC - Automatic adjustment of image gain Changeable resolution, quality and bandwidth Configurable privacy zones Video tampering Mirror - Mirroring of the image Full Color - Color night mode Intelligent motion detection (distinguishing between people and vehicles) SMD PLUS - search for object classified as: human, motor vehicle IVS analysis : intrusion, line crossing - classification of people and vehicles
Housing:	Dome - Metal + Plastic
Color:	White
Protection class:	IP67
Vandal resistant:	No
Power supply:	PoE (802.3af), 12 V DC / 420 mA
Power consumption:	≤ 5.9 watts @ PoE ≤ 5 W @ 12 V DC
Operating temperature :	-40 °C ... 60 °C
Weight:	0.46 kg
Dimensions:	Ø 122 x 99 mm
Supported languages:	Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian.
Manufacturer/Brand:	Dahua

Technical specification of the DVR:

Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H .264
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network features:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / admin Administrator password should be set on first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC application:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs/outputs:	No
PTZ control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Privacy Zones Functions implemented when the DVR cooperates with cameras supporting these functions :

Intelligent Image Analysis : perimeter protection, scene change Face detection - supports 6 types of face attribute extraction Face recognition people counting heat map
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 2 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.81 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
