14x IPCAM-T4-P Full HD Monitoring Kit, PoE, IR 20m, H.265+ HiLook Hikvision
Photo gallery
-
Manufacturer
-
Product Code
ZM34230
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Dome
- Number of cameras: 14
- Connectivity: Wired
- Color: White
Ask about this product show form
Related products
Product Description

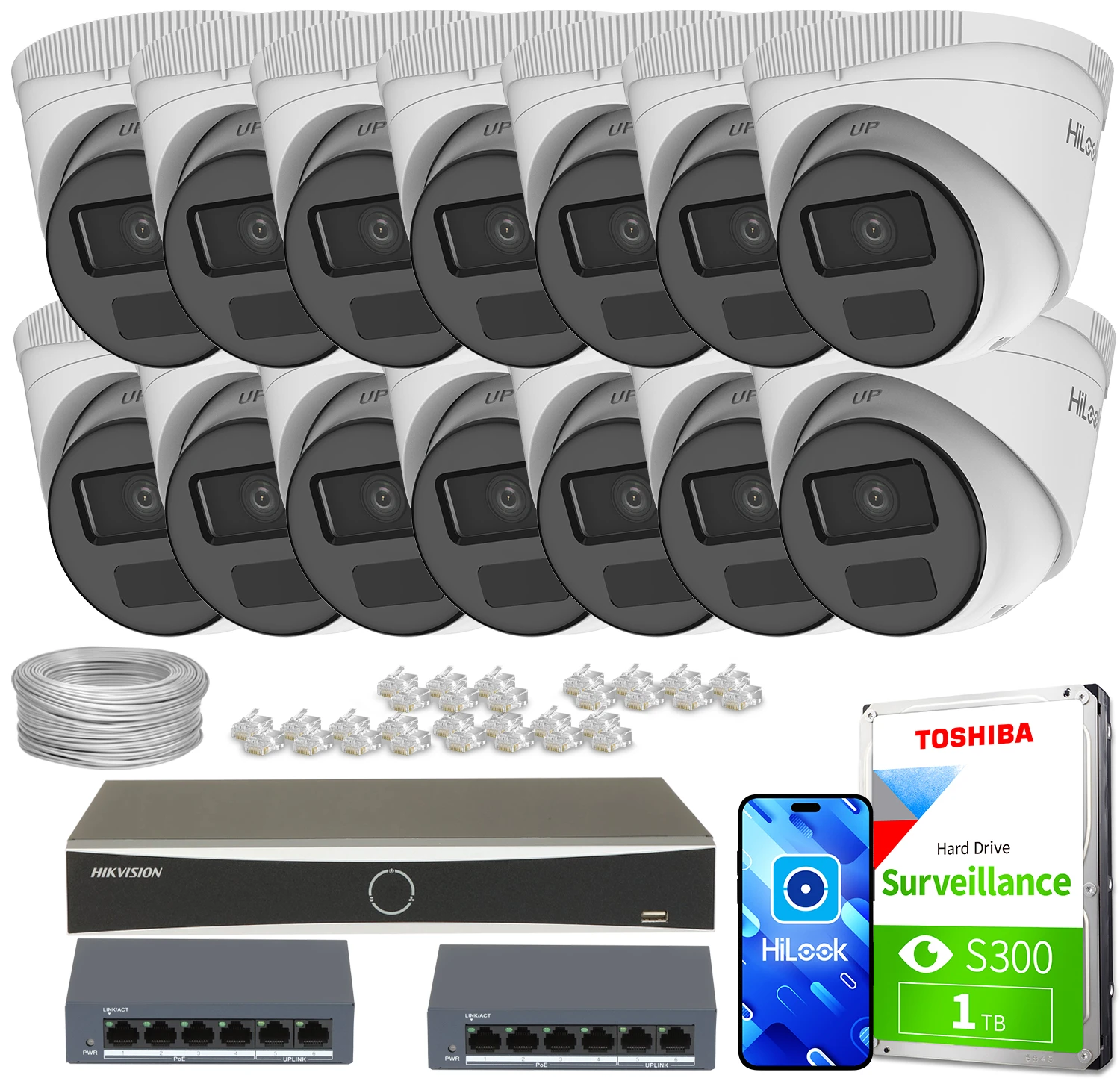

Kit contents:
- 14x 2K+ dome camera - HiLook by Hikvision IPCAM-T4-P
- 1x Network DVR DS-7616NXI-K1(D)
- 2x PoE port switch
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- 70 meters of cat.5e UTP cable
- A set of signal connectors
- "ATTENTION MONITORED OBJECT" sticker.
Main features of the set:
- 2K+ camera resolution
- Wide diagonal viewing angle of 123°
- Infrared range of 20 meters
- H.265+ codec to optimize hard drive consumption
- IP67-rated cameras, ideal for outdoor installation
- Free Hik-Connect app for surveillance management
Remote access from your phone and desktop computerIPCAM-T4-P allows you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app |  |
IPCAM-T4-P camera features:
- 1/2.9" 4MP CMOS sensor with progressive scanning
- Resolution of 2560 × 1440 at 20 fps
- 2.8mm fixed focal length lens
- Viewing angle: 123° (diagonal)
- H.265+, H.265, H.264+, H.264 compression
- Dual stream
- DWDR (wide dynamic range)
- 3D digital noise reduction (DNR)
- Infrared range up to 20m
- Power supply 12v or PoE (802.3af, class 3)
- IP67 protection class
Main features of DS-7616NXI-K1(D) DVR:
- Supports 16 IP cameras
- Maximum supported resolution of 12Mpx (4000x3000)
- Efficient H.265+ video encoding
- Maximum HDD capacity - 10TB
- Network interface 1x Ethernet 10/100/1000Mbps
- AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (16 channels)
- AcuSense technology - Object classification and alarm filtering
- ONVIF, RTSP, P2P
- Remote access applications: iVMS4200 and Hik-Central (Desktop computer), Hik-Connect and Hik-ProConnect (mobile devices)
P2P function
The IPCAM-T4-P is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
Power Over Ethernet (PoE)
Power over Ethernet (PoE) in surveillance cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.
Wide dynamic range: DWDR
The use of extended dynamic range DWDR takes care of the quality of the recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
Enhanced performance and optimal recording
The H.265 codec, also known as High Efficiency Video Coding (HEVC), offers a significant reduction in required bandwidth and storage space compared to the older H.264 codec, by better compressing video data without sacrificing image quality. This allows longer recordings to be stored on the same storage media and enables smoother video streaming on bandwidth-constrained networks. In addition, H.265 supports higher video resolution, resulting in more detailed and clearer images in surveillance systems, making surveillance and security more effective.
Automatic day/night modeAdapted to work in all lighting conditions with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. |  |
IP67 weatherproof designThis housing protects the IPCAM-T4-P from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage. |  |
The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.
Key Features:
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
Technical specifications of IPCAM-T4-P
| Camera | IPCAM-T4-P |
|---|---|
| Camera module | |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Max. resolution | 2560 x 1440 |
| Min. illumination | Color: 0.01 Lux (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Day/night mode | IR filter |
| Angle adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Lens | |
| Lens type | Fixed focal length, 2.8mm |
| Focal length and FOV | 2.8mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°. |
| Lens mount | M12 |
| Aperture type | Fixed |
| Aperture | F2.2 |
| DORI | |
| DORI | 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m |
| Illuminator | |
| Auxiliary light type | IR |
| Range of auxiliary light | Up to 20 m |
| Intelligent auxiliary light | Yes |
| IR wavelength | 850 nm |
| Video | |
| Main stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-stream | 50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264 |
| Video bit rate | 32 Kbps to 8 Mbps |
| H.264 type | Base Profile, Main Profile, High Profile |
| Type H.265 | Main Profile |
| Bit rate control | CBR, VBR |
| Network | |
| Security | Password protection, complex password, watermark, basic and complex authentication for HTTP, security inspection log, host authentication (MAC address) |
| Simultaneous live viewing | Up to 6 channels |
| API | ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| User/Host | Up to 32 users |
| Client | Hik-Connect, iVMS-4200 |
| Web browser | Plug-in required for live viewing: IE 10, IE 11, Local support: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Wide dynamic range (WDR) | Digital WDR |
| SNR (Signal to Noise Ratio) | ≥ 52 dB |
| Day/Night switch | Day, Night, Auto, Schedule |
| Image enhancement | BLC, HLC, 3D DNR |
| Image settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by software client or web browser |
| Interface | |
| Ethernet interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Events | |
| Basic event | Motion detection, exceptions |
| Connection | Monitoring center notification |
| General | |
| Power supply | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Plastic |
| Dimensions | Ø112 mm × 88.4 mm (Ø4.4" × 3.5") |
| Package dimensions | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approximately 280 g (0.6 lb.) |
| Weight with packaging | Approximately 450 g (1.0 lb.) |
| Storage conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and operating conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | Polish |
| General functions | Heart rate pulse, noise protection, mirror, password protection, password reset via email |
| Approvals | |
| EMC (Electromagnetic Compatibility) | CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Technical Specifications DS-7616NXI-K1(D)
| DVR | DS-7616NXI-K1(D) |
|---|---|
| Standard: | IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs. HDMI 4K 1 pcs. VGA |
| Audio support: | 16 Channels - Audio from cameras Two-way audio support |
| Audio inputs: | 1 pcs. CINCH |
| Audio outputs: | 1 pcs. CINCH |
| Video compression method: | H.265+ / H.265 / H.264 / H.264+ |
| Supported hard drives: | 1 x 10 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Network protocols: | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF |
| Archiving to external media: | Archiving to USB drive (flash drive, external drive) |
| Search and playback of recordings: | Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Synchronous playback of all channels, Smart Search function Simultaneous playback of recordings from up to 16 cameras |
| Network interface: | 1 x RJ-45 10/100/1000 Base-TX |
| Network functions: | Live video viewing, Playback of recordings, Archiving of recordings Max. 128 online users - iVMS-4200 application |
| ONVIF: | Yes |
| Cell phone access: | Port: 8000 or access via cloud (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Default IP address: | 192.168.1.64 |
| Default admin login / password: | admin / - Administrator password should be set on first startup |
| Web access ports: | 80, 8000 |
| Access ports via PC application: | 8000 |
| Access ports via mobile application: | 8000 |
| RTSP URLS: | rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Secondary stream |
| Alarm inputs/outputs: | No |
| PTZ head control: | Yes |
| Motion detection: | Yes |
| Intelligent Video Analysis: | Yes |
| Selected features: | Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Face comparison with database images Support for up to 16 face databases, with a total of 20,000 face images Intelligent search for a person based on a face image AcuSense series NVRs |
| USB: | 2 pcs. USB 2.0 |
| Mouse operation: | Yes |
| IR remote control included: | No |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Weight: | 1.12 kg |
| Dimensions: | 320 x 240 x 48 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, German, Greek, Hungarian, Italian, Dutch, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Manufacturer/Brand: | Hikvision |
| SAP Code: | 303616141 |
