12x IPCAM-T6-30DL DS-7616NXI-K2/16P(D) 6Mpx Smart Hybrid-Light 30m Monitoring Kit HiLook Hikvision
Photo gallery
-
Manufacturer
-
Product Code
ZM34289
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 6Mpx
- Enclosure: Dome
- Number of cameras: 12
- Connectivity: Wired
- Color: White
Ask about this product show form
Related products
Product Description

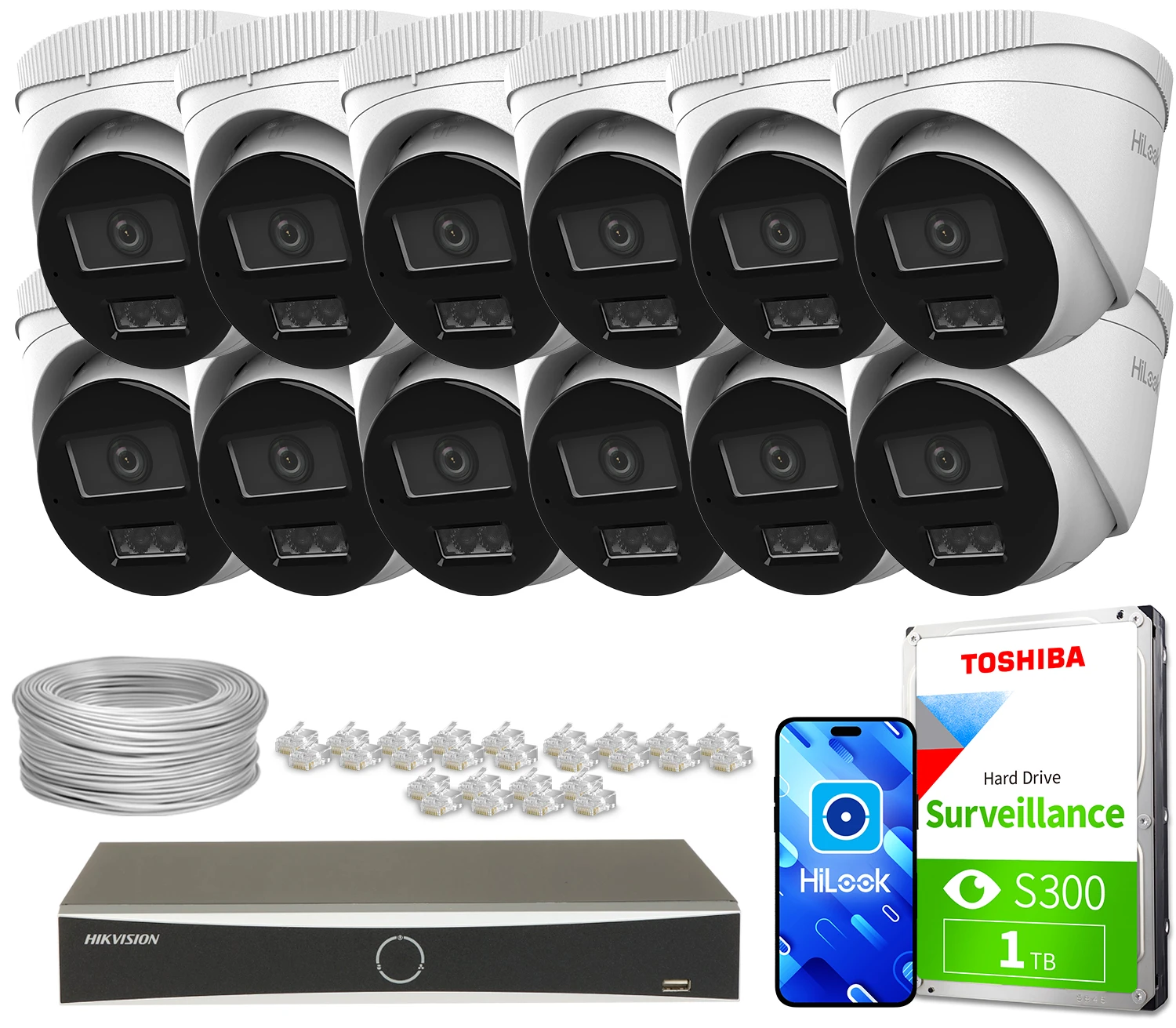

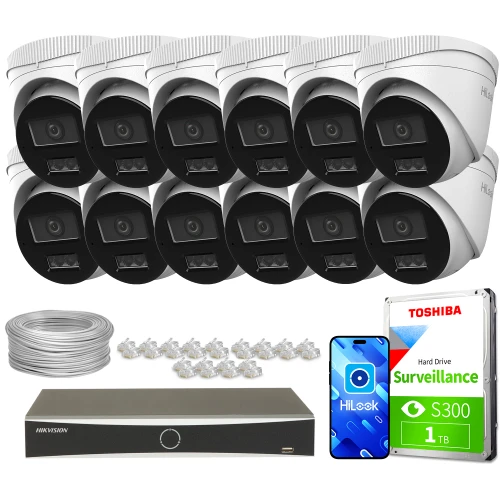

Kit contents:
- 12x 6Mpx dome camera - HiLook by Hikvision IPCAM-T6-30DL
- 1x Network DVR DS-7616NXI-K2/16P(D)
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- 60 meters of UTP cat.5e cable
- Set of signal connectors
- "ATTENTION MONITORED OBJECT" sticker.
Main features of the set:
- Efficient H.265+ compression technology
- High-quality 6Mpx image resolution
- Support for human and vehicle detection
- Smart Dual-Light: Intelligent illumination with white and infrared light
- Built-in microphone
- Water and dust resistant (IP66)
- DVR with built-in 16-port PoE switch
- H.265+ codec to optimize hard disk usage
- IP67-rated cameras, ideal for outdoor installation
- Free Hik-Connect app for surveillance management
Remote access from your phone and desktop computer IPCAM-T6-30DL allows you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app |  |
IPCAM-T6-30DL camera features:
- High-quality 6Mpx images
- Supports human and vehicle detection
- Smart Dual-Light: Intelligent white and infrared light illumination
- Built-in microphone
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology

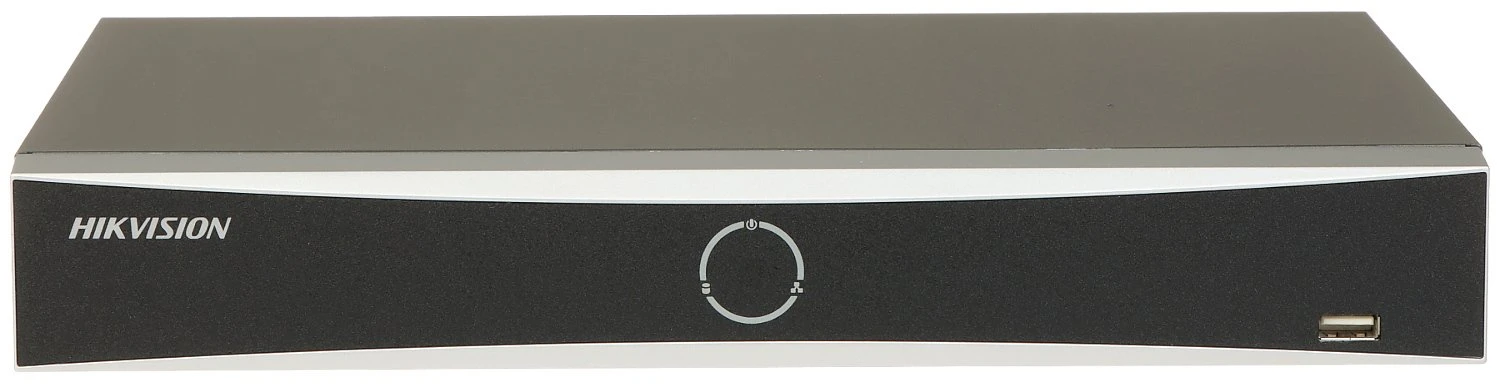

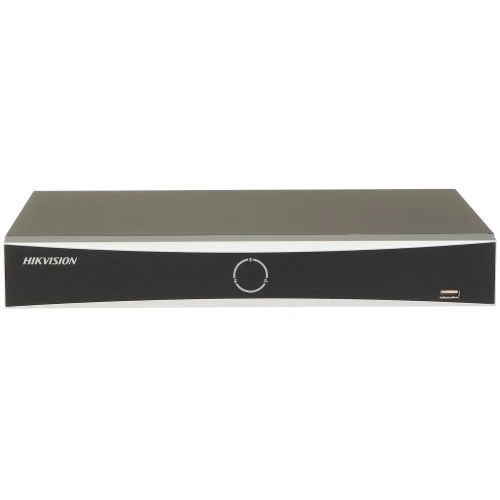

Main features of DS-7616NXI-K2/16P(D) DVR:
- Supports 16 IP cameras
- Maximum supported resolution of 12Mpx (4000x3000)
- Efficient H.265+ video encoding
- Maximum HDD capacity - 10TB
- Network interface 1x Ethernet 10/100/1000Mbps
- AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (4 channels)
- AcuSense technology - Object classification and alarm filtering
- ONVIF, RTSP, P2P
- Remote access applications: iVMS4200 and Hik-Central (Desktop PC), Hik-Connect and Hik-ProConnect (mobile devices)
P2P function
In IPCAM-T6-30DL is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
Power Over Ethernet (PoE)
The Power over Ethernet (PoE) function of IPCAM-T6-30DL cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.
Top image quality and high detail saturation
The IPCAM T6-30DL 's high 6Mpx resolution provides exceptional image clarity, enabling identification of fine details and features, which is crucial for evidence analysis. It allows greater area coverage without sacrificing quality, reducing the number of cameras needed to monitor large areas. In addition, the improved image quality facilitates facial recognition and vehicle identification, which increases the effectiveness of prevention and investigation efforts.
Detection of people and vehicles
Motion detection with silhouette recognition of people and vehicles in surveillance cameras is an advanced feature that allows monitoring systems to be more precise and effective. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Colorful image in total darkness The IPCAM-T6-30DL's hybrid illumination combines the advantages of LED and infrared lighting for effective monitoring both during the day and at night. With this technology, the cameras can capture clear images at low light levels without visible light sources, minimizing the risk of detection by intruders. In addition, hybrid illumination enables color recognition, which is crucial for identifying details such as the color of a car or an intruder's clothes, increasing the effectiveness and reliability of the monitoring system. |  |
Video and audio recording The IPCAM-T6-30DL's audio recording function allows audio to be recorded along with video, greatly enhancing the capabilities and effectiveness of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording makes it possible to collect more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents. |  |
The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.
Main features:
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: SATA III (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
Technical specifications:
| Camera | IPCAM-T6-30DL |
|---|---|
| Camera | |
| Image sensor | 1/2.4" CMOS with progressive scan |
| Max resolution | 3200 x 1800 |
| Minimum illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Day and Night | IR cut filter |
| Angle adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Tilt: 0° to 360° |
| Lens | |
| Lens type | Fixed focal length 2.8mm |
| Focal length and field of view | 2.8mm, horizontal field of view 105°, vertical field of view 55°, diagonal 127° |
| Lens mount | M12 |
| Aperture type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m |
| Illumination | |
| Auxiliary light type | IR, White light |
| Range of auxiliary light | Up to 30m |
| Intelligent backlighting | Yes |
| IR wavelength | 850nm |
| Video | |
| Main stream | 50 Hz: 20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720) <br> 60 Hz: 20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub-stream | 50 Hz: 20 fps (1280 x 720, 640 x 480, 640 x 360) <br> 60 Hz: 20 fps (1280 x 720, 640 x 480, 640 x 360) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264/MJPEG |
| Video bit rate | 32 Kbps to 16 Mbps |
| H.264 type | Baseline Profile, Main Profile, High Profile |
| Type H.265 | Main Profile |
| Bit rate control | CBR, VBR |
| Scalable video compression | H.264 and H.265 encoding |
| Region of interest (ROI) | 1 fixed area for the main stream |
| Audio | |
| Audio type | Mono |
| Ambient noise filtering | Yes |
| Sampling frequency | 8 kHz/16 kHz |
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Networking | |
| Security | Password protection, complex password, watermark, basic and complex authentication for HTTP, WSSE and complex authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous live viewing | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users |
| User levels | Administrator, operator, user |
| Client | Hik-Connect, iVMS-4200 |
| Web browser | Plug-in required for live viewing: IE 10, IE 11, local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night switch | Day, Night, Auto, Schedule |
| Image enhancement | BLC, HLC, 3D DNR |
| Image settings | Pan mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser |
| Privacy mask | 4 programmable polygon masks |
| Interface | |
| Ethernet interface | 1 RJ45 10 M/100 M port with self-adaptation |
| Built-in microphone | Yes |
| Events | |
| Basic events | Motion detection (support for alarm triggering by specific types of targets - people and vehicles), tamper alarm, exception |
| Connection | FTP upload, email sending, monitoring center notification, capture |
| General | |
| Power supply | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal and plastic |
| Dimensions | Ø112 mm × 82 mm (Ø4.41" × 3.23") |
| Packaging dimensions | 150 mm × 150 mm × 141 mm |
| Weight | Approximately 270 g (0.6 lb.) |
| Weight with packaging | Approximately 481 g (1.1 lb.) |
| Storage conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
| Commissioning and operating conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
| Language | Polish |
| General functions | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approvals | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No. 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| DVR | DS-7608NXI-K1/8P(D) |
|---|---|
| Standard: | TCP/IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs. HDMI 4K 1 pcs. VGA |
| Audio support: | 16 Channels - Audio from cameras Two-way audio support |
| Audio inputs: | 1 pcs. CINCH |
| Audio outputs: | 1 pcs. CINCH |
| Video compression method: | H.265+ / H.265 / H.264 / H.264+ |
| Supported hard drives: | 1 x 10 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Network protocols: | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF |
| Archiving to external media: | Archiving to USB drive (flash drive, external drive) |
| Search and playback of recordings: | Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Synchronous playback of all channels, Smart Search function Simultaneous playback of recordings from up to 4 cameras |
| Bitrate (bitrate): | max. 160 Mbps |
| Network functions: | Live video preview, Playback of recordings, Archiving of recordings Max. 128 online users - iVMS-4200 application |
| ONVIF: | Yes |
| Cell phone access: | Port: 8000 or access via cloud (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Default IP address: | 192.168.1.64 |
| Default admin login / password: | admin / - Administrator password should be set on first startup |
| Web access ports: | 80, 8000 |
| Access ports via PC application: | 8000 |
| Access ports via mobile application: | 8000 |
| RTSP URLS: | rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Secondary stream |
| Alarm inputs / outputs: | 4 / 1 |
| PTZ head control: | Yes |
| Motion detection: | Yes |
| Intelligent Video Analysis: | Yes |
| Selected features: | Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Face comparison with database images Support for up to 16 face databases, with a total of 20,000 face images Intelligent search for a person based on a face image AcuSense series NVRs |
| USB: | 2 pcs. USB 2.0 |
| Mouse operation: | Yes |
| IR remote control included: | No |
| Power supply: | 100 V ... 240 V AC, 50 / 60 Hz |
| Weight: | 2.59 kg |
| Dimensions: | 385 x 322 x 52 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, German, Greek, Hungarian, Italian, Dutch, Latvian, Lithuanian, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Manufacturer/Brand: | Hikvision |
| PoE switch: | Built-in 16-port PoE switch, 25.5 W / Channel - PoE (802.3af/at) max. 200 W (total) |
| SAP Code: | 303616123 |
