4x TVICAM-T2M-20DL Monitoring Kit, SSD-DVR-2MP Full HD HiLook by Hikvision

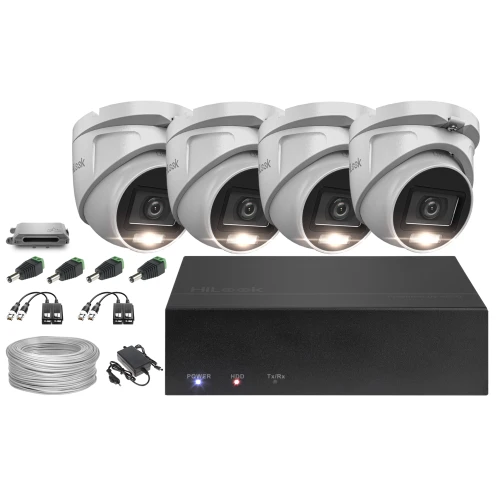

The image shows a complete surveillance system featuring four dome security cameras and a central recording unit. Included are various connectors, cables, and a power adapter for easy installation and setup.
  • Manufacturer

    HiLook by HIKVISION
  • Product Code

    ZM34341

  • Warranty

    24 miesiące

  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 2Mpx
  • Enclosure: Dome
  • Night visibility: up to 20m
  • Number of cameras: 4
  • Connectivity: Wired
  • Color: White

Ask about this product show form

  • Save -25%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

176,76 € 235,76 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision

Contents of the TVICAM-T2MDL package:


  • 4x 4in1 camera TVICAM-T2M-20DL
  • 1x 5in1 4 channel SSD-DVR-2MP DVR
  • 4x Converters for HD video signal transmission 2 pcs on cable LV-TR2K
  • 1x Power supply 12V/2A/5.5
  • 1x LZ-1 power connector
  • UTP cat.5e cable ( 10m )
  • 4x Twisted-pair power connector

HiLook by Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Features of the TVICAM-T2M-20DL camera:


  • High-quality imaging with 2 Mpx, 1920 x 1080 resolution.
  • 2.8mm fixed focus lens
  • Infrared light range up to 20 meters
  • White light range up to 20 meters
  • Supports four analog TVI/AHD/CVI/CVBS systems
  • IP66 water and dust resistance
  • Smart Hybrid-Light
Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision

Main features of SSD-DVR-2MP:


Number of supported cameras: 1
Video compression format: H.265 Pro/H.265
Maximum resolution supported: 2Mpx
Model name: SSD-DVR-2MP
D-Sub/VGA video output: 1 channel, 1920 × 1080 resolution at 60 Hz
HDMI video output: 1 channel, 1920 × 1080 resolution at 60 Hz



High-quality image


The light-sensitive sensor in the TVICAM-T2M-20DL camera and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 2Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

  • A: 1280x720p ( 1Mpx )
  • B: 1920x1080p ( 2Mpx )
  • C: 2048x1536p ( 3Mpx )
  • D: 2560x1440p ( 4Mpx )
  • E: 2560x1960p ( 5Mpx )
  • F: 3840x2160p ( 8Mpx )
Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision




Motion detection


TVICAM-T2M-20DL has a built-in algorithm for detecting motion in images. In addition, it allows you to send notifications to your phone or computer.

In addition, you can freely set the area you are interested in, so that, for example: you can receive notifications only on motion from the entrance gate.

In addition to recording 24/7, the cameras can also record only fragments when motion is detected, which will translate into a reduction in hard drive consumption.
Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision

IP66 weatherproof design

This housing protects the TVICAM-T2M-20DL from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty areas. Cameras with IP66 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision

Wide dynamic range - That is, high quality in difficult conditions


The WDR (Wide Dynamic Range) function of the TVICAM-T2M-20DL is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

  • Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
  • Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important features that might not be visible under standard conditions.
  • Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
  • Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.


Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision


Automatic day/night mode


Adapted to work in all lighting conditions, TVICAM-T2M-20DL with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Kamera 4w1 TVICAM-T2M-20DL Full HD HiLook by Hikvision


Technical specifications of TVICAM-T2M-20DL:

Camera
Image sensor 2 MP CMOS
Max resolution 1920 (S) × 1080 (W)
Minimum illumination 0.02 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s
Day/Night ICR
Angle adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal system PAL/NTSC
Lens
Lens type 2.8mm fixed focal length
Focal length and FOV 2.8mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
Lens mount M12
Illumination
Type of supplementary light White light, Infrared
Range of supplementary light Infrared: Up to 20 m, White light: Up to 20 m
Image parameter switch STD/HIGH-SAT/HIGHLIGHT
Image settings Brightness, sharpness, Smart IR
Frame rate TVI: 1080p @ 30 fps, 1080p @ 25 fps
  AHD: 1080p @ 30 fps, 1080p @ 25 fps
  CVI: 1080p @ 30 fps, 1080p @ 25 fps
  CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image enhancement DWDR/BLC/HLC/Global
White balance Auto/Manual
AGC Yes
Interface
Video output Switchable TVI/AHD/CVI/CVBS
General
Material Metal
Dimensions 90 mm × 82.6 mm × 81.1 mm (3.5'' × 3.3'' × 3.2'')
Weight Max. 290 g (0.64 lb.)
Operating conditions -40 °C to 60 °C, humidity: 90% or less (non-condensing)
Communication Hik-Connect, HiLookVision
Language Polish
Power supply 12 VDC ± 25%, Max. 2.9 W
  *It is recommended to use one power supply to power one camera.
Protection IP66


SSD-DVR-2MP Technical Specifications:

Number of supported cameras: 1
Video compression: H.265 Pro/H.265
Maximum supported resolution: 2.00 Mpx
Model: SSD-DVR-2MP
Manufacturer: Hikvision
Technology: AHD
D-Sub/VGA connector: 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
HDMI connector: 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz



Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
