Buffer Power Supply 2A/13.8VDC PS20 ROGER

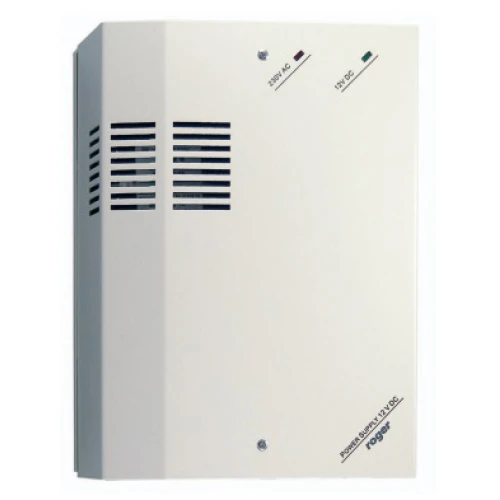

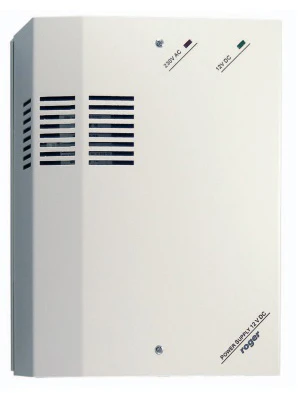

A white buffer power supply unit with ventilation slits and indicator lights on the front panel. The unit is designed for 13.8V DC output and features a robust metal casing.

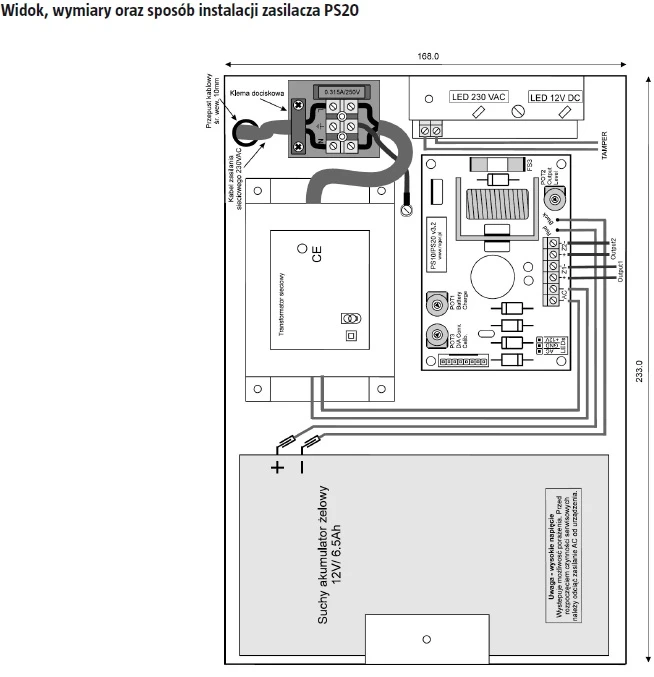

The image shows a detailed schematic of a buffer power supply unit with a 2A, 13.8V DC output. It includes labeled components such as a dry battery, connection terminals, and LED indicators for easy installation and operation.

  • Manufacturer

    ELFON

  • Product Code

    PS20

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

43,19 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

ROGER PS20 2A/13.8VDC buffer power supply

A 2A/12VDC DC power supply housed in a metal enclosure with space for a 7Ah/12V battery. The electronic circuit of the power supplies controls the battery charging current and protects it from complete discharge in the absence of AC mains voltage. The power supply is resistant to both long-term overload and short-circuit of the power output.

  • Metal enclosure
  • Power supply electronics protected against overload and short circuit
  • Space for a battery
  • Connector for connection with an external PSU failure indication module

Technical data:

  • Manufacturer
  • ROGER
  • Warranty
  • 24 months
  • Product type
  • Buffer power supply
  • Output voltage
  • 13.8 VDC
  • Nominal output current
  • 2A
  • Operating temperature (°C)
  • 0-55°C
  • Dimensions (H x W x D) mm
  • 233 x 168 x 80
  • Weight
  • 2.2 kg
