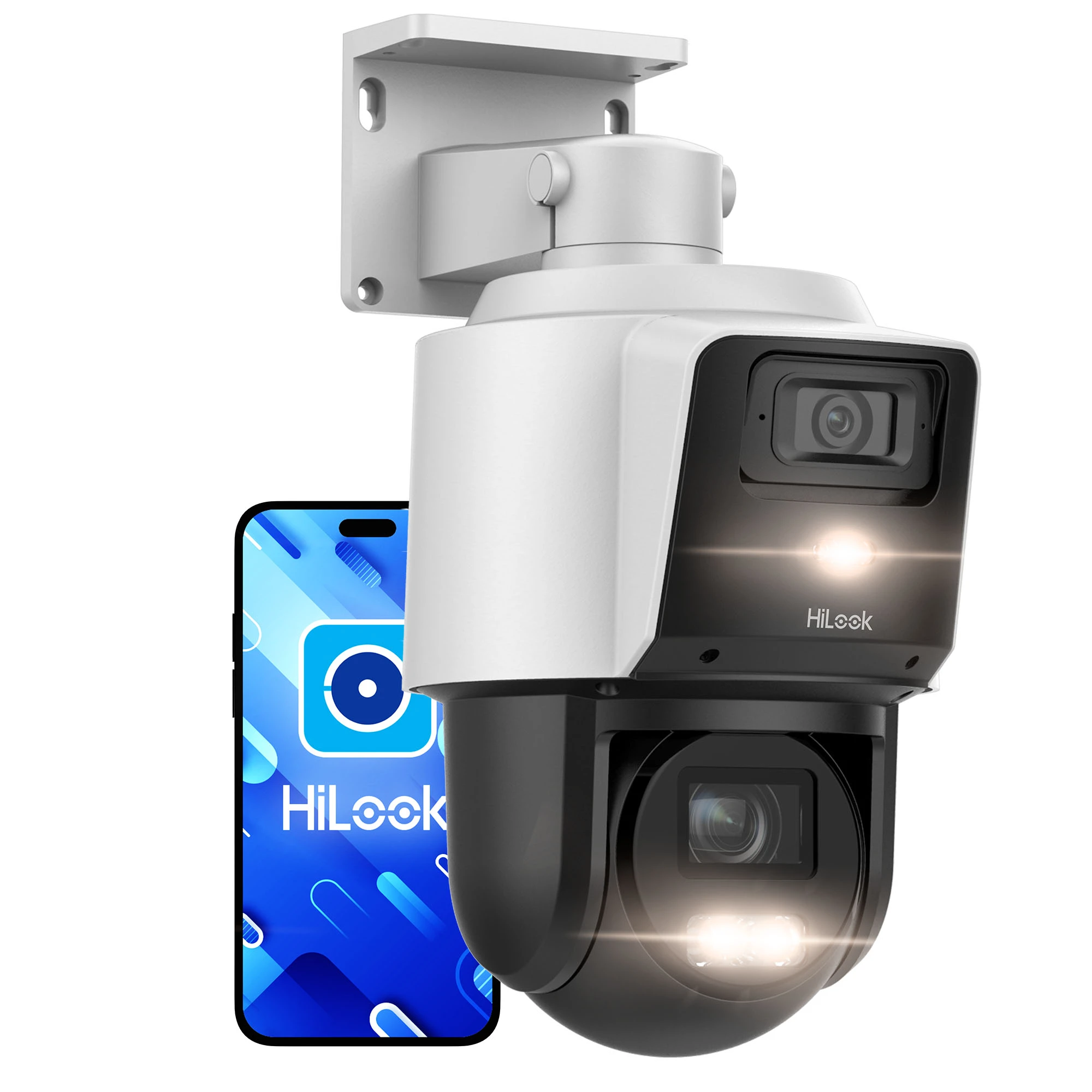

PTZ-D4-Pro Rotating Camera HiLook by Hikvision

The PTZ-D4-Pro camera also comes with useful instructions and mounting accessories to speed up the entire camera mounting process.

✅ 4Mpx ✅ Smart Hybrid Light ✅ Built-in microphone and speaker ✅ Silhouette detection ✅ PTZ ✅ Auto-Tracking Lite

PTZ-D4-Pro is a high quality 4Mpx camera that is best suited for small or medium sized properties like home, store or small business. With a 30m IR illuminator, it won't let you down after dark either, and the Hybrid Light system, will additionally allow you to get color images at night, thanks to white light. It can be used both indoors and outdoors.

Features of PTZ-D4-Pro HiLook by Hikvision camera:

• ✅ High-quality recordings from both lenses with 4Mpx resolution.
• ✅ Wide 94° diagonal viewing angle for fixed lens and 44° for swivel lens
• ✅ Optical zoom x4
• ✅ High performance DarkFighter sensor for sharp images in low light conditions
• ✅ Pan-tilt camera with remote control in mobile app
• ✅ Supports human and vehicle detection
• ✅ Built-in speaker and microphone with support for two-way audio communication
• ✅ Video compression: H.265+/H.264+/H.265/H.264
• ✅ Lens: 2.8mm
• ✅ PoE+ power support

Pan-Tilt-Zoom

A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of the image. With these functions, the PTZ camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Remote access from desktops and smartphones The mobile app is a quick and easy way to operate your property's surveillance system, allowing you to:   ✅Access the video preview and play back the recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

Technical specifications:

Model	PTZ-D4-Pro
Image sensor	[Bullet Channel]: 1/2.8" Progressive CMOS; [PTZ Channel]: 1/2.8" Progressive CMOS
Minimum illumination	[Bullet Channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ Channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter speed	1 s to 1/30,000 s
Slow shutter	yes
Zoom	[PTZ channel]: 4× optical, 16× digital
Day/Night mode	ICR
Maximum resolution	[Bullet channel]: 2560 × 1440, [PTZ Channel]: 2560 × 1440
Lens
Sharpness	Automatic, manual, semi-automatic
Focal length	[Bullet channel]: 2.8 mm; [PTZ Channel]: 2.8 to 12 mm, 4× optical
Zoom speed	[PTZ channel]: approx. 3.3 sec.
Field of view (FOV)	[Bullet Channel]: Horizontal: 114.9°, Vertical: 62.4°, Diagonal: 130.7°; [PTZ Channel]: Horizontal: 98° to 34.2°, Vertical: 52° to 19.2°, Diagonal: 111° to 39°
Aperture	[Bullet Channel]: F1.6; [PTZ Channel]: F1.5 to F2.9
Illumination
Auxiliary light type	Bullet channel]: Hybrid (IR and white light); [PTZ Channel]: IR
Intelligent auxiliary light	Yes
Range of auxiliary light	[PTZ channel]: IR: up to 40 m; [Bullet Channel]: IR: up to 30 m; White light: 30 m
PTZ
Range of motion (rotation)	0° to 350°
Motion range (tilt)	[Bullet channel]: 7° to 17° (manual adjustment); [PTZ Channel]: -5° to 90°
Speed of rotation	Adjustable from 0.1°/s to 30°/s; preset speed: 30°/s
Tilt speed	Adjustable from 0.1°/s to 30°/s; preset speed: 30°/s
Proportional motion	yes
Predefined settings	300
Patrolling	8 patrols, up to 32 presets per patrol
Memory after power failure	yes
Parking function	presets, patrolling
3D positioning	yes
PTZ status display	yes
Freeze presets	yes
Scheduled tasks	Dome restart, reset, patrol, adjust, auxiliary outputs
Video
Region of interest (ROI)	1 fixed area for main stream
Main stream	[Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ Channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Second stream	[Bullet Channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ Channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third stream	[Bullet Channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) [PTZ Channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video compression	H.265, H.264, MJPEG
Video bit rate	32 kbps to 16384 kbps
H.264 type	Main profile, basic profile, high profile
Type H.265	main profile
Scalable video coding (SVC)	yes
Audio
Audio compression	G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
Audio bit rate	MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC: 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
Audio sampling frequency	MP2L2: 16 kHz; AAC-LC: 16 kHz; PCM: 8 kHz, 16 kHz; MP3: 8 kHz, 16 kHz
Ambient noise filtering	yes
Network
APIS	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Network storage	NAS (NFS, SMB/ CIFS), ANR, ANR
Protocols	TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4/IPv6, DDNS, ICMP, UPnP
Simultaneous live viewing	20
Number of users/hosts	32
Security	802.1X authentication, MAC address binding, authenticated login and password, IP address filtering, HTTPS encryption
Client	iVMS-4200, Hik-Connect, HiLook
Web browser	IE8+, Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+
Image settings	Sharpness, saturation, brightness, contrast
Wide dynamic range (WDR)	120 dB
SNR (signal-to-noise ratio)	≥ 52 dB
Defog	Digital fog removal
Day/night switching	Day, night, automatic, by schedule
Image enhancement	BLC, HLC, 3D DNR
Privacy Mask	[Bullet channel]: 24 programmable polygonal privacy masks, [PTZ Channel]: 24 programmable polygonal privacy masks
Regional focus settings	[Bullet channel]: No, [PTZ Channel]: Yes
Regional exposure settings	[Bullet Channel]: No, [PTZ Channel]: Yes
Switching of image parameters	Yes
Interface
Ethernet interface	RJ45, 10M/100M adaptive Ethernet port
Built-in memory	Built-in memory card slot, support for Micro SD/SDHC/SDXC, up to 512GB
Reset	yes
Events
Basic events	Motion detection, video tampering alarm, exceptions, alarm inputs and outputs
Smart events	Line crossing detection, intrusion detection, region entry detection, region exit detection, audio exception detection
Linking	[Bullet channel]: Uploading to FTP/NAS/memory card, notifications to monitoring center, sending email, triggering alarm output, recording; [PTZ Channel]: Uploading to FTP/NAS/memory card, notifications to monitoring center, sending emails, triggering alarm output, recording, PTZ actions (e.g. preset, path scan, region scan)
General
General functions	Mirror, watermark, IP address filter, password protection
Power supply	12 VDC, PoE+
Operating conditions	-30°C to 50°C (-22°F to 122°F); Humidity 95% or less (non-condensing)
Fog removal	Fog removal by heating the glass
Material	PC (polycarbonate)
Dimensions	311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
Weight	Approximately 1.37 kg (3.02 lb.).
Certifications
Protection	IP66 standard, surge protection and protection against momentary voltage changes
