HiLook by Hikvision IP Bullet Camera Set 8x IPCAM-B4-P 2K+

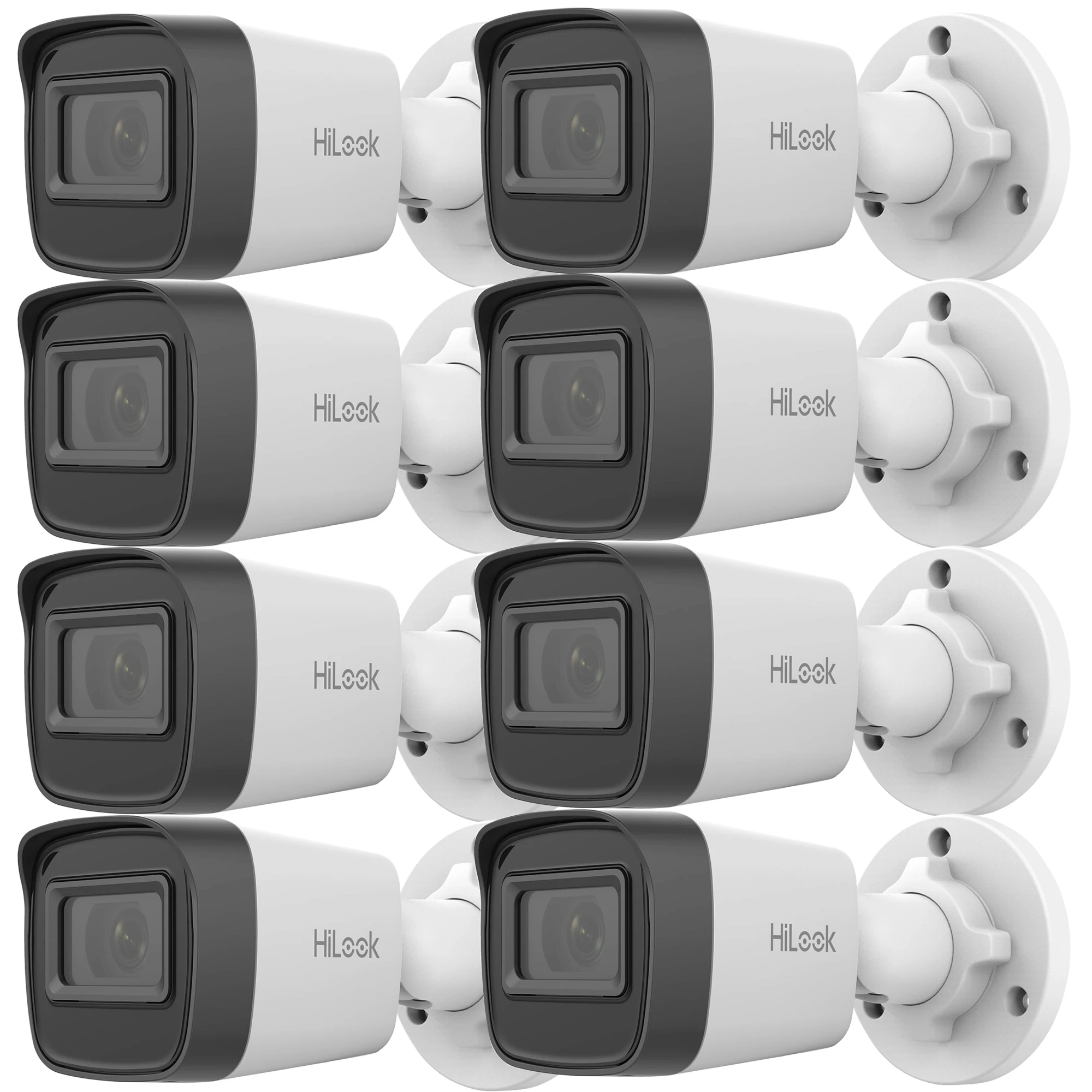

Contents of the MULTIPACK 8x IPCAM-B4-P set:

In addition to the camera, the box also contains useful instructions and mounting accessories to speed up the entire camera mounting process.

• 8x 4Mpx tube camera - HiLook by Hikvision IPCAM-B4-P.
• 8x Documentation - User manual, warranty card, adjustments
• 8x Template - Small size template with camera mounting holes
• 8x Mounting screws and dowels - Everything you need to mount the camera
• 8x Waterproof Kit - A set of accessories to protect the camera's connectors from moisture

HiLook by Hikvision products focus on ease of use, literally anyone can handle the installation and setup with the included instructions.

Features of the IPCAM-B4-P camera:

• 1/2.8" 4MP CMOS sensor with progressive scanning
• Resolution of 2560 × 1440 at 30 fps
• 2.8mm fixed focal length lens
• Viewing angle: 123° (diagonal)
• H.265+, H.265, H.264+, H.264 compression
• Dual stream
• DWDR (wide dynamic range)
• 3D digital noise reduction (DNR)
• Infrared range up to 20m
• Power supply 12v or PoE (802.3af, class 3)
• IP67 protection class

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function in surveillance cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Wide dynamic range: DWDR

The use of extended dynamic range DWDR takes care of the quality of the recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.


Improved performance and optimal recording

The H.265 codec, also known as High Efficiency Video Coding (HEVC), offers a significant reduction in required bandwidth and storage space compared to the older H.264 codec, by better compressing video data without sacrificing image quality. This allows longer recordings to be stored on the same storage media and enables smoother video streaming on bandwidth-constrained networks. In addition, H.265 supports higher video resolution, resulting in more detailed and clearer images in surveillance systems, making surveillance and security more effective.




Technical specifications:

Camera	IPCAM-B4-P
Camera module
Image sensor	1/2.8" Progressive Scan CMOS
Max. resolution	2560 x 1440
Min. illumination	Color: 0.01 Lux (F2.2, AGC ON), B/W: 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Day/night mode	IR filter
Angle adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens type	Fixed focal length, 2.8mm
Focal length and FOV	2.8mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°.
Lens mount	M12
Aperture type	Fixed
Aperture	F2.2
DORI
DORI	2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
Illuminator
Auxiliary light type	IR
Range of auxiliary light	Up to 20 m
Intelligent auxiliary light	Yes
IR wavelength	850 nm
Video
Main stream	50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-stream	50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
Video compression	Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264
Video bit rate	32 Kbps to 8 Mbps
H.264 type	Base Profile, Main Profile, High Profile
Type H.265	Main Profile
Bit rate control	CBR, VBR
Network
Security	Password protection, complex password, watermark, basic and complex authentication for HTTP, security inspection log, host authentication (MAC address)
Simultaneous live viewing	Up to 6 channels
API	ISAPI, SDK
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host	Up to 32 users
Client	Hik-Connect, iVMS-4200
Web browser	Plug-in required for live viewing: IE 10, IE 11, Local support: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide dynamic range (WDR)	Digital WDR
SNR (Signal to Noise Ratio)	≥ 52 dB
Day/Night switch	Day, Night, Auto, Schedule
Image enhancement	BLC, HLC, 3D DNR
Image settings	Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by software client or web browser
Interface
Ethernet interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Events
Basic event	Motion detection, exceptions
Connection	Monitoring center notification
General
Power supply	12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Plastic
Dimensions	138.8 mm × 60.9 mm × 57.9 mm
Packaging dimensions	163 mm × 75 mm × 75 mm
Weight	Approximately 175g
Weight with packaging	Approximately 250g
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and operating conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	Polish
General functions	Heart rate pulse, noise protection, mirror, password protection, password reset via email
Approvals
EMC (Electromagnetic Compatibility)	CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013
