Dahua KTP05(F) Video Intercom Set

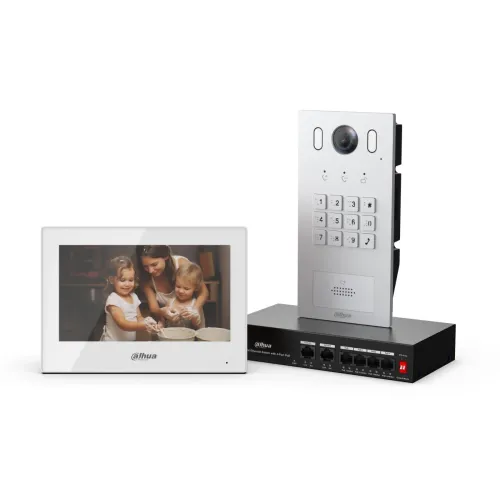

The image shows a Dahua video intercom system featuring a sleek, silver outdoor station with a camera and keypad, alongside a modern indoor monitor displaying a family scene. The set also includes a network switch for seamless connectivity.
The image displays a sleek video intercom system featuring a wide touchscreen monitor, a keypad unit, and a network switch. The components are designed for modern home security, offering both visual and functional integration.
A sleek, white Dahua Technology indoor panel with a large touchscreen display. The minimalist design features the Dahua logo prominently below the screen.

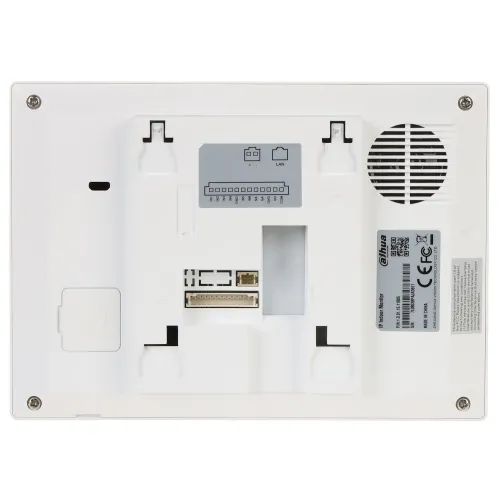

The image shows the back panel of a white electronic device featuring various ports, including a LAN port and multiple connectors. It also displays a speaker grille and several mounting points, with labels and certification marks visible.

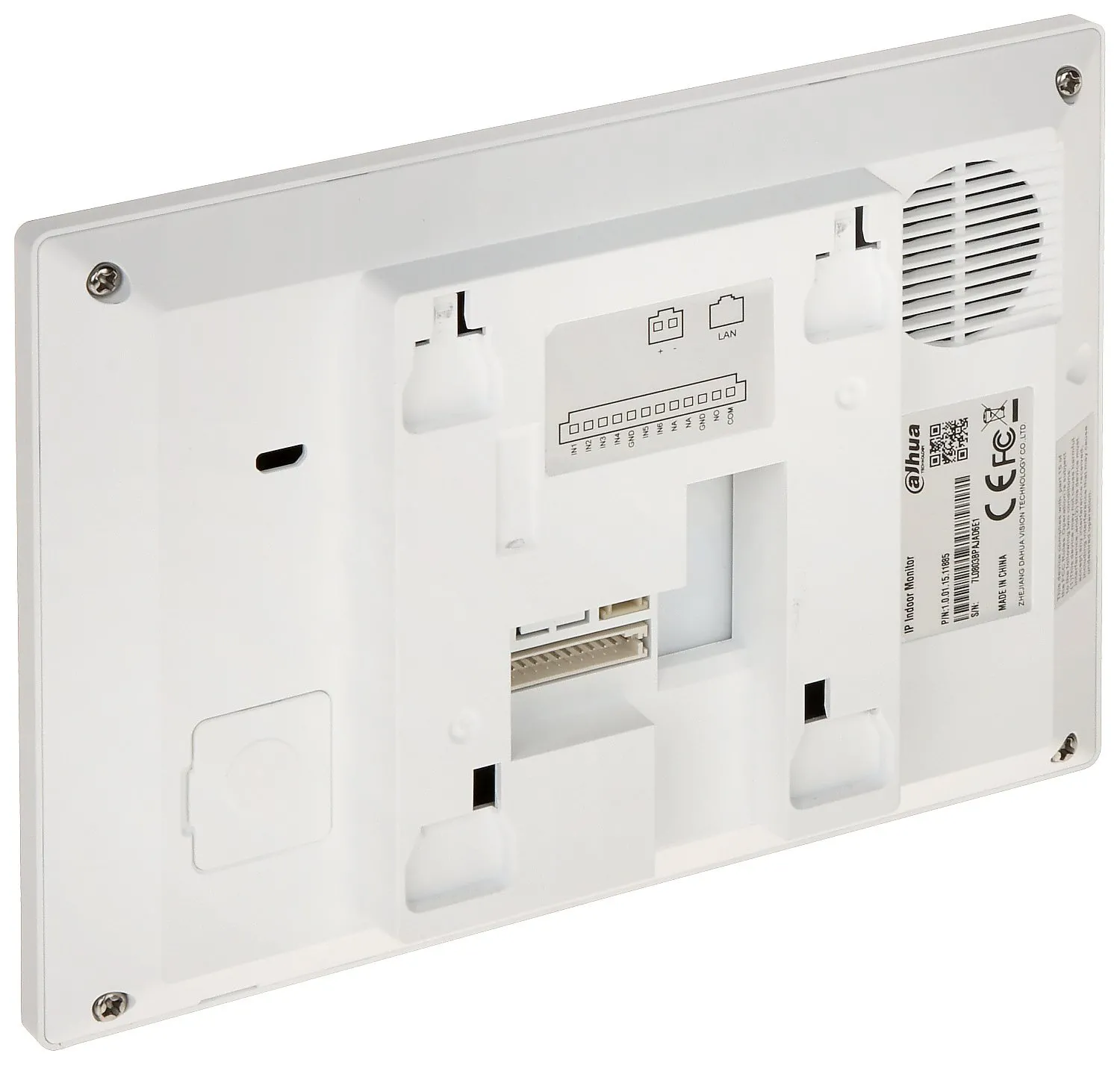

The image shows the back view of a white electronic device, featuring a speaker, multiple connection ports, and mounting slots. The device is designed for wall installation, with visible screws and a label displaying technical specifications.

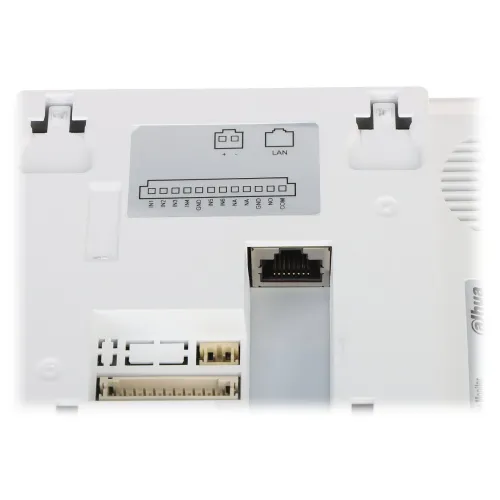

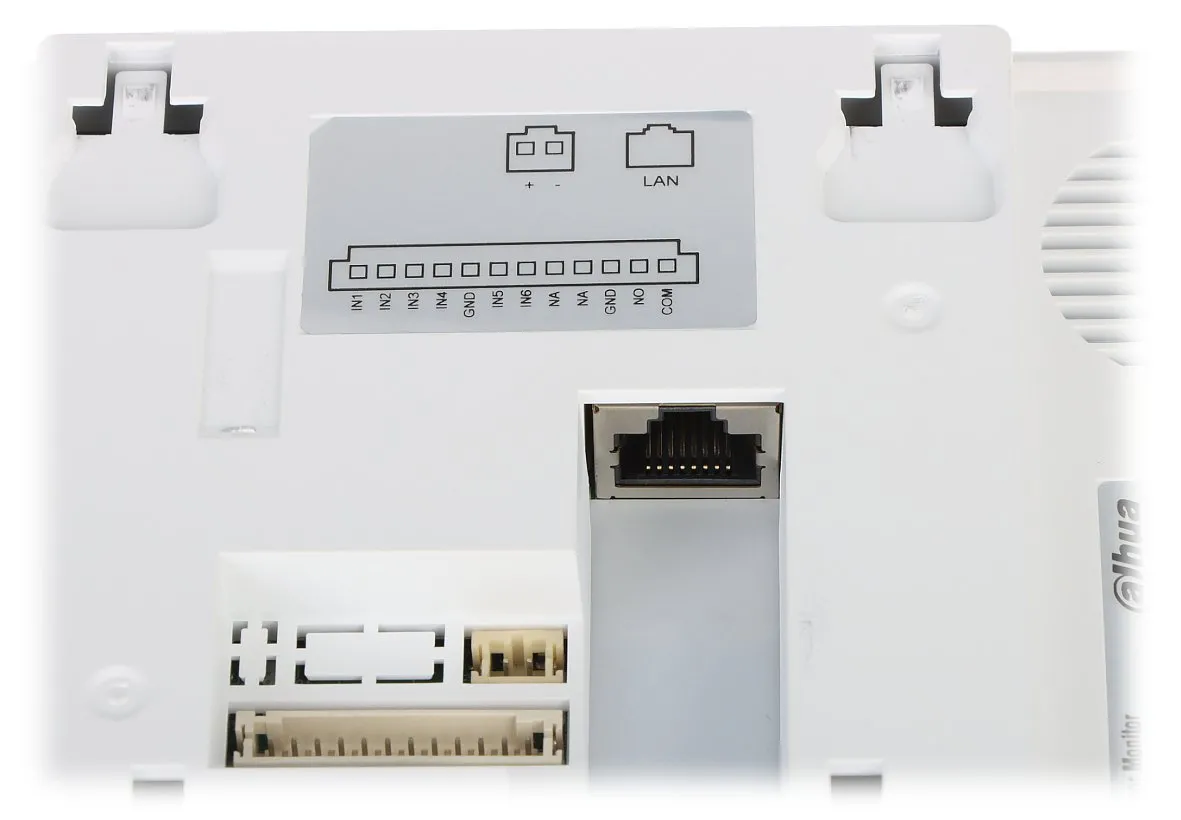

The image shows the back panel of a white electronic device featuring a LAN port and multiple connection terminals. The layout includes labeled ports for various inputs and outputs, designed for easy connectivity and integration.

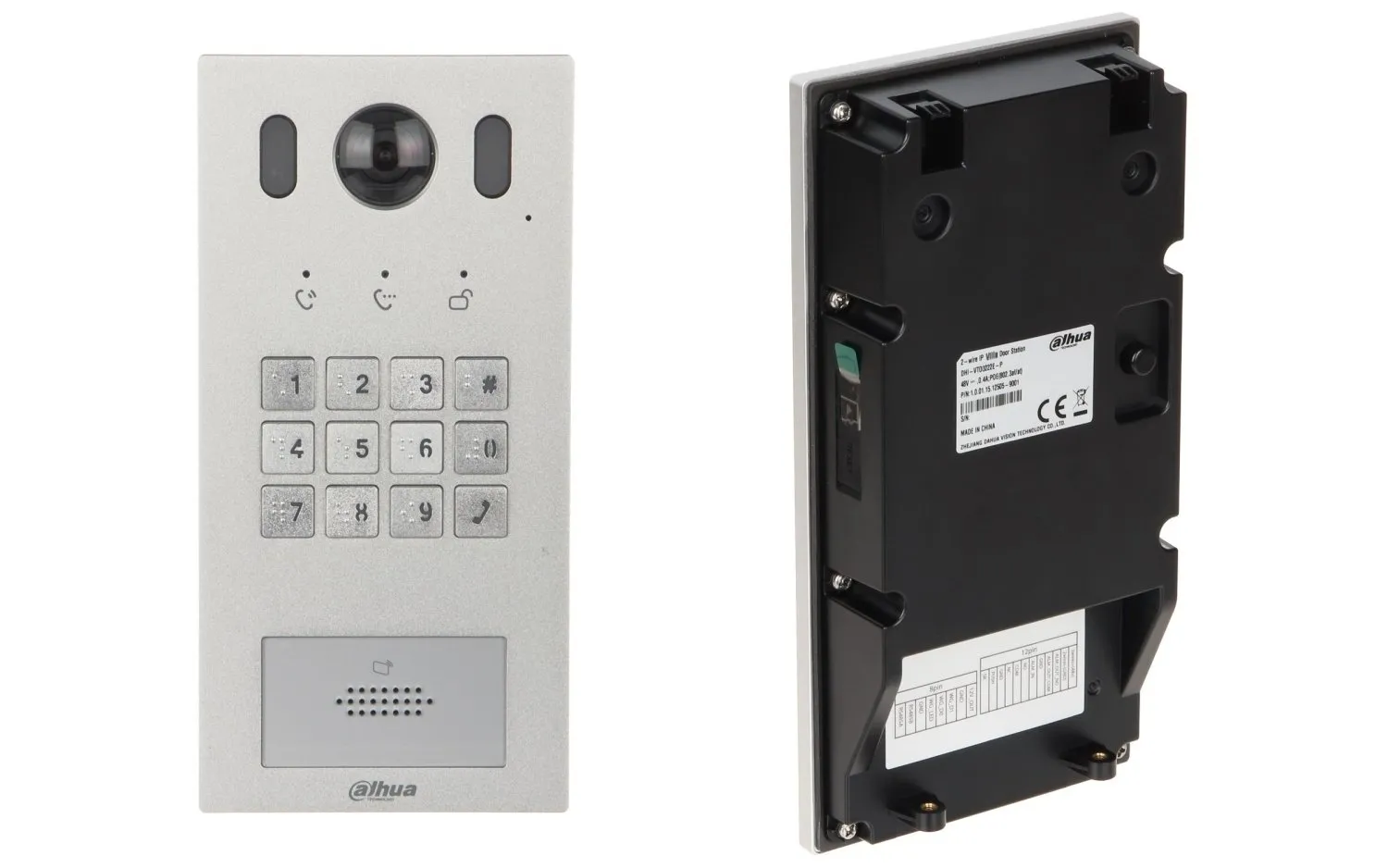

The image shows a sleek, silver video intercom system with a keypad and camera on the front panel. The back view reveals a black casing with mounting components and connection ports.

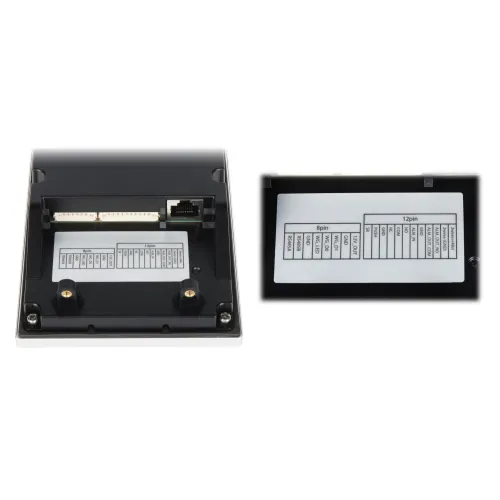

The image shows the back panel of an electronic device featuring a connector interface with labeled pin configurations. The labels indicate various pin functions for 8-pin and 12-pin connections, providing clear guidance for installation.

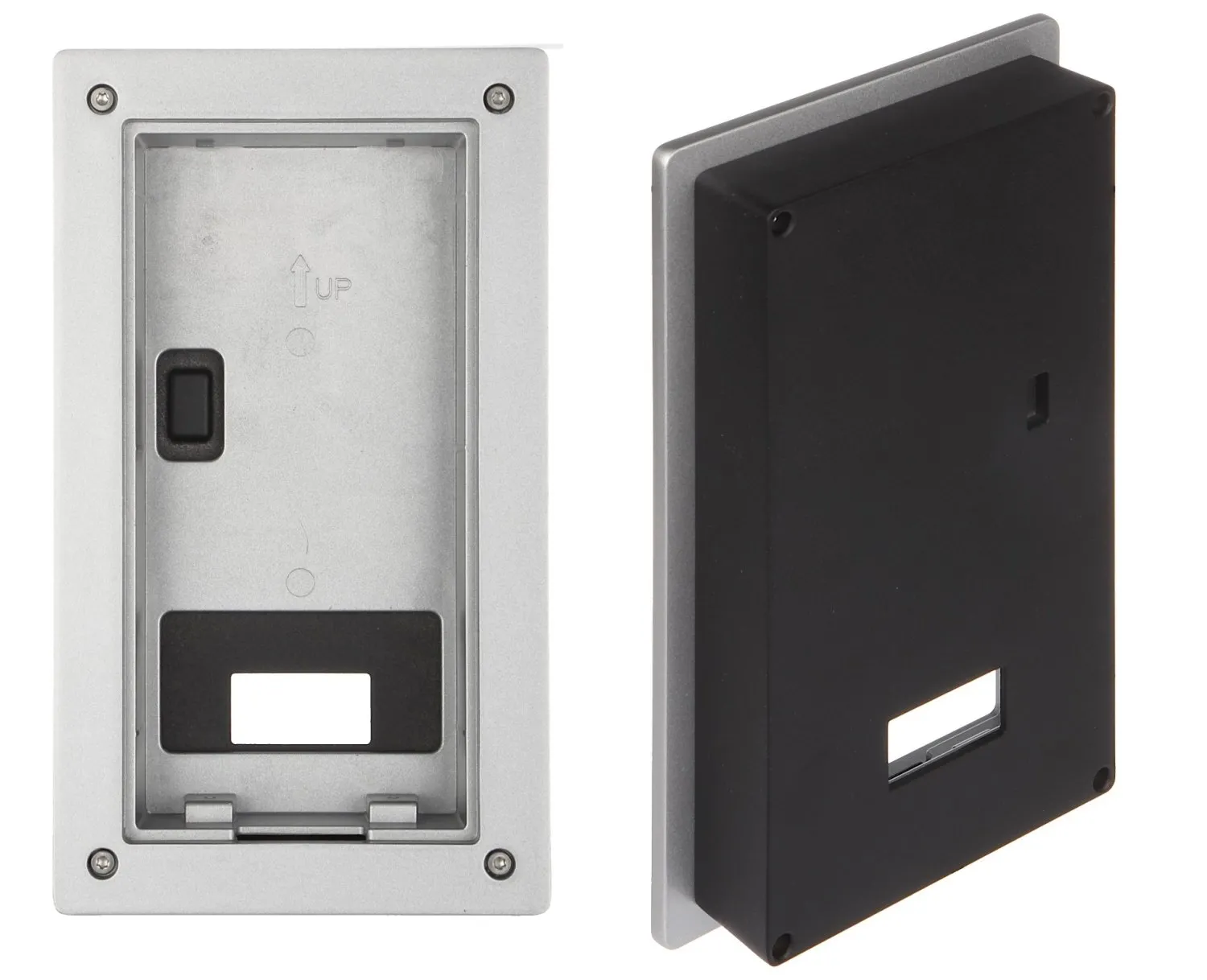

The image shows a two-part electronic enclosure with a sleek silver front panel and a black back cover, designed for secure wall mounting. It features a rectangular cutout on both parts, suitable for accommodating various electronic components.
A 6-port fast Ethernet switch with 4 PoE ports, featuring a sleek black design and clear port labeling. The front panel includes LED indicators for power and activity, along with a power switch on the side.

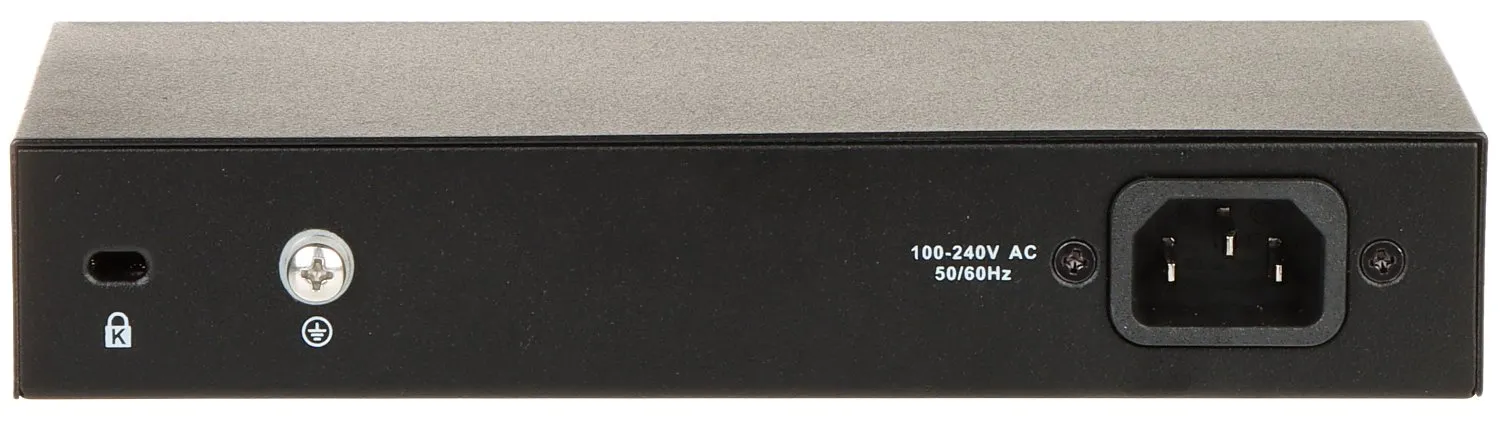

The image shows the back panel of a black electronic device featuring a power input socket and a small lock symbol. It also includes a grounding point and a USB port, with voltage specifications printed on the surface.

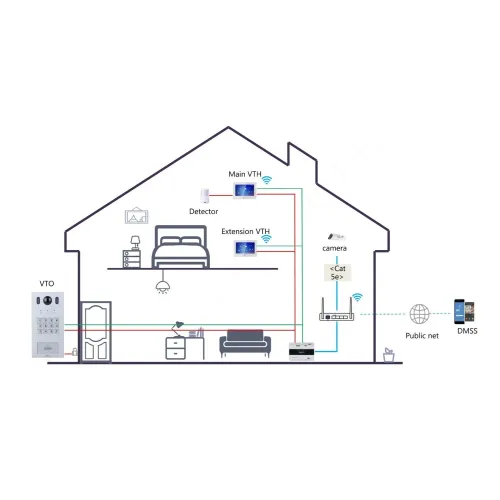

Diagram illustrating a smart home security system with interconnected devices, including a video intercom, detectors, and cameras. The setup shows connections between the main VTH, extension VTH, and a mobile app for remote access.
The image shows a set of electronic components including a metal mounting bracket, various screws, plastic spacers, and ribbon cables. Additionally, there is a black power cable with a European plug.
  • Manufacturer

    Dahua
  • Product Code

    KTP05(F)


Ask about this product show form

  • Save -59%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

400,95 € 986,93 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

IP video intercom set with 7 inch touchscreen monitor, alarm integration and remote intercom from mobile application Can also act as a simplified control panel, or notification module by supporting 6 alarm inputs Video intercom is mounted in flush-mounted housing


The set includes: indoor panel VTH2621GW-WP, video intercom VTO3222E-P, PoE switch PFS3006-4ET-36 and flush-mounted housing VTM116-01


NOTE: The device does not work with Dahua analog system

VIDEODOMOFON:
Transducer: 1/2.9 ", 2 Mpx CMOS
Lens: 2 mm
Viewing angle: 140 °
LED illuminator: Yes
IR illuminator: No
Built-in proximity reader : Access control cards - 13.56 MHz S50
Memory of 10,000 RFID cards, 5000 indexed users.
Video compression method: H.265 / H.264
RS-485: Yes
Cell phone access: Port: 37777 or access via cloud (P2P)
  • Android : Free DMSS app
  • iOS (iPhone): Free DMSS app
Selected features:
  • Opening by card or PIN, Remote door opening,
  • Built-in keypad, Braille code buttons,
  • LED signaling,
  • Micro SD card support up to 256GB (local recording possible),
  • Recording of a short video message when there is no response to the call button,
  • Two-way communication,
  • Built-in microphone,
  • Built-in speakers,
  • Audio noise suppression and echo cancellation,
  • Tamper detection - detachment from the ground,
  • Wiegand interface,
  • Alarm inputs / outputs : 1 / 1,
  • Door lock control output,
  • Additional bell button connector,
  • Auxiliary exit button connector,
  • Power output : 12 V DC / 600 mA
  • Remote management,
  • WDR - 120 dB - Wide dynamic range of illumination
  • 3D-DNR - Digital image noise reduction
  • Day/night mode (color/b&w)
Power supply:
  • PoE (802.3af/at),
  • 48 V DC / 400 mA - 2-Wire IP interface
Power consumption: ≤ 7 W
Housing: Aluminum
Color: Silver
Waterproof class: IP65 - after additional sealing of the connection between the housing and the mounting surface, e.g. with silicone
Mechanical resistance class: IK08
Operating temperature: -40 °C ... 60 °C
Weight: 0.5 kg
Dimensions: 200 x 98 x 35 mm
INNER PANEL:
Screen: 7 " capacitive touchscreen
Resolution: 1024 x 600
Internal memory: No
Memory card slot: No
Selected features:
  • Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n,
  • Security : WPA/WPA2, WPA-PSK/WPA2-PSK,
  • Suppression and echo cancellation / digital noise reduction,
  • Cooperation with Dahua IP cameras,
  • SOS support,
  • Built-in microphone,
  • Built-in speakers,
  • Two-way communication,
  • Volume control,
  • Receive and display information published from the management center,
  • DND mode
Controls: Capacitive touchscreen
Alarm inputs: 6 ( 1 - as bell)
Alarm outputs: 1
Power supply:
  • PoE : 36 V ... 57 V DC / 350 mA,
  • 12 V DC / 1 A
Power consumption: ≤ 6 W (operation)
≤ 2 W (standby mode)
Operating temperature: -10 °C ... 55 °C
Color: White
Weight: 0.33 kg
Dimensions: 190 x 135 x 26 mm
CASING:
Material of construction: Aluminum
Color: Silver
Weight: 0.8 kg
Internal dimensions: 200 x 98 x 34 mm
External dimensions: 240 x 138 x 35 mm
PoE SWITCH:
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802 .3af, IEEE 802 .3at
Management: No
LAN Ports:
  • 4 x RJ45 10/100 Base-TX ( 4 x PoE (802.3af/at) ),
  • 2 x RJ45 10/100 Base-TX - Uplink
LEDs: Power, Link/Act, PoE
Transmission speed: 10 / 100 Mbps : 4 LAN & PoE ports + 2 Uplink ports
Maximum total power: 36 W
MAC address table: 2k
Operating modes:
  • PD Alive
  • Extend On : 250 m, 10 Mbps
Selected Features:
  • PoE power mode : The device supports 8-pin power supply.
  • EXTEND mode - PoE1, PoE2, PoE3, PoE4 ports support transmission up to 250m
  • PoE Watchdog / PD Alive mode - monitoring the ports that are powering PoE devices and automatically restarting by cutting off power when an unresponsive device is detected
  • Protection against lightning and potential differences between devices
  • Kensington Lock
Certifications: CE, FCC
Power supply: 100 V ... 240 V AC
Weight: 0.56 kg
Dimensions: 194 x 108 x 35 mm
General Data:
Supported languages: Polish, English
Manufacturer / Brand: Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
