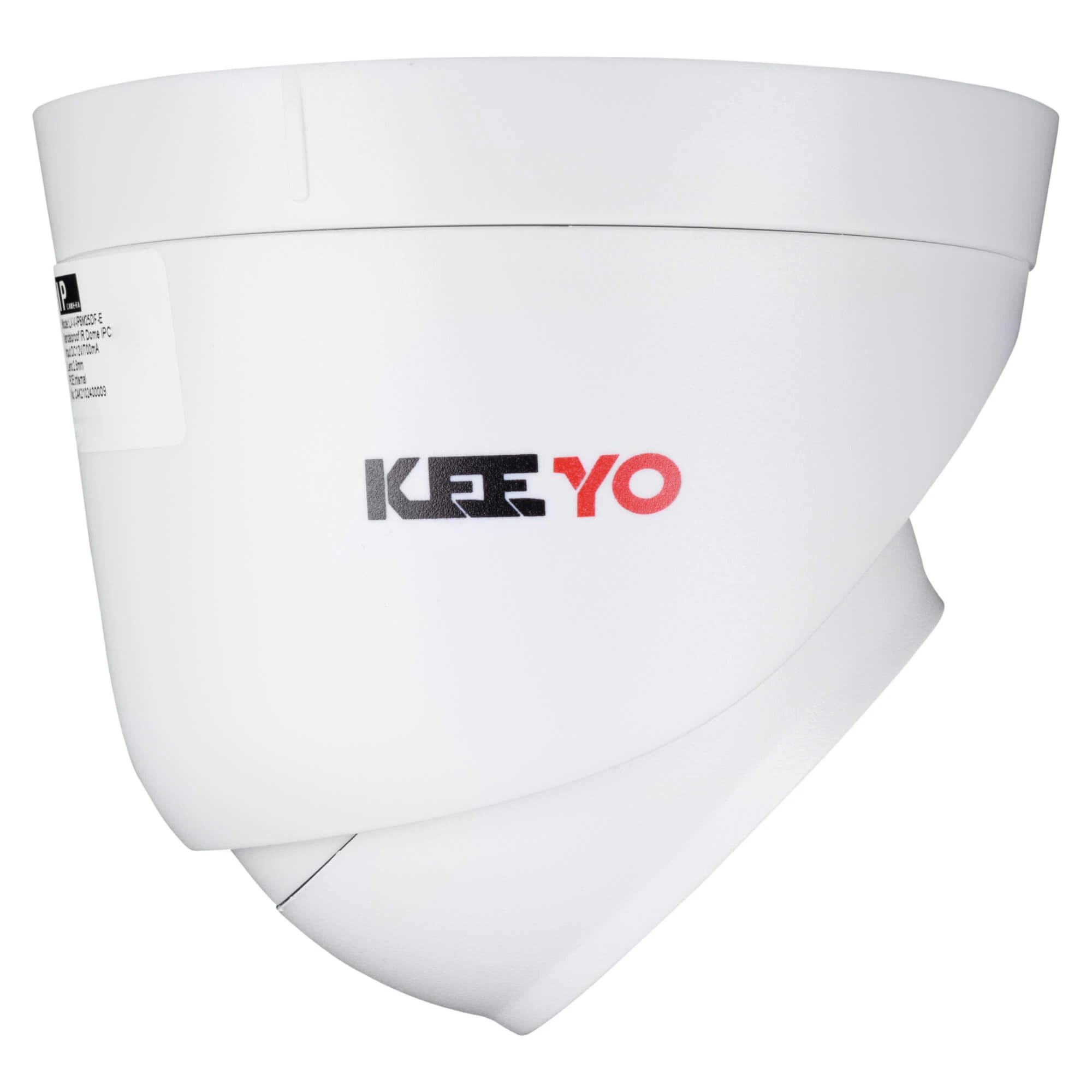

IP Dome Camera KEEYO LV-V-IP8M25DF-E 8MP, IR 25m
Photo gallery
-
Manufacturer
-
Product Code
LV-V-IP8M25DF-E
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 25m
- Connectivity: Wired
- Memory card slot: No
- Audio: Yes
- Color: White
Ask about this product show form
Files attached to the product show files
Product Description
LV-V-IP8M25DF-E is a camera created for good quality surveillance. It is a network camera, which means that the video signal is transported digitally, so it is of much better quality than in analog cameras. In addition, it is equipped with digital WDR, this allows the image to retain detail in dark and brightened areas. It has two infrared LEDs, which are more than enough to illuminate most properties.
Features of the camera LV-V-IP8M25DF-E
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
The LV-V-IP8M25DF-E 's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.
The LV-V-IP8M25DF-E's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and performance of surveillance systems.
The LV-V-IP8M25DF-E's built-in microphone enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 8Mpx resolution ensuring that even the smallest detail is captured in the footage.
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Features of the camera LV-V-IP8M25DF-E
- Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
- 4K resolution matrix - Video footage is recorded at a high resolution of 3840 x 2160.
- Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
- Mobile app - Free app for mobile devices. The Bitvision app is available on the Google Play Store and Apple App Store.
- Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
- PoE power - A twisted-pair UTP cable connected to the power supply is all you need to run the camera.
- 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
- AI features
- intruder detection
- people and vehicle detection
- Wide viewing angle - The diagonal field of view is 110°.
- Built-in microphone - In addition to the image, the camera also captures the audio track.
- Weatherproof - The camera is IP67-rated, which means it can operate in the harshest conditions.
- Snow reduction - In harsh conditions, digital cameras tend to generate noise. The LV-V-IP8M25DF-E reduces this noise, leaving the image smooth and detailed.
- Privacy masks - There may be objects or other properties in the frame that you can exclude from monitoring with privacy masks. Draw a black rectangle in the frame to obscure a portion of the image.
- HLC function - That is, compensation of the image when the light falls straight into the lens. This allows the camera to see the whole scene even under the sun.
- WEB interface supporting popular browsers - You will log in to the camera in well-known browsers like Google Chrome, Mozilla Firefox and Safari.
- ONVIF support - The camera is remarkably versatile. With ONVIF support, it interoperates with devices from many other brands.
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
Power Over Ethernet (PoE)
The LV-V-IP8M25DF-E 's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.
Support for popular browsers
The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.
Accurate notifications without false alarms
The LV-V-IP8M25DF-E's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and performance of surveillance systems.
Built-in microphone
The LV-V-IP8M25DF-E's built-in microphone enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.
High-quality image
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 8Mpx resolution ensuring that even the smallest detail is captured in the footage.
Automatic Day/Night mode
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Wide Dynamic Range: DWDR
The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
Resistant to weather conditions
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Technical specifications:
| Model | LV-V-IP8M25DF-E |
|---|---|
| Camera | |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 8MP |
| Effective pixels | 3840(H)x2160(V) |
| Compression | H.264/H.265/JPEG/AVI/MPEG |
| Video Format | PAL/NTSC |
| Electronic shutter speed | 1/3-1/10000th of a second |
| Minimum illumination | Color: 0.02 Lux (F2.0, AGC ON), B/W: 0 Lux with IR |
| S/N ratio | 60dB |
| Lens | |
| Focal length & FOV | Horizontal FOV 45°, vertical FOV 45°, angular FOV 110° |
| Lens type | Fixed focal length lens 2.8mm |
| Focus control | Fixed |
| Aperture | F2.0 |
| Pixels | 8MP |
| Night visibility | |
| Assistance light | 42x IR LED |
| Range of booster light | 25m |
| Power supply of booster light | Auto Control, Smart, Manual & Timed Mode |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP, IPv4, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, UDP, QoS, 802.1x |
| ONVIF | Supports ONVIF 19.12 (Profile S/T) |
| P2P | Yes |
| PoE | Yes, 802.3af |
| Video | H.264 |
| Main streams | Main stream 1: 3840x2160@20fps Main stream 2: 2880x1620@30fps Main stream 3: 1920x1080@30fps Secondary stream: 352x288@30fps |
| Browser | IE8-11, Google Chrome, Firefox , Mac Safari |
| Bitvision mobile app | iPhone, Android |
| AI features | |
| Intelligent analysis | Intruder detection (based on human detection), motion detection based on human detection |
| Camera functions | |
| Day/Night | Color / B/W (IR-CUT) |
| Image configuration | Saturation / Brightness / Contrast / Sharpness / Mirroring / 3D NR / White balance / Anti-flicker / HLC / Distortion |
| FullColor | Yes |
| BLC | Yes |
| WDR | DWDR |
| Motion detection | People and vehicle detection |
| Privacy masking | 3 rectangular zones |
| Recording mode | NVR/CMS/Web |
| Language | Simplified Chinese, Traditional Chinese, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian |
| Interface | |
| Audio | Built-in microphone |
| General | |
| Housing | Front: Metal, Rear: Plastic, IP67 |
| IR filter | Yes |
| Working temperature | -20°C ~ +60°C, RH 95% Max |
| Storage temperature | -20°C ~ +60°C, RH 95% Max |
| Power source | DC12V±10%, 700mA |
| Dimensions | ￠96 x 91(H) mm |
| Weight | 600g |
