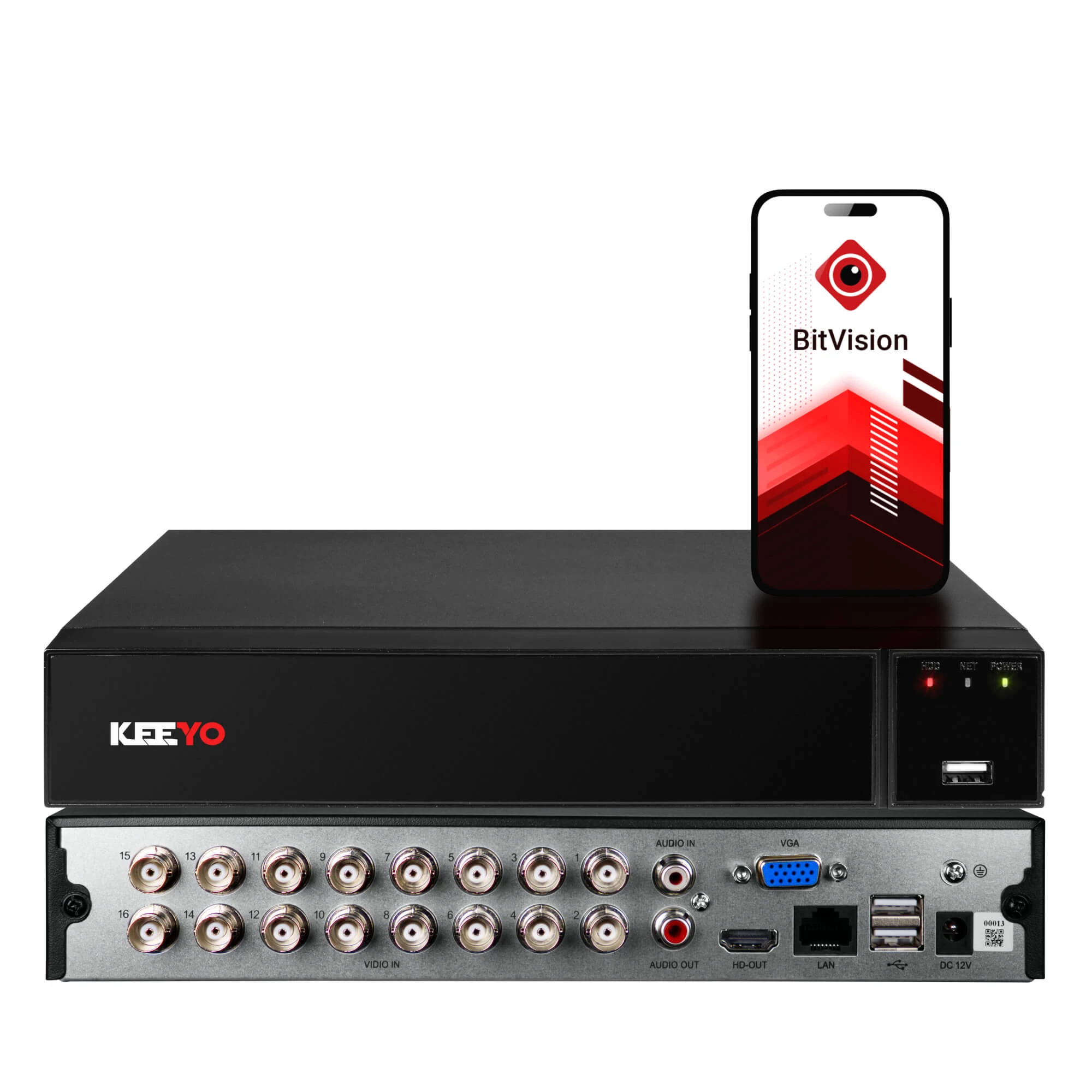

KEEYO LV-V-XVR-16CH 16-channel hybrid recorder
Photo gallery
-
Manufacturer
-
Product Code
LV-V-XVR-16CH
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI/IP
- Number of channels: 16
- Built-in POE switch: No
Ask about this product show form
Product Description
The surveillance DVR, which supports 8 network cameras, enables comprehensive video surveillance in various locations. It is an ideal solution for security systems, combining advanced functionality with simple installation.
Package contents:
- 1x KEEYO LV-V-XVR-16CH DVR.
- 1x User manual
- 1x Wired mouse
- 1x Power supply
Main features of the recorder KEEYO LV-V-XVR-16CH:
- Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
- Ability to connect up to 16 analog cameras
- H.265+ video compression
- Human silhouette detection
- Live viewing, recording and playback of footage from cameras up to 8Mpx
- 1 SATA interface for recording and backup
- 1 10/100Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern housing
- Built-in web server, support via CMS or mobile client
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, thanks to it you will be able to:
✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees.
Support popular browsers
KEEYO LV-V-XVR-16CH DVR supports popular web browsers such as Chrome, Mozilla Firefox and Safari. This allows users to enjoy convenient and seamless access to the surveillance system from different platforms and devices, providing full flexibility and convenience.
H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.
Technical specifications:
| Model | LV-V-XVR-16CH |
|---|---|
| System | |
| Main processor | MC6680 |
| Operating system | Embedded Linux |
| Video | |
| Input | Analog: 16* (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 8* Network (Max 8MP) Analog + Network: 2* Analog (8MP) + 22* network (Max 8MP), 4* Analog (8MP) + 20* network (Max 8MP), 6* Analog (8MP) + 18* network (Max 8MP), 8* Analog (8MP) + 16* network (Max 8MP), 10* Analog (8MP) + 14* network (Max 8MP), 12* Analog (8MP) + 12* network (Max 8MP), 14* Analog (8MP) + 10* network (Max 8MP), 16* Analog (8MP) + 8* network (Max 8MP) Network: 32* 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤160M) |
| Input | 16CH BNC |
| Signal type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1x HDMI, 1x VGA, 1x CVBS |
| Audio | |
| Input | 6 RCA channels, AOC support |
| Two-way audio | No |
| Output | 1 RCA channel |
| Alarm | |
| Sensor input | 4 |
| Output | 1 |
| Motion detection | 16 channels |
| Alarm events | Recording, email, screen messages, buzzer, push notifications (motion detection) |
| E-mail alert | Sending video to a specified email address |
| AI functions | |
| People detection | Yes |
| PTZ (pan, tilt, zoom) | |
| Interface | RS485 |
| Protocols | Pelco-D, Pelco-P |
| Transmission speed | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1920 × 1080P, 1280 × 1024, 1280 × 720, 1024 × 768 |
| HDMI output | Resolution: 4K, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Screen division | 1/4/6/9/16/25/36 |
| Privacy masking | 3 rectangular zones (for each camera) |
| OSD (information displayed) | Camera name, time, video loss, alarm, motion detection, recording |
| Recording | |
| Video compression | H.265/H.265+/H.264/H.264+ |
| Audio compression | G.711u/G.711a |
| Resolution | 5MP (2560×1952), 8MP_LITE (1920×2160), 5MP_LITE (1280×1952), 1080P (1920×1080), 720P (1280×720), 960H (960×480) |
| Video quality | Lowest/Low/Medium/Good/Better/Best |
| Recording speed | Analog: PAL: 8MP_LITE (1920×2160 16*8fps), 5MP (2592×1944 16*6fps), 5MP_LITE (1280×1952 16*10fps), 1080P (1920×1080 16*15fps) NTSC: 8MP_LITE (1920×2160 16*8fps), 5MP (2592×1944 16*6fps), 5MP_LITE (1280×1952 16*10fps), 1080P (1920×1080 16*15fps) Network: PAL: 8MP@20x25fps, 5MP@32x25fps, 4MP@32x25fps, 3MP@32x25fps, 1080P@32x25fps, 960P@32x25fps, 720P@32x25fps NTSC: 8MP@20x30fps, 5MP@32x30fps, 4MP@32x30fps, 3MP@32x30fps, 1080P@32x30fps, 960P@32x30fps, 720P@32x30fps, D1@32x30fps |
| Recording modes | Manual/Timer/Motion Detection/Alarm |
| Playback and Backup | |
| Decoding | 8*1080P@30fps |
| Synchronous playback | Analog mode: 16CH 8MP_LITE@8fps, 16CH 5MP@6fps, 16CH 5MP_LITE@10fps, 16CH 1080P@15fps, 16CH 720P@15fps, 16CH 960H@30fps Mixed mode: 2CH 4K@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 5CH 3M@30fps, 8CH 1080P@30fps, 16CH 5M@6fps, 15CH 8M_LITE@8fps, 16CH 1080P@15fps Pure IPC: 2CH 4K@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 5CH 3M@30fps, 8CH 1080P@30fps |
| Remote playback | 4 channels / 1 channel |
| Search mode | All, Channel, Manual, Time, Date, Motion detection, Alarm, Tag |
| Playback functions | Playback, Pause, Stop, Forward/backward, Single frame, Digital zoom, Full screen |
| Smartphone playback | 4 channels |
| Backup mode | USB device (FAT32) / Network / FTP |
| Network | |
| Interface | 1x RJ45 10M/100M |
| Network functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
| DDNS | Dyndns, ChangeIP, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET |
| Browsers | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Windows 7/8/10/11, macOS |
| Additional stream | CIF/D1 (1-30fps) |
| Mobile application | iPhone, iPad, Android |
| Hard drive | |
| Interface | 2x SATA |
| Capacity | 2x SATA (2.5"/3.5", up to 16TB) |
| General | |
| Languages | Polish |
| UTC control | Yes |
| USB interface | 2x USB 2.0 |
| Power supply | DC 12V/4A, ≤15W (without hard drive) |
| Operating environment | -10~50℃/10~90% |
| Dimensions | 310 × 295 × 46 mm |
| Weight | 3.5 kg (without HDD) |
