KEEYO Monitoring Kit 4x LV-E-AL8M25TF-B 8MP, IR 25m

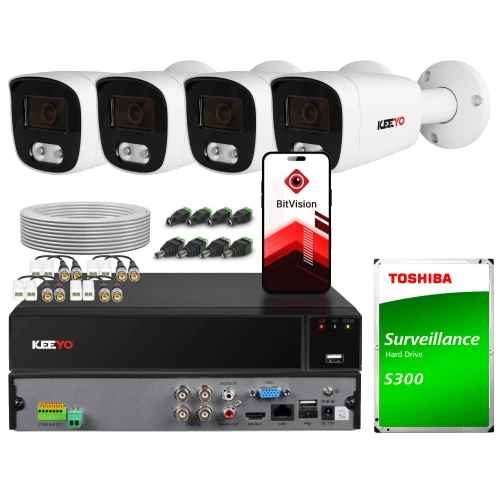

Set contents:

• 4x 4-in-1 horn camera - LV-E-AL8M25TF-B
• 1x Hybrid DVR LV-V-XVR-4CH
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• 20 meters of UTP cat.5e cable
• Set of connectors
• "NOTICE OF MONITORED OBJECT" sticker.

• Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
• 4K resolution matrix - Video footage is recorded at a high resolution of 3840 x 2160.
• Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
• Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
• 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
• Wide viewing angle - The diagonal field of view is 110°.
• Weatherproof - The camera is IP67-rated, which means it can work in the harshest conditions.

Main features of KEEYO LV-V-XVR-4CH DVR:

• Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
• Possibility to connect up to 4 analog cameras
• H.265+ video compression
• Human silhouette detection
• Live viewing, recording and playback of footage from cameras up to 8Mpx
• 1 SATA interface for recording and backup
• 1 10/100Mbps network card with automatic speed selection
• Simultaneous HDMI/VGA output
• In-app support via mobile devices with systems: Android, iOS
• Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
• Modern housing
• Built-in web server, support via CMS or mobile client

Main features of Toshiba S300 hard drive:

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in data-intensive read/write situations.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, provide images of high quality and excellent sharpness compared to lower resolution cameras. The device records in 4K resolution ensuring that even the smallest detail is captured on the footage.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide dynamic range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Weatherproof

The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Recording performance at the highest level

H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.


Technical specifications LV-E-AL8M25TF-B:
