KEEYO Monitoring Kit 4x LV-V-IP8M5AF-DL 8Mpx, motorized zoom

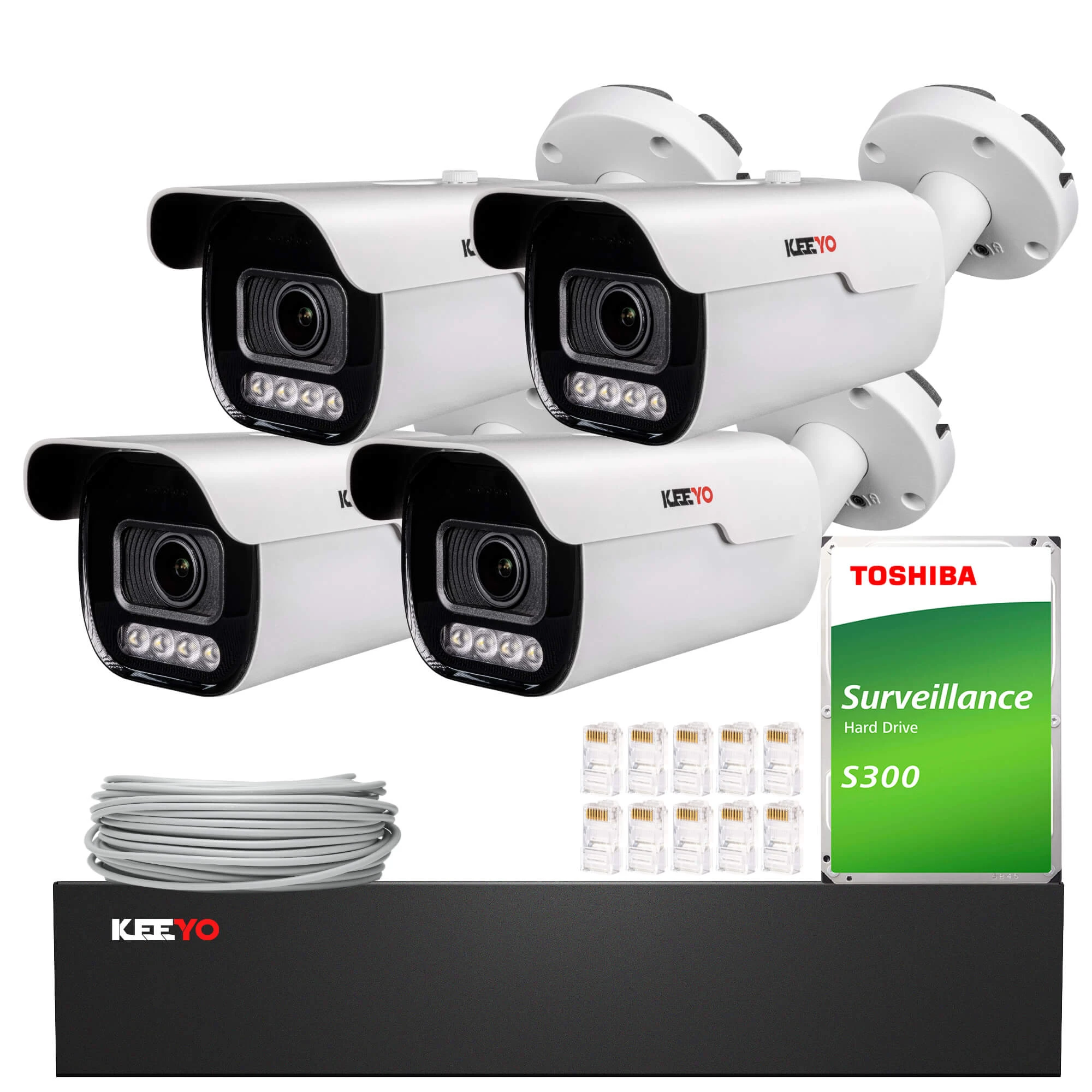

Kit contents:

• 4x 4K horn camera - KEEYO LV-V-IP8M5AF-DL
• 1x Network DVR LV-V-NVR-9CH-4P-E
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• 20 meters of UTP cat.5e cable
• Set of signal connectors
• Sticker "ATTENTION MONITORED OBJECT".

• 2.7-13.5mm focal length - Varifocal motozoom lens
• Sony sensor - High-quality optical components for crystal clear video capture.
• 4K resolution matrix - Video footage is recorded at a high resolution of 3840(H)x2160(V).
• Night illumination with 50-meter range - Two high-power IR LEDs working together with white LEDs.
• Mobile app - Free app for mobile devices. The Bitvision app is available on the Google Play Store and Apple App Store.
• Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed frame patios.
• PoE power - A twisted-pair UTP cable connected to the power supply is all you need to run the camera.
• 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
• ROI function - The camera compresses the image to allow instant recording. This has a slight impact on its quality. With the ROI function, you can designate an area of the frame you are interested in, which the camera will keep in the best possible quality, while reducing it where it is not so necessary.
• AI features

  • intruder detection
  • line crossing
  • wandering
  • detection of gatherings
  • detection of vehicles
  • trespassing
• Two ways to save data - Save recordings on the DVR or to a memory card. The camera supports cards with capacities of up to 1TB.
• Wide viewing angle - The diagonal field of view is 110°.
• Weatherproof - The camera is IP67-rated, which means it can work in the harshest conditions.
• Built-in microphone - In addition to the image, the camera also captures an audio track.
• Snow reduction - In harsh conditions, digital cameras tend to generate noise. The IP5M25TF-II reduces this noise leaving a smooth and detailed image.
• Privacy Masks - There may be objects or other properties in the frame that you can exclude from monitoring with privacy masks. Draw a black rectangle in the frame to obscure a portion of the image.
• HLC function - That is, compensation of the image when the light falls straight into the lens. This allows the camera to see the whole scene even under the sun.
• WEB interface supporting popular browsers - You will log in to the camera in well-known browsers like Google Chrome, Mozilla Firefox and Safari.
• ONVIF support - The camera is remarkably versatile. With ONVIF support, it interoperates with devices from many other brands.

The LV-V-IP8M5AF-DL is a camera built for quality surveillance. It is a network camera which means that the video signal is transported in digital form, so it is of much better quality than in analog cameras. In addition, it is equipped with digital WDR, this allows the image to retain detail in dark and brightened areas. It has two infrared LEDs, which are fully sufficient to illuminate most properties. In addition, it can be used as an independent surveillance device thanks to support for memory cards with a maximum capacity of 1TB.

Main features of KEEYO DVR LV-V-NVR-9CH-4P-E:

• Number of channels: 9
• Maximum recording resolution: 4K
• Recording speed: 25fps
• Built-in PoE switch with 4 ports
• H.265+ video compression
• Support for drives up to 8TB
• Support for popular browsers: Edge, Google Chrome, Mozilla Firefox, Safari
• Support for mobile app on Android and iOS smartphones

Main features of Toshiba S300 HDD:

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Remote access from desktops and smartphones

Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:

✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Power Over Ethernet (PoE)

The LV-V-IP8M35AF's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.

Support for popular browsers

The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.

Accurate notifications without false alarms

The LV-V-IP8M5AF-DL's human and car silhouette detection function offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP8M35AF additionally detects:

• Line crossing
• Wandering
• Assembly
• Intrusion into the area

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records in 4K resolution ensuring that even the smallest detail is captured in the footage.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 50m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide Dynamic Range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.



Region of Interest

The ROI (Region of Interest) function of the LV-V-IP8M5AF-DL allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in this area while reducing the quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.

Weatherproof

With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Recording performance at the highest level
