EZVIZ Wi-Fi Monitoring Kit 8x CS-H3C 5MP

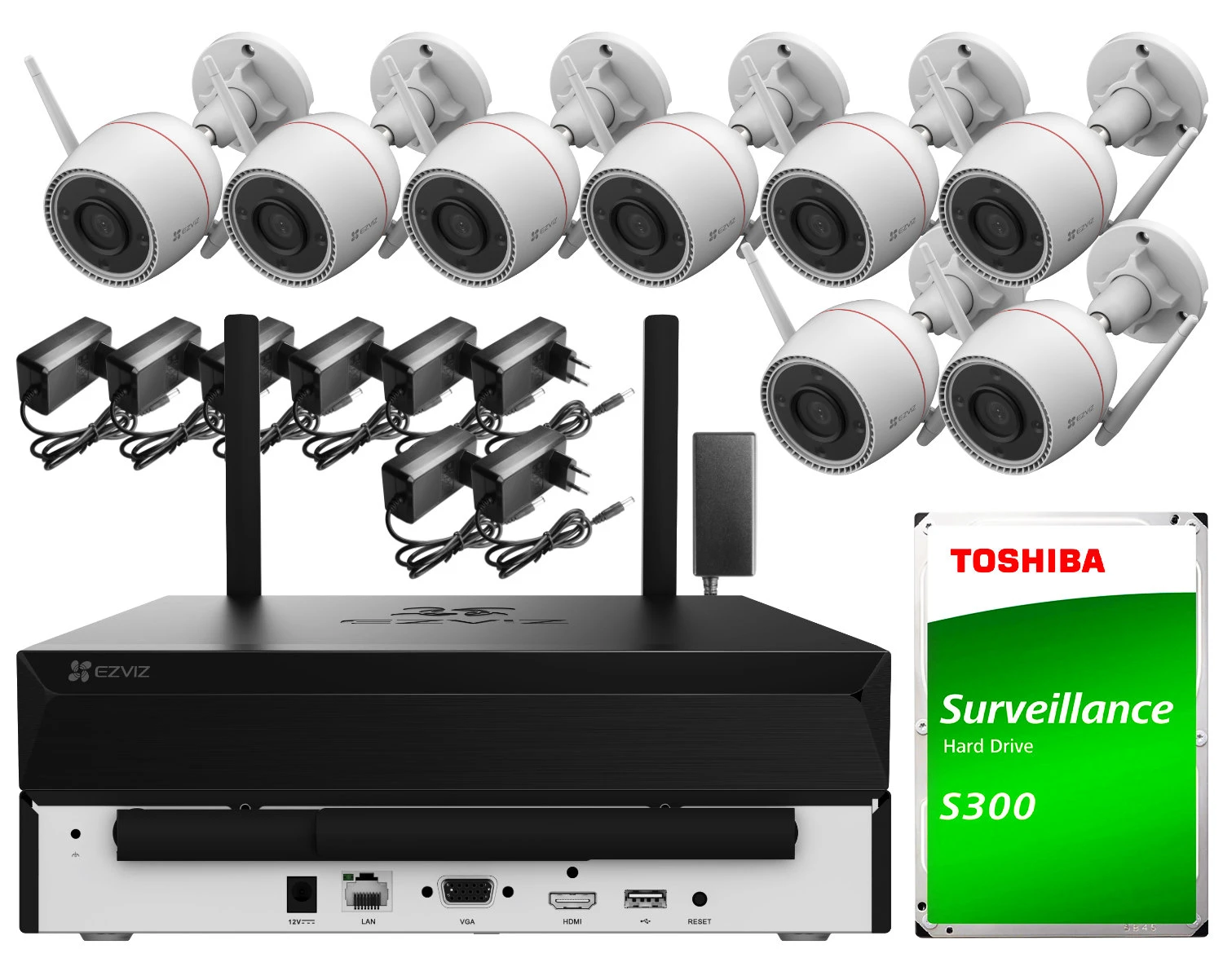

Kit contents:

• 8x 5Mpx WiFi Camera - EZVIZ CS-H3C
• 1x WiFi network DVR - EZVIZ X5S-8W
• 8x Power adapter for the cameras
• 1x Power supply for DVR
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• Sticker "ATTENTION MONITORED OBJECT".
• Documentation, template, and mounting screws and studs

Features of EZVIZ CS-H3C camera:

✅ Wifi ✅ Application ✅ 3K ✅ 5MP

EZVIZ CS-H3C 5Mpx is an outdoor camera with 5Mpx resolution. It will allow you to conduct video surveillance with audio recording, and in addition, it doesn't require a DVR. You will save the video clips to a memory card. Download the EZVIZ mobile app to your phone for remote viewing. Even when you're away from home.

• 3K resolution
• Color night vision
• Two-way conversation
• Definable detection zones
• Artificial intelligence detection of people
• Support for microSD cards with a maximum capacity of 512GB (not included)
• Support for EZVIZ CloudPlay Storage (requires paid subscription)

Main features of EZVIZ X5S-8W DVR

• Supports up to 8 IP cameras with 5MP resolution
• Wi-Fi range of up to 100 meters
• Compatible with ONVIF-compliant cameras
• Supports H.265 and H.264 video compression
• Supports 3.5" drives with up to 8TB capacity
• HDMI/VGA output

The DVR provides full compatibility with ONVIF-compliant cameras, allowing integration with devices from different manufacturers. This guarantees flexibility in building and expanding a customized surveillance system.

Main features of the Toshiba S300 hard drive

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in data-intensive read/write situations.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Accurate notifications without false alarms

The EZVIZ CS-H3C's human and car silhouette detection function offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and performance of surveillance systems.


Elegant design and reliable Wi-Fi connection

The H3C camera is small enough to be mounted on roof eaves or exterior walls. In addition, it is equipped with two powerful antennas to ensure a stable and strong network connection.


High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, provide images of high quality and excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured in the footage.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Built-in microphone - a more complete picture of the situation

The EZVIZ H3C camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Recording performance at the highest level

H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.

MicroSD card slot The EZVIZ CS-H3C camera has a built-in microSD card slot that allows local storage of video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems, or when long-term archiving of recordings directly on the device is required.

Technical specifications:
