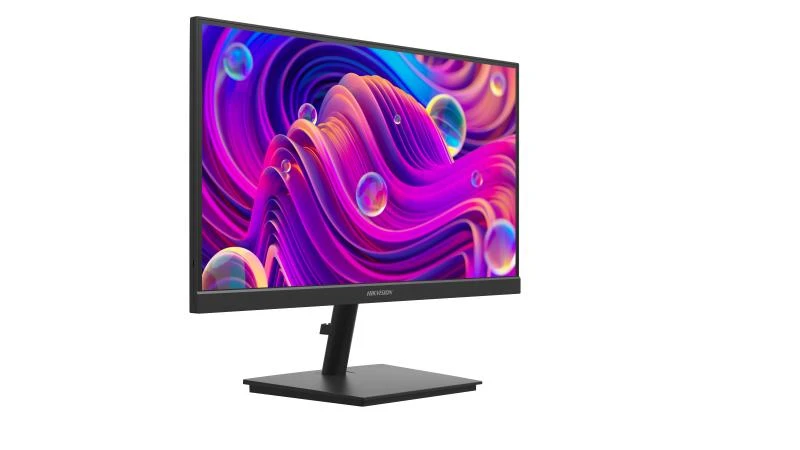

Hikvision DS-D5022F2-1V2S 21.5" Monitor
Photo gallery
Product Description
The DS-D5024FN EU monitor is a professional device from Hikvision, designed for surveillance systems and monitoring centers, but it will also prove useful in the office or home. Equipped with a 21.45-inch screen with Full HD (1920 × 1080) resolution, it guarantees clear and detailed images. With its wide viewing angles (178°) and high contrast ratio (4000:1), it provides excellent display quality for both static content and dynamic video content. Built-in speakers and HDMI and VGA connectors make it easy to connect additional devices, while the VESA-standard wall-mounting capability allows for flexible adaptation to different spaces. Additional advantages include energy efficiency and 24/7 continuous operation, making this model ideal for professional applications.
- Screen diagonal: 21.45 inches
- Resolution: full HD (1920 × 1080 pixels)
- Backlighting: E-LED for better energy efficiency
- Contrast ratio: 4000:1 - clear details and deep blacks
- Viewing angle: 178° (vertical and horizontal) - excellent visibility from all sides
- Brightness: 250 cd/m² - clear images even in well-lit rooms
- Response time: 8 ms - smooth display of dynamic content
- Refresh rate: up to 100 Hz
- Built-in speakers: 2 x 2W
- Connectors: 1x HDMI 1.4, 1x VGA, 1x Audio In
- Continuous operation capability: 24/7 - ideal for surveillance systems
- Wall Mounting: Compatible with VESA 75 x 75 mm
- Energy efficient: Power consumption ≤ 24 W, in sleep mode ≤ 0.5 W
- Robust design: Plastic housing
- Dimensions: 493.26 × 393.45 × 185.74 mm (with base)
- Net weight: 2.0 ± 0.5 kg
Technical specifications:
| Category | Details |
|---|---|
| Screen size | 21.45 inches |
| Active display area | 478,656 (W) mm × 260,280 (H) mm |
| Resolution | 1920 × 1080 |
| Backlighting | E-LED |
| Distance between pixels | 0.241 mm (W) × 0.241 mm (H) |
| Brightness | 250 cd/m² |
| Viewing angle | 178° (W) / 178° (H) |
| Color depth | 8 bit, 16.7 M |
| Contrast ratio | 4000 : 1 |
| Response time | 8 ms |
| Refresh rate | Max. 100 Hz, Typ. 60 Hz |
| Haze | 25% haze, 3H |
| Failure rate | 7 × 24 H |
| Color space | 72% NTSC |
| Video and audio inputs | HDMI 1.4 × 1, VGA × 1, Audio In × 1 |
| Video and audio outputs | Speaker × 2 (4Ω 2W) |
| Data transmission interface | None |
| Control interface | None |
| Power supply | DC 12V, 2.0A |
| Power consumption | ≤ 24 W |
| Power supply in sleep mode | ≤ 0.5 W |
| Operating temperature | 0℃ to 40℃ (32℉ to 104℉) |
| Operating humidity | 20% to 90% RH (non-condensing) |
| Storage temperature | -20℃ to 60℃ (-4℉ to 140℉) |
| Storage humidity | 10% to 90% RH (non-condensing) |
| Housing material | Plastic |
| VESA | 75 mm × 75 mm (4 - M4 × 6 mm) |
| Frame width | 2.38 mm (top/left/right), 21.55 mm (bottom) |
| Dimensions with base | 493.26 (S) mm × 393.45 (W) mm × 185.74 (G) mm |
| Dimensions without base | 493.26 (S) mm × 290.13 (W) mm × 42.35 (G) mm |
| Package dimensions | 599 (S) mm × 393 (W) mm × 109 (G) mm |
| Net weight | 2.0 ± 0.5 kg |
| Gross weight | 3.2 ± 0.5 kg |
| Package contents | Monitor × 1, Stand × 1, Power supply (12 V, 2.0 A) × 1, HDMI cable (1. |
