Hikvision Monitoring Kit 4x DS-2CE76D0T-LPFS Smart Hybrid Light Full HD

Set contents:

• 4x 2Mpx analog camera - DS-2CE76D0T-LPFS
• 1x Hybrid DVR - DVR-4CH-4MP
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• UTP cat.5e cable ( 20m )
• A set of signal connectors
• "Attention Object Monitored" sticker ( 1pc ).

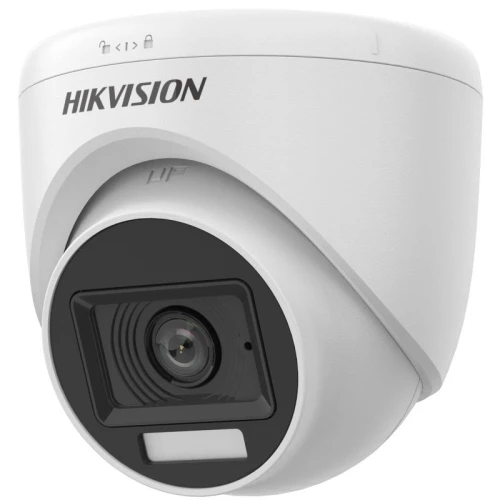

Features of DS-2CE76D0T-LPFS camera.:

• Video transmission standard: TVI/AHD/CVI/CVBS
• Sensor: 2MP CMOS
• Resolution: 1920×1080 (2Mpx) @ 25/30 fps
• Sensitivity: 0.01 lux @ F1.6 (AGC ON), 0 lux with IR/LED on
• Lens: 2.8mm
• 1x Smart IR LED (range up to 20 m)
• 1x Smart LED white light (range up to 20 m)
• Automatic white balance (AWB)
• Automatic gain control (AGC)
• Backlight compensation (BLC)
• High illumination reduction (HLC)
• 2D noise reduction (DNR)
• Digital wide dynamic range (DWDR)
• Smart Hybrid Light - intelligent use of dual illumination
• Built-in microphone - audio recording
• Audio transmission via coaxial cable
• OSD menu accessible from the recorder (CoC support)
• Made of durable plastic
• Protection class: IP67 (weatherproof)
• Power supply: 12V DC

Main features of DVR-4CH-4MP DVR

• Works with cameras based on TVI, CVI, AHD and CVBS technologies, with sensors up to 5 Mpx,
• Provides convenient configuration and easy operation,
• Is suitable for signal transmission via UTP and coaxial cable,
• It is equipped with advanced video recording technologies and additional features that ensure reliable operation for years.
• H.265 Pro compression effectively reduces storage space by up to 75%
• Ability to connect HDTVI / HDCVI / AHD / CVBS cameras
• Long distance transmission over UTP and coaxial cable
• One SATA interface (up to 6 TB capacity per hard drive)
• Synchronous 4-channel playback.
• Intelligent search for efficient playback
• H.265 Pro+/H.265 Pro/H.265 compression for main stream
• Recording at up to 5Mpx resolution
• HiLook Vision and DDNS (Dynamic Domain Name System) for easy management over the network
• RJ45 10M / 100M Ethernet network interface
• Incoming bitrate of 32Mbps, configurable outgoing incoming bandwidth limit

Main features of Toshiba S300 hard drive

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in data-intensive read/write situations.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Automatic day/night mode Adapted to work in any lighting conditions, the DS-2CE76D0T-LPFS with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The DS-2CE76D0T-LPFS camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2CE76D0T-LPFS records at 2Mpx resolution. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

IP67 weatherproof design This housing protects the DS-2CE76D0T-LPFSL camera from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The DS-2CE76D0T-LPFS camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras The Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom: Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application) The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application) The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application) HikCentral Professional is security integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

Main advantages:

• Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
• Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
• Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
• Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.



Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

DVR Technical Specifications:
