KEEYO Monitoring Kit 10x LV-E-AL5M25DF-G 5Mpx IR 25m

IS THIS SURVEILLANCE SET SUITABLE FOR YOU?

The offered set consists of very versatile devices, the resolution of digital cameras is 5Mpx which allows you to capture images with a lot of detail.
For example, these cameras can be used for monitoring:

• Corridors / rooms
• Backyard
• Garage / driveway
• Parking lot
• Store

In addition, the kit can be installed by anyone, no special skills are needed, and the kit comes with step-by-step instructions on how to do the assembly and installation.

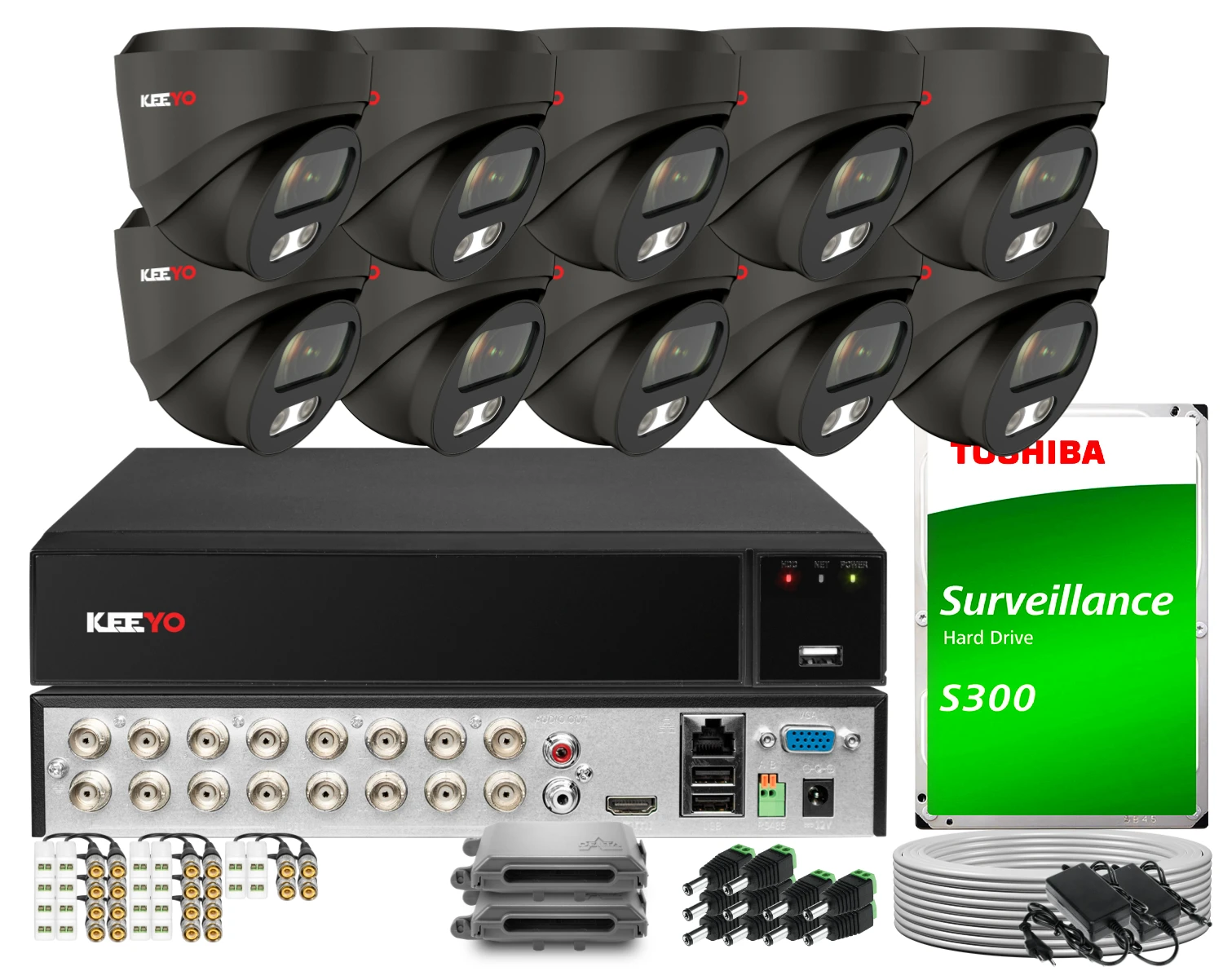

KIT CONTENTS:

• KEEYO LV-E-AL5M25DF-G 5Mpx camera (10pcs).
• KEEYO LV-V-XVR-16CH DVR (1pc).
• TOSHIBA S300 surveillance hard drive ( 1pc ).
• UTP cable (50m.).
• Set of converters ( 10pcs ) and DC plugs ( 10pcs ).
• Power splitter ( 2pcs. )
• Power supply for cameras ( 2pcs. )
• Sticker "ATTENTION MONITORED OBJECT" (1pcs.)

ADVANTAGE OF AHD MONITORING OVER IP

AHD technology has been on the market for many years. It has been developed and improved to its limits. This means, first of all, an attractive price-quality ratio.

Another advantage is that there is no burden on the local network on your property. In the case of IP cameras, each additional camera has to be treated as a kind of computer, which puts additional load on the network and slows it down. If you don't have adequate network cabling and high-bandwidth routers, AHD surveillance may be just for you.

RECORD VIDEO FOR UP TO 14 DAYS

Toshiba's drives are specially designed surveillance system devices, withstanding continuous 24-hour operation that ordinary PC drives would not withstand. In addition, the 1TB drive is enough for two weeks of recording, after which time old recordings will begin to overwrite with new ones.

REMOTE ACCESS - Bitvision

Bitvision is a mobile application for smartphones and tablets that allows you to access video viewing from anywhere on earth with internet access, notification when an event is detected and, in addition, it does not require an external IP address. The app is in Polish and available for free for Android and iOS devices.

WEATHERPROOF

The cameras are IP67-certified, which means they have been adequately protected against moisture and harsh weather conditions.
In turn, they are equally suitable for indoor and outdoor installation.

BASIC MOTION DETECTION

The recorder has motion detection functions in the image, such a solution informs about any object moving in the frame. In addition, you can adjust the sensitivity of detection and the area in the image to cancel unwanted alerts caused by the movement of plants or smaller animals.

PROPER INSTALLATION OF THE SURVEILLANCE CAMERA

The suggested mounting surface for horn cameras is vertical surfaces (e.g. walls), in order to properly mount the camera it is necessary to position its frame so that the elevation on which it is mounted is not in the field of view. This will fully exploit the potential of the camera's infrared light and obtain the best possible image at night.

The suggested mounting height for horn cameras is from 2.5m to 3.5m.

LV-V-XVR-16CH specification:

• Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers.
• Can connect up to 16 analog cameras
• H.265+ video compression
• Human silhouette detection
• Live viewing, recording and playback of footage from cameras up to 8Mpx
• 1 SATA interface for recording and backup
• 1 10/100Mbps network card with automatic speed selection
• Simultaneous HDMI/VGA output
• In-app support via mobile devices with systems: Android, iOS
• Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
• Modern housing
• Built-in web server, support via CMS or mobile client

LV-E-AL5M25DF-G specification:

• High resolution 5Mpx video recording
• Infrared range of up to 25m
• Enhanced dynamic range with DWDR technology
• Robust metal housing with IP67 certification
