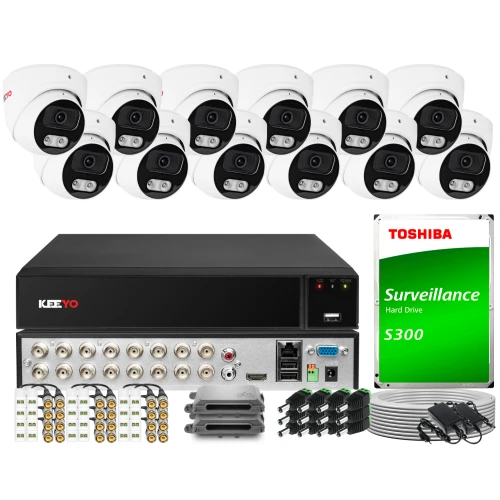

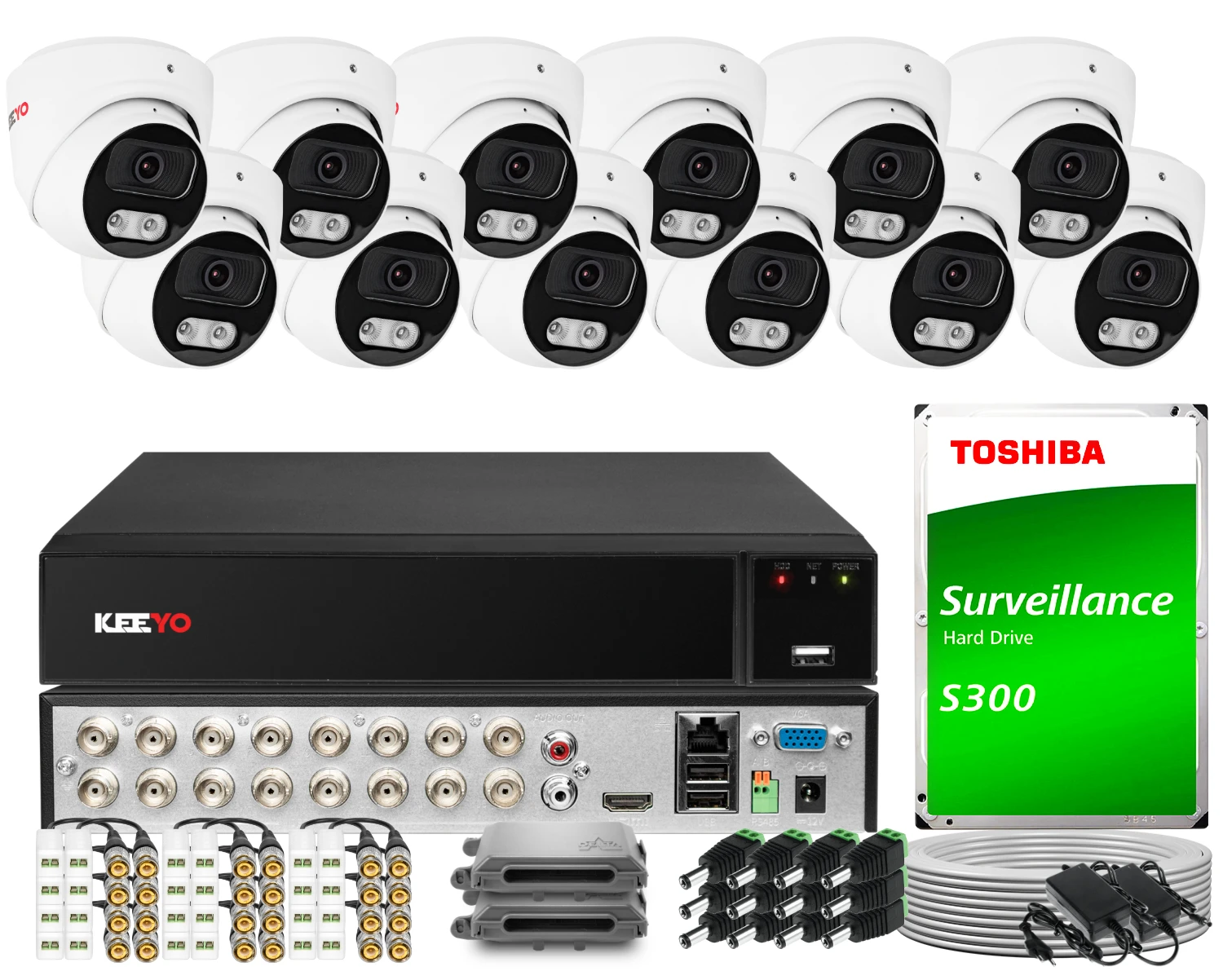

4-in-1 Monitoring Kit KEEYO 12x LV-E-AL8M25DF-B 8MP, IR 25m

Main features of KEEYO LV-V-XVR-16CH DVR:

• Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
• Up to 16 analog cameras can be connected
• H.265+ video compression
• Human silhouette detection
• Live viewing, recording and playback of footage from cameras up to 8Mpx
• 1 SATA interface for recording and backup
• 1 10/100Mbps network card with automatic speed selection
• Simultaneous HDMI/VGA output
• In-app support via mobile devices with systems: Android, iOS
• Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
• Modern housing
• Built-in web server, support via CMS or mobile client

Main features of Toshiba S300 hard drive

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The LV-E-AL8M25DF-B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The LV-E-AL8M25DF-B records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide Dynamic Range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Resistant to weather conditions

The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Technical specifications of the camera:

Model	LV-E-AL8M25DF-B
Camera
Image sensor	1/2.5" CMOS sensor
Image resolution	8M: 3840*2160, 5M: 2592*1944, 4M: 2560*1440, 2M: 1920*1080
TV system	PAL/NTSC
Electronic shutter	Auto
Minimum illumination	Color: 0.03 lux@F2.0, AGC on; B/W: 0 lux with IR
Scanning system	Progressive scanning
Lens
Focal length	2.8mm
Focus control	Fixed
Type of lens	Fixed focal length
Night vision
IR Cut filter	YES
Infrared LEDs	42µ x 2SZT
Infrared range	25m
IR status	Automatic AGC control
Camera functions
Day/Night	Yes
OSD menu	Yes
WDR	DWDR
UTC	Yes
Noise reduction	DNR
Audio	YES (TVI only)
White balance	AUTO / MANUAL
Gain control	AUTO
General
Housing	Metal, IP67
Operating temperature	-10℃ ~ +60℃, max humidity 95%.
Storage temperature	-20℃ ~ +60℃, max humidity 95%
Power source	DC12V±10%, 500mA
Dimensions	Ø96 x 91(H) mm
Weight	600g
