4-in-1 Monitoring Kit KEEYO 10x LV-E-AL8M25TF-B 8MP, IR 25m
Photo gallery
-
Manufacturer
-
Product Code
ZM34649
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 8Mpx
- Enclosure: Tube
- Night visibility: up to 25m
- Number of cameras: 10
- Connectivity: Wired
- Color: White
Ask about this product show form
Related products
Product Description

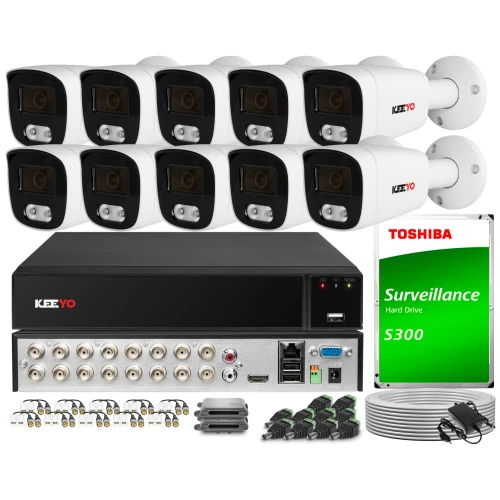

KIT CONTENTS:
- 8Mpx camera KEEYO LV-E-AL8M25TF-B (10pcs).
- KEEYO LV-V-XVR-16CH DVR (1pc).
- TOSHIBA S300 surveillance hard drive ( 1pc ).
- UTP cable (50m.).
- Set of converters ( 10pcs ) and DC plugs ( 10pcs ).
- Power splitter ( 2pcs. )
- Power supply for cameras ( 2pcs. )
- "ATTENTION MONITORED OBJECT" sticker ( 1pcs).
Features of LV-E-AL8M25TF-B camera
- Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
- 4K resolution matrix - Video footage is recorded at a high resolution of 3840 x 2160.
- Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
- Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
- 12V power supply
- Wide viewing angle - The diagonal field of view is 110°.
- Weatherproof - The camera is IP67-rated, which means it can work in the harshest conditions.
Main features of KEEYO LV-V-XVR-16CH DVR:
- Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
- Up to 16 analog cameras can be connected
- H.265+ video compression
- Human silhouette detection
- Live viewing, recording and playback of footage from cameras up to 8Mpx
- 1 SATA interface for recording and backup
- 1 10/100Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern housing
- Built-in web server, support via CMS or mobile client
Main features of Toshiba S300 hard drive
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: SATA III (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
Capture the largest possible area
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The LV-E-AL8M25TF-B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality imageThe light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The LV-E-AL8M25TF-B records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
|  |
Automatic Day/Night mode
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Wide Dynamic Range: DWDR
The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
Resistant to weather conditions
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Technical specifications of the camera:
| Model | LV-E-AL8M25TF-B |
|---|---|
| Camera | |
| Image sensor | 1/2.5" CMOS sensor |
| Image resolution | 8M: 3840*2160, 5M: 2592*1944, 4M: 2560*1440, 2M: 1920*1080 |
| TV system | PAL/NTSC |
| Electronic shutter | Automatic |
| Minimum illumination | Color: 0.03 lux@F2.0, AGC on; B/W: 0 lux with IR |
| Scanning system | Progressive scanning |
| Lens | |
| Focal length | 2.8mm |
| Focus control | Fixed |
| Type of lens | Fixed focal length |
| Night vision | |
| IR filter | Yes |
| Infrared LEDs | 42µ x 2 pcs |
| Infrared range | 25m |
| IR status | Automatic AGC control |
| Camera functions | |
| Day/Night | Yes |
| OSD menu | Yes |
| WDR | DWDR |
| UTC | Yes |
| Noise reduction | DNR |
| Audio | YES (TVI only) |
| White balance | AUTOMATIC / MANUAL |
| Gain control | AUTOMATIC |
| General | |
| Housing | Metal, IP67 |
| Bracket | Yes |
| Operating temperature | -10℃ ~ +60℃, maximum humidity 95%. |
| Storage temperature | -20℃ ~ +60℃, maximum humidity 95% |
| Power source | DC12V±10%, 500mA |
| Dimensions | 169(W) x 67.5(H) x 70(D) mm |
| Weight | 500g |
Technical specifications of the recorder:
| Model | LV-V-XVR-16CH |
|---|---|
| System | |
| Main processor | MC6680 |
| Operating system | Embedded Linux |
| Video | |
| Input | Analog: 16* (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 8* Network (Max 8MP) Analog + Network: 2* Analog (8MP) + 22* network (Max 8MP), 4* Analog (8MP) + 20* network (Max 8MP), 6* Analog (8MP) + 18* network (Max 8MP), 8* Analog (8MP) + 16* network (Max 8MP), 10* Analog (8MP) + 14* network (Max 8MP), 12* Analog (8MP) + 12* network (Max 8MP), 14* Analog (8MP) + 10* network (Max 8MP), 16* Analog (8MP) + 8* network (Max 8MP) Network: 32* 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤160M) |
| Input | 16CH BNC |
| Signal type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1x HDMI, 1x VGA, 1x CVBS |
| Audio | |
| Input | 6 RCA channels, AOC support |
| Two-way audio | No |
| Output | 1 RCA channel |
| Alarm | |
| Sensor input | 4 |
| Output | 1 |
| Motion detection | 16 channels |
| Alarm events | Recording, email, screen messages, buzzer, push notifications (motion detection) |
| E-mail alert | Sending video to a specified email address |
| AI functions | |
| People detection | Yes |
| PTZ (pan, tilt, zoom) | |
| Interface | RS485 |
| Protocols | Pelco-D, Pelco-P |
| Transmission speed | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1920 × 1080P, 1280 × 1024, 1280 × 720, 1024 × 768 |
| HDMI output | Resolution: 4K, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Screen division | 1/4/6/9/16/25/36 |
| Privacy masking | 3 rectangular zones (for each camera) |
| OSD (information displayed) | Camera name, time, video loss, alarm, motion detection, recording |
| Recording | |
| Video compression | H.265/H.265+/H.264/H.264+ |
| Audio compression | G.711u/G.711a |
| Resolution | 5MP (2560×1952), 8MP_LITE (1920×2160), 5MP_LITE (1280×1952), 1080P (1920×1080), 720P (1280×720), 960H (960×480) |
| Video quality | Lowest/Low/Medium/Good/Better/Best |
| Recording speed | Analog: PAL: 8MP_LITE (1920×2160 16*8fps), 5MP (2592×1944 16*6fps), 5MP_LITE (1280×1952 16*10fps), 1080P (1920×1080 16*15fps) NTSC: 8MP_LITE (1920×2160 16*8fps), 5MP (2592×1944 16*6fps), 5MP_LITE (1280×1952 16*10fps), 1080P (1920×1080 16*15fps) Network: PAL: 8MP@20x25fps, 5MP@32x25fps, 4MP@32x25fps, 3MP@32x25fps, 1080P@32x25fps, 960P@32x25fps, 720P@32x25fps NTSC: 8MP@20x30fps, 5MP@32x30fps, 4MP@32x30fps, 3MP@32x30fps, 1080P@32x30fps, 960P@32x30fps, 720P@32x30fps, D1@32x30fps |
| Recording modes | Manual/Timer/Motion Detection/Alarm |
| Playback and Backup | |
| Decoding | 8*1080P@30fps |
| Synchronous playback | Analog mode: 16CH 8MP_LITE@8fps, 16CH 5MP@6fps, 16CH 5MP_LITE@10fps, 16CH 1080P@15fps, 16CH 720P@15fps, 16CH 960H@30fps Mixed mode: 2CH 4K@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 5CH 3M@30fps, 8CH 1080P@30fps, 16CH 5M@6fps, 15CH 8M_LITE@8fps, 16CH 1080P@15fps Pure IPC: 2CH 4K@30fps, 3CH 5M@30fps, 4CH 4M@30fps, 5CH 3M@30fps, 8CH 1080P@30fps |
| Remote playback | 4 channels / 1 channel |
| Search mode | All, Channel, Manual, Time, Date, Motion detection, Alarm, Tag |
| Playback functions | Playback, Pause, Stop, Forward/backward, Single frame, Digital zoom, Full screen |
| Smartphone playback | 4 channels |
| Backup mode | USB device (FAT32) / Network / FTP |
| Network | |
| Interface | 1x RJ45 10M/100M |
| Network functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
| DDNS | Dyndns, ChangeIP, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET |
| Browsers | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Windows 7/8/10/11, macOS |
| Additional stream | CIF/D1 (1-30fps) |
| Mobile application | iPhone, iPad, Android |
| Hard drive | |
| Interface | 2x SATA |
| Capacity | 2x SATA (2.5"/3.5", up to 16TB) |
| General | |
| Languages | Polish |
| UTC control | Yes |
| USB interface | 2x USB 2.0 |
| Power supply | DC 12V/4A, ≤15W (without hard drive) |
| Operating environment | -10~50℃/10~90% |
| Dimensions | 310 × 295 × 46 mm |
| Weight | 3.5 kg (without HDD) |
