IP Monitoring Kit KEEYO 32x LV-V-IP8M25TF-G-II 8Mpx IR 25m

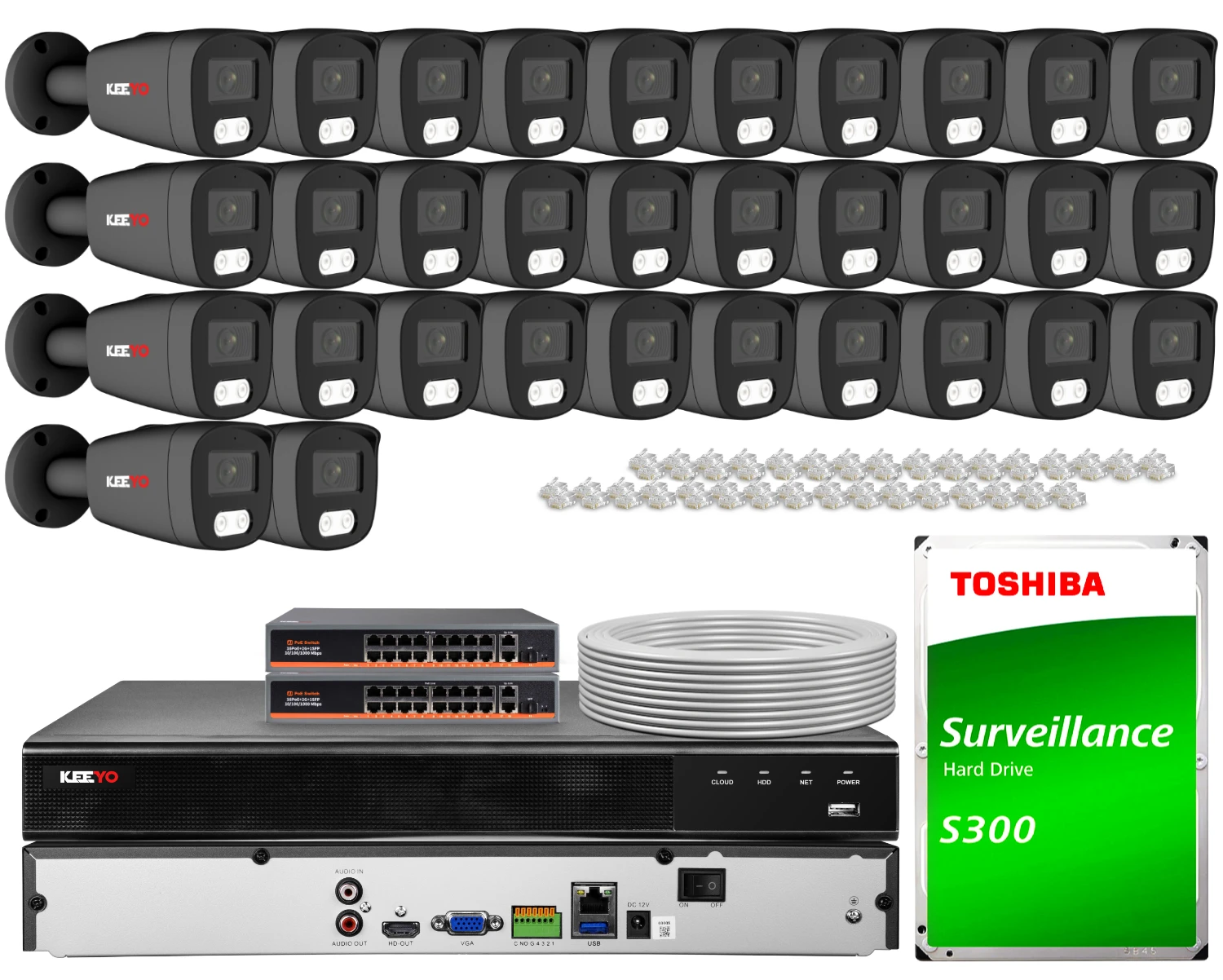

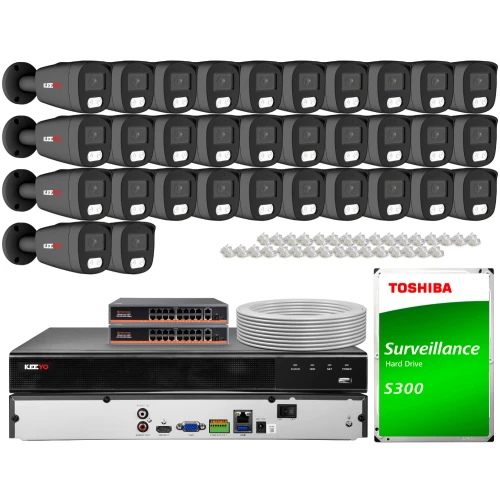

The set includes:

• KEEYO LV-V-NVR-32CH-K2 DVR ( 1pc ).
• KEEYO LV-V-IP8M25TF-G-II camera ( 32pcs ).
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cat.5e cable ( 160m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of RJ45 plugs

Main features of the set:

• Complete monitor kit with 32 cameras, DVR and all necessary accessories.
• Video footage is recorded in high resolution 2616x1964.
• Support for IP cameras from other manufacturers.
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• P2P (cloud) support - a function that allows remote access without port forwarding and public IP address.
• Save recordings on the DVR or to a memory card. The camera supports cards with capacities up to 1TB.
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions.
• Audio recording with the camera's built-in microphone.
• Built-in web server, operation via CMS or mobile client.
• Wide selection of AI functions.
• Two high-power IR LEDs to accurately illuminate the space of your property.
• In addition to the image, the camera also captures the audio track.
• The camera is IP67-rated, which means it can work in the harshest conditions.

Remote access from desktop computers and smartphones

Bitvision is a quick and easy way to operate your property monitoring system, thanks to it you will be able to:

✅Access video previews and playback stored footage

✅Save snippets of video to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Features of the LV-V-IP8M25TF-G-II camera

• Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
• Sony sensor - High-quality optical components to ensure crystal clear video capture.
• 8Mpx matrix - Video footage is recorded at a high resolution of 3840 x 2180.
• Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
• Mobile app - Free app for mobile devices. The Bitvision app is available on the Google Play Store and Apple App Store.
• Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
• PoE power - A twisted-pair UTP cable connected to the power supply is all you need to run the camera.
• 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
• ROI function - The camera compresses the image to allow instant recording. This has a slight impact on its quality. With the ROI function, you can designate an area of the frame you are interested in, which the camera will keep in the best possible quality, while reducing it where it is not so necessary.
• AI functions
• intruder detection
• line crossing
• wandering
• detection of gatherings
• vehicle detection
• trespassing in the area
• Two ways to save data - Save recordings on the DVR or to a memory card. The camera supports cards with capacities of up to 1TB.
• Wide viewing angle - The diagonal field of view is 128°.
• Built-in microphone - In addition to the video, the camera also captures the audio track.
• Corridor mode - Allows the use of panoramic image cameras in areas with high vertical span.
• Weatherproof - The camera is IP67-rated, which means it can operate in the harshest conditions.
• Snow reduction - In harsh conditions, digital cameras tend to generate noise. The IP5M25TF-II reduces this noise, leaving the image smooth and detailed.
• Privacy Masks - There may be objects or other properties in the frame that you can exclude from monitoring with privacy masks. Draw a black rectangle in the frame to obscure a portion of the image.
• HLC function - That is, compensation of the image when the light falls straight into the lens. This allows the camera to see the whole scene even under the sun.
• WEB interface supporting popular browsers - You will log in to the camera in well-known browsers like Google Chrome, Mozilla Firefox and Safari.
• ONVIF support - The camera is remarkably versatile. With ONVIF support, it interoperates with devices from many other brands.

Power Over Ethernet (PoE)

The LV-V-IP8M25TF-G-II 's Power over Ethernet (PoE) feature is a technology that allows data and electrical power to be transmitted to a network device over a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Support for popular browsers

The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.

Accurate notifications without false alarms

The LV-V-IP8M25TF-G-II's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With this detection, the camera has the ability to perform additional detection tasks. The LV-V-IP8M25TF-G-II additionally detects:

• Line crossing
• Wandering
• Assembly
• Intrusion into the area

Built-in microphone

The built-in microphone on the LV-V-IP8M25TF-G-II enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 8Mpx resolution ensuring that even the smallest detail is captured on the footage.

SONY sensor The Sony IMX335 sensor is a 1/2.8-inch CMOS image sensor with a resolution of 5 megapixels, which provides high image quality in low-light conditions thanks to STARVIS technology for excellent light sensitivity. The matrix also features high resolution and dynamic range, making it ideal for surveillance and security camera applications.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide Dynamic Range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Region of interest

The Region of Interest (ROI) function of the LV-V-IP8M25TF-G-II allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in that area while reducing quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.

Weatherproof

With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials used for its housing.

Main features of the LV-V-NVR-32CH-K2 DVR:

• Support for IP cameras from other manufacturers
• Possibility to connect up to 32 IP cameras
• H.265+ video compression
• Live viewing, recording and playback of footage from cameras up to 12 Mpx
• 2x SATA interface for recording and backup
• 1 10/100/1000Mbps network card with automatic speed selection
• Simultaneous HDMI/VGA output
• In-app support via mobile devices with systems: Android, iOS
• Web browser support: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
• Modern casing
• Built-in web server, support via CMS or mobile client
• ONVIF support

Features of Toshiba S300 Surveillance 1TB drive

• The Toshiba S300 Surveillance 1TB drive is designed for surveillance, providing reliable storage space.
• It is available in a 3.5-inch format, making it easy to install in standard enclosures.
• It features a SATA 6 Gbps interface for fast data transfer.
• It operates at 5,700 RPM, which optimizes its performance in monitoring systems.
• The drive has a 64MB cache (buffer), which speeds up read and write operations.
• It was designed specifically for use in monitoring systems and supports simultaneous recording from up to 64 high-definition cameras.
• The drive is designed for continuous operation, which means reliable 24/7 operation.
• Dynamic Cache technology allows for optimal cache management in the data read and write cycle.

Technical specifications:
