HiLook by Hikvision IP-VIS-ULTRA Video Intercom

IP-VIS-ULTRA package contents:

In the box, in addition to the complete IP-VIS-ULTRA video intercom kit, you will also find useful instructions and installation accessories to speed up the entire video intercom installation process.

The box includes:

• HiLook monitor DS-KH8520-WTE1 (1pc).
• DS-KV9503-WBE1 outdoor panel (1pc).
• DS-3E0105P-E/M 4-port PoE switch (1pc).
• Power supply (1pc)
• Mounting adapters
• Mounting screws

HiLook by Hikvision products focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.



Characteristics of IP-VIS-ULTRA video intercom:

• Two high resolution FullHD cameras
• Viewing angle for one camera - 88° horizontally
• Wide range of authentication methods - Face Recognition, PIN, Proximity Card/Tag, QR Code, Bluetooth
• Hands-free touchscreen monitor - 10.1-inch LCD screen for easy operation and communication.
• Control of two locks
• Tamper detection - alarm system activated when the device is detached from the ground.
• IP surveillance cooperation - allows integration with a video surveillance system.
• Internal memory of 128MB - for storing pictures automatically taken in case of no answer to the bell.
• Possibility to power devices via PoE
• Built-in WiFi module - allows for easy and fast connection to a home wireless router.
• Operation via the Hik-Connect mobile app - allows remote control and monitoring of the device using a phone.

The IP-VIS-ULTRA video intercom allows remote control via the Hik-Connect / HiLook App mobile app, which is compatible with both Android and iOS. The app offers a number of features:

• Remote viewing of video from the video intercom in real time.
• Playback of stored recordings and receipt of notifications.
• The ability to chat with visitors, such as couriers or guests.
• Controlling access to the entrance.
• Archiving the history of events in the system.
• In addition, the app allows you to manage other systems, such as video surveillance or an alarm system, making it a versatile tool for managing the security of your home or office.

Wireless connectivity The IP-VIS-ULTRA video intercom monitor with WiFi module offers several advantages. First, it allows wireless transmission of video and audio, which gives you the flexibility to place the monitor anywhere in your home without pulling cables. Secondly, by connecting to a WiFi network, users can remotely monitor their doors and interact with people outside via a mobile app, adding convenience and security. In addition, a monitor with a WiFi module often also offers additional features, such as saving video to a memory card or the cloud, which increases the functionality and usability of the device.

DS-KV9503-WBE1 outdoor panel:

• 4.3" color LCD display with 800x480 resolution
• Two fullHD cameras with IR illumination
• Physical call button
• IP65 and IK08 protection
• Access methods: Face recognition, PIN code, Card/proximity key fob, QR code, Bluetooth
• Control of two locks
• Full support via network : WiFi / LAN,
• Tamper detection - detachment from the ground

HiLook DS-KH8520-WTE1 monitor:

• 10.1" diagonal
• Wi-Fi - IEEE 802.11 b/g/n,
• Built-in microphone,
• Built-in speakers,
• Two-way communication,
• Infinitely adjustable monitor parameters: brightness
  image, ring and call volume,
• Automatic picture taking and saving in case of
  no answer to the call button,
• Cooperation with Hikvision IP cameras,
• Possibility of direct communication between two or
  more panels,
• Recording a short voice message in case of
  no answer to the call button
• Supports photo capture during video calls
• Support for microSD cards max. 32 GB (not included)
• The device is fully configurable using
  iVMS4200 software.
• In addition, the device has the ability to work with the
  Hik-Connect application for mobile devices

Integration with monitoring system IP-VIS-ULTRA allows you to configure the monitor with CCTV cameras from the same manufacturer, so you can have your own small monitoring center.

Power Over Ethernet IP-VIS-ULTRA video intercom devices with Power over Ethernet (PoE) offer several advantages. First, they eliminate the need for additional power cables, which will simplify installation and reduce costs. Second, they allow data and power transmission over a single Ethernet cable, which increases reliability and ease of system maintenance.

DS-KV9503-WBE1 Bell Module:

Model	DS-KV9503-WBE1
System parameters
Operating system	Linux
ROM	4GB
RAM memory	1GB
Processor	Built-in high performance processor
Display parameters
Screen size	4.3 inches
Operation method	Capacitive touch screen
Type	IPS
Resolution	800 × 480
Brightness	425 cd/m²
Video parameters
Lens	2
Resolution	2 × 2 MP
Viewing angle (FOV)	Horizontal: 88°, Vertical: 44°
Wide dynamic range (WDR)	Supports 120 dB
Backlight	IR light, up to 3m
Audio parameters
Microphone	Built-in omnidirectional microphone
Audio compression standard	G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio output	1 speaker
Audio compression bit rate	G.711u, G.711a, Opus: 64kbps; G.722.1, G.726: 32kbps; AAC-LD, AAC-LC: 16kbps
Audio quality	Noise suppression and echo cancellation
Volume control	Adjustable
Capacity
User capacity	20000
Face capacity	10000
Card capacity	100000
Internal station connection capacity	500
Sub-door station capacity	16
Network parameters
Network protocol	TCP/IP, RTSP
Wi-Fi:	IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth	Supports 2.0
Authentication
Card reading frequency	13.56 MHz
Face recognition distance	0.3 to 2 m
Face recognition time	< 0.2 s per person
Interfaces of the device
Alarm input	4 (2 exit buttons and 2 door contacts by default)
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
Tamper	1
Exit button	2
RS-485	1
Lock control	2 relays, max. 30 VDC 2 A, lock requires security module
Door contact input	2
General
Button	1 physical button
Installation	Surface mounting
Weight	Net weight: 0.405 kg, Gross weight: 0.752 kg
Protection level	IP65, IK08
Operating temperature	-40°C to 60°C (-40°F to 140°F)
Operating humidity	10% to 90% (non-condensing)
Dimensions (S × W × D)	182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
Power supply	12 VDC, 1.5 A, IEEE802.3af, PoE standard
Application environment	Outdoor
Power consumption	≤ 6 W
Language	English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek

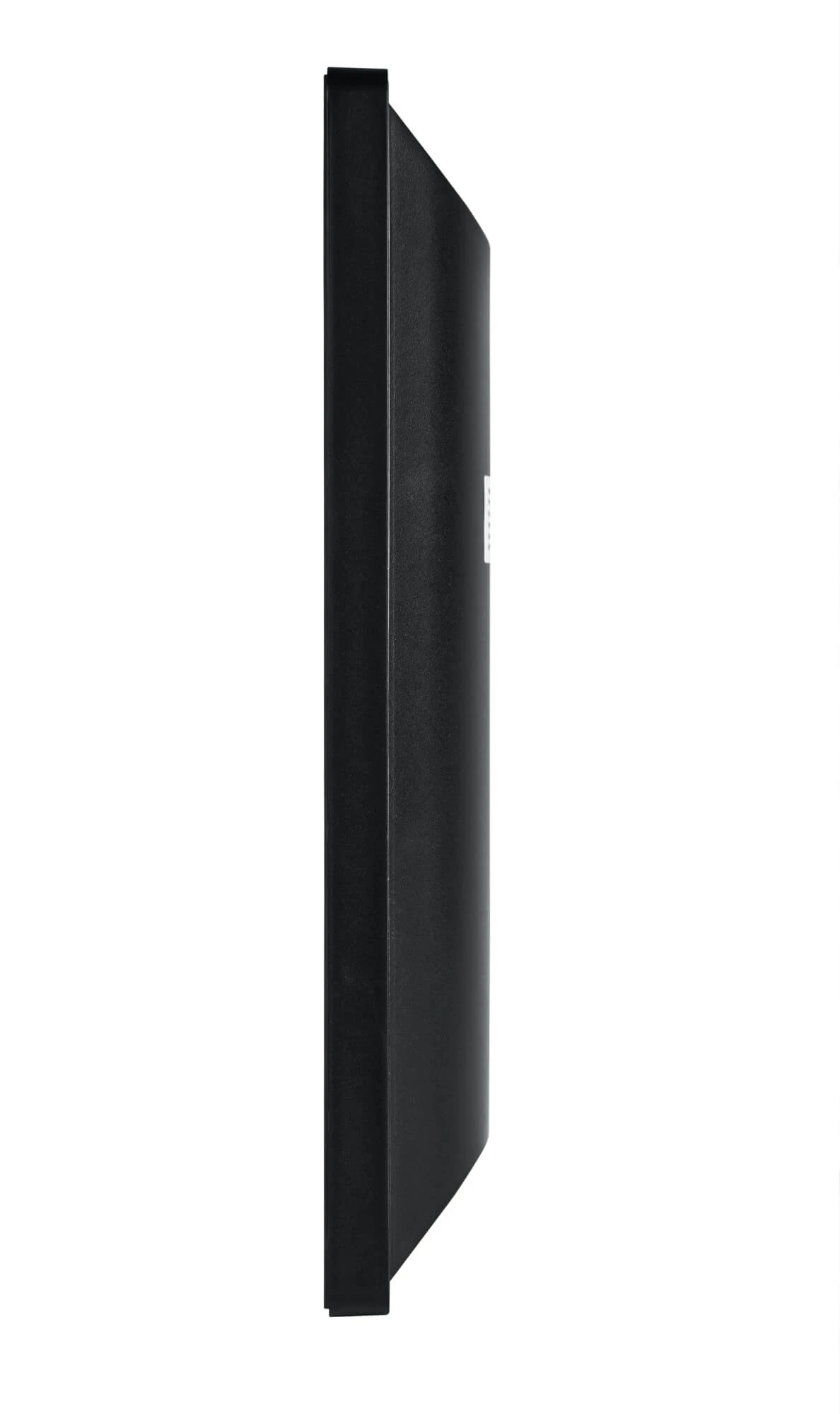

Monitor DS-KH8520-WTE1:

Model	DS-KH8520-WTE1
System parameters
Memory	128MB
Flash	32MB
Operating System	Built-in Linux operating system
Display parameters
Screen	10.1-inch color TFT screen
Display resolution	1024 × 600
Operating method	Capacitive touch screen
Audio parameters
Audio input	Built-in microphone
Audio output	Built-in speaker
Audio compression standard	G.711 U
Audio compression speed	64 Kbps
Audio quality	Noise suppression and echo cancellation
Network parameters
Wired network	10/100 Mbps self-adaptive
Wireless network	Wi-Fi 802.11b/g/n
Network protocol	TCP/IP, SIP, RTSP
Network interface	1 RJ-45 10/100 Mbps self-adaptive
Alarm input	8 alarm inputs
Relay output	2
Memory card	Max 32 GB, SD 2.0 or older version
RS-485	1
General
Power supply	IEEE802.3af, PoE standard, 12 VDC/1 A
Power consumption	≤ 6 W
Operating temperature	-10°C to 55°C (14°F to 131°F)
Operating humidity	10% to 90%
Material	PC + ABS
Dimensions	254 mm × 166 mm × 14.7 mm (10.0" × 6.5" × 0.58")
Weight	1118 g (with packaging), 660 g (without packaging)
