KEEYO IP Monitoring Kit 10x LV-V-IP5M25TF-G-II 5Mpx, IR 25m, Audio, AI, Sony Starvis

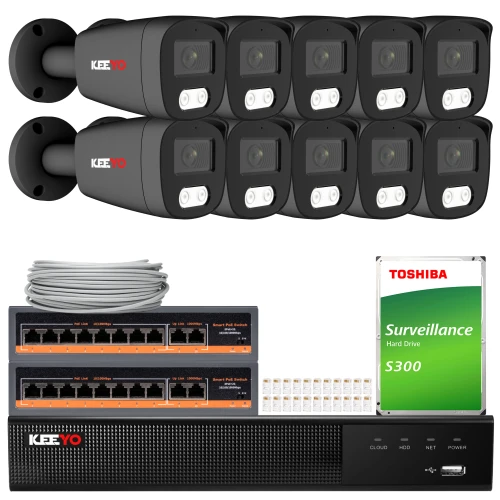

The image shows a comprehensive IP surveillance system, including ten black security cameras, a network video recorder, two network switches, a Toshiba surveillance hard drive, and a bundle of cables. This setup is designed for robust and efficient monitoring, suitable for both residential and commercial use.
A sleek black security camera with a modern design is shown alongside a smartphone displaying its interface. The camera features dual lenses and LED lights, emphasizing its advanced surveillance capabilities.
A sleek black network video recorder with a textured front panel and LED indicators for cloud, HDD, network, and power status. The device is shown alongside a smartphone displaying a surveillance app interface.
  • Manufacturer

    KEEYO
  • Product Code

    ZM34715

  • Warranty

    24 miesiące

  • Technology: IP
  • Resolution: 5Mpx
  • Enclosure: Tube
  • Number of cameras: 10
  • Connectivity: Wired
  • Color: Black

Ask about this product show form

Files attached to the product show files

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

778,54 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Related products

Product Description

Choosing a complete monitoring kit ensures easy and quick installation, as all components are already compatible with each other. Our kits offer full technical support and upgrades to ensure long-lasting and reliable protection.

Kit contents:

  • 10x LV-V-IP5M25TF-G-II Outdoor Tube Camera.
  • 1x KEEYO LV-V-NVR-16CH DVR
  • 2x 8-port PoE switch
  • 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
  • 50m UTP cat.5e cable
  • Set of RJ45 plugs

Main features of the set:

  • IMX335 image sensor from SONY guaranteeing richly detailed images
  • 5Mpx resolution
  • 1TB drive for storing recordings
  • Live viewing, recording and playback of footage from cameras up to 8 Mpx
  • Support for up to 9 IP cameras
  • Intelligent search of recordings
  • Infrared illumination range: 25m
  • Cameras with PoE power supply capability
  • Ai features:
    • intruder detection
    • line crossing
    • straying
    • detection of gatherings
    • detection of vehicles
    • trespassing
  • Wide diagonal viewing angle: 128°
  • Cameras with built-in microphone
  • Corridor mode
  • Support by popular web browsers: Google Chrome, Mozilla Firefox, Safari
  • Support in mobile app on Android and iOS smartphones

Remote access from desktops and smartphones


Bitvision is a simple and fast way to operate your property's video surveillance system, with it you will be able to:

✅Access video previews and playback stored footage


✅Save snippets of video to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees.



Power Over Ethernet (PoE)


The LV-V-IP5M25TF-G-II's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.



Support for popular browsers


The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.




Accurate notifications without false alarms


The LV-V-IP5M25TF-G-II's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With this detection, the camera has the ability to perform additional detection tasks. The LV-V-IP5M25TF-G-II additionally detects:

  • Line crossing
  • Wandering
  • Assembly
  • Intrusion into the area



Built-in microphone


The built-in microphone on the LV-V-IP5M25TF-G-II enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.


High-quality image


The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured on the footage.


SONY sensor

The Sony IMX335 sensor is a 1/2.8-inch CMOS image sensor with a resolution of 5 megapixels, which provides high image quality in low-light conditions thanks to STARVIS technology for excellent light sensitivity. The matrix also features high resolution and dynamic range, making it ideal for surveillance and security camera applications.


Automatic Day/Night mode


Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.


Wide Dynamic Range: DWDR


The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.



Region of Interest

The Region of Interest (ROI) function of the LV-IP5M25TF-G-II allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in that area while reducing quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.


Weatherproof


With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.


Technical specifications:

Camera:

CameraLV-V-IP5M25TF-G-II
Camera
Image sensor1/2.8" SONY Starvis CMOS sensor with back illumination
Resolution5MP
Image resolution2616x1964
CompressionH.264/H.264+/H.265/H.265+
Audio compressionG711A/U,AAC
TV SystemPAL/NTSC
Electronic shutterAuto: 1/3-1/100000
Minimum illuminationColor: 0.006 Lux @ (F1.6, AGC ON), Black & White: 0 Lux with IR
S/N Ratio60dB
Lens
Focal length and field of view2.8mm / 106° (horizontal), 56° (vertical), 127° (diagonal)
Lens typeFixed focal length
FocusFixed
ApertureF1.6
Night vision
Assist light42µ x 2PCS
Range of assist light25 meters
Control of the booster lightIntelligent, Manual, By schedule
Networking
EthernetRJ-45 (10/100Base-T)
ProtocolsTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
ONVIFS/T/G profile version 19.12
P2PYes
POEIEEE 802.3af
Main stream2592x1944 at 30fps
Sub stream1280x720 at 30fps
Browser supportGoogle Chrome, Mozilla Firefox, Safari
Mobile applicationAndroid, iOS
Ai features
Intelligent analysisIntrusion detection (based on human and vehicle detection),
line crossing detection (based on human and vehicle detection),
presence detection (based on human detection),
gathering detection (based on human detection),
motion detection based on human detection,
entering the area (based on human and vehicle detection),
leaving the area (based on human and vehicle detection).
Camera functions
Day/NightColor/Black/White
Image configurationSaturation/Brightness/Contrast/Focus, Reflection, 3DNR, White balance, Anti-flicker, Strong light compensation
Corridor modeYes
Region of interestYes
Backlight compensationYes
Wide dynamic rangeYes
Motion detectionYes (silhouette recognition of people and cars)
Privacy masks3 rectangular masks
LanguagePolish
Interfaces
AudioBuilt-in microphone
MicroSD card slotYes (supports up to 1TB cards)
General
HousingMetal, IP67
Environmental temperature-30° to +60° Humidity 95%.
Power supplyDC12V, 700mA / PoE
Dimensions70 x 67.5 x 169 (mm)
Weight600g

Recorder:


DVRLV-V-NVR-16CH
ProcessorARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input16CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc.).
Output1 VGA, 1 HD
Audio
Input1 RCA port, support 16CH IPC audio
Output1 RCA port (line-level, 1kΩ), HD output
Audio bit rate64kbps
Audio compression standardG711u, G711a, ADPCM_DVI4
Intercomsupport (two-way)
Alarm
Sensor inputN/A
Sensor outputN/A
Motion detection16 channels, MD zones: 396 (22 × 18)
Trigger eventsRecording, E-mail, FTP, Snapshot, Buzzer and on-screen guidance
Display
HD Output14K(38402160), 19201080, 12801024, 1280720, 1024*768
HD Output2N/A
VGAResolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display division16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
Digital zoomYES
OSDCamera title, time, recording, motion detection, event alarm
Recording
Video compressionH265/H264/H265+/H264+
Resolution4K(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Recording speed"PAL: 4K@10CHx25fps,5MP@16CH×25fp,4MP@16CHx25fp,3MP@16CH×25fp,1080P@16CH×25fp, 960P@16CH×25fp,720P@16CH×25fp, D1@16CH×25fp NTSC: 4K@10CHx30fps,5MP@16CH×30fp,4MP@16CH×30fp,3MP@16CH×30fp,1080P@16CH×30fp, 960P@16CH×30fp, 720P@16CH×30fp, D1@16CH×30fp"
Recording modeManual/Timer/Motion Detection/Intelligent Events
Playback and backup
Local synchronous playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps
Decoding capability4CH 1080P(1920x1080)@30fps
Remote synchronous playbackYES
Search modeALL, Video by time, Motion detection, Alarm, Search by tag, Smart events, Image, Log
Playback functionsPlayback, pause, fast forward, fast reverse, previous frame, next frame, electronic zoom, trim, audio
Copy creation modeCopy creation mode
Network
Interface1xRJ45 10M/100/1000MInterface Ethernet (Adaptive)
Incoming bandwidth120Mb
Network functionsIPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvifonvif S, onvif T
Web browserEdge, IE8-11, Google Chrome, Firefox, Safari
CMS softwareWindows 7/Windows 8/Windows 10/MAC OS support
Cloud supportYes
SmartphoneiPhone, iPad, Android, Android Pad
POEBuilt-in 8-port PoE switch
WIFIN/A
Storage
Interface type1 SATA hard drive interface (3.5" SATA)
CapacityMaximum 8 TB
eSATAN/A
General
Interface languageSimplified Chinese, Traditional Chinese, English, Polish, Russian, German, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian
USB interface2 USB 2.0 interfaces
RS485N/A
Power consumptionDC12V∕2000mA ≤10W (without hard drive)
Operating environment-10℃~50℃, 10%~90% (humidity)
Dimensions (S × G × W)260 × 230 × 43 mm
Weight2 kg (without hard disk)

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

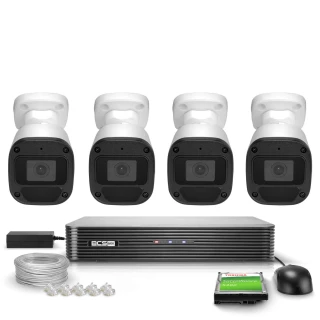

The image shows a complete IP PoE surveillance system, featuring four white security cameras, a central recording unit, and various accessories including cables and connectors. The setup is designed for efficient and reliable video monitoring, suitable for both residential and commercial use.

in stock Shipping 24h

IP PoE 5MP 2K BCS Basic Monitoring Kit with 4x BCS-B-TIP15FR3(2.0) IR 30m Cameras

  • Number of cameras: 4
  • Technology: IP
  • Resolution: 5Mpx
  • Night range: up to 30m
  • Support: Android, iOS, Windows

344,36 € 426,14 €

pcs.

Add to Watchlist

  • Save -19%
The image shows a complete surveillance system featuring six white BCS security cameras, a recording unit, and essential accessories. The set includes a power adapter, a hard drive, a mouse, and connectors for installation.

in stock Shipping 24h

BCS Monitoring Kit 6x BCS-L-TIP18FCR3L3-AI1, 8Mpx, 2.8mm, 0.008Lux BCS

  • Number of cameras: 6
  • Technology: IP
  • Resolution: 8Mpx
  • Night vision: yes
  • Support: Android, iOS, Windows

947,62 € 1 205,84 €

pcs.

Add to Watchlist

  • Save -21%
The image shows a comprehensive IP surveillance system featuring six white dome cameras, a network video recorder, and a 1TB Toshiba surveillance hard drive. Additional components include a network switch, Ethernet cables, and connectors, providing a complete setup for security monitoring.

in stock Shipping 24h

Dahua IP Monitoring Kit 6x IPC-HDW2849TM-S-IL-0280B WizSense 8.3Mpx 4K UHD Dahua

  • Number of cameras: 6
  • Resolution: 8Mpx
  • Night visibility IR/LED: up to 30m
  • Lens: 2.8mm
  • Connectivity: wired

870,43 € 1 580,52 €

pcs.

Add to Watchlist

  • Save -45%
The image shows a complete surveillance system featuring four dome security cameras, a digital video recorder, and various accessories including cables and connectors. The set is designed for comprehensive monitoring, providing high-quality video capture and reliable storage solutions.

in stock Shipping 24h

Monitoring set 6x LV-E-AL5M25DF-G 5Mpx, 1x LV-E-XVR-4CH KEEYO

  • Number of cameras: 4
  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 5Mpx
  • Night range: up to 25m
  • Support: Android, iOS, Windows

229,50 €

pcs.

Add to Watchlist

The image shows a comprehensive IP surveillance system, including multiple white dome cameras, a digital video recorder, a Toshiba surveillance hard drive, and various accessories like cables and connectors. The setup is designed for robust security monitoring, featuring the BitVision app for remote access.

in stock Shipping 24h

KEEYO IP Monitoring Kit 14x LV-V-IP8M25DF-B-II 8Mpx IR 25m

  • Technology: IP
  • Resolution: 8MP
  • Housing: Dome
  • Number of cameras: 14
  • Connectivity: Wired

1 191,82 € 1 402,25 €

pcs.

Add to Watchlist

  • Save -15%

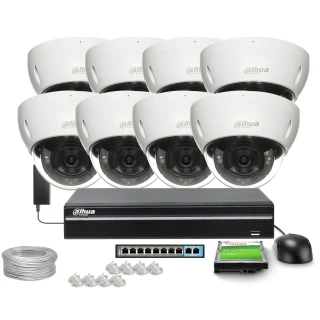

Zestaw do monitoringu IP Dahua 8x IPC-HDBW2649E-S-IL-0280B 6Mpx, Smart Dual Illuminators 30m

in stock Shipping 24h

Zestaw do monitoringu IP Dahua 8x IPC-HDBW2649E-S-IL-0280B 6Mpx, Smart Dual Illuminators 30m

  • Technologia: IP
  • Rozdzielczość: 6Mpx
  • Widoczność w nocy: do 30m
  • Liczba kamer: 8
  • Łączność: przewodowa

1 405,70 €

pcs.

Add to Watchlist

The image shows a complete IP surveillance system featuring four dome cameras, a Toshiba S300 surveillance hard drive, a network video recorder, and a bundle of cables and connectors. The cameras are designed for security monitoring, and the system includes all necessary components for setup.

in stock Shipping 24h

KEEYO IP Monitoring Kit 4x LV-V-IP5M25DF-G-II 5Mpx, IR 25m, Audio, AI, Sony Starvis

  • Number of cameras: 4
  • Technology: IP
  • Resolution: 5MP
  • Night range: up to 25m
  • Supported platforms: Android, iOS, Windows

344,36 €

pcs.

Add to Watchlist

The image shows a complete surveillance system set, including four white dome security cameras, a black digital video recorder, and various accessories such as cables, connectors, and a hard drive. The components are arranged neatly, highlighting the comprehensive nature of the monitoring kit.

in stock Shipping 24h

4x BCS-P-EIP28FWR3-AI2 8MP Monitoring Kit, IR 30m, WDR 120dB, Audio, Smart Features

  • Number of cameras: 4
  • Technology: IP
  • Resolution: 8MP
  • Night range: up to 30m
  • Compatibility: Android, iOS, Windows

948,54 €

pcs.

Add to Watchlist

The image shows a Dahua IP surveillance system featuring four bullet cameras, a network video recorder, and a Toshiba surveillance hard drive. Additional components include a mouse, cables, and a warning sign for monitored areas.

in stock Shipping 24h

IP Surveillance Kit Dahua WizSense 4x IPC-HFW3841E-AS-0280B-S2, NVR4108-4KS2/L

  • Number of cameras: 4+(4)
  • Technology: IP
  • Resolution: 8Mpx
  • Night range: up to 30m
  • SMD 4.0/ Starlight/ DEFOG

799,22 €

pcs.

Add to Watchlist

The image shows a complete surveillance system set featuring four white dome cameras, a black digital video recorder, and various accessories including cables, connectors, and a hard drive. The components are arranged neatly, highlighting the comprehensive nature of the security package.

Product temporarily unavaliable

4x BCS-EA15FR3(H2) 5Mpx Monitoring Kit, 0.05Lux, 3.6 mm, H: 100°

  • Number of cameras: 4
  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 5Mpx
  • Night range: up to 30m
  • Compatibility: Android, iOS, Windows

316,79 €

pcs.

No product

Add to Watchlist

Quick online quote

Use our calculators for a quote. Fill in the form - Our consultants will prepare a dedicated offer


Our recommendations
