EZVIZ H90 Dual Wi-Fi IP Pan Camera, AI, Auto-tracking

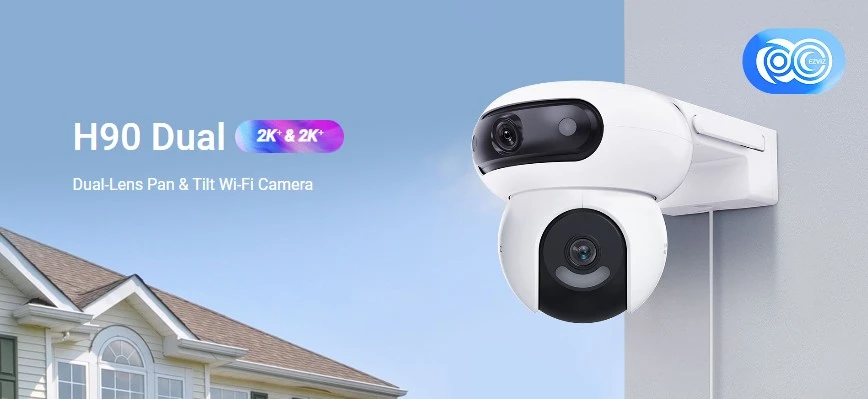

EZVIZ H90 Dual - Wi-Fi rotating camera with silhouette detection

The Model H90 Dual outdoor camera is the answer to almost every need to expand your home security system. What's more, this smart camera distinguishes people and vehicles from other objects, allowing you to track them. In addition, it is weatherproof and has active protection and two-way communication capabilities. The whole thing can be conveniently controlled via an app, offering a range of practical functions.

Package contents:

• H90 Dual rotating camera
• Documentation - User manual, warranty card, adjustments
• Template - A small-sized template with mounting holes for the camera
• Power supply - A key electronic component that provides power to the device
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera's connectors from moisture

Features of the EZVIZ H90 Dual camera

• 2K+ resolution
• Quickly restore pre-configured settings
• Resistant to adverse weather conditions
• 360° panoramic image
• Color night vision
• H.265 video technology
• Intelligent human or vehicle shape detection
• Active defense with alarm siren and strobe lighting
• Smart integration with Google Assistant and Amazon Alexa
• Automatic tracking with zooming
• Two-way conversation
• Support for microSD card (up to 512 GB) and EZVIZ CloudPlay cloud storage

Dual cameras, dual rotation

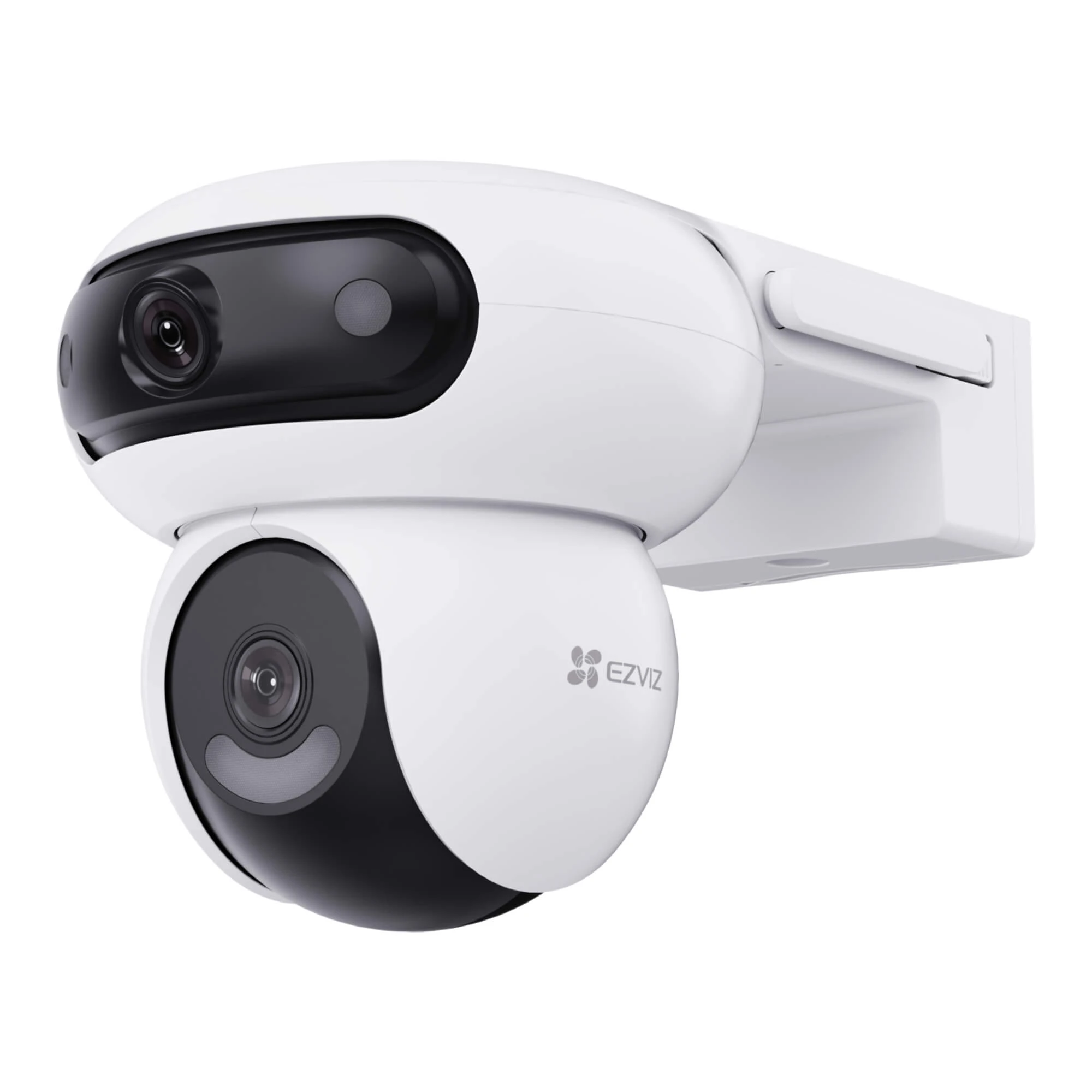

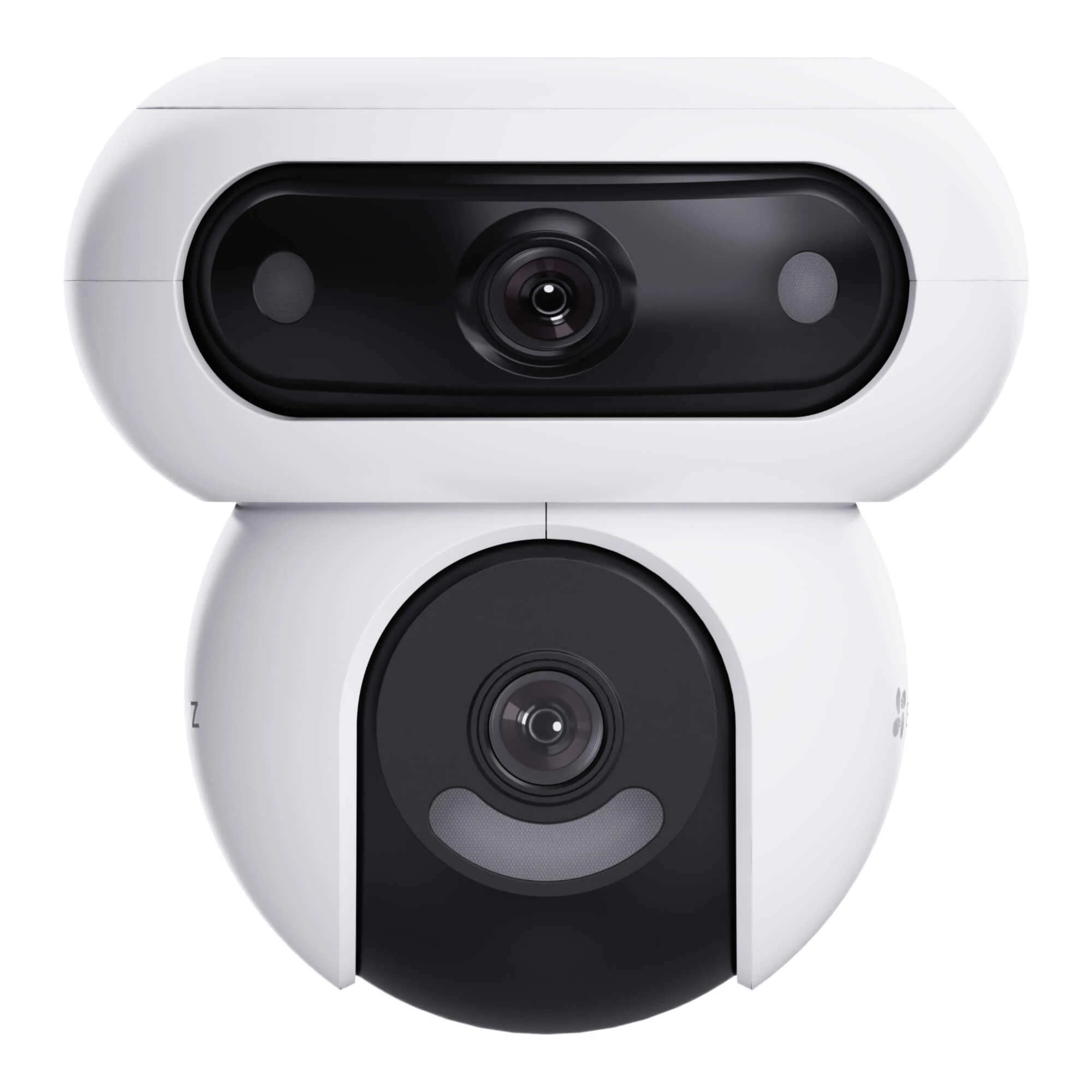

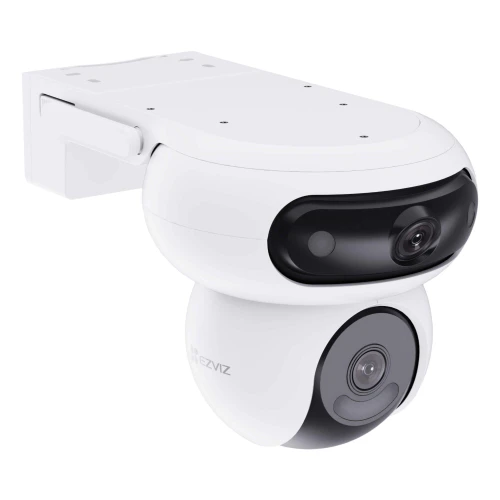

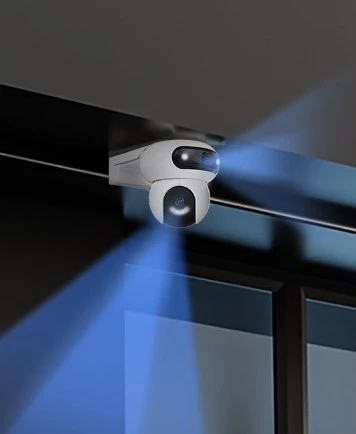

Another innovation in EZVIZ's flagship dual-lens camera series, the H90 Dual takes 360-degree protection to a whole new level by combining two rotating cameras in a single housing. The sphere-shaped camera inherits the valued features of EZVIZ's rotating camera series, while the top camera in the form of a UFO provides an additional wide angle of view to ensure that no corner is left unattended. The two cameras work together intelligently - reacting to each other and synchronizing detection and perspective changes. In short, the H90 Dual offers unparalleled visibility and efficiency in monitoring large spaces.

Intelligent robotic power - dual in one device

Equipped with EZVIZ's dual-lens technology, the H90 Dual is the first camera to use as many as three motors that allow both cameras to rotate smoothly, reducing blind spots as much as possible. This dual-camera system can simultaneously monitor two separate wide areas or record the same event in much greater detail.

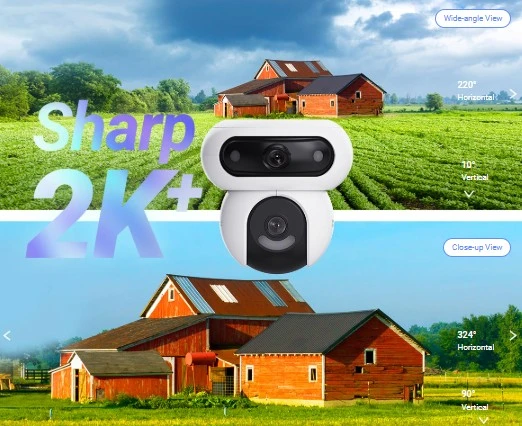

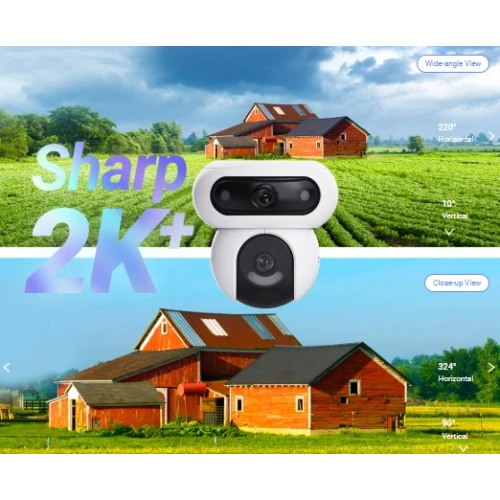

Big and small - everything faithfully captured in 2K+ resolution Let the H90 Dual camera expand your field of view - to both farther and closer objects, so you don't miss anything important. You can set the upper lens to continuously observe a key area from a wide perspective, and use the lower lens to protect what's most important to you.

Click to check - wide and close-up view at the same time With the EZVIZ app, you can simultaneously keep track of the big picture and pay attention to important details. Just touch the desired area in the wide-angle view, and a close-up of the area will automatically appear on the right.

Co-operation technology ready for complex tasks Unlike most dual-lens cameras on the market, which merely combine images from two lenses, the H90 Dual is smart enough to perform complex detection operations while engaging both lenses.

Smarter alerts for appearances and departures In addition to capturing human activity in great detail, the H90 Dual can distinguish the silhouette of a car from other moving objects. If a family member pulls up in your driveway or someone parks in the monitored area, you'll receive an instant alert.

Technical specifications:

Technical specifications
Model	CS-H90-R100-8H44WKFL
Camera
Image sensor	1/3" progressive scan CMOS
Shutter opening time	Self-adaptive shutter
Lens	Top lens: 2.8 mm @ F1.6, Viewing angle: diagonal 110°, horizontal 96°, vertical 54° Lower lens: 6 mm @ F1.6, Viewing angle: diagonal 60°, horizontal 52°, vertical 28°
Rotation range	Upper lens: Pan: 220°, Tilt: 10° (manual vertical angle adjustment) Lower lens: Pan: 324°, Tilt: 90°
Minimum illumination	0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (data from EZVIZ labs)
Lens mount	M12
Day/night mode	IR filter with automatic switching
Noise reduction (DNR)	3D DNR
WDR	Digital WDR
IR night vision	Up to 30 m
Color night vision	Up to 40 m (when both lenses point in the same direction)
Video and audio
Maximum resolution	2K+ (2560 × 1440)
Frame rate	Self-adaptive with network transmission
Video compression	H.265 / H.264
H.265 profile	Main Profile
Video bit rate	Quad HD, Full HD, standard adaptive
Audio bit rate	Self-adaptive
Networking
Wi-Fi standard	IEEE802.11b/g/n
Frequency range	2.4 GHz ~ 2.4835 GHz
Channel width	Supports 20 MHz
Security	WPA-PSK / WPA2-PSK
Transmission speed	11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi pairing	Pairing via AP
Protocol	EZVIZ proprietary cloud protocol
Interface protocol	EZVIZ proprietary cloud protocol
Wired network	RJ45 × 1 (10M / 100M Ethernet port with automatic adjustment)
Features
Smart alarms	Human silhouette detection (AI) Vehicle silhouette detection (AI) Motion detection
Auto-tracking	Supported
Notification area	Customizable
Two-way communication	Supported
Preset positions	Supported
General features	Anti-Flicker, Dual-Stream, Heart Beat, Password protection, Watermarking
Memory
Local memory	MicroSD card support (max. 512 GB)
Cloud	EZVIZ CloudPlay support (subscription required)
General
Operating conditions	-30°C to 50°C, Humidity ≤ 95% (non-condensing)
Degree of protection	IP65 + resistant to 2 hours of rain
Power consumption	Max. 18W
Dimensions	224 × 135 × 136 mm
Packaging dimensions	255 × 176 × 194 mm
Weight	Net weight: 723 g With packaging: 1203 g
Package contents
Included	- H90 Dual 2K+ camera - Power adapter - Drilling template - Sealing kit - Screw kit - Legal information × 2 - Quick start guide
Certifications
Certifications	CE / UL / WEEE / RoHS / REACH
