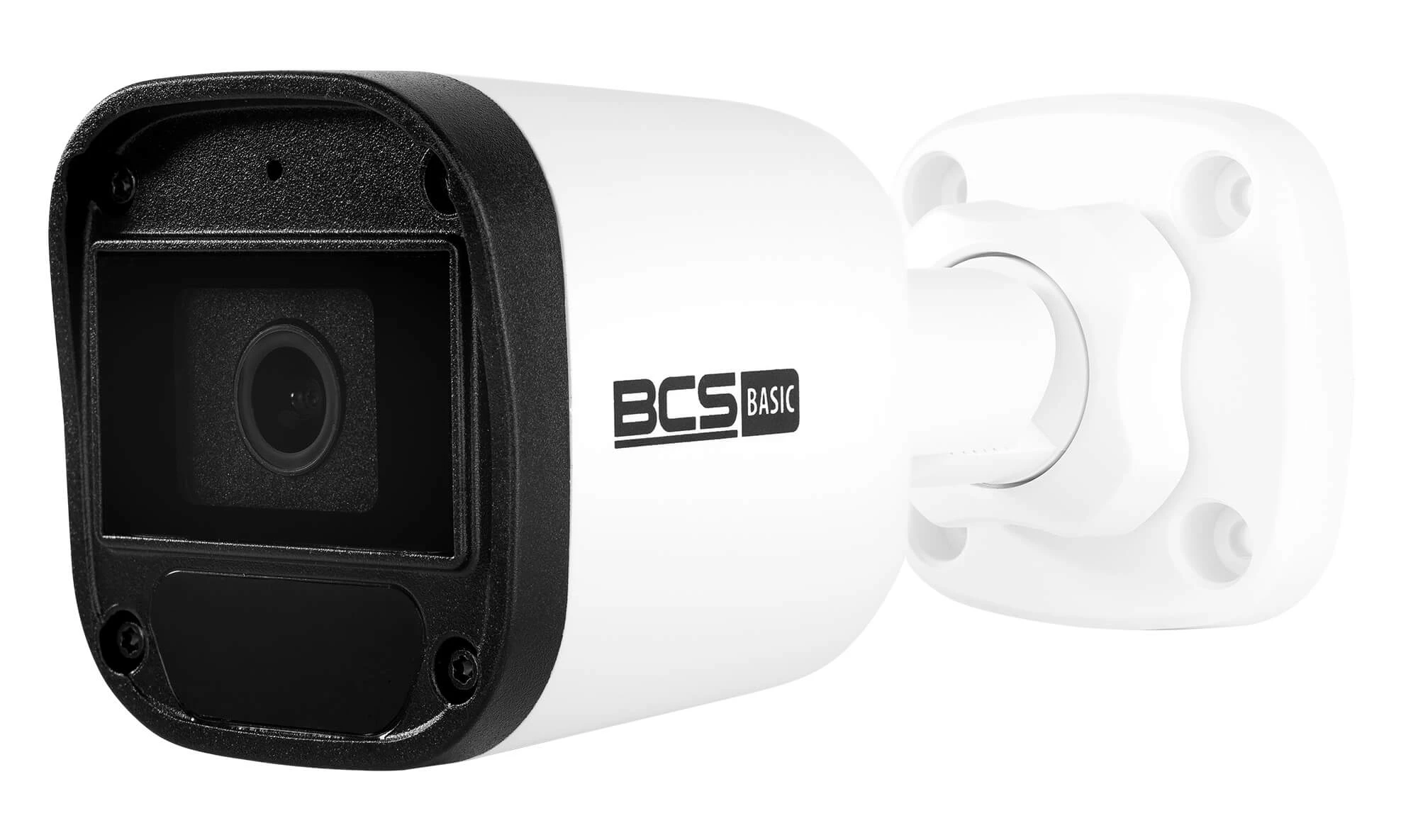

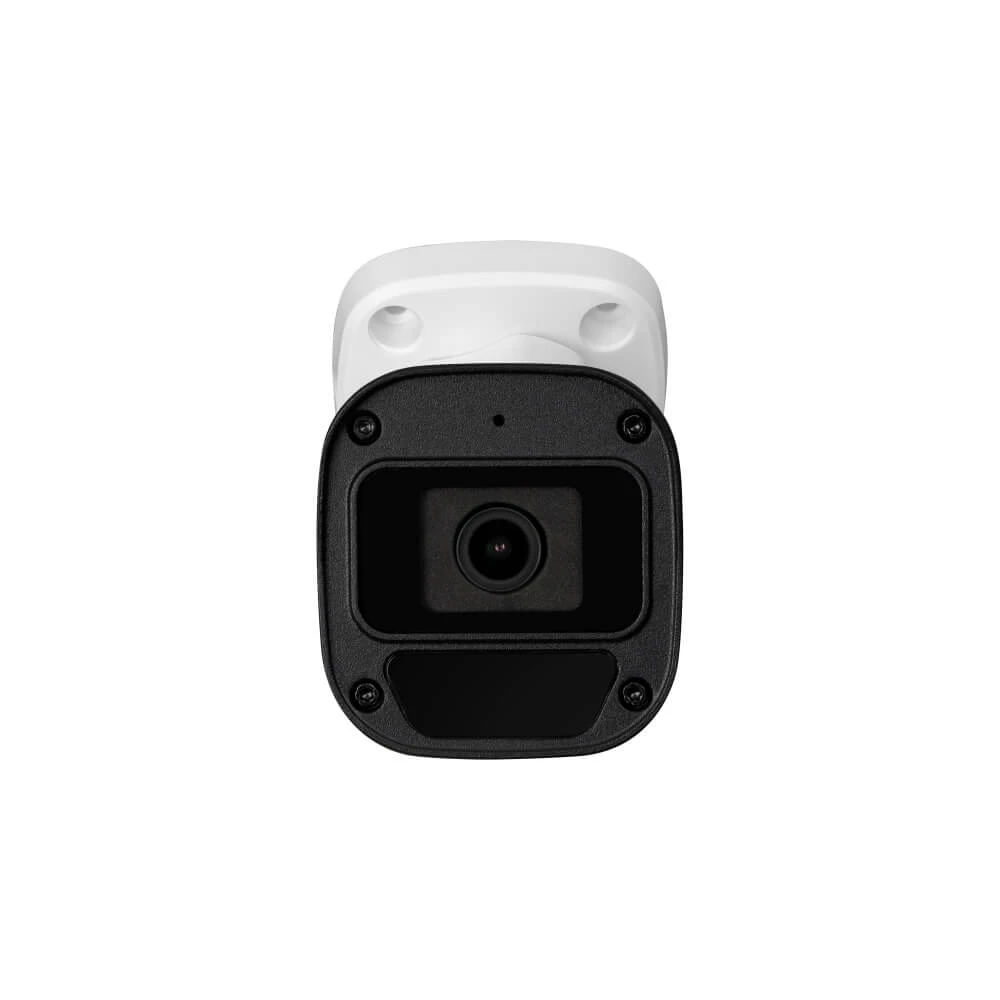

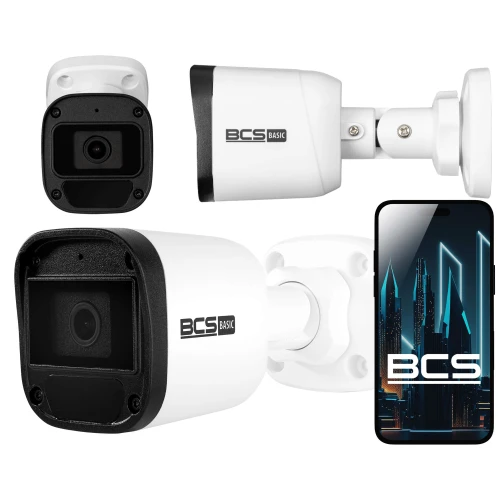

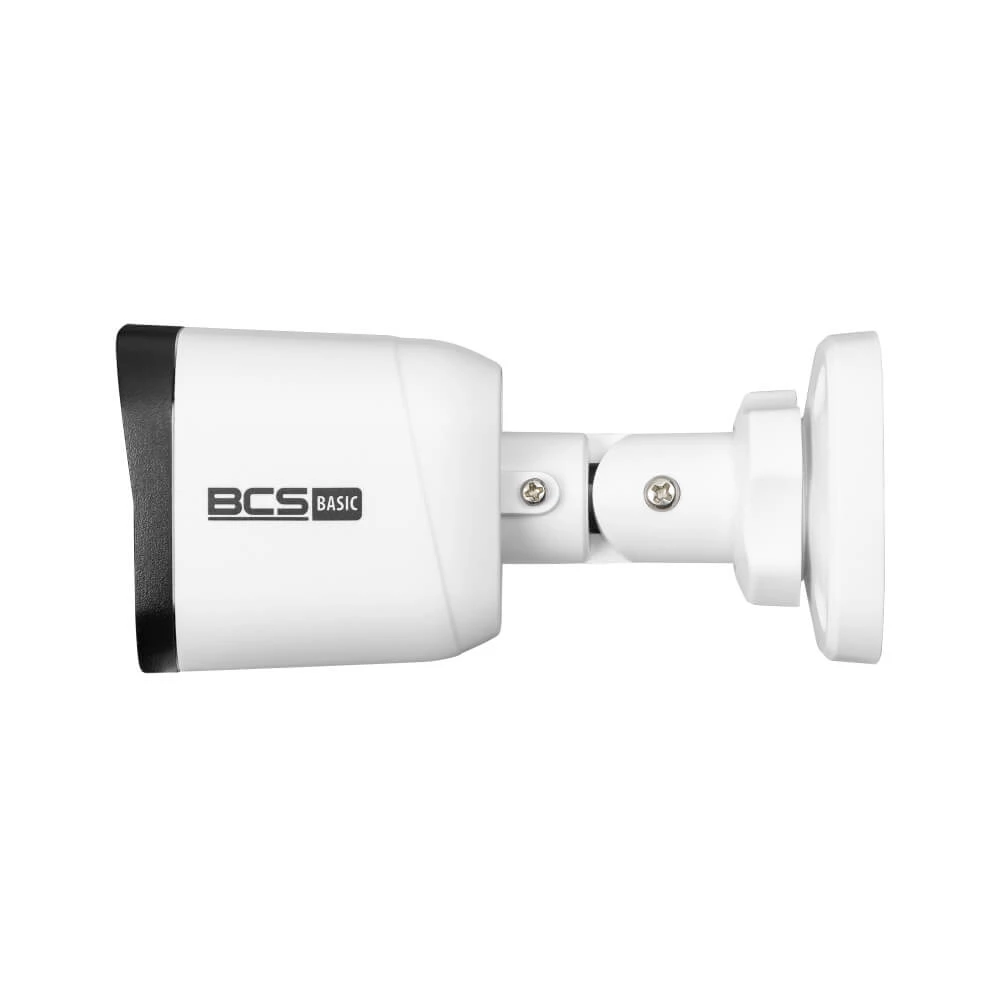

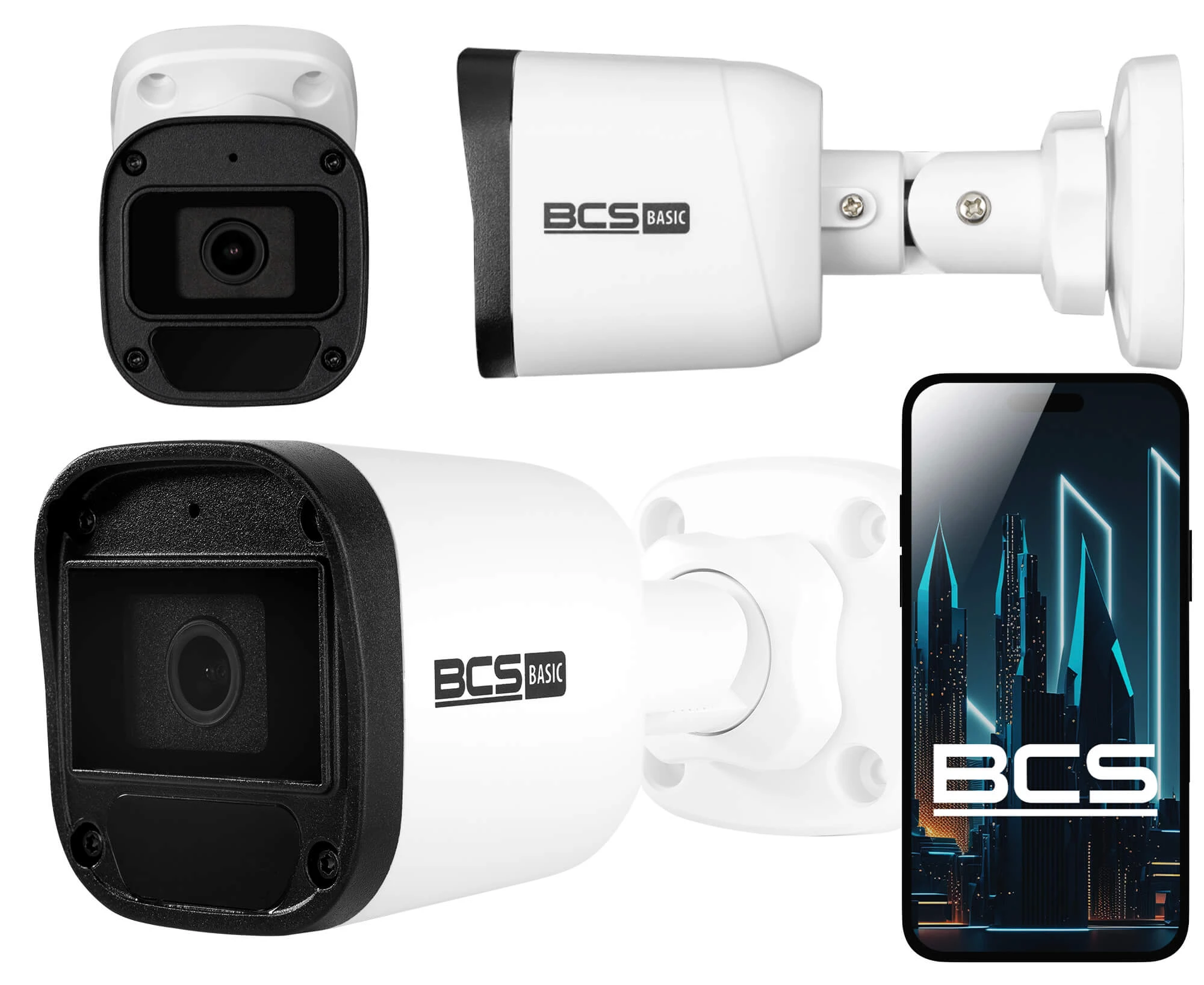

Outlet: IP Bullet Camera BCS-B-TIP15FR3(2.0) 5MP, IR 30m, 2.8mm, BCS

Our Outlet offer is an excellent opportunity to purchase fully operational devices at extremely attractive prices. These products may have minor cosmetic damage, such as scratches, damage to the case or packaging, resulting from previous use or exposure. They may also come in replacement packaging. You will also find products with a 14-day return period, in very good condition, sometimes with minor signs of use or in replacement packaging. The product is covered by a 24-month warranty period

Contents of the BCS-B-TIP15FR3(2.0) package:

In addition to the camera, the box also contains useful instructions and mounting accessories to speed up the whole process of mounting the camera.

• 1x 5Mpx tube camera - BCS-B-TIP15FR3(2.0)
• Documentation - User manual, warranty card, adjustments
• Template - Small size template with camera mounting holes
• Screws and mounting studs - Everything you need to mount the camera
• Waterproof kit - A set of accessories to protect the camera's connectors from moisture

BCS products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Features of the BCS-B-TIP15FR3(2.0) camera:

• 2.8mm varifocal lens
• 5Mpx resolution
• Recording speed: 20fps
• Support for two streams
• Built-in microphone
• Viewing angle: 89° horizontally, 94° diagonally
• Infrared range: 30m
• Wide dynamic range DWDR
• 4 Programmable privacy masks
• PoE support
• IP67 compliant housing
• Operation via web browser and BCS Basic 2 applications

Remote access from your phone and desktop computer BCS-B-TIP15FR3(2.0) allow you to configure, control and preview using BCS Basic 2 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees BCS Basic 2 - Free app for Android and iOS smartphones

P2P function

The BCS-B-TIP15FR3(2.0) is a technology that allows direct communication between a camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function of the BCS-B-TIP15FR3(2.0) is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-B-TIP15FR3(2.0) records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )





Motion detection BCS-B-TIP15FR3(2.0) has a built-in motion detection algorithm in the image. In addition, it allows you to send notifications to your phone or computer. In addition, you can freely set the area you are interested in, so that, for example: you can receive notifications only about motion from the entrance gate. In addition to recording 24/7, the cameras can also record only fragments when motion is detected, which will translate into lower hard disk consumption.







Automatic day/night mode Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.



IP67 compliant housing This housing protects the BCS-B-TIP15FR3(2.0) camera from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.



D.O.R.I.

• Detection (63m): The system is able to detect the presence of an object or person at a distance of up to 63 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Wide dynamic range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) function in the BCS-B-TIP15FR3(2.0) is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.



Video and audio recording The audio recording function of the BCS-B-TIP15FR3(2.0) allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Technical specifications:

Device Name	BCS-B-TIP15FR3(2.0)
Product line	BCS Basic
Camera type	Tube
Resolution	5 Mpx
Sensor	1/2.8''
Scanning system	Progressive Scan
Pixels	2592(H)×1944(V)
Lens	fixed
Focal length	2.8 mm
Aperture	F2.1
Focus	Fixed
Iris	Fixed
Digital zoom	16×
Viewing angle	H: 89.1°, V: 47.3° D: 94.3°
DORI	Detect 63m / Observe 25m / Recognize 13m / Identify 6m
Camera sensitivity	0.02Lux(F2.1,AGC) 0Lux(B/W,IR)
S/N ratio	52dB
White balance	(AWB) Auto / manual
WDR	DWDR
Backlight compensation	BLC / HLC / DWDR
Shutter	Auto / manual 1~1/100000s
Gain control	(AGC) Auto / manual
Noise reduction	2D/3D DNR
Image rotation	Mirror, Flip 0°/90°/180°/270°
Number of streams	2
Resolutions	5M(2592×1944) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
Main stream	2592×1944/2560×1440/2304×1296/1920×1080/1280×720/720×576(30fps)
Second stream	720×576/640×360/704×288/352×288(30fps)
Video compression	H.265 / H.265+ / H.264 / H.264+
Day/night	ICR
Illuminator type	IR
Illuminator	30m
Microphone	Yes
Audio compression	G.711
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detection	Yes
Privacy masks	4
Networking	RJ-45 10/100 Mbps
Compatibility	ONVIF(S/T)
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Power supply type	12VDC / PoE(802.3af)
Power consumption	max 4.5W
Housing color	White
IP class	IP67
Operating conditions	-30°C~+60°C max 95% RH
Dimensions	Ø118×97mm
Weight	0.27kg
