EZVIZ Monitoring Kit 4x PoE Camera 8MP, Recorder, 2TB Drive
Photo gallery
-
Manufacturer
-
Product Code
CS-BN4884
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Tube
- Night visibility: up to 30m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Plug-and-play security
The H3K PoE kit is ready to serve anyone who wants to quickly create a smart security system for their homes or stores. Consisting of four 4K PoE cameras, the kit provides the ability to remotely monitor multiple key areas simultaneously with stunning video and subscription-free detection with just a simple installation. The paired NVR provides central storage for large recordings 24/7, and makes it easy to manage multiple cameras so you can always easily control and adjust your system.

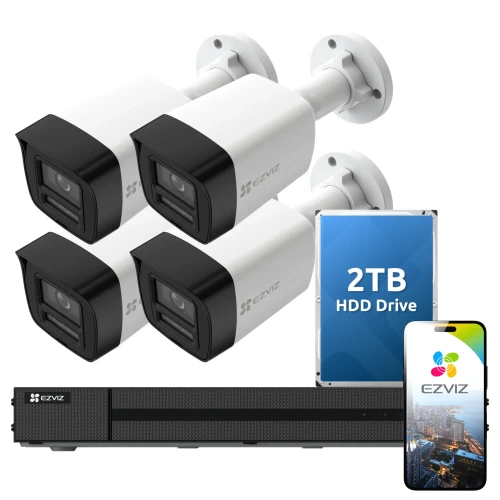

Kit composition:
- H3K PoE 4K camera (×4)
- NVR X5K (×1)
- 2TB hard drive (×1)
- Drilling template (×4)
- Waterproof kit (×4)
- Screw set (×5)
- Mouse (×1)
- Power adapter for recorder (×1)
- Power cable for DVR (×1)
- HDMI cable (×1)
- SATA cable (x1)
- Ethernet cable (x5)
- Quick start guide

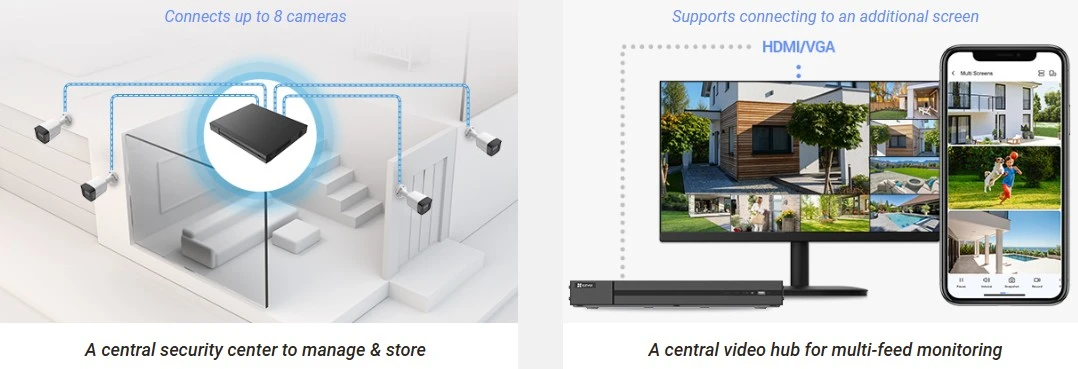

While each camera can be flexibly configured around your property, they can all be managed through one central NVR, so you can always adjust camera settings and have important videos well organized in one place. The NVR-supported system can also be expanded with up to 8 compatible cameras.
Sharp, intelligent eyes for every important moment
With H3K PoE, it's hard to miss an important detail or miss a key activity. It eliminates blind spots caused by image pixelation and immediately alerts you when someone or a vehicle enters monitored areas - all without a subscription.
Easily filter and search for specific events
Long gone are the days when you had to spend hours dragging a long timeline back and forth or scrolling forward through a boring video to find what you really cared about. With the smart playback feature in the EZVIZ app, you can quickly filter videos by setting start and end times and choosing between channels and event types. You can also tag and pin the most important videos in case you need to relive the situation.
One cable to connect and protect
For reliable, wired security with less effort, the H3K PoE camera requires only one Ethernet cable for networking, data and power.
Trusted storage options for high security needs
Say goodbye to expensive storage subscriptions and store your large videos locally. For uninterrupted monitoring, the high-capacity NVR can secure up to 16TB of footage at home with centralized management.² You can also insert extra-large microSD cards of up to 512GB into each camera.
Advanced H.265+ technology for an even better video experience
Even high-definition videos recorded by the H3K PoE load quickly and play back smoothly, thanks to EZVIZ's latest H.265+ video technology, an enhanced version of H.265. For video of the same quality, H.265+ can reduce the file size to as little as 25% of the file compressed with the dominant H.264.³ This means that high-quality videos can be streamed much faster and take up much less space.
CS-BN4884 Kit Technical Specifications:
| Model: CS-X5K-R100-8P/2T | |
|---|---|
| IP video input | 8 channels |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| HDMI output | 1 channel, 4K/2K/Full HD and lower |
| VGA output | 1 channel, up to 1920 × 1080 / 60 Hz |
| Audio output | 1 channel, RCA (line-level, 1 KΩ) |
| Two-way audio | 1 channel, RCA (2.0 Vp-p, 1 kΩ) |
| Decoding format | H.265+, H.265, H.264+, H.264 |
| Recording resolution | 8 MP to CIF |
| Playback synchronization | 8 channels |
| Decoding capabilities | 1 channel@8 MP / 3 channels@4 MP / 6 channels@1080p |
| Stream type | Video, Video and Audio |
| Audio compression | G.711ulaw/alaw, G.722, G.726 |
| Network protocols | TCP/IP, DHCP, IPv4/IPv6, DNS, RTSP, etc. |
| Network interface | 1 x RJ-45 10/100 Mbps |
| PoE interface | 8 x RJ-45 10/100 Mbps |
| PoE power supply | ≤ 80 W, IEEE 802.3 af/at standard |
| SATA | 2 SATA connectors (up to 16 TB total, 2 TB included) |
| USB | 2 × USB 2.0 |
| Power supply | 48 VDC, 2.5 A (≤15 W without HDD and PoE) |
| Operating temperature | -10 °C to 55 °C, humidity 10-90% |
| Dimensions | 385 × 315 × 52 mm |
| Weight | ≤ 2.6 kg (without HDD) |
| Model: CS-H3K-R100-6E8EKFL | |
| Image sensor | 1/2.7" CMOS, progressive scan |
| Shutter time | Self-adaptive |
| Lens | 2.8mm, FOV: h=113°, v=62°, d=134° |
| Minimum illumination | 0.01 lux (F2.0, AGC ON), 0 lux with IR |
| Lens mount | M12 |
| Day/night mode | IR-Cut filter with automatic switching |
| Noise reduction | 3D DNR |
| WDR | 120 dB (TWDR) |
| BLC / HLC | Supported |
| IR range | Up to 30 m |
| Maximum resolution | 4K (3840 × 2160) |
| Frame rate | Max. 15 fps; self-adaptive |
| Video compression | H.265+, H.265, H.264+, H.264 |
| Video bitrate | Ultra-HD, HD, Standard; adaptive |
| Audio compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio bitrate | Self-adaptive |
| Wired network | RJ45 × 1 (10/100 Mbps) |
| Network protocols | TCP/IP, DHCP, DNS, RTSP, etc. |
| Intelligent alarms | Human and vehicle detection with AI |
| Alarm zones | Supported |
| Two-way communication | Supported |
| General functions | Password protection, watermark, etc. |
| Operating conditions | -30 °C to 60 °C, humidity up to 95% |
| Protection class | IP67 |
| Material | Metal |
| Local storage | microSD (up to 512 GB) |
| Power supply | 12 VDC ±25%, PoE IEEE 802.3af, up to 9.5 watts |

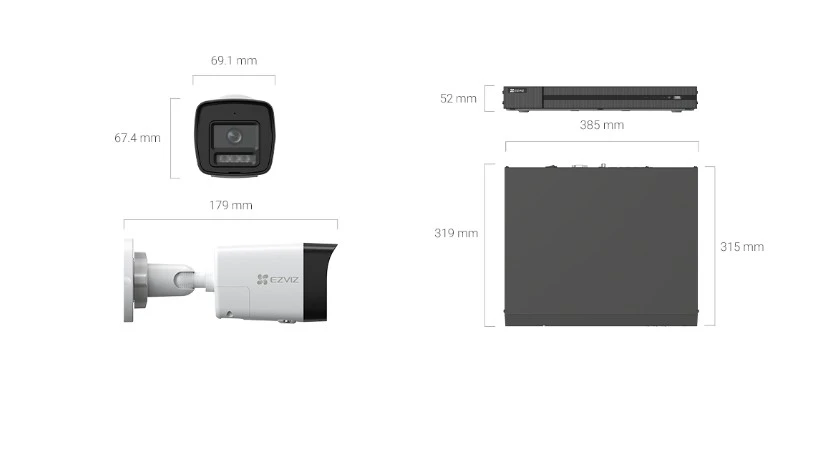

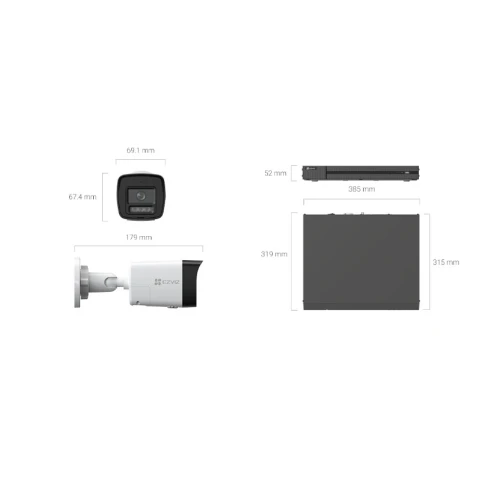

| Dimensions | 179 × 67.4 × 69.1 mm |
| Net weight | Approximately 450 g |
| Kit contents | |
| - 4 × H3K PoE 4K camera - X5K NVR - 4 × drilling template - 4 × waterproof kit - 5 × screw kit - Mouse - Power adapter - Power cable - HDMI cable - SATA cable - 5 × Ethernet cable - Legal information - Quick start guide |
|
| Certifications | |
| CE (EMC / LVD / RED / ROHS / ERP), REACH, SVHC, WEEE, FCC (SDOC / ID), UL, UKCA | |
