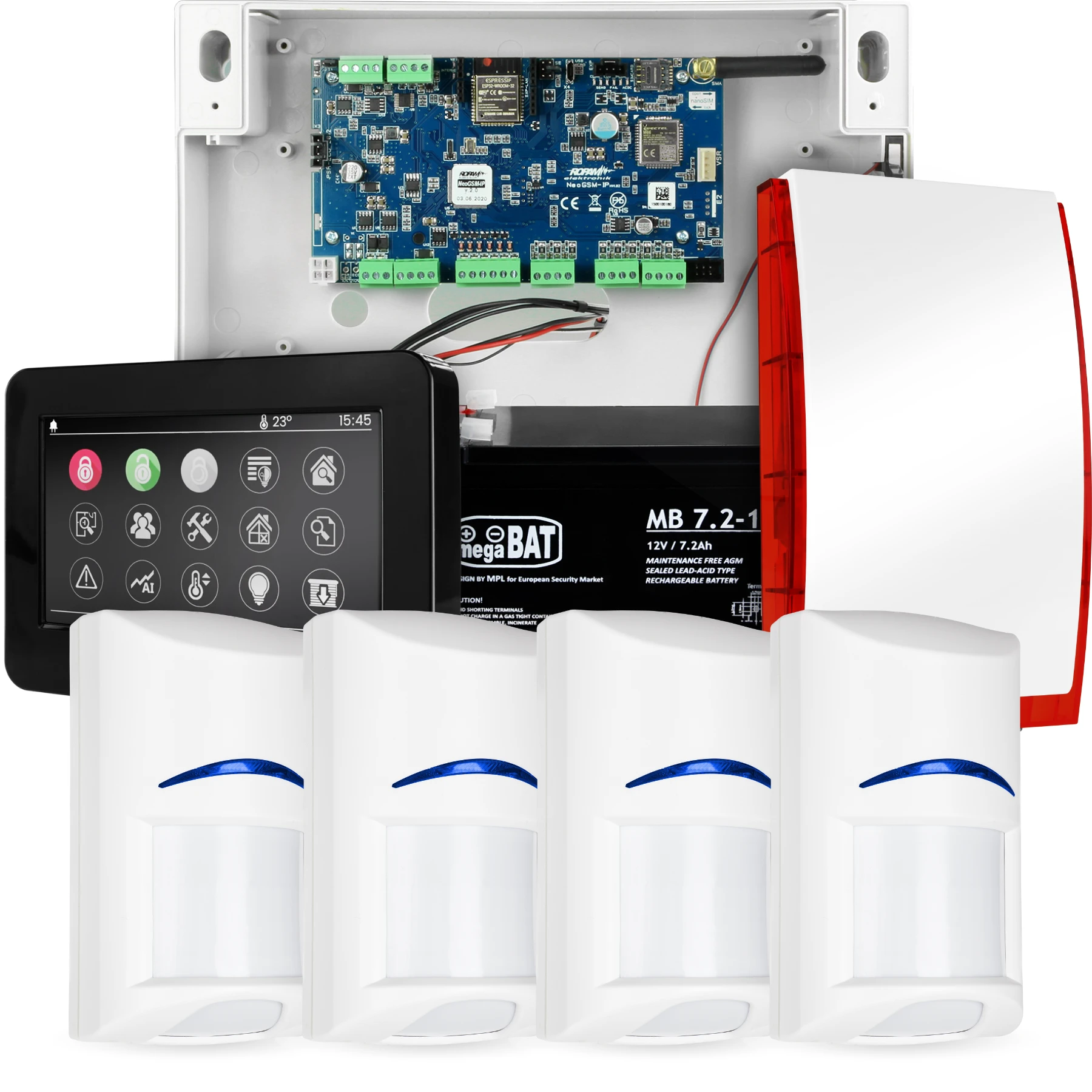

Complete alarm system NEOLTE-IP, 4x BOSCH sensor, TPR-4BS-P, GSM WiFi

Possibility to configure two independent zones

Schedule and time switches The scheduler in the control panels allows the security system to be automatically switched on and off at predetermined times, greatly enhancing user comfort and ensuring that protection is optimized without the need for manual intervention. As a result, users can rest assured about the safety of their property, even when they forget to activate the alarm system, which further contributes to saving energy and resources. In addition, the schedule also allows you to control home automation elements such as lighting, blinds, etc.

Jamming detection The jamming detection function in alarm panels is used to identify attempts to interfere with radio signals, a key aspect of ensuring uninterrupted communication and protecting against advanced attacks. When such an interference attempt is detected, the system can automatically notify owners or a monitoring station of the potential threat, allowing for a quick response and increasing the overall reliability of the alarm system.

Built-in LTE modem The LTE modem in the control panel has several key advantages that significantly affect the efficiency and reliability of alarm systems. Here are the main ones: High-speed data transfer: LTE (Long Term Evolution) offers high data transfer speeds, allowing rapid transmission of alarm information to the monitoring station or directly to the user. This makes response to possible threats much faster. Uninterrupted communication: LTE modems are less susceptible to interference than traditional telephone lines or DSL-based Internet connections, ensuring constant and stable communication between the control panel and monitoring station. Link redundancy: In the event of failure of traditional phone lines or the Internet, the LTE modem can serve as a backup communication link, increasing the reliability of the alarm system. Ease of installation: LTE modems often require fewer cables and are easier to install than traditional wired systems, which can reduce upfront costs and make installation in hard-to-reach areas easier. Mobility and flexibility: By using a cellular network, an LTE modem control panel can be easily moved and installed in different locations, without the need for complicated installation work for phone lines or landline internet. Wide availability: LTE is a technology that is widely available in many countries, making it possible to use alarm systems with LTE modems almost anywhere there is mobile network coverage. These advantages make LTE modems an increasingly popular choice for increasing the efficiency and reliability of alarm systems, especially in areas where traditional communication methods may be ineffective or insufficient.

• screen: 4.3" TFT LCD-LED, touch "TouchPanel".
• touch panel: resistive
• cooperation with control panels: OptimaGSM, NeoGSM-IP and NeoGSM-IP64
• interactive graphic menu with pictograms (icons)
• touch panel supports up to 4 screens depending on which panel it works with:
• NeoGSM-IP (2 screens)
• NeoGSM-IP-64 (4 screens)
• visualization and control of home automation
• functions: room thermostat, calendar, temperature profiles
• bar for additional information on system status
• microSD card slot
• available colors: white or black
• 2 alarm inputs
• random numeric keypad layout function
• acoustic signaling
• EIA-485 bus for communication with control panels (RopamNET protocol)
• USB micro port for firmware update
• housing anti-sabotage protection
• power supply: DC 9V~14V
• dimensions: 122.3x17x88.3mm (W/D/H)

• Full area coverage - excellent detection performance in a 12 × 12 m area,
• Dynamic temperature compensation - excellent detection performance in any conditions
• Changeable mounting height without additional adjustments - reduced installation time and fewer false alarms, increased detection efficiency,
• Self-locking housing and built-in bubble level - reduced installation time

• acoustic signaling: piezoelectric transducer
• optical: super bright LEDs
• tamper protection: against opening, tearing off from the ground
• internal cover made of galvanized sheet metal
• housing made of high-impact polycarbonate
• selectable alarm signal - 3 acoustic signals
• electronics protected against weather conditions
• dimensions: 148x254x64mm (W/H/D)

• power supply compatibility: PSR-ECO-2012
• compatibility: BasicGSM 2, MultiGSM 2 + VAR-1*, OptimaGSM+ EXP-I8 +AP-IP + RF-4*+VAR-1*(* mounting: self-adhesive pins)
• installation of GSM, WIFI antenna inside the housing,
• dimensions 264x253x85 [mm] (WxHxD,
• space for battery: 7Ah/12V V(SLA)
• Ropam tamper - anti-tamper microswitch,
• tamper - opening of the housing,
• material: ABS, light gray color
• locking: bolted x4 from the front of the housing,
• DIN rail (TH35) for mounting PSR-ECO power supply,
• Plexiglas mounting plate, PCB mounting with screws (easy modification, different configuration)

• frequency: dual-band, 900/1800 MHz, omnidirectional
• SMAm connector, 90° angle
• gain: 2.15 dBi
• VSWR <2.0
• impedance: 50 ohm
• polarization: vertical, omnidirectional.
• dimensions: ø 10 x 48 mm
• color: black
• operating temp: -30°C ÷ 85°C

• a modern product, which is able to ensure the efficient operation of the alarm system in a situation of a temporary or prolonged lack of electricitydedicated to power supply systems of control panels
• does not require topping up water and constant maintenance of electrolyte
• can operate in any position

• Power: 30VA (power supply: 230V/50Hz/0.04A).
• Output voltage (SEC): 16.5V/1.8A (wires included).
• Short circuit protection: T250mA fuse.
• Housing: ABS, transformer flooded with resin.
• For mounting in O-R3D, -R4D, O-RHD enclosures interchangeably with DIN rail (or on a flat surface e.g. control cabinets).
