Not sure if the devices you have chosen are suitable? Click here and fill out the form, and our advisor will prepare an offer tailored to your requirements.

Ropam NeoLTE-IP-64 alarm system, 10x BOSCH detector, TPR-7B, GSM, Wi-Fi

Ropam NeoLTE-IP-64 alarm system, 10x BOSCH detector, TPR-7B, GSM, Wi-Fi
  • Manufacturer

    ROPAM
  • Product Code

    ZA34946

  • Warranty

    24 miesiące

  • Number of sensors: 10

Ask about this product show form

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

793,48 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Kit includes:

  • 10x BOSCH PIR detector ISC-BPR2-W12
  • 1x NeoLTE-IP-64 control panel
  • 1x PSR-ECO-5012-RS power supply unit
  • 1x AT-GSM0MINI antenna
  • 1x EXP-I8-RN input expander
  • 1x Connector AT-SMAf-20-SMAm
  • 1x Surface-mounted housing O-R4D
  • 1x Rechargeable battery 12V/18AH Securbox
  • 1x SP-4001 R optical and acoustic siren
  • 1x Ropam TPR-7B touch keypad


Key features of the set:

  • High quality motion detection - BOSCH PIR ISC-BPR2-W12 detector ensures effective detection of intruders.
  • 7" color touchscreen display - integrated glass panel with display in low-profile housing.
  • Detection range of up to 12 meters - ideal for residential and office applications.
  • Ropam NeoLTE-IP-64-SET control panel - modern control panel with LTE, IP and SMS/CLIP communication.
  • Remote management of the system - the ability to operate via mobile application, SMS or web browser.
  • Built-in GSM/LTE module - ensures independence from internet connection and constant contact with the system.
  • Support for PUSH, SMS and e-mail notifications - fast response to alarm events.
  • Backup power supply - 12V/18Ah Securbox battery allows the system to operate even in the absence of mains power.
  • Long backup time - battery capacity allows for several hours of operation without power (depending on load).
  • SP-4001 R signaling device - optical-acoustic signaling device with LEDs and loud signal (approx. 120 dB).
  • Resistance to outdoor conditions - the sounder's housing is suitable for outdoor installation (IP54).
  • Aesthetic and compact design - the devices blend in well with their surroundings.
  • System expandability - the control panel supports multiple inputs/outputs and additional expansion modules.
  • Transmission security - encrypted communication with the application and server.
  • Polish production of Ropam PBX - technical support and manufacturer's warranty available locally.
  • Kit ready for expansion and integration - ideal base for creating an advanced alarm system.

Modern control panel


At the heart of the set is an advanced Ropam control panel, which combines LTE, IP and SMS communication functions. As a result, the system works independently of the fixed Internet, and the user can manage the alarm remotely - via mobile application, SMS, or browser. This is an ideal solution for facilities where fast response and reliability are important.

Aesthetic and functional touch-screen keypad


The touch control panel with a 7" color screen allows intuitive operation of the alarm system. It offers a modern look, graphic menu, personalization, as well as a quick overview of the system status and automation control. Ideal for modern interiors.


Reliable detection


The motion detector uses passive infrared, offering precise detection within a radius of up to 12 meters. Thanks to its high-quality workmanship and advanced signal analysis, it minimizes the risk of false alarms, resulting in stable system operation.

Emergency power supply


A high-capacity battery provides long-term backup of system operation during mains power failure. This guarantees continuity of protection even in the event of power outages - important especially for facilities prone to sabotage.

Effective outdoor siren


The optic-acoustic siren with high volume (approx. 120 dB) and powerful LEDs immediately alerts the surroundings to a threat. The weatherproof housing (IP54) allows for safe outdoor installation.

Remote operation via mobile app


The alarm system can be fully operated from a smartphone - thanks to the dedicated Ropam Optima Control app available for Android and iOS. It allows you to quickly arm/disarm the system, view the status of zones and zones, receive PUSH notifications, and control home automation. This is a convenient solution that allows you to have full control over security - from anywhere in the world.



TPR-7B Technical Specification:

ParameterValue
DisplayColor, 7″, resolution 800x480 px
TouchscreenCapacitive
Available colorsWhite / Black
MenuInteractive, personalized, more than 80 widgets to choose from
Home screens3 customizable screens with free arrangement of icons
Dynamic iconsChange appearance depending on input status
Text promptsFor widgets and their functions
Background color of iconsIndividual, customizable for each icon - NEW
Automation controlRoller shutters, lighting, gates, barriers, thermostat and more
Device groupingAbility to group devices in one widget - NEW
Screen saverCalendar, clock, temperature, photo frame
Sound signalingYes
SD slotBuilt-in
CommunicationRopamNET bus
Software updateFrom SD card - NEW
Alarm inputs2 additional inputs
Outputs1 transistor output
ProtectionHousing anti-tampering
Dimensions177 x 116 x 18 mm
Weight470 g
ConnectorsNon-separable terminal blocks


ISC-BPR2-W12 Technical Specifications:

Application:Internal
Pyroelement:Dual
Sensor type:Passive infrared (PIR).
Range:12 x 12 m
Sensitivity adjustment:No
Pet immunity:No
Maximum output load:100 mA / 25 V DC
Digital temperature compensation:Yes
Power supply:12 V DC / 9 mA
Operating temperature:-10 °C ... 55 °C
Weight:0.08 kg
Dimensions:60 x 105 x 43 mm
Manufacturer/Brand:BOSCH

SP-4001 R Technical Specifications:

Supply voltage12V DC ±15%
Maximum current consumptionOptical signaling: 40 mA
Acoustic signaling: 230 mA
Optical and acoustic signaling: 270 mA
Sound intensity level (from a distance of 1 m)up to 120 dB
Environmental class according to EN50130-5III
Operating temperature-35°C ~ 55°C
Maximum humidity93±3%
Weight890 g
Dimensions (W/H/D)148x254x64mm

Technical specifications 12V/18AH-SECURBOX:

Battery Capacity:18 Ah
Rated voltage:12 V
Battery charging current:< 5.4 A
Battery type:Maintenance-free AGM (Absorbent Glass Mat) battery.
Connector:M5 screw
Battery life:3 ... 5 years
Weight:4.66 kg
Dimensions:181 x 76 x 167 mm
Manufacturer/Brand:SECURBOX

NeoLTE-IP-64-SET Technical Specification:

ParameterValue
Number of zones4
Inputs on board / maximum number16 / 64
Outputs on the board / maximum number8 / 40
Analog input1 (0-10V / 4-20mA)
LTE modemBuilt-in, 4G/2G support (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
Wi-Fi moduleBuilt-in, 802.11 b/g/n, 2.4 GHz, with antenna
IP communicationWIFI/LAN (via EXP-LAN expander), backup: GPRS/LTE
Control panel typeHybrid (wired + wireless ari system)
Number of usersUp to 32
Timers4 with calendar, including astronomical timer
Thermostats8 room ones
Event memoryUp to 10,000
Communication buses2 x RopamNET
Network protocolsMQTT, Modbus TCP/IP, SIA-IP
Power supply230V AC (12V/3A power supply included)
ConnectorsDisconnectable terminal blocks
Device operation and system expansion
Touch panels / keypads4 x TPR-7/TPR-4, TK-4
Proximity readers4 x EXP-NFC-RN
Wireless controller1 x APm-ari
Output expanders4 x EXP-O8R-RN-D9M
Input expanders6 x EXP-I8-RN
RHT sensors8 x RHT-RN / RHT-AQ-RN
Roller shutter controllers4 x EXP-SROL8-RN
Lighting controllers2 x EXP-LIGHT16-RN
Radio controller1 x RF-4C
TSR connectorSupports 4 TSR-1/TSR-2/RHT-2 sensors
Building automation
TSR / RHT sensorsHandling temperature, humidity, air quality
Heating zones8 (room thermostats)
Macros4 programmable control sequences
ControlVia RopamNeo application, SMS, DTMF, CLIP
AI input0-10V or 4..20mA (e.g. voltage, humidity, temperature)
Integration with external systemsModbus TCP/IP, MQTT
Communication and control
SMSNotifications + remote control (separate messages for events)
PUSHNotifications to RopamNeo application
VOICE / CLIPVoice calls at events (up to 16 voice messages)
E-mailEmail with SMTP support (SSL/TLS)
GPRS monitoringCooperation with Monitoring Software Ropam, Kronos NET, SafeStar
Programming and application
Local programmingVia micro USB, WiFi, Ethernet
Remote programmingVia GPRS, IP, LTE
Support for USSD codesYes (pre-paid)
LogicProcessorGraphical DiagramEditor, logic functions, counters, time relays
Mobile applicationRopamNeo (Android, iOS)

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

SATEL PERFECTA 32-WRL LTE Alarm Set, 8x Detector, Siren, Keypad

in stock Shipping 24h

SATEL PERFECTA 32-WRL LTE Alarm Set, 8x Detector, Siren, Keypad

  • Number of sensors: 8
  • Indicator: External
  • Notification: Yes
  • App control: Yes
  • Installation: Wired

795,31 €

pcs.

Add to Watchlist

NeoGSM-IP Alarm System, Black, 2x sensor, GSM Notification, Wifi

in stock Shipping 24h

NeoGSM-IP Alarm System, Black, 2x sensor, GSM Notification, Wifi

  • Number of detectors: 2
  • Keypad type: LCD
  • Operation from application: Yes
  • Notification module: Yes
  • Installation: Wired

450,49 €

pcs.

Add to Watchlist

SATEL INTEGRA 32 Alarm Set, 15x Detector, Siren, White INT-TSI-W Keypad, LTE Communication

in stock Shipping 24h

SATEL INTEGRA 32 Alarm Set, 15x Detector, Siren, White INT-TSI-W Keypad, LTE Communication

  • Number of sensors: 15
  • Indicator: External
  • Notification: Yes
  • App control: Yes
  • Installation: Wired

1 036,07 €

pcs.

Add to Watchlist

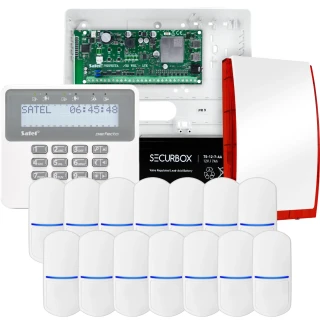

SATEL PERFECTA 32-WRL LTE Alarm Kit, 14x PET Detector, Siren, Keypad

in stock Shipping 24h

SATEL PERFECTA 32-WRL LTE Alarm Kit, 14x PET Detector, Siren, Keypad

  • Number of sensors: 14
  • Indicator: External
  • Notification: Yes
  • App control: Yes
  • Installation: Wired

1 004,36 €

pcs.

Add to Watchlist

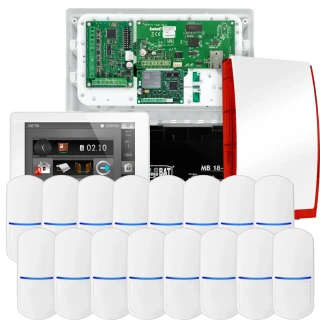

SATEL INTEGRA 32 Alarm Set, 16x Detector, Siren, White INT-TSI-W Keypad, LTE Communication
