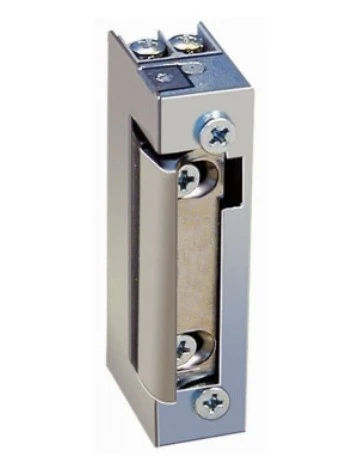

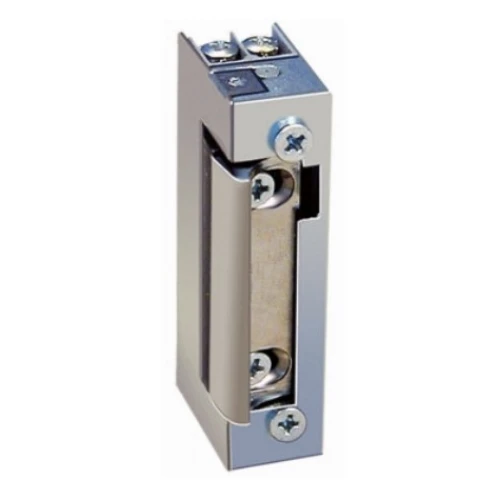

Electric Strike ŁUCZNIK 1418 12-24V AC/DC

Electric Strike ŁUCZNIK 1418 12-24V AC/DC
Electric Strike ŁUCZNIK 1418 12-24V AC/DC
Electric Strike ŁUCZNIK 1418 12-24V AC/DC

Photo gallery

Electric Strike ŁUCZNIK 1418 12-24V AC/DC

  • Manufacturer

    ŁUCZNIK

  • Product Code

    1418 12-24V AC

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

18,61 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

ELECTRONIZER 1418 12-24V AC/DC WITH MEMORY AND SWITCH- universal solution for access control.

Electric strike Łucznik 1418 12-24V AC/DC is a modern and practical solution for remote door opening, which combines reliability of operation, wide range of power supply and mechanical locking function. It is designed for use in access control systems, intercoms and video intercoms, both in residential and commercial buildings. The striker is powered by 12 to 24 volts, both alternating current (AC) and direct current (DC), which provides great flexibility for installation. This makes it easily adaptable to different installations - whether new systems or retrofitted older systems.

The most important feature of this model is the mechanical interlock, also known as the "day opening function." It allows the hitch to be permanently unlocked - without the need to apply voltage. It is enough to move the lever or slider built into the housing so that the door can be opened freely, for example, during office, educational or store hours. At the end of such a period, the door can be locked again, restoring full access control.
The Archer 1418 does not have a memory function, which means that the door is unlocked only for the duration of the electrical impulse. This increases the level of security - once the power supply ceases, the door remains locked....

Technical specifications:

  • Universal (left/right)
  • Symmetrical

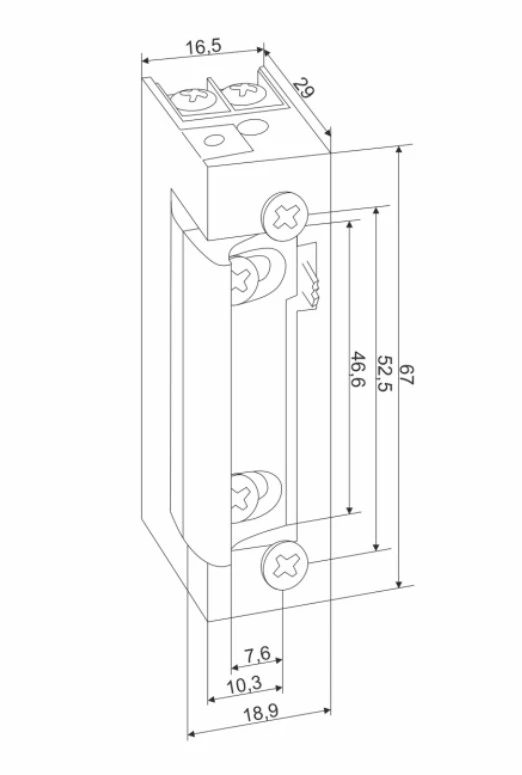

  • Height 67 mm, width 16.5 mm designed for use in narrow profiles
  • Averse NC
  • Mounting screw spacing of 52.5 mm.
  • Tongue adjustment of 4 mm.
  • Models for continuous operation
  • Low current consumption
  • Durability: 200,000 cycles
  • Use category - class 3 - suitable for public buildings
  • Certificate PN-EN 14846:2010
Thanks to its symmetrical design, the electric strike can be installed in left and right doors without the need for special versions. The housing made of durable materials guarantees resistance to mechanical damage and long, trouble-free operation.

In summary, the Łucznik 1418 12-24V AC/DC electric door strike with interlock is an ideal choice for users who need a robust solution for remote access control with the possibility of temporary, manual unlocking of the door. It will work well both in everyday home use and in places where there is more people traffic and additional flexibility is required.

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

Zamknij

Similar products in this category

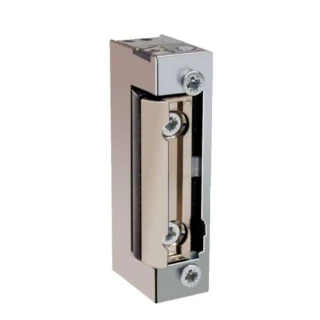

Electric Strike ŁUCZNIK 1428RF 12-24V AC/DC with Switch
