Electric Strike ŁUCZNIK 1420RF 12-24V AC/DC with Switch

Electric Strike ŁUCZNIK 1420RF 12-24V AC/DC with Switch
Electric Strike ŁUCZNIK 1420RF 12-24V AC/DC with Switch

  • Manufacturer

    ŁUCZNIK

  • Product Code

    1420RF 12-24V AC

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

20,53 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Electric strike 1420RF 12-24VAC/DC ŁUCZNIK with switch - universal solution for access control.

The Łucznik 1420RF 12-24V AC/DC electric strike is a basic model designed for remote door opening, ideal for intercoms, video intercoms and simple access control systems. It is characterized by robust construction, a wide range of supply voltage and reliable, classic operation without additional features.

The hitch can be powered by 12-24V volts, both alternating current (AC) and direct current (DC). Such versatility allows it to easily fit into a variety of installations - both modern and older ones that require replacement or upgrade of equipment.
One of the main advantages of this electric door strike is its robust and durable design. It was made of durable materials, resistant to mechanical wear, which translates into a long life even with frequent use. It's a solution that will work well both in domestic conditions and in more demanding applications - for example, in office buildings, schools or workplaces.

The 1420 model does not have a memory or locking function, which means that the door is opened only when voltage is applied - after it is cut off, it returns to a closed state. Such a solution increases the level of security, eliminating the risk of leaving the door open by accident.

Technical specifications:

  • Hook of radial type - opening with minimal pivoting, installation with less undercut of the doorframe
  • Universal (left/right)
  • Symmetrical

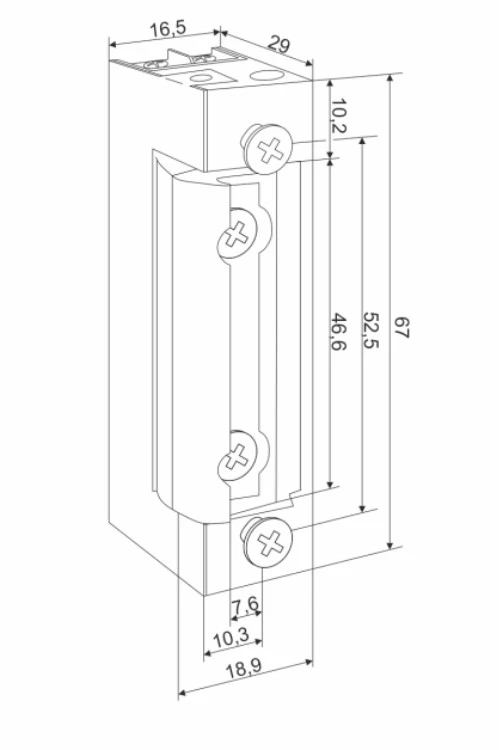

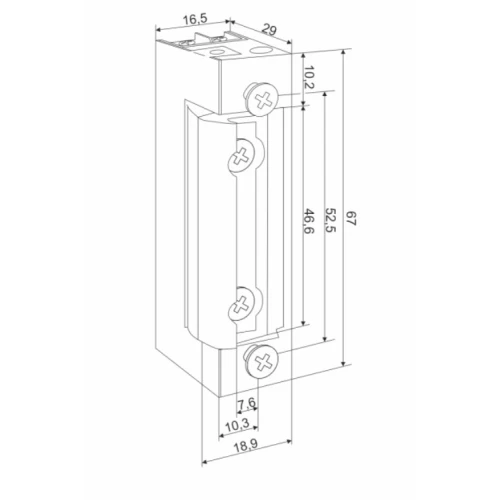

  • Height 67 mm, width 16.5 mm designed for use in narrow profiles
  • Averse NC
  • Mounting screw spacing of 52.5 mm.
  • Tongue adjustment of 2 mm.
  • Low current consumption
  • Durability: 200,000 cycles
  • Use category - class 3 - suitable for public buildings
  • Certificate PN-EN 14846:2010

The housing of the electric door strike has been made of durable material, resistant to daily wear and tear, which ensures long and trouble-free operation of the device even in conditions of intensive use.

The housing of the electric door strike has been made of durable material, resistant to daily wear and tear, which ensures long and trouble-free operation of the device even under conditions of intensive use.
