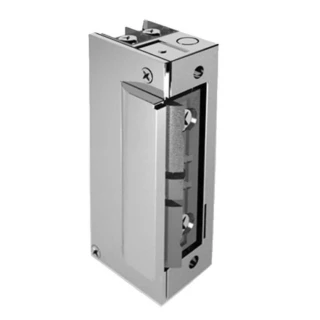

Electric Strike ŁUCZNIK 1418RF 12-24V AC/DC

Electric Strike ŁUCZNIK 1418RF 12-24V AC/DC
Electric Strike ŁUCZNIK 1418RF 12-24V AC/DC

  • Manufacturer

    ŁUCZNIK

  • Product Code

    1418RF 12-24V AC

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

21,95 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

ELECTRONIZER 1418RF 12-24V AC/DC LOW-CURRENT 24V BASIC FOR CONTINUOUS OPERATION AT 24V DC - universal solution for access control.

The Łucznik 1418RF 12-24V AC/DC low-current electric strike is a basic model for continuous operation, designed for simple but reliable access control installations. It combines durability, security and adaptation to long-term power supply, making it an excellent choice for systems that require constant voltage at the striker.
The most important feature of this model is its low-current design, which allows continuous operation at 24V DC without the risk of overheating. This allows the electric strike to remain active for many hours a day, such as in gatehouses, offices, educational institutions or warehouses where doors are frequently opened or are expected to remain unlocked for long periods of time.
Power supply in the range of 12-24V AC/DC ensures compatibility with a wide range of power supply systems. The device does not have additional features such as memory or a switch - it is a basic version that operates in classic mode: the door is open only when voltage is applied, and automatically closes when the voltage is cut off.
The 1418RF electric strike does not have an adjustable latch, so it works best with typical, well-fitted door mechanisms. The symmetrical design allows it to be installed in both left and right doors without having to choose the right version.

Technical specifications:

  • Radial type hinge - opening with minimal pivoting, installation with less undercut of the doorframe
  • Universal (left/right)
  • Symmetrical
  • Height 67 mm, width 16.5 mm designed for use in narrow profiles
  • Averse NC
  • Mounting screw spacing of 52.5 mm.
  • Tongue adjustment of 2 mm.
  • Models for continuous operation
  • Low current consumption
  • Durability: 200,000 cycles
  • Use category - class 3 - suitable for public buildings
  • Certificate PN-EN 14846:2010
The housing of the device is made of durable wear-resistant materials, which ensures reliable operation even under heavy use. It is a solution that works well in places where additional functions are not required, but durability and the possibility of continuous operation are important.

In summary, the Archer 1418RF 12-24V electric strike is a simple, durable and energy-efficient model, ideal for continuous operation in 24V DC-powered systems. It will prove itself where basic functionality, high reliability and resistance to intensive use are needed - without unnecessary extras.
